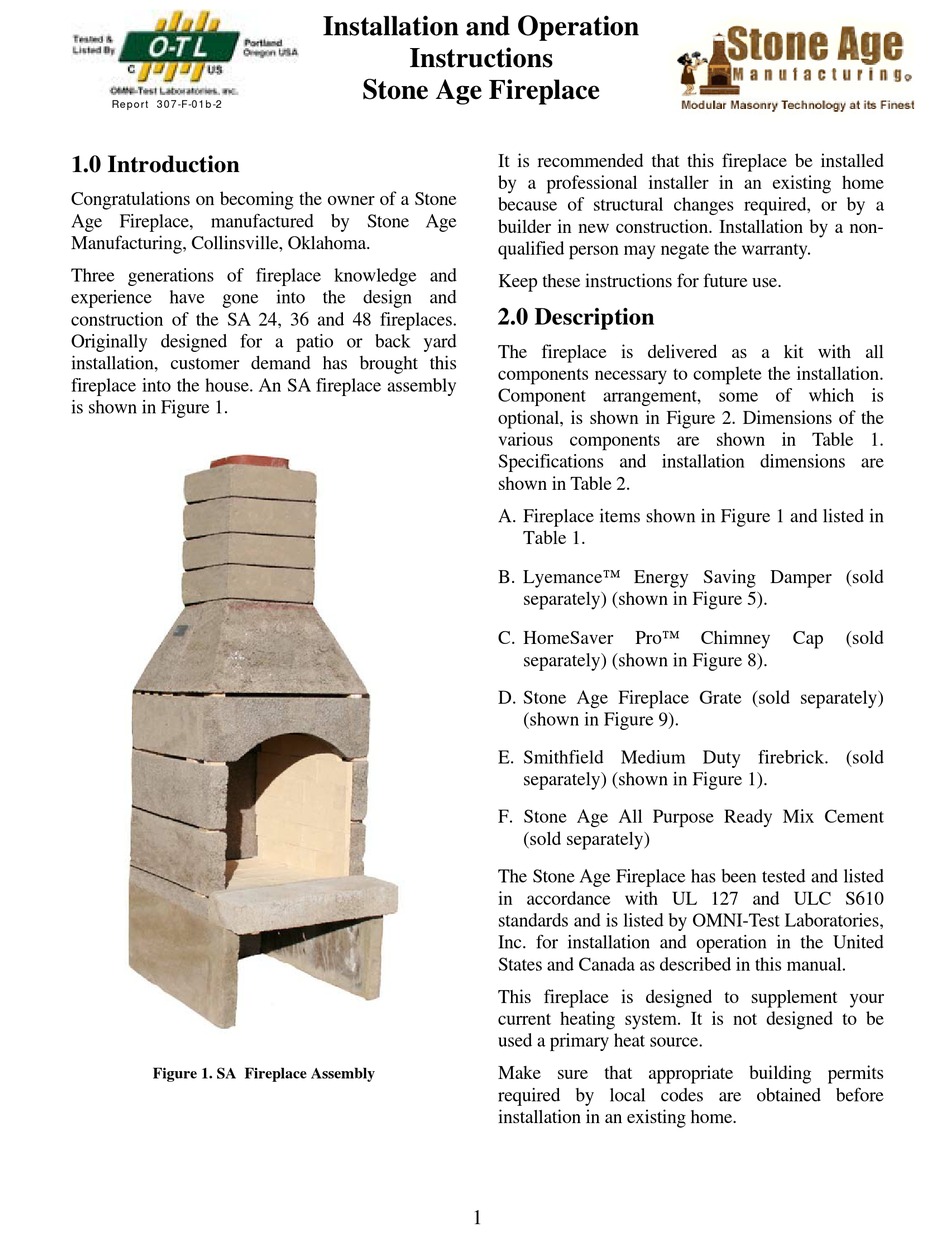

Report 307-F-01b-2
1.0 Introduction
Congratulations on becoming the owner of a Stone
Age Fireplace, manufactured by Stone Age
Manufacturing, Collinsville, Oklahoma.
Three generations of fireplace knowledge and
experience have gone into the design and
construction of the SA 24, 36 and 48 fireplaces.
Originally designed for a patio or back yard
installation, customer demand has brought this
fireplace into the house. An SA fireplace assembly
is shown in Figure 1.
Figure 1. SA Fireplace Assembly
Installation and Operation
Instructions
Stone Age Fireplace
It is recommended that this fireplace be installed
by a professional installer in an existing home
because of structural changes required, or by a
builder in new construction. Installation by a non-
qualified person may negate the warranty.
Keep these instructions for future use.
2.0 Description
The fireplace is delivered as a kit with all
components necessary to complete the installation.
Component arrangement, some of which is
optional, is shown in Figure 2. Dimensions of the
various components are shown in Table 1.
Specifications and installation dimensions are
shown in Table 2.
A. Fireplace items shown in Figure 1 and listed in
B. Lyemance Energy Saving Damper (sold
C. HomeSaver
D. Stone Age Fireplace Grate (sold separately)
E. Smithfield Medium Duty firebrick. (sold
F. Stone Age All Purpose Ready Mix Cement
The Stone Age Fireplace has been tested and listed
in accordance with UL 127 and ULC S610
standards and is listed by OMNI-Test Laboratories,
Inc. for installation and operation in the United
States and Canada as described in this manual.
This fireplace is designed to supplement your
current heating system. It is not designed to be
used a primary heat source.
Make sure that appropriate building permits
required by local codes are obtained before
installation in an existing home.
1
Table 1.
separately) (shown in Figure 5).
Pro
Chimney
separately) (shown in Figure 8).
(shown in Figure 9).
separately) (shown in Figure 1).
(sold separately)
Cap
(sold
