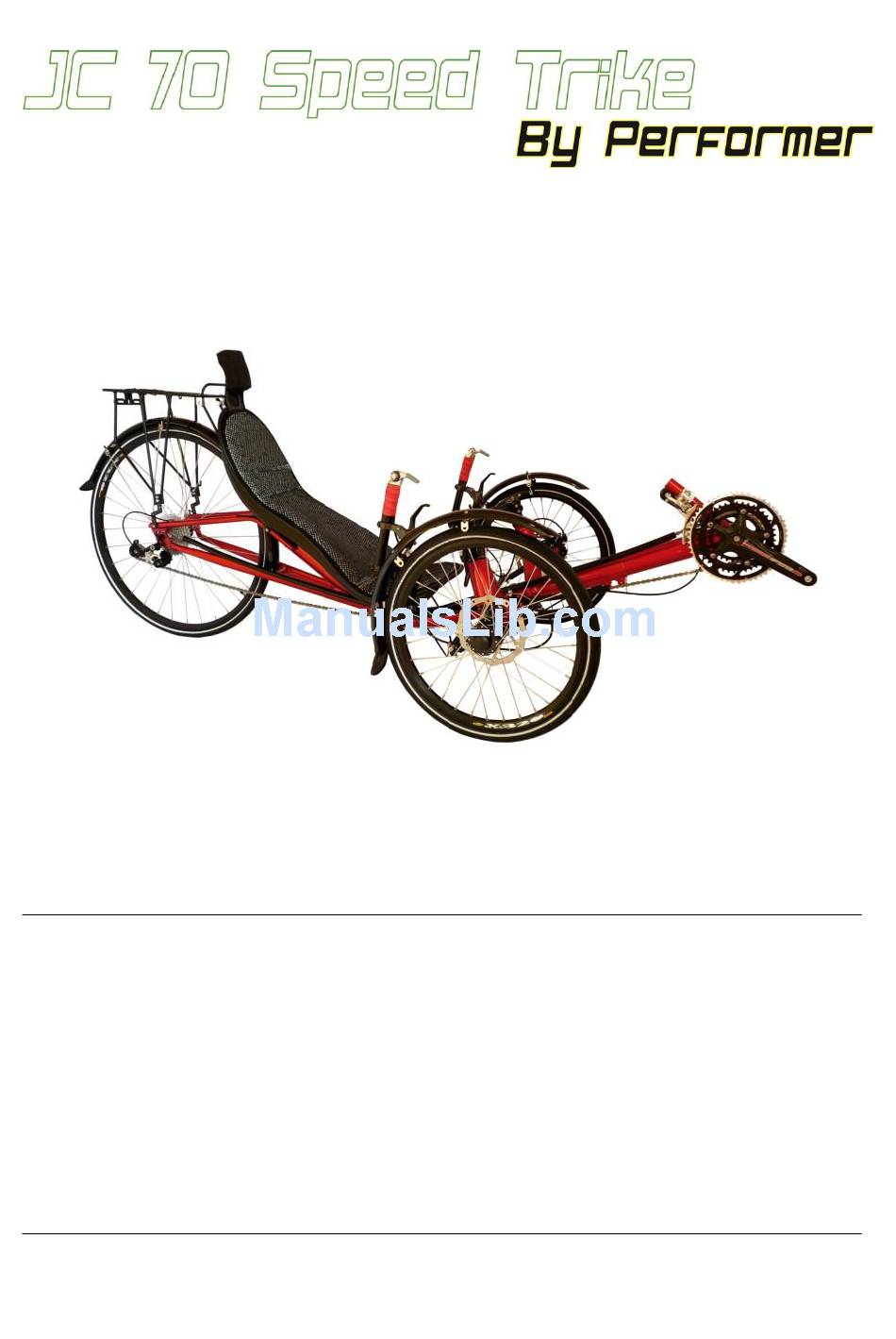

Performer JC 70 Speed Trike Assembly Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Congratulations
on your purchase of Performer trike. Performer trikes are made
to enhance comfort and to fit your various needs on touring, shopping and communicating.
Let's have fun with your Performer trike.
When you receive your trike, please make sure all parts referred to in the instructions have
been included. Your new trike has been assembly 50%. Please refer to assembly guide for
more details on individual steps.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JC 70 Speed Trike and is the answer not in the manual?

Questions and answers

Related Manuals for Performer JC 70 Speed Trike

Summary of Contents for Performer JC 70 Speed Trike

  • Page 1 Congratulations on your purchase of Performer trike. Performer trikes are made to enhance comfort and to fit your various needs on touring, shopping and communicating. Let’s have fun with your Performer trike. When you receive your trike, please make sure all parts referred to in the instructions have been included.
  • Page 3 Trike parts in the carton Quick release Cable housing Pedal Rubber Reflector Tool Chain Brake wire Shifter wire Rear derailleur...

  • Page 4: Table Of Contents

    Table of content ASSEMBLY GUIDE ........................1 ....................1 SSEMBLY MAIN FRAME AND WHEELS ROUTING CHAIN ......................... 3 ADJUST THE CHAIN LENGTH....................4 INSTALL BRAKE AND SHIFTER CABLE ..................5 ..........................5 HIFTER CABLE ) ................. 5 ABLE FOR REAR DERAILLEUR AT RIGHT SIDE ........................

  • Page 5: Assembly Guide

    Assembly guide Assembly main frame and wheels 1. Put the main frame on the outrigger tubes (pic 1) 2. Attach the four boom bolts (please don’t tighten it) 3. Install rear wheels by rotating the quick release on rear wheel. (pic 2) 4.
  • Page 6 rame Alignment 1. Make sure the rear wheel is vertical to ground and two wheels are parallel to each other. 2. As show in picture 5, the rear wheel leans on right, loose the right two bolts and tighten left two bolts on the frame. Leaning to left side, loose left two bolts and tighten right two bolts on the frame.

  • Page 7: Routing Chain

    Routing chain Insert front boom to main frame then sit on seat and step vertically on pedal to check your leg length. By moving front boom in or out to adjust a comfortable leg length. Once you find out a proper leg length, tighten front boom. (pic 9) Pic 9 1.

  • Page 8: Adjust The Chain Length

    Adjust the chain length The proper chain length is determined by the sitting place of rear derailleur (pic 13). When the derailleur cage is sitting too high, the chain is too long (pic 14). On the other hand, the chain is too short Pic 14 Pic 13 Shift onto the smallest chainring in the front and shift down to the smallest cog in the...

  • Page 9: Install Brake And Shifter Cable

    Install Brake and shifter cable The routing way is not important, while sharp bends are avoided. Cable guides are on the front boom, rear chain stay or under the frame. Grip shifter has been installed on handlebar and been threaded shifter wire. As for bar-end shifter, please slide the shifter wire into the small hole of bar-end shifter first.

  • Page 10: Adjust Derailleur

    Adjust derailleur 1. Check whether the chain can shift to the largest and smallest cog. 2. If doesn’t work, loosen L/H on rear derailleur. 3. When rear shifter won’t go to the largest cog, you need to loosen the L. When it won’t shift to the smallest cog, you need to loosen the H.

  • Page 11: Brake Cable

    Brake cable Front brake cable (at right side): 1. Squeeze the brake lever to open it up and place the head of the cable into the lever. 2. String the brake wire into cable (pic 19) 3. Thread brake cable into brake arm and seal the end (pic 20) 4.

  • Page 12: Adjust Handlebar

    (pic 22) Pic 22 Install pedal Performer strongly recommend the clipless pedal system to reduce leg fatigue and to avoid leg slipped from pedal. Grease pedal and screw in right pedal clockwise and left pedal anti-clockwise. Make sure it’s tight enough.

  • Page 13: Warranty

    The decision to repair and replace is at the sole discretion of Performer. This warranty coverage extends only to the original purchaser, and is not transferable.
