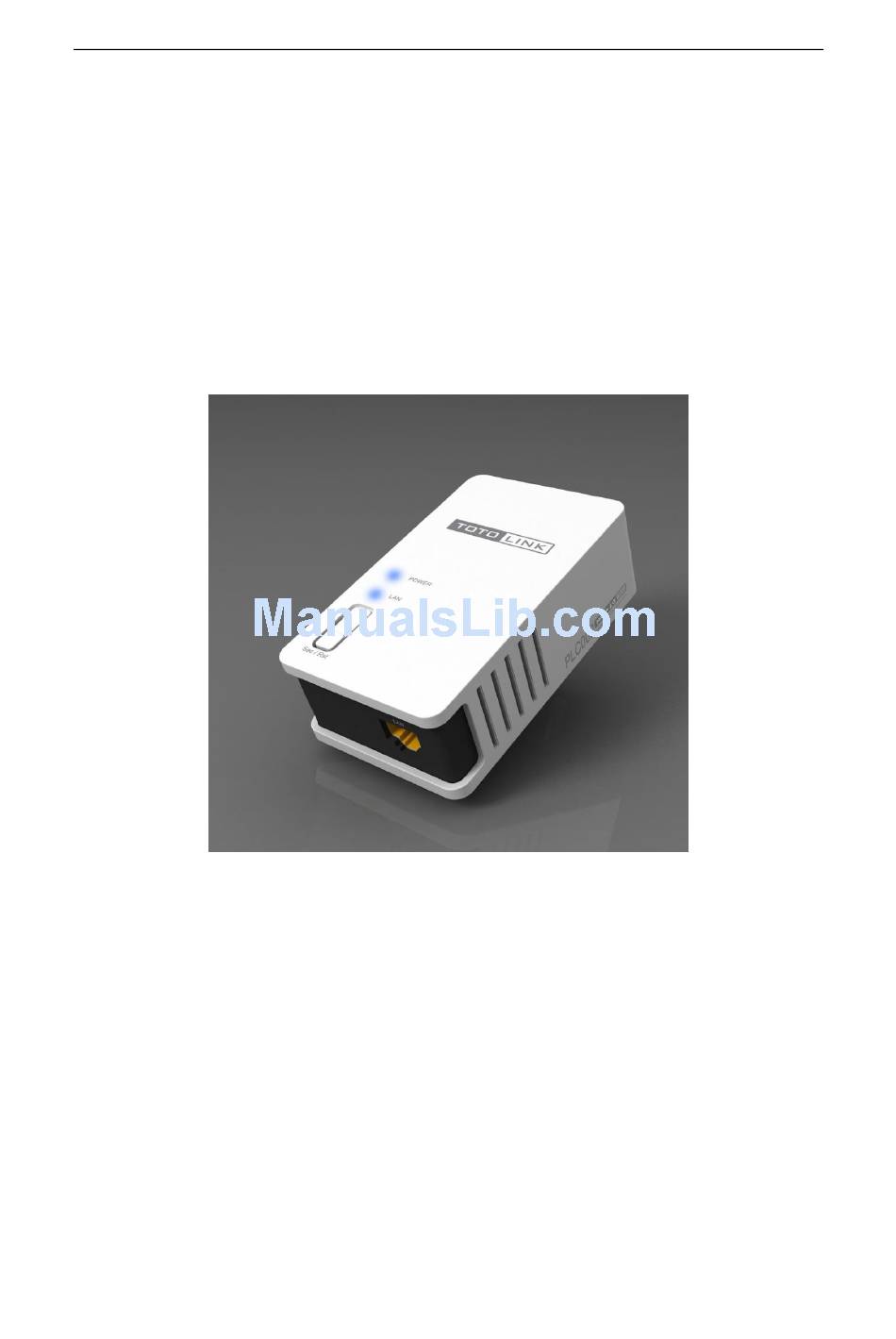

- Page 1 User’s Guide for Mini Powerline Adapter Model: ZC-PLC200 Rev: 07.09.2012...
- Page 2 FCC Warning This equipment has been tested and found to comply with the regulations for a digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment will generate and radiate radio frequency energy when operated and, if not installed and used in accordance with this user guide, may cause harmful interference to radio communications.
-
Page 3: Copyright Statement
Copyright Statement All the photos and product specifications mentioned in this manual are for references only, as the upgrading of software and hardware. They are subject to change without notice. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TOTOLINK. -
Page 4: Table Of Contents
TABLE OF CONTENT Chapter 1 Introduction ..............5 1.1 Unpacking ................5 1.2 Features ................5 1.3 Specification ............... 6 1.4 LED Indicators ..............6 Chapter 2 Connecting Mechanism ..........8 2.1 Introduction ................ 8 2.2 Connection Instruction ............8 2.3 Connecting the Computer to Network ........ -
Page 5: Chapter 1 Introduction
Ethernet (LAN) network to any other electrical outlet in any room of a house without the need of any new cabling. ZC-PLC200 supports high speed data rate up to 200Mbps and coverage range up to 300 meters, which won’t get any influence from obstacles. It will use the existing power lines installed in a home as a path to transmit digital data, voice, audio and video between devices. -
Page 6: Specification
1.3 Specification Hardware Interface 1*10/100Mbps Ethernet Port Chipset BROADCOM 60321 Dimensions 93mm x 56mm x 30mm（L x W x H） LED Indicators 1*PWR, 1*LAN Power Supply AC 100V~240V Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40~70℃ (-40℉~158℉) ... - Page 7 The Ethernet port is connected, but there is no data being transferred. LAN LED Blinking The Ethernet port is transferring data. The Ethernet port isn’t connected. Note: 5 minutes after the device connected to the adapter is turned off, the adapter will switch to power-saving mode automatically.
-
Page 8: Chapter 2 Connecting Mechanism
Chapter 2 Connecting Mechanism 2.1 Introduction The Powerline Adapter supports up to 200Mbps data rate. With this high speed connection rate, the Powerline Adapter allows you to setup a high speed home network by using your home existing electrical wiring. Generally, the Powerline Adapter works in pairs. You need to plug one Powerline Adapter into a power outlet and connect the Powerline Adapter to the computer’s LAN card with an Ethernet cable;... -
Page 9: Chapter 3 How To Use The Sec/Rst Button
Chapter 3 How to use the Sec/Rst button Sec/Rst button The Sec/Rst button of PLC200 can be used as a pair button and a reset button. The HomePlug AV standard uses 128-bit AES (Advanced Encryption Standard) to safely transmit data between powerline adapters. -
Page 10: Chapter 4 Troubleshooting
Chapter 4 Troubleshooting This section provides answers to common problems regarding the Powerline Adapter. Q1: The Power LED does not light up. A1: Please check the following: a) Make sure the Powerline Adapter is properly plugged into a power outlet. b) Make sure the power outlet is active (working) by plugging another electric device into c) Re-plug the Powerline Adapter to the power outlet again.
