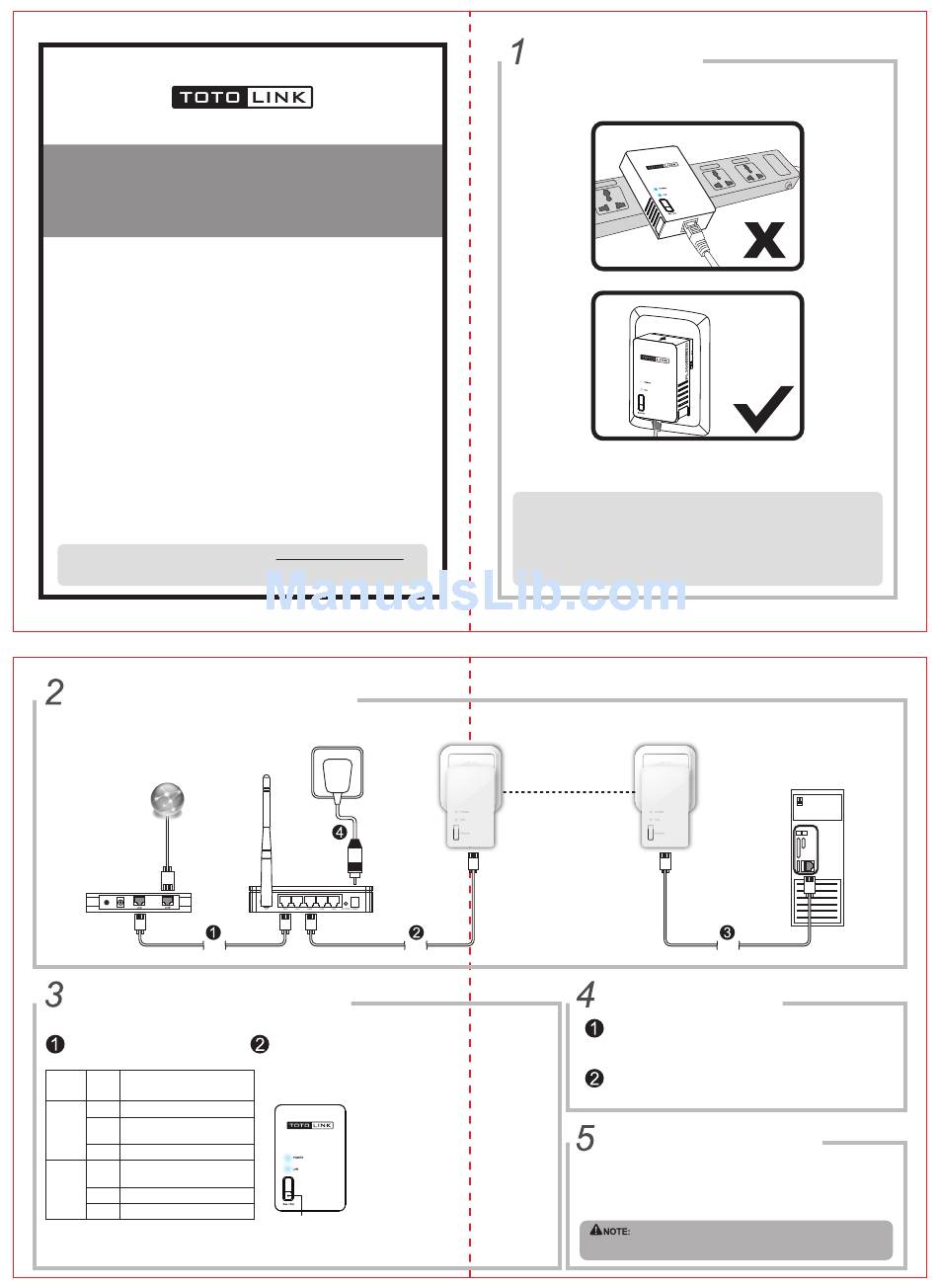

Quick Installation Guide

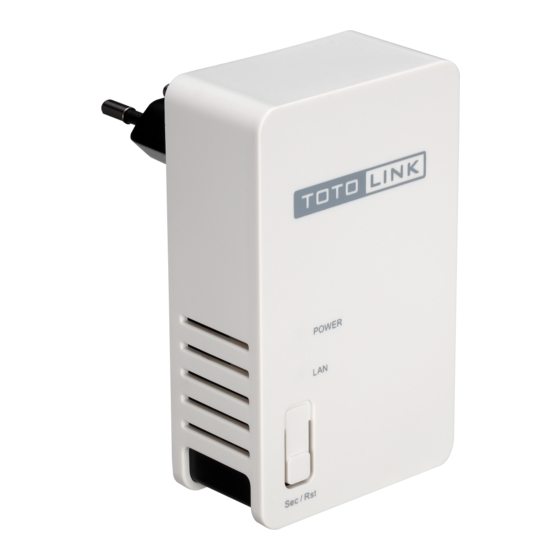

PL200 Mini Powerline Adapter
Copyri ghts 2013 by TOTOL I NK Al l right s re s e rve d . W e b s it e : h t tp : // ww w . t o to l ink .net
Information in this document is subject to change without prior notice.
Powerline Network Installation
Internet
ADSL Modem
Network
Cable
Powerline Network Installation
LED Indicators
LED
Status Indication
Indicator
On
The adapter is switched on.
The pair function is working or in
POWER
Blink
power-saving mode.
LED
Off
The adapter is powered off
The Ethernet port is connected,
On
but no data transferring
LAN
LED
Blink
The Ethernet port is transferring data
Off
The Ethernet port isn't connected
Power Supply
TOTOLINK Router
Network
Cable
Button Description
By default, PL200s can connect to each other when they're powered on.
But you can also use Sec/Rst button to recreate a secure powerline network.
Please follow below instructions (we consider the two PL200s are A and B):
1. Press and hold the Sec/Rst button of Powerline adapter A for
2-3 seconds. The POWER indicator starts blinking.
2. Press and hold the Sec/Rst button of Powerline adapter B for
2-3 seconds. The POWER indicator starts blinking. (This
procedure must be done within 130 seconds after the Powerline
adapter A powered on.)
3. Wait for about 3 seconds while the PL200s are connecting.
After that, POWER indicator keeps solid light.
4. If you press and hold the Sec/Rst button for about 16 seconds,
PL200 will be reset to default factory settings. The POWER
indicator starts blinking, then both the POWER and LAN
Sec/Rst Button
indicator off and they resume to solid light at last.
Before Installation
To ensure the optimum performance of the Powerline Adapter
and significantly improve the transmission capacity of the network,
we recommend that you plug the Powerline Adapter directly into a
wall socket but not the multiple sockets.
A
Wall Socket
Power-Saving Mode
Enter Power-Saving Mode
After connected with PC, this adapter will keep working. If you need it to "rest" without pulling it out
from the wall socket, please press Sec/Rst button, the POWER LED indicator will blink for 4s off and
1s on. It means the adapter has been in the power-saving mode.
Quit Power-Saving Mode
Press Sec/Rst button for about 4s until the POWER LED lights, the adapter quit power-saving mode.
Generate New Password
By default, all PL200s have the same password and can connect to each other after powered on.
But if there are more than three PL200s in your network and you want to prevent others from joining
your PL200s group, the best solution is to change the password.
Operation: Press Sec/Rst button of Adapter A for 8s-12s, the password will change automatically.
Other PL200 have to re-pair with Adapter A for new network connection. (How to pair please refer
to Button Description.)
For more than three PL200s group, if two or more adapters have changed the password,
other adapters only need to re-pair with any one of them to join.
W al l S oc ke
t
B
Wall Socket
Network
Cable
