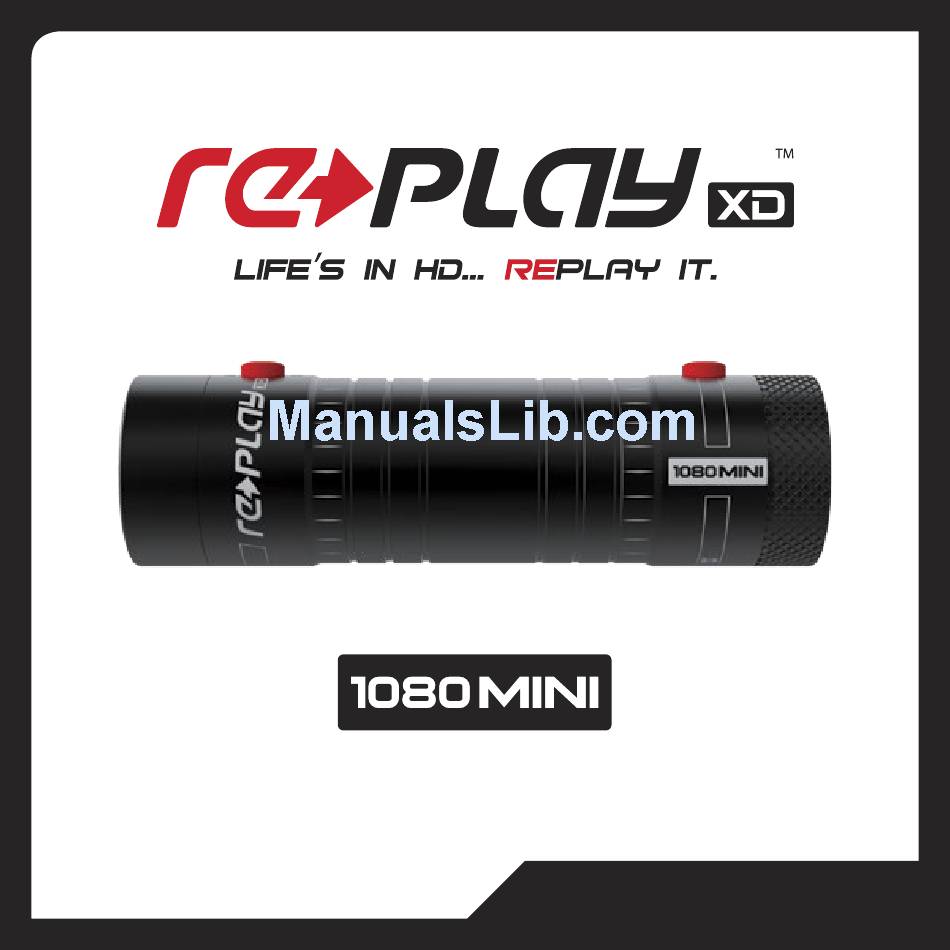

Q U I CK S TA R T G U I D E

Advertisement

loading
Need help?

Need help?

Do you have a question about the 1080 Mini and is the answer not in the manual?

Questions and answers

Michelle Gibney
February 24, 2025

how to turn on time lapse mode

0

Subscribe to Our Youtube Channel

Related Manuals for Replay XD 1080 Mini

Summary of Contents for Replay XD 1080 Mini

  • Page 1 Q U I CK S TA R T G U I D E...

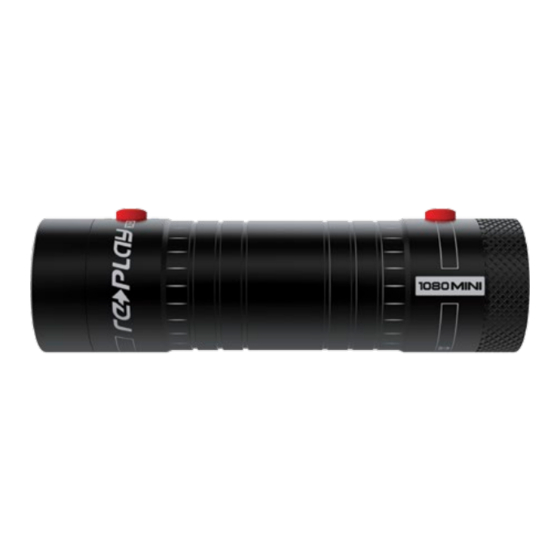

  • Page 2 Replay XD 1080 Mini Camera (A) Power On/Off, (B) Record, Stop (C) Removable Lens Cover (D) Removable End Cap (E) 15 Degree Markings (F) Power On/Off Blue LED (G) Record On/Off Red LED (H) Horizontal Sight Line (I) Vertical Sight Line...
  • Page 3 Use only Replay XD approved SD cards. Visit www.replayxd.com for SD card compatibility list. Stop Recording: Hold down the rear button (B) for 4 sec. & release, the Replay XD 1080 Mini will vibrate 1 time to notify you that it is saving the file.

  • Page 4: Rear View

    1. Slide the INT./EXT. switch (M) to choose audio option. a. Internal Mic (Default) b. External Line-in, disables internal Mic External Line-in is compatible with Replay XD 1080 Mini Audio Adapter or Replay XD 1080 Mini HW Kit, available at www.replayxd.com For Advanced Users and Setting Profiles visit www.replayxd.com/replay-XD1080MINI-advanced/...
  • Page 5 5. Adjust swivel 360º or tilt ~8º by releasing the heim cam lever and position Replay XD At room temperature, 1080 Mini in desired direction, then lock the cam lever. Make sure the cam lever is tight. wait for at least 24 hours...
  • Page 6 1. Find the best mounting location for your Replay XD 1080 Mini and check your angles. IMPORTANT Rigid surfaces are ideal for the best video quality. Note: You can make a test recording and Use rubbing alcohol to clean check it on an iPad/Mac/PC.
  • Page 7 1. The Start and REC button should always point up or at the 12 o’ c lock position for a level horizon. 2. The front silver sight markers are horizontal and vertical which act as a level. 3. The laser etched marks on the side of the Replay XD 1080 Mini are spaced every 15 degrees to give you fine adjustment.
  • Page 8 HEIMLOCK SWIVEL/TILT MOUNT LOWBOY MOUNT Mounting angle and setup: 1. When using a HeimLock mount or LowBoy mount it is important to mount them at an optimal position. Please reference the illustration on this page for possible positions. 2. When mounting to a helmet, most people have a tendency to lower their head from 15º to and excess of 20º. It is important to recognize what the natural angle or active position of your mounting locations are on items such as: helmets, hats, handlebars, vehicle bodies, etc.

  • Page 9: Side View

    PC/Mac USB port, damage to the Replay XD 1080 Mini or your computer may occur. The Replay XD 1080 Mini will record for approx. 130 min. on a full charge in optimal conditions. Extreme heat or cold can affect battery life.
  • Page 10 SDHC compatible card reader to transfer your files to your computer. 3. Option (2): Download from the Replay XD 1080 Mini USB port. 4. Plug USB cable into Replay XD 1080 Mini and a PC/Mac USB 2.0 port. PC/MAC PC/MAC 5.
  • Page 11 Your Replay XD 1080 Mini records and saves to a file called a MOV. Your video file is compatible with most current media players on a PC or Mac. Many video editing software titles are compatible out of the box such as: Adobe Premier, Apple Final Cut, iMovie, &...

  • Page 12: Warranty

    STABLE IMAGING SOLUTIONS, LLC. LIMITED WARRANTY WHAT THE WARRANTY COVERS Stable Imaging Solutions, LLC. (SIS) warrants for 180 days from the date of purchase of product it will be free from defects in material and workmanship. WHAT IT DOES NOT COVER This warranty does not cover damage due to: •...
  • Page 13 • All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders. Replay XD , Replay XD 1080 Mini is a product of Stable Imaging Solutions, LLC. in California. ® www.Replayxd.com ©2013 Stable Imaging Solutions, LLC., Replay XD All rights reserved.
  • Page 14 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radio and TV Interference This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules.
