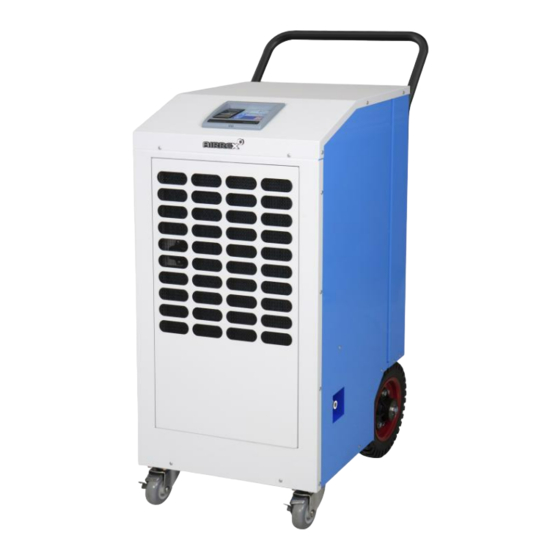

AIRREX DEHUMIDIFIER
▶ Thank you for purchasing an AIRREX DEHUMIDIFIER.
BEFORE operation please read this user's manual carefully.
▶ Keep this manual readily available.
▶ It is ESSENTIAL that you read the 'NOTES ON SAFETY' carefully
before use and follow them at all times.
▶ This Dehumidifier is specified for use on a 230V~. 50Hz.
single phase power supply. You must check that the local
electricity supply is the same and have the appropriate plug fitted
by a qualified electrician.
▶ The Warranty form is on Page 15. Please complete it now and keep
in a safe place.
▶ We have a policy of continual improving to our products.
The contents (features and specifications) in this manual are
therefore subject to change without notice.
USER'S MANUAL
ADH-1000
Advertisement
Table of Contents
Related Manuals for Airrex ADH-1000
Summary of Contents for Airrex ADH-1000
- Page 1 AIRREX DEHUMIDIFIER USER’S MANUAL ADH-1000 ▶ Thank you for purchasing an AIRREX DEHUMIDIFIER. BEFORE operation please read this user’s manual carefully. ▶ Keep this manual readily available. ▶ It is ESSENTIAL that you read the ‘NOTES ON SAFETY’ carefully before use and follow them at all times.
-
Page 2: Table Of Contents
TABLE OF CONTENTS ■ SAFETY INSTRUCTIONS ■ DESCRIPTION ·Front View ·Back View ·Control Panel ■ OPERATION ·Running & Stop ·Humidity Control Operation ·How to Set the Off Timer ·Error and Warning Indicators · Continuous Running ■ CLEANING AND MAINTENANCE ■ TROUBLE SHOOTING ■... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS The following instructions are for ensuring the user’s safety and to prevent any physical injury or material damage. Please read carefully and follow all instructions. There are two sections to these instructions: WARNING and CAUTION. The following symbols are for your guidance: = You must NOT. - Page 4 SAFETY NOTICE CAUTION Do not place dehumidifier on uneven, unstable or inclined surface. (This could cause malfunction) When storing the dehumidifier, ensure that it is kept in a dry, cool place. (To prevent corrosion and malfunction) If not being used for some time or if lightening is present, always unplug from power. (To prevent risk of electric shock, short circuit or fire) Do not spray water on to the dehumidifier nor use solvents such as benzene, thinner or alcohol for cleaning.
-
Page 5: Description
DESCRIPTION FRONT VIEW DIGITAL CONTROLLER AIR INLET AMBIENT AIR INTAKE. EVAPORATOR FILTER CONDENSED WATER OUTLET DURING DEHUMIDIFYING CASTER (REAR 10'') CASTER (FRONT LOCKABLE) BACK VIEW BACK HANDLE CONDENSER AIR OUTLET CONDENSER GRILLE PUMP BUTTON POWER CORD... -
Page 6: Control Panel
DESCRIPTION CONTROL PANEL FUNCTIONS ④ ⑧ ⑥ ⑨ ⑦ ③ ④ ⑤ ⑩ ② ① ① Power : Use to power On / Off. ② Raises or lowers setting humidity and sleep (off) time. ③ Fan Intensity : Controls fan speed. high,medium,low ('F3' 'F2' 'F1') ④... -
Page 7: Operation
OPERATION RUNNING & STOP 1. START BY PRESSING THE ‘POWER’ BUTTON. ·Dehumidifier will start up automatically. ·To STOP the unit, press the ‘POWER’ button once again. 2. To change fan speed, press the ‘Fan’ button. ( 'F3' : High, 'F2' : Medium, 'F1' : Low ) -
Page 8: Humidity Control Operation
OPERATION HUMIDITY CONTROL OPERATION 1. When power is ON, the setting humidity is displayed. Default of setting humidity Current Humidity is 60%. Setting Humidity 2. When you push either button, the ▼ ▲ setting humidity is changed. Setting Humidity 3. The display showing the setting humidity will Setting Humidity blink 3 times. -
Page 9: How To Set The Off Timer
OPERATION HOW TO SET THE 'OFF'TIMER Humidity. 1. When dehumidifier is operating, press the ‘Off Timer’ button and set the length of time you want by pressing ▲ or ▼. Each time you press the button you will increase the ‘time to off’... -
Page 10: 'Error'and Warning Indicators
OPERATION 'ERROR'AND WARNING INDICATORS 1. WATER FULL- Display shows “FU” Current Humidity When the water container is full, “FU” is displayed and the LED “Water Full” light will be on. Setting Humidity 2. HIGH PRESSURE Current Humidity ‘E1’ is displayed and the ‘Error’ LED will be on when the pressure of the compressor is too high the high pressure switch is open. -
Page 11: Continuous Running
OPERATION CONTINUOUS RUNNING 1. IF you press the "off timer" button for 5 seconds, it operates continuously 5sec 2. Setting value is changed to circle type. Humidity. Humidity. 3. To cancel this mode press "off timer" button for 5 second. 5sec... -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE CLEANING THE AIR FILTERS 1. To remove filters, open the front case ①, and pull towards you. ② ② 2. Clean the filters with water or compressed air. ① 3. Clean heat exchanger unit with a vacuum cleaner or compressed air. MAINTENANCE 1. -
Page 13: Trouble Shooting
TROUBLE SHOOTING TROUBL CHECK REMEDY ● Power plug correctly connected ● Connect plug correctly ● POWER button “OFF” ● Press POWER button to “ON” ● Blown fuse in electric panel ● Replace fuse (5A) WORKING ● Fuse blown ● Exchange fuse in board (1A) ●... -
Page 14: Specifications
SPECIFICATIONS Model ADH-1000 Maximum 120 Liter/day Capacity Nominal 80 (20℃ 70%) Power supply 230V~. 50Hz. 1Ph Dimension(WxDxH) 506 X 552 X 995 Weight m³/hour Air Flow 1,080 Area 1,000 m³ Power Consumption 2.21 Current Consumption 9.73 Refrigerant(R-410A) 1,000 Air Filter... -
Page 19: Warranty
6. All transport charges back to the dealer are at the customers cost. Keep all original packaging to facilitate return. Return to customer will be at dealers cost (if genuine warranty claim). DESCRIPTION DEHUMIDIFIER MODEL ADH-1000 PRODUCT DATE OF PURCHASE SERIAL NO: Warranty Period ) Months... - Page 20 HEPHZIBAH CO.,LTD. 1385-15 JUAN-DONG, NAM-GU, INCHEON, KOREA TEL : +82-32-509-5834 FAX : +82-32-502-5519 E-mail : airrex@hdtek.com Website : www.airrex.co.kr ● Designs and specifications of products are subject to change without prior notice for the improvement of products.
