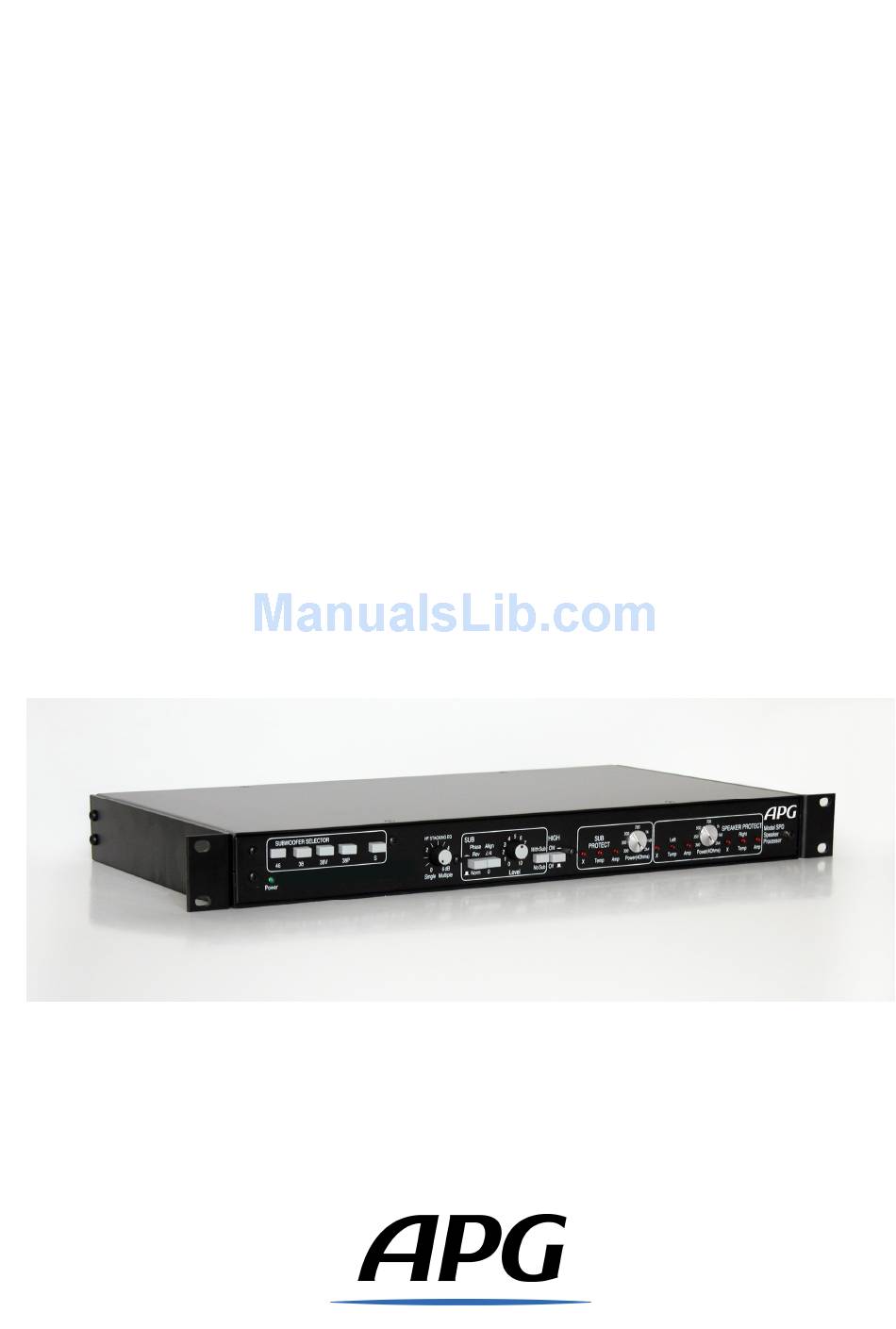

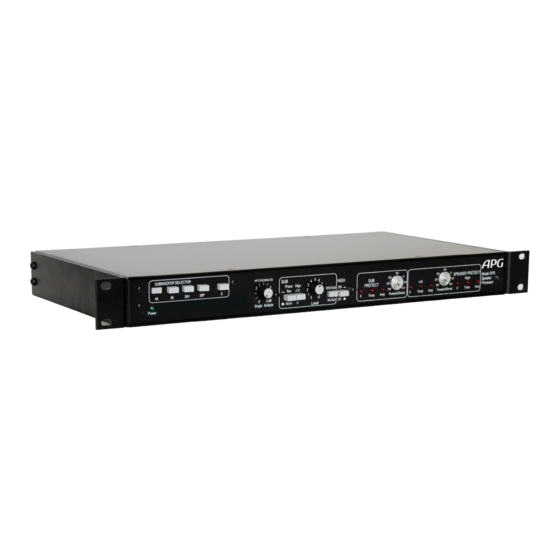

- Page 1 USER MANUAL APG DYNAMIC PROCESSORS SPDS8 – SPDS12S – SPDS15 – SPDS15S 3000SP – 3000CSP – SPSC20...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS This symbol, wherever it appears, alerts presence uninsulated dangerous voltage inside the enclosure – voltage that may be sufficient to constitute a risk of shock. This symbol wherever it appears, alerts important operating maintenance instructions accompanying literature. Read the manual Caution: To reduce the risk of electrical shock, do not remove the cover (or back). -
Page 3: Table Of Contents
CONTENTS INTRODUCTION ......................... 3 SPECIFICATIONS ........................ 4 DESCRIPTION OF CONTROLS FRONT PANEL ........................5 REAR PANEL......................... 7 DYNAMIC PROCESSORS... -
Page 4: Introduction
INTRODUCTION The SPDS processors are designed to operate in conjunction with DS series speakers and sub-woofers, optimizing equalization, filtering, protection and distribution of signals. Each channel comprises and HF EQ stage, a LF EQ stage and a LF protection circuit, as well as a dynamic protection system which emulates the main operating parameters of the speakers. -
Page 5: Specifications
Input: 20 kOhms balanced Output: 100 Ohms balanced SUBWOOFER CROSSOVER FREQUENCY: High section cut-off (without sub) SPDS15 / SPDS15S / SPDS15SR 80 Hz (24dB/Octave) SPDS8 / SPDS12/ SPDS12S 100 Hz (24dB/Octave) Connectors: XLR 3 pin Consumption: 220/240Vac 15VA MECHANICAL: Dimensions:... -
Page 6: Description Of Controls
DESCRIPTION OF CONTROLS FRONT PANEL A) SUB-WOOFER CONTROLS: : Sub-woofer selection: The row of switches located at the left of the unit allows to configure it for the type of sub-woofer to be used. There is a choice of 8 types of sub-woofers, 4 Standard and 4 High Power type (represented by "S"... - Page 7 DESCRIPTION OF CONTROLS FRONT PANEL C) PROTECTION DISPLAYS : 7) & 9) Each output incorporates a protection circuitry which simulates the temperature of the voice-coil and the excursion of the cone. This information is used to drive a limiter which prevents the signal reach a dangerous value.
-
Page 8: Rear Panel
DESCRIPTION OF CONTROLS REAR PANEL: 11) Normal/bridge: this switch must be engaged when using a bridged amp (32db gain) All inputs and outputs are electronically balance: the connectors are 3 pin XLR'S The mains receptacle is at the EEC standard with the center prong connected to ground. For obvious safety reasons, it should always be connected. - Page 9 APG FRANCE – 19 Bis Rue des Ecoles – Site Valnor ZI Haute 95500 Le Thillay –RCS Bobigny B 451 935 084 T : +33(0)1.30.18.92.70 F : +33(0)1.30.18.92.71 - E-mail : contact@apg.tm.fr Web: www.apg.tm.fr...
