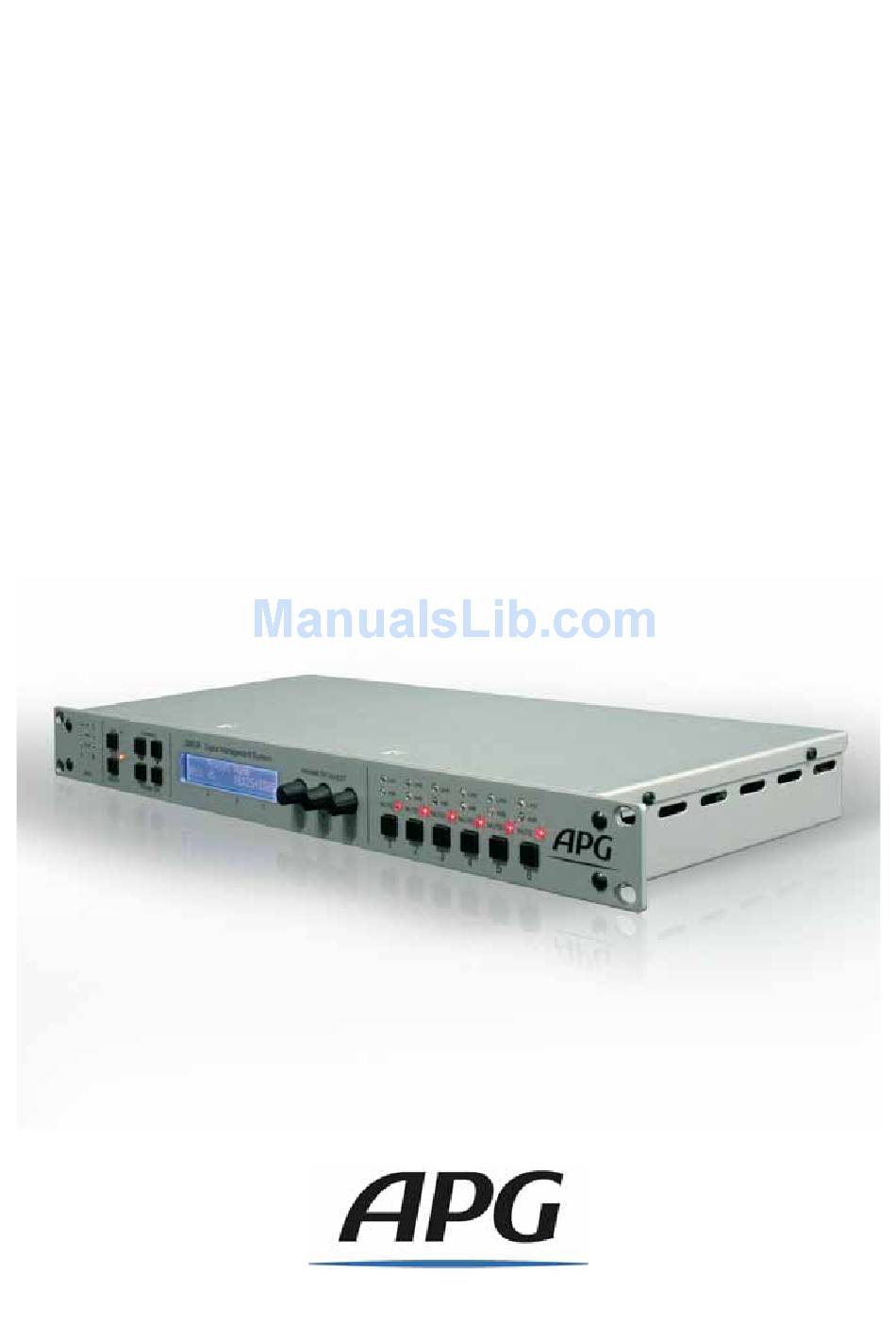

Page 1: User Guide
USER GUIDE DIGITAL MANAGEMENT SYSTEM PROCESSOR DMS26... - Page 3 APG FRANCE User Guide Digital Management System APG DMS26 Version 1.0 Août 2006 DIGITAL MANAGEMENT SYSTEM DMS26...
-
Page 4: Table Of Contents
SUMMARY SUMMARY....................................2 SAFETY INSTRUCTIONS ................................3 QUICK REFERENCE GUIDE ..............................4 THANKS AND UNPACKING ..............................6 Unpacking the APG Digital series processor .........................6 IMPORTANT SAFETY INFORMATION .............................6 REGULATORY COMPLIANCE ..............................6 INTRODUCTION AND KEY FEATURES...........................7 DMS26 PRESENTATION ................................8 FRONT VIEW...................................8 REAR VIEW .....................................9 OPERATION ....................................10 Starting up ....................................10... -
Page 5: Safety Instructions
-This appliance has been dropped, or the enclosure damaged. Servicing: The user should not attempt to service the appliance beyond that is described in the Operating instructions. All other servicing should be referred to qualified service personnel. DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 6: Quick Reference Guide
Limiter Settings In order to offer the maximum of protection, some factory presets of the DMS26 can be entered with the fixed limiting device with 0 dBu, limiting the power to approximately 30 W in 8 Ohms. - Page 7 - with dedicated software • Go to panel control of DMS26 (Device then Add Device Panel, select DMS26, press enter) • Open selected “Output” window (1 to 6) • Setting Threshold is located at the bottom right and can be adjusted from - 40 to +20 dBu The following table expresses the threshold corresponding to the nominal output power provided by the amplifier.
-
Page 8: Thanks And Unpacking
All APG France products are carefully engineered for world-class performance and reliability. If you would like further information about this or any other APG France product, please contact us. We look forward to helping you in the near future. -
Page 9: Introduction And Key Features
INTRODUCTION AND KEY FEATURES Introduction The APG DMS26 digital processors benefit from the most innovative technologies. Profiting from the last technological creation as regards analogical conversion/digital conversion and of numerical signal processing, these processors offer top-of-the-range professional performances. Technical specifiation Combination of converters A/D and D/A made up with components of high range produced by Burr Brown and Wolfson, selected carefully to offer an excellent sound quality. -
Page 10: Dms26 Presentation
8 - Mute Buttons and Status LEDs Each output has a mute button and associated mute status LED. Pressing the button toggles the mute on and off.X Note that the mute buttons do not function when the Secure mode is activated. DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 11: Rear View
10 - Power Inlet The APG Digital series unit should be connected to a suitable mains electricity supply using the cable supplied. The processor has a switch mode power supply that is capable of operating with a nominal mains voltage of 85V to 240V, 50/60Hz without re-configuration. -
Page 12: Operation
Selecting a Factory Preset The APG Digital series processors have a library of Factory Presets designed to suit a range of applications. Factory Presets contain some parameters that are fixed and hidden from view; the remainder of the DSP parameters are available for user manipulation. -
Page 13: Navigation
If the channel you scroll to does not have the currently viewed processing block, the next one will be shown instead. NB. When the unit powers-up, the settings will be the same as those when the unit was last switched off. DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 14: Presets
Preset. As with Preset Recall, pressing any other button cancels the operation. The user can overwrite non-protected Presets only; if an attempt is made to save a Preset in a location already occupied by a basic or Factory Preset a ‘LOCKED PRESET’ message is displayed DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 15: Dsp Processing Layout
- Outputs 1 (routed from L input) and 3 (routed from R input) [1 and 4 for APG26] - Outputs 2 (routed from L input) and 4 (routed from R input) [2 and 5 for APG26] - Outputs 3 (routed from L input) and 6 (routed from R input) – [APG26 only] DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 16: Dsp Processing - Input Channels
The velocity sensitive Parameter Knobs therefore provide accurate setting of driver offset delays (typically below 10ms) and rapid setting of longer system alignment delays. High Pass Filter Knob A: Frequency, out (off), 10.0Hz to 25.6kHz in variable steps Knob B: high pass filter type DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 17: Parametric Equalisation
Knob B : Width, display selectable, Q or BW (Bandwidth) BW adjustable from 0.05 to 5 octaves in variable steps Q adjustable from 14.2 to 0.2 in variable steps Knob C : Gain, +/-15dB in 0.2dB steps DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 18: Output Channels
As for input delay, velocity sensitive Parameter Knobs provide finer adjustment at low levels and rapid selection of higher values. High and Low Pass Filters Knob A: Frequency, <<out, 10.0Hz to 25.6kHz, out>> Knob B: high pass filter type DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 19: Parametric Equalisation
Knob B : Width, display selectable, Q or BW (Bandwidth) BW adjustable from 0.05 to 5 octaves in variable steps Q adjustable from 14.2 to 0.2 in variable steps Knob C : Gain, +/-15dB in 0.2dB steps DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 20: Limiters
Routing Knob A: Output source, selectable; Input A, Input B or Sum A+B Configures the routing from input to output. This function is only available in mono format Presets. DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 21: Utilities
Care should be taken when swapping between mono and stereo mode as the parameter set for the left hand channels will be copied to the right hand side, overwriting those settings. This is not reversible and could represent quite a significant and potentially damaging change to the processing. DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 22: Eq And Filter Response Graphs
EQ AND FILTER RESPONSE GRAPHS Butterworth Butterworth 1 . 10 1 . 10 Frequency, Hz 6dB/Oct 12dB/Oct 18dB/Oct 24dB/Oct 48dB/Oct Linkwitz-Riley Linkwitz-Riley 1 . 10 1 . 10 Frequency, Hz 12dB/Oct 24dB/Oct 48dB/Oct DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 23: Bessel
Bessel Bessel 1 . 10 1 . 10 Frequency, Hz 12dB/Oct 24dB/Oct Hardman Hardman 1 . 10 1 . 10 Frequency, Hz 4th Order 8th Order DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 24: Filters Baxendall
Filters Baxendall Shelving EQ 1 . 10 1 . 10 Frequency, Hz Low shelf, varying Gain High shelf, varying Slope Parametrics Filters Parametric EQ 1 . 10 1 . 10 Frequency, Hz Varying Gain Varying Bandwidth DIGITAL MANAGEMENT SYSTEM DMS26... -
Page 25: Technical Specification
Inputs..............2 Input Impedance ..........> 10k Ohm, Electronically balanced Maximum Input level........+20 dBu Outputs............. 4 [APG 24] or 6 [APG 26] Output Impedance ........... <100 Ohm, ground balanced Maximum Output Level ........+22 dBu into 600 Ohm load Sample Rate ............ -
Page 26: Recall Sheet
RECALL SHEET... - Page 28 APG FRANCE – 19 Bis Rue des Ecoles – Site Valnor ZI Haute 95500 Le Thillay –RCS Pontoise 451 935 084 Tel : +33(0)1.30.18.92.70 Fax : +33(0)1.30.18.92.71 - E-mail : contact@apg.tm.fr - Site: www.apg.tm.fr...
