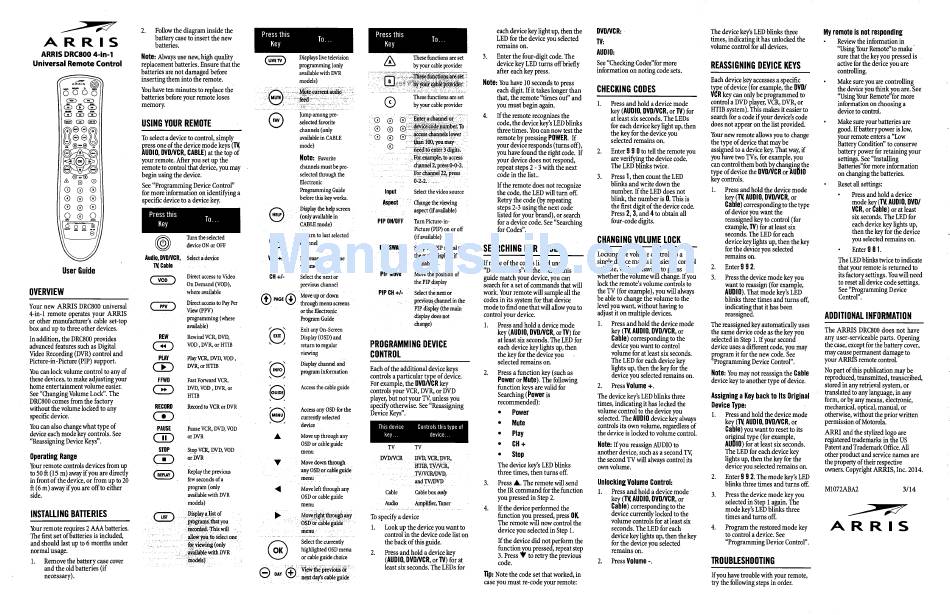

Arris DRCSOO User Manual

~
A R R IS

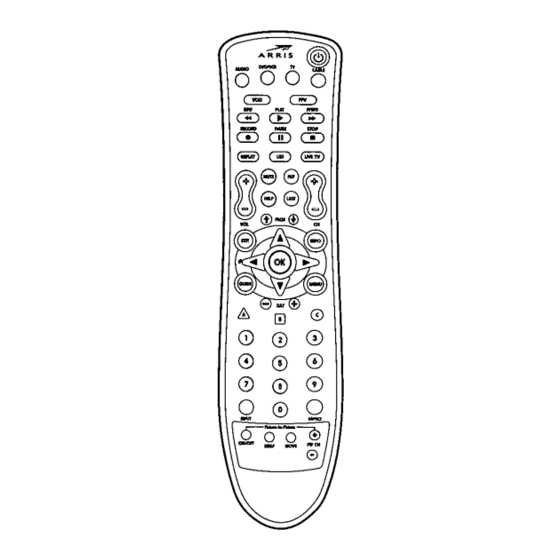

ARRIS DRCSOO 4-in-1
Universal Remote Control
A~~
o'06o
~ ~
0C'D0
C50D0
0
0
8 0 0
0 0 0
0 0 0
0 0 0
~
User Guide
OVERVIEW
Your new ARRIS DRCSOO universal
4-in-1 remote operates your ARRIS
or other manufacturer's cable set-top
box and up to three other devices.
In addition, the DRCSOO provides
advanced features such as Digital
Video Recording (DVR) control and
Picture-in-Picture (PIP) support.
You can lock volume control to any of
these devices, to make adjusting your
home entertainment volume easier.
See "Changing Volume Lock". The
DRCSOO comes from the factory
without the volume locked to any
specific device.
You can also change what type of
device each mode key controls. See
"Reassigning Device Keys".
Operating Range
Your remote controls devices from up
to 50ft (15m) away if you are directly
in front of the device, or from up to 20
ft (
6
m) away if you are off to either
side.
INSTALLING BATTERIES
Your remote requires 2 AAA batteries.
The first set of batteries is included,
and should last up to 6 months under
normal usage.
1.
Remove the battery case cover
and the old batteries (if
necessary).
2. Follow the diagram inside the
battery case to insert the new
batteries.
Note: Always use new, high quality
replacement batteries. Ensure that the
batteries are not damaged before
inserting them into the remote.
You have ten minutes to replace the
batteries before your remote loses
memory.
USING YOUR REMOTE
To select a device to control, simply
press one of the device mode keys
CN
AUDIO, DVDNCR, CABLE) at the top of
your remote. After you set up the
remote to control that device, you may
begin using the device.
See "Programming Device Control"
for more information on identifying a
specific device to a device key.
Press this T
Key o ...
(@
Audio, DVDJVCR,
'N
Cable
~
G!D
REW
G)
PLAY
CD
FFWD
GG
RECORD
CD
PAUSE
OD
STOP
CD
(REPLAY)
Turn the selected
device ON or OFF
Select a device
Direct access to Video
On Demand (VOD),
where available
Direct access to Pay Per
View(PPV)
programming (where
available)
Rewind VCR, DVD,
VOD , DVR, or HTIB
Play VCR, DVD, VOD,
DVR,orHTIB
Fast Forward VCR,
DVD, VOD , DVR, or
HTIB
Record to VCR or DVR
Pause VCR, DVD, VOD
orDVR
Stop VCR, DVD, VOD
orDVR
Replay the previous
few seconds of a
program (only
available with DVR
models)
Display
a:
list of
· Pi'Oiraois:that you
• tecorded, ·This will
allow you
to select one •
~;. Vi~irig
(only ·
. ; .. ,:
~~able
with DVR
· · 'models)
I
Press this T
Key o ...
e
VOL+/-
CH +1-
Displays live television
programming (only
available with DVR
models)
Jump among pre-
selected favorite
channels (only
available in CABLE
mode)
Note:
Favorite
channels must be pre-
selected through the
Electronic
Programming Guide
before this key works.
Display the help screen
(only available in
CABLE mode)
Return to last selected
channel
Increase or decrease
volume
Select the next or
previous channel
®PAGE®
Move up or down
through menu screens
or the Electronic
Program Guide
B
EXIT
'
/
"S
INFO
'
/
e
e
Exit any On-Screen
Display ( OSD) and
return to regular
viewing
Display channel and
program information
Access the cable guide
Access any OSD for the
currently selected
device
Move up through any
OSD or cable guide
menu
Move down through
any OSDor cable guide
menu
Move left through any
OSD or cable guide
menu
.
ty(~~~Bgh\tliroqgllany
• osiJ"tiiCable
guide '
,.·.
menu
·----·
Select the currently
highlighted OSD menu
or cable guide choice
Press this T
Key o ...
8
0
0
0
0
0
0
0
Input
Aspect
These functions are set
by your cable provider
These functions are set
by your cable provider
~~-;s~·
· ·· tp..~
lOQ;youmay .
. ·n¥~~lq·~~~~t~digits:.
. , For.~ple, t!l access
channel2; press 0-0-i.
· F()r. qiifi.mel22ipress
0~2,2. -> ..
Select the video source
C~ange
the viewing
aspect (if available)
PIP ON/OFF Turn Picture-in-
Picture (PIP) on or off
(if available)
PIP SWAP
PIP Move
PIP CH +1-
Swap the PIP. signal to
them~d)spl~y:(if
available) . .
Move the position of
the PIP display
Select the next or
previo11sshannel in the
PIP display (the main
display does not
change)
PROGRAMMING DEVICE
CONTROL
Each of the additional device keys
controls a particular type of device.
For example, the DVD/VCR key
controls your VCR, DVR, or DVD
player, but not your TV, unless you
specify otherwise. See "Reassigning
Device Keys".
Th1s dev1ce Controls th1s type of
key... device ...
TV TV
DVDNCR DVD, VCR, DVR,
ariB,
TYNCR,
. T'{NGRJDVD,
andTV/DVD
Cable Cable box only
Audio Amplifier, Thner
To specify a device
1. Look up the device you want to
control in the device code list on
the back of this guide.
2. Press and hold a device key
(AUDIO, DVD/VCR, or TV) for at
least six seconds. The LEDs for
each device key light up, then the
LED for the device you se1ected
remains on.
3. Enter the four-digit code. The
device key LED turns off briefly
after each key press.
Note: You have 10 seconds to press
each digit. If it takes longer than
that, the remote "times out" and
you must begin again.
4. If the remote recognizes the
code, the device key's LED blinks
three times. You can now test the
remote by pressing POWER. If
your device responds (turns off),
you have found the right code. If
your device does not respond,
repeat steps 2 - 3 with the next
code in the list..
If the remote does not recognize
the code, the LED will turn off.
Retry the code (by repeating
steps 2-3 using the next code
listed for your brand), or search
for a device code. See "Searching
for Codes".
SEARCHING FOR CODES
If none of the codes listed under
"Device Codes" on the back of this
guide match your device, you can
search for a set of commands that will
work. Your remote will sample all the
codes in its system for that device
mode to find one that will allow you to
control your device.
1. Press and hold a device mode
key (AUDIO, DVDNCR, or TV) for
at least six seconds. The LED for
each device key lights up, then
the key for the device you
selected remains on.
2. Press a function key (such as
Power or Mute). The following
function keys are valid for
Searching (Power is
recommended):
• Power
• Mute
• Play
• CH
+
• Stop
The device key's LED blinks
three times, then turns off .
3. Press .A.. The remote will send
the IR command for the function
you pressed in Step 2.
4. If the device performed the
function you pressed, press OK.
The remote will now control the
device you selected in Step 1.
If the device did not perform the
function you pressed, repeat step
3. Press T to retry the previous
code.
np:
Note the code set that worked, in
case you must re-code your remote:
DVD/VCR:
TV:
AUDIO:
See "Checking Codes"for more
information on noting code sets.
CHECKING CODES
1. Press and hold a device mode
key (AUDIO, DVDNCR, or TV) for
at least six seconds. The LEDs
for each device key light up, then
the key for the device you
selected remains on.
2. Enter 9 9 0 to tell the remote you
are verifying the device code.
The LED blinks twice.
3. Press 1, then count the LED
blinks and write down the
number. If the LED does not
blink, the number is 0. This is
the first digit of the device code.
Press
2, 3,
and
4
to obtain all
four-code digits.
CHANGING VOLUME LOCK
Locking the volume controls to a
single device makes it easier to control
volume, without having to guess
whether the volume will change. If you
lock the remote's volume controls to
the TV (for example), you will always
be able to change the volume to the
level you want, without having to
adjust it on multiple devices.
1. Press and hold the device mode
key (TY, AUDIO, DVDNCR, or
Cable) corresponding to the
device you want to control
volume for at least six seconds.
The LED for each device key
lights up, then the key for the
device you selected remains on.
2.
Press Volume +.
The device key's LED blinks three
times, indicating it has locked the
volume control to the device you
selected. The AUDIO device key always
controls its own volume, regardless of
the device is locked to volume control.
Note: If you reassign AUDIO to
another device, such as a second TV,
the second TV will always control its
own volume.
Unlocking Volume Control:
1. Press and hold a device mode
key (TY, AUDIO, DVDNCR, or
Cable) corresponding to the
device currently locked to the
volume controls for at least six
seconds. The LED for each
device key lights up, then the key
for the device you selected
remains on.
2. Press Volume-.
The device key's LED blinks three
times, indicating it has unlocked the
volume control for all devices.
REASSIGNING DEVICE KEYS
Each device key accesses a specific
type of device (for example, the DVD/
VCR key can only be programmed to
control a DVD player, VCR, DVR, or
HTIB system). This makes it easier to
search for a code if your device's code
does not appear on the list provided.
Your new remote allows you to change
the type of device that may be
assigned to a device key. That way, if
you have two TV s, for example, you
can control them both by changing the
type of device the DVDNCR or AUDIO
key controls.
1. Press and hold the device mode
key (TY, AUDIO, DVD/VCR, or
Cable) corresponding to the type
of device you want the
reassigned key to control (for
example, TV) for at least six
seconds. The LED for each
device key lights up, then the key
for the device you selected
remains on.
2. Enter
9 9 2.
3. Press the device mode key you
want to reassign (for example,
AUDIO). That mode key's LED
blinks three times and turns off,
indicating that it has been
reassigned.
The reassigned key automatically uses
the same device code as the key you
selected in Step
1.
If your second
device uses a different code, you may
program it for the new code. See
"Programming Device Control".
Note: You may not reassign the Cable
device key to another type of device.
Assigning a Key back to Its Original
Device Type:
1. Press and hold the device mode
key (TY, AUDIO, DVDIVCR, or
Cable) you want to reset to its
original type (for example,
AUDIO) for at least six seconds.
The LED for each tievice key
lights up, then the key for the
device you selected remains on.
2. Enter 9 9 2. The mode key's LED
blinks three times and turns off.
3. Press the device mode key you
selected in Step 1 again. The
mode key's LED blinks three
times and turns off.
4. Program the restored mode key
to control a device. See
"Programming Device Control".
TROUBLESHOOTING
If you have trouble with your remote,
try the following steps in order.
My remote is not responding
Review the information in
"Using Your Remote"to make·
sure that the key you pressed is
active for the device you are
controlling.
Make sure you are controlling
the device you think you are. See
"Using Your Remote'' for more
information on choosing a
device to control.
Make sure your batteries are
good. If battery power is low,
your remote enters a "Low
Battery Condition'' to conserve
battery power for retaining your
settings. See "Installing
Batteries"for more information
on changing the batteries.
Reset all settings:
Press and hold a device
mode key(TY, AUDIO, DVD/
VCR, or Cable) or at least
six seconds. The LED for
each device key lights up,
then the key for the device
you selected remains on.
Enter
9 81.
The LED blinks twice to indicate
that your remote is returned to
its factory settings. You will need
to reset all device code settings.
See "Programming Device
Control".
ADDITIONAL INFORMATION
The ARRIS DRCSOO does not have
any user -serviceable parts. Opening
the case, except for the battery cover,
may cause permanent damage to
your ARRIS remote control.
No part of this publication may be
reproduced, transmitted, transcribed,
stored in any retrieval system, or
translated to any language, in any
form, or by any means, electronic,
mechanical, optical, manual, or
otherwise, without the prior written
permission of Motorola.
ARRI and the stylized logo are
registered trademarks in the US
Patent and Trademark Office. All
other product and service names are
the property of their respective
owners. Copyright ARRIS, Inc. 2014.
M1072ABA2
3/14
~
AR R IS
