VAG-Navisystems NaviTouch Installation And Configuration Manual

Compatibility with vehicles that have concert/simphony radio which includes a 6,5 color screen
Hide thumbs Also See for NaviTouch:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Installation and configuration manual
Compatibility with vehicles that have Concert/Simphony
radio which includes a 6,5" color screen

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NaviTouch and is the answer not in the manual?

Questions and answers

Related Manuals for VAG-Navisystems NaviTouch

Summary of Contents for VAG-Navisystems NaviTouch

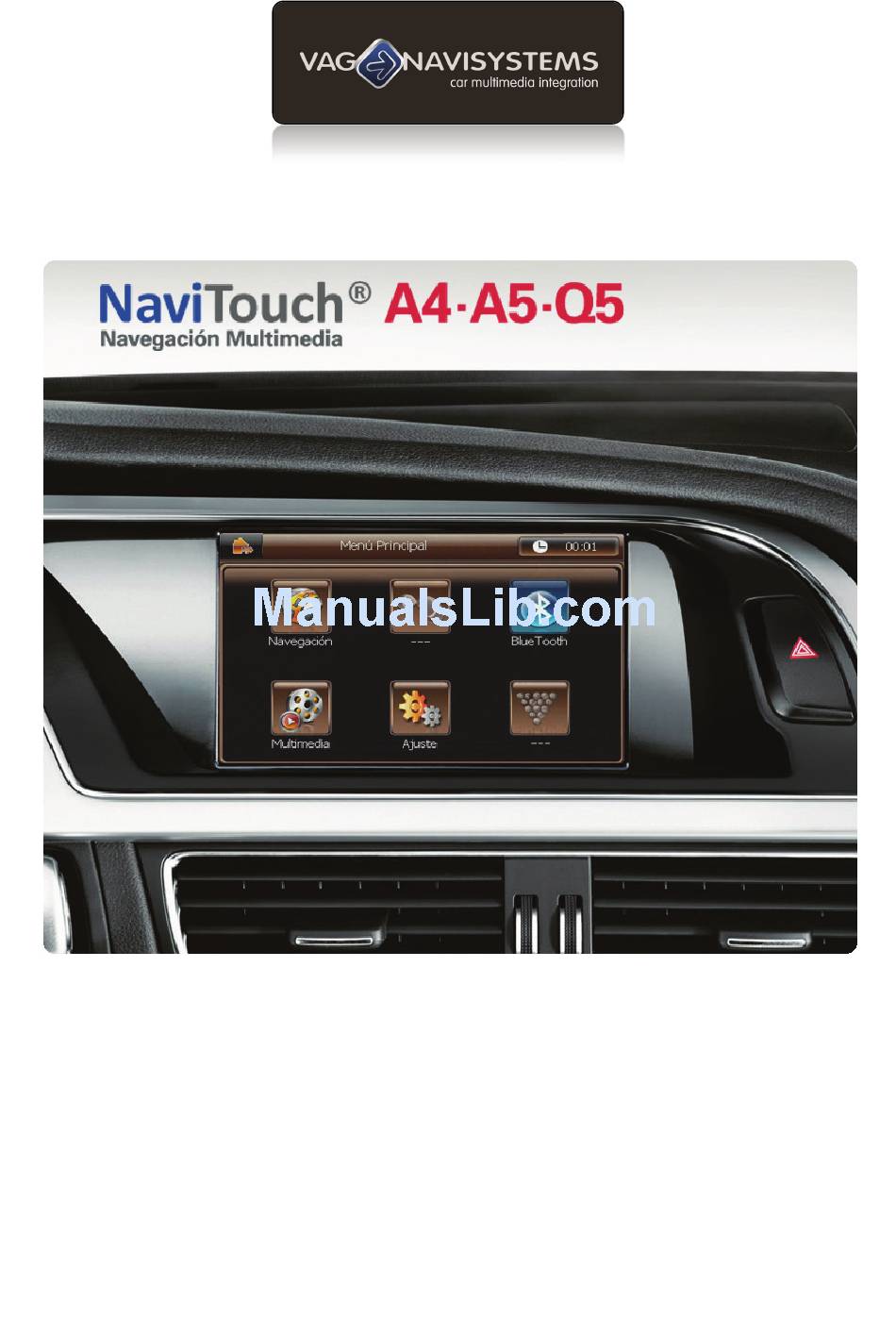

  • Page 1 Installation and configuration manual Compatibility with vehicles that have Concert/Simphony radio which includes a 6,5" color screen...

  • Page 2: Table Of Contents

    1.3. Voice module componenets – Page 4 2. Installation – Page 5 2.1. Disassembling cockpit parts – Page 5 2.2. Performing the NaviTouch® system installation– Page 8 2.3. Connections diagram – Page 10 2.4. Connecting an aftermarket rearview camera – Page 11 2.5.
  • Page 3 Problems caused by a user mistake in the installation or manipulation of the product suppose the warranty invalidation. • Vag-Navisystems S.L. WON’T make responsible about the product damages caused by a wrong installation or an improper use of the product.

  • Page 4: Component Identification

    1. Component identification: 1.1. Multimedia Interface components: Video source switch cable (OPTIONAL) Power cable Multimedia Interface AV sources wiring harnesses Touch panel cable – TP IN Vehicle’s screen connection cable (DTV_Cable_in + DVD_Cable_in) Extension cable for the original wiring harness from the screen to the multimedia interface...

  • Page 5: Gps Box Components

    1.2. GPS Box components: GPS Box power cable GPS Box Touch Panel Hidden microphone Speaker (OPTIONAL) GPS antenna (Specific for overhead courtesy lights panel) USB extension cable 1.3. Voice module components: Quadlock connection cable Voice module audio cable to the voice module Voice module...

  • Page 6: Installation

    2 Installation 2.1. Disassembling cockpit parts: 1) Monitor’s covert trim (models until 2011) Use removal wedge -3409- to prise off cover -1- for MMI screen at corners -arrows- and detach. Unplug electrical connector for warning lamp for airbag deactivated on front passenger side -K145- / hazard warning lights button -E229- and detach cover.
  • Page 7 Remove carefully from the center of the dash vent, located on the cockpit, -1- pulling from both sides with the -3438- removal hook. A hole is provided on both sides of dash panel vent for engaging hook -3438-. Equipment version with light: Unplug electrical connector at dash panel vent.
  • Page 8 Unscrew screws of the monitor -arrow-, monitor with controls for managing the information, in front -J685--1-. Pull up the monitor from the dashboard -2-. Unlock and disconnect the screen connectors. Remove side dash panel cover (passenger side). Open glove box lid and unscrew bolts -arrows-. Detach glove box and pull it out far enough so that you can unplug electrical connector at main connector.

  • Page 9: Performing The Navitouch® System Installation

    2.2 Performing the NaviTouch® system installation: Now we are going to prepare the “TOUCH SCREEN” to the original vehicle screen. 1) Unscrew the 4 screws of the screen’s metal frame. Clean the screen with a non-abrasive cleaner and a microfiber cloth, then, immediately place the touch screen panel.
  • Page 10 4) Connect the “Vehicle’s screen connection cable”, to the female connector of the “Extension cable for the original wiring harness from the screen to the multimedia interface”. 5) Connect the other side of the “Extension cable for the original wiring harness from the screen to the multimedia interface”...

  • Page 11: Connections Diagram

    2.3 Connections diagram: NOTE: The not identified connections in this diagram or the useless ones, must be isolated/ignorated.

  • Page 12: Connecting An Aftermarket Rearview Camera

    Multimedia interface DIP switches position: ALL IN OFF POSITION (UP). 2.4 Connecting an aftermarket rearview camera: To connect an aftermarket rear view camera (not genuine), you must connect the rear gear bulb signal to the multimedia interface “CAM-DET” connection. Attention; new Audi cars model year from 2011 to nowadays, rear light signal needs to install a relay to filter signal pulses.
  • Page 13  GPS antenna: Connect to the GPS antenna port of the interface GPS Box. Hidden microphone specific for overhead courtesy lights panel:  Connect to the 3.5 Jack connector (green) of the connection cables and power supplying of the GPS Box (if we are going to use it).

  • Page 14: Installing And Connecting The Voice Module

     Cables de alimentación, altavoz y mute: NOTE: The POWER connection always must be the last step in installation. • Black cable: GND, connect to the vehicle’s mass (you must weld, don't braid). • Red cable: ACC, connect on +12V ACC ignition. •...

  • Page 15: Linking Up The Interface Gps Box And The Multimedia Interface

    2.7. Linking up the interface GPS Box and the multimedia interface: See the “Connections diagram” on page 10. Connect the GPS Box outgoing cable to the “NAVI IN” connection port of the multimedia interface. Once you have done all connections correctly, you can connect all the power cables of the different component and devices that will be used (always with the vehicle stopped, and with the ignition key out of its port), then, connect...

  • Page 16: Reset

    3) Now you will have to adjust the screen’s image position, push on the “Settings” button, then push on the “Screen” button, and finally on the “Adjust position” button, this way we will enter to the screen’s setting menu, adjust it using the menu buttons. You can also use the “Adjust Size” button to adjust even more the screen's image. The default settings of the “Adjust Size”...

  • Page 17: Maps Sd Card And Gps Signal

    NOTE: If you change the position of the RGB to AV Switch from the GPS Box default position) it will RESET, then follow the steps described before to adjust the system again. 3.2 Maps SD card and GPS signal: Once you have insert the Maps SD card, we will have to setup the route of the executable file (.exe), to do that, follow the next steps: 1) Push on “Settings”, then in “Navigate Setup”, uncheck the auto initialization software option, and push on the folder icon.
  • Page 18 • If bars don’t rise, try to connect another GPS antenna, it may be that the connected one isn’t working properly as it should. • If you have tried different antennas, and the system is still not working, it could be that the problem is located on the interface GPS Box.

  • Page 19: Faq's/Solving Problems

    FAQ’S/Solving problems: 1. ¿Why do I can’t change the interface mode? • Check if the interface green LED lights “2” are shining or not. If they aren’t shining, check if the “POWER” connector is right connected. • Check if CAN connections have been done correctly. 2.
