LST 200 Series Specifications

Detector Base Series 200
B501/B501DG
• Suitable for automatic detectors
in ADM loop technology with
System Sensor/200 protocol
• Screw terminals for secure
connection of multiple wires
• Terminals for connection of remote
indicator
• Mechanical theft protection can be
activated
Description

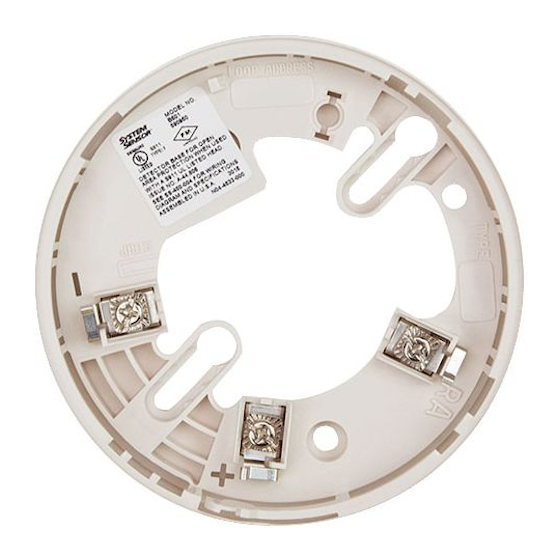

The Detector Base B501/B501DG is designed to ac-
commodate intelligent fi re detectors Series 200 and
500 for use in ADM loops with System Sensor/200
protocol. Due to its robust multi-wire screw terminals,
the detectors can be wired with ease, thus achieving a
secure and durable connection.
The base provides the possibility to easily connect an
external remote indicator, and has been designed for
surface mounting in dry rooms. For special applicati-
ons a range of accessories (for moist room, false cei-
Specifi cations
Ambient temperature
Relative humidity
Colour
Detector Base B501
Dimensions ø × H
Weight
Order number
Order name
Detector Base B501DG
Dimensions ø × H
Weight
Order number
Order name
Building Safety. Building Security.
© LABOR STRAUSS SICHERUNGSANLAGENBAU GMBH • A-1231 WIEN • WIEGELESTRASSE 36 • TEL +43 1 52114-0 • FAX +43 1 52114-27
OFFICE@LST.AT • WWW.LST.AT • ALL RIGHTS RESERVED
ling or fl ush installation) is available.
A mechanical theft protection of the detector can
optionally be activated at the detector base.
The Detector Base B501DG is 6mm higher than the
Detector Base B501, and is therefore suitable for thick
cables. It has the same height as the Isolator Detector
Base B524IEFT-1.
-30°C to +70°C
0 – 95% (no condensation)
cream
102 × 20 (mm)
53g
246002
Detector Base/Anal./500/200/SS B501
102 × 26 (mm)
57g
246015
Detector Base/Anal./500/200/SS B501DG
A
B501_DBL_LST_EN_0804.PDF • PAGE 1
