TD-W8951ND

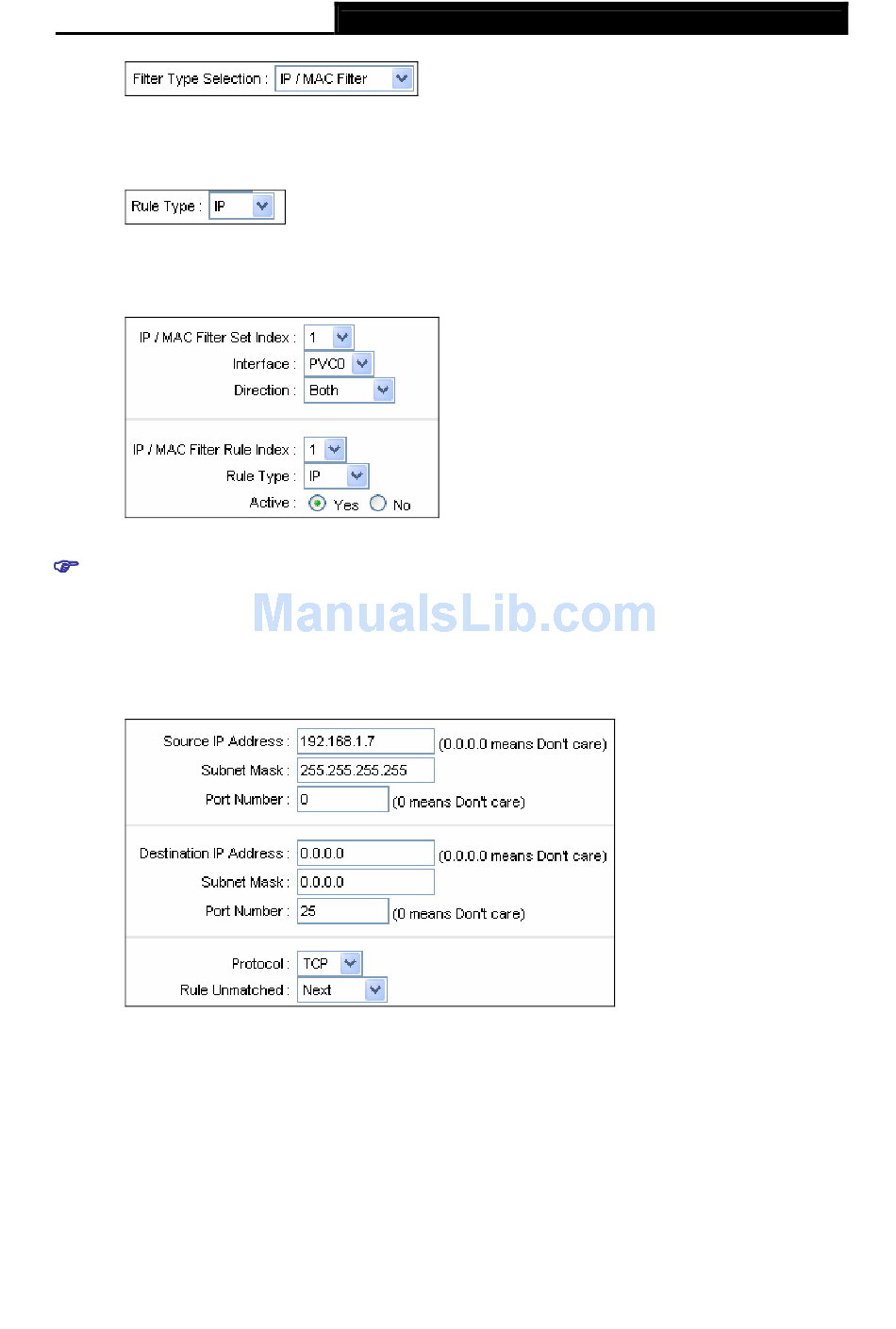

Select the "IP" as the Rule Type on the Filter screen, then you can configure the specific

rule for the example.

Step 2: Select the IP/MAC Filter Set Index and IP/MAC Filter Rule Index for the rule, then

select the Interface "PVC0", and select the Direction "Both" for the first rule.

Note:

If you want to make the rule take effect, please select Yes to active the rule.

Step 3: Enter the "Source IP Address", "Destination IP Address", "Subnet Mask" and "Port

Number" in the corresponding field.

Step 4: Select the Protocol as "TCP" and select the Unmatched rule as "Next".

Step 5: Finally, click the SAVE to save the entry.

Step 6: Go to Step 2 to configure the next two rules: Block E-mail received by the IP address

192.168.1.7 on your local network; Make the PC with IP address 192.168.1.8 unable to

visit the website of IP address 202.96.134.12.

150Mbps Wireless N ADSL2+ Modem Router User Guide
