Casio 1588 User Manual

Module No.1588
GENERAL GUIDE
• Press C to change from mode to mode. After you perform an operation in any mode,
pressing C returns to the Timekeeping Mode.
• Hold down A in any mode to illuminate the display.
Timekeeping Mode
A
PM
C
D
E
VOICE MEMORY FUNCTIONS
This watch lets you record and playback your voice or other
A B
sounds. You can also clear recordings when you no longer
PM
need them.
• You can record, playback, and clear voice memory con-
tents in any mode.
• The watch also has a built in speaker.
C
D E
Important!
• Voice memory can hold a total of up to 30 seconds of
Microphone
recorded sound.
• We strongly recommend that you always clear current voice memory contents before
recording something new.
• After making a recording, try playing it back to make sure it is what you want.
• If playback produces a sound that is broken or unclear, try changing the distance
between the source of the sound and the microphone. Good results can normally be
obtained by speaking clearly in a normal voice with about 5cm (2 inches) between
your mouth and the microphone.
To record a sound
In any mode, hold down D to record. Release D to stop recording.
• If voice memory is already full, pressing D plays back voice memory contents.
• It takes a moment for the record operation to stop after you release D.
• The record operation stops automatically if voice memory becomes full.
To play back voice memory contents
Pressing E in any mode plays back voice memory contents.
• Press E again to stop playback.
To clear voice memory contents
In any mode, press D and E at the same time.
• The voice memory clear operation takes for about four seconds. You cannot perform a
record operation during this time.
Multiple Recordings
As mentioned above, we strongly recommend that you clear voice memory contents
before recording something new. You can, however, have more than one recording in
voice memory, though it is a bit difficult to manage multiple recordings.
To store multiple recordings
Perform the operation under "To record a sound" without clearing voice memory first.
Your new recording is appended to the end of current voice memory contents. Though
total capacity is 30 seconds, some memory is used for partitioning, so you may get
somewhat less than 30 seconds of total recording time with multiple recordings.
To play back multiple recordings
Pressing E plays back the newest recording. Voice memory contents are played back
in the following sequence.
Newest
• If there are more than one recordings stored in voice memory, each press of E jumps
to the next recording in the above loop. If pressing E jumps from the newest record-
ing to "Stop", playback stops.
• Pressing E after you reach "Stop" restarts playback from the oldest recording in voice
memory.

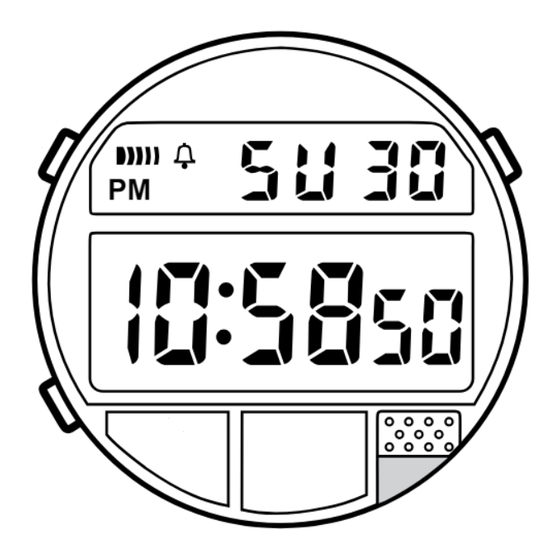

TIMEKEEPING MODE
Day of week
The current time and date is shown on the display in the
Timekeeping Mode. See "Time Setting Mode" for informa-
PM indicator
Date
tion on how to set the time and date.
• In the Timekeeping Mode, press B to switch between
A B
the 12-hour and 24-hour format. When the 12-hour format
PM
is selected, the indicator PM appears on the display to
indicate "p.m." times. There is no indicator for "a.m." Se-
lecting the 24-hour format causes the indicator 24 to ap-
pear on the display.
• Day of the week is displayed as follows.
C
D E
SU : Sunday
WE : Wednesday
Seconds
SA : Saturday
Hour : Minutes
Alarm Mode
B
Stop Oldest
MO : Monday TU
TH : Thursday FR
• In addition to the modes illustrated below, this watch is also equipped with voice memory
feature that lets you record sounds. See "Voice Memory Functions" for details.
Stopwatch Mode
About the backlight
In any mode, hold down A to illuminate the display.
• The backlight of the watch employs an electro-luminescent (EL) light, which loses
illuminating power after very long use.
• The illumination provided by the backlight may be hard to see when viewed under
direct sunlight.
• The watch will emit an audible sound whenever the display is illuminated. This is caused
by a transistor that vibrates when the EL panel lights up. It does not indicate malfunc-
tion of the watch.
Hourly time signal
on indicator
A
C
D
Hour : Minutes
Alarm on indicator
• Once you reach the Alarm Mode (no digits flashing on the display), you have to press
A again to make the hour digits flash.
3. Press B to increase the selected digits. Holding down B increases the selection at
high speed.
• The format (12-hour and 24-hour) of the alarm time matches the format you select for
normal timekeeping.
• When setting the alarm time using the 12-hour format, take care to set the time cor-
rectly as morning (no indicator) or afternoon (PM).
4. After you set the alarm time, press A to select the Alarm Mode.
To switch the Daily Alarm and Hourly Time Signal on and off
Press B while in the Alarm Mode to change the status of the Daily Alarm and Hourly
Time Signal in the following sequence.
Both ON
To test the alarm
Hold down B while in the Alarm Mode to sound the alarm.
Mode indicator
A
C
D
Minutes
Seconds
: Tuesday
: Friday
ALARM MODE
When the Daily Alarm is switched on, the alarm sounds for
20 seconds at the preset time each day. Press any button
Mode indicator to stop the alarm after it starts to sound.
When the Hourly Time Signal is switched on, the watch
B
beeps every hour on the hour.
To set the alarm time
1. Press A while in the Alarm Mode. The hour digits flash
on the display because they are selected .
• At this time, the alarm is automatically turned on.
E
2. Press A to change the selection in the following se-
quence.
Hour
[Alarm ON Indicator/Hourly Time Signal ON Indicator]
Both OFF
Daily Alarm Only
STOPWATCH MODE
The Stopwatch Mode lets you measure elapsed time, split
times, and two finishes. The range of the stopwatch is 59
minutes, 59.99 seconds.
B
(a) Elapsed time measurement
B B
J
Start Stop
(b) Split time measurement
E
B A
J
Start Split
(c) Split time and 1st-2nd place times
B A
J
1/100 of second
Start Split
First runner
finishes.
1588-1
Time Setting Mode
PM
Minutes Alarm Mode
Hourly Time
Signal only
B B A
J
J J
Re-start Stop Clear
A B A
J
J J
Split release Stop Clear
B A A
J J J
Stop Split release Clear
Second runner Record time of
finishes. Record second runner.
time of first runner.
