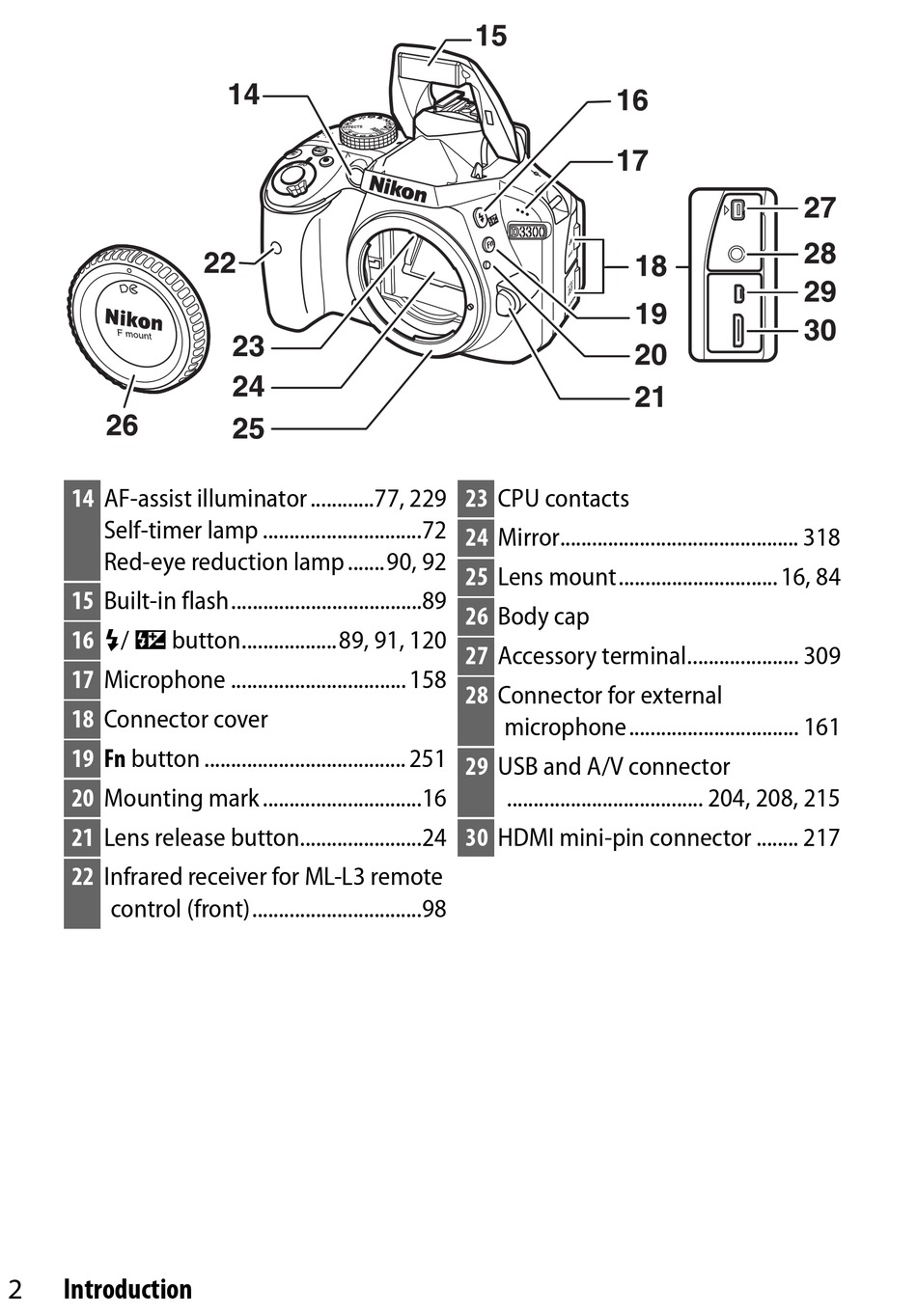

AF-assist illuminator ............77, 229
14
Self-timer lamp ..............................72
Red-eye reduction lamp .......90, 92
15 Built-in flash....................................89
M/ Y button..................89, 91, 120
16
Microphone ................................. 158
17
Connector cover
18
Fn button ...................................... 251
19
Mounting mark ..............................16
20
21 Lens release button.......................24
22 Infrared receiver for ML-L3 remote
control (front)................................98
2
Introduction
CPU contacts
23
24 Mirror............................................. 318
25 Lens mount.............................. 16, 84
26 Body cap
27 Accessory terminal..................... 309
28 Connector for external
microphone................................ 161
USB and A/V connector
29
..................................... 204, 208, 215
30 HDMI mini-pin connector ........ 217
