Freecom HARD DRIVE DOCK Quick Install Manual page 2

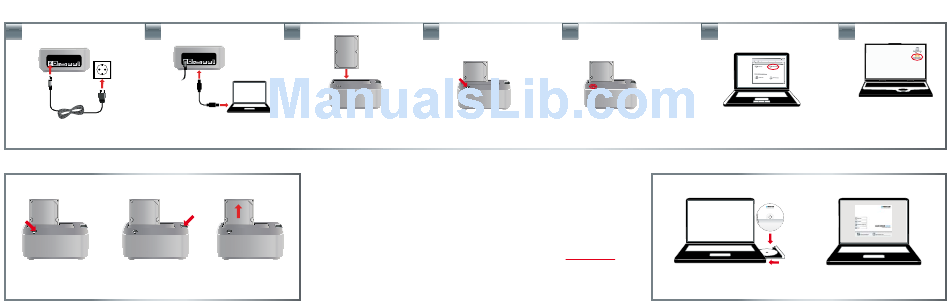

HDD installation (depending on model)
1. 2.
Connect the power supply. Connect the cable (USB, FireWire, eSATA)
to the port of your HD Dock and your
computer (USB, FireWire, eSATA).
Ejecting the HDD from the Dock
Switch off the power. Press the button
down.
3.
Insert the hard drive vertically into the
drive slot, make sure the hard drive fits
firmly in the connector inside the dock.
ATTENTION:
Hard drives may get hot during operation! Keep this in mind when touching the hard drive.
Note (HD Duplicator only): If you are connecting the Hard Drive Duplicator via eSATA, the main board of
your computer must support the "Port Multiplier" mode for SATA, so that both hard disks will be recognised
simultaneously by your computer. If this is not the case, only one hard disk will be recognised by the computer. In
this case, use the USB connection, so that both hard disks are displayed.
Need assistance? Have questions?
In case you have a question about the use of this product, need information about other Freecom products or
need technical assistance, please contact the Freecom Service Center for your country. See www.freecom.com
for details.
Gently remove the
Freecom offers free unlimited helpdesk support.
hard drive off in vertical
direction.
4. 5.
Switch on the HD Dock. LED on:
HD Dock switched on
LED flashes: Data transfer
Partition and format your hard drive (if required).
6 . 6
a
PC:
Your hard drive appears in "My
Computer" and can be used now.
Optional: Support, Manuals, Freecom Products
MANUALS
HARD DRIVE DOCK
EXTERNAL DOCKING STATION
Rev. 018
Insert the Manual CD. Manuals, Support, Freecom Products
.
b
Mac:
Your hard drive appears on the
desktop and can be used now.
