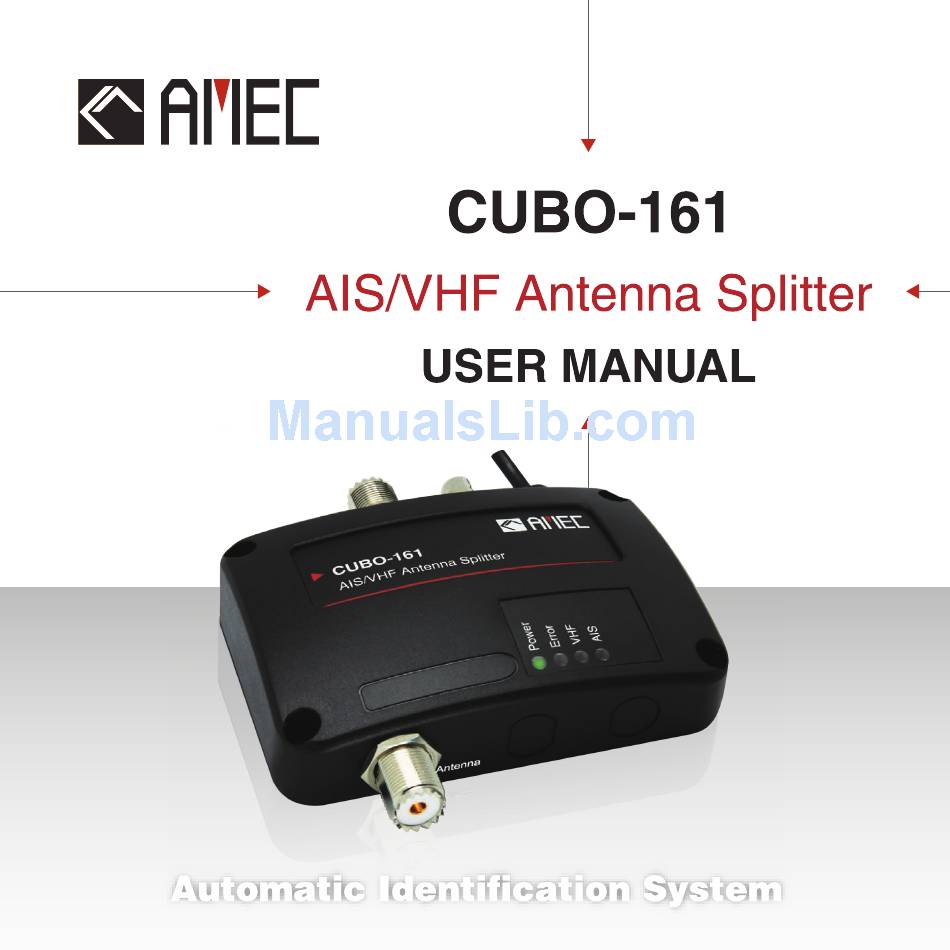

AMEC CUBO-161 User Manual

Ais/vhf antenna splitter

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CUBO-161 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for AMEC CUBO-161

  • Page 2 DISCLAIMER AMEC is devoted to publish and maintain this product manual. As we continue to improve our AIS products to satisfy all customers’ needs, information in this document is subject to change without notice. AMEC does not make any...
  • Page 3 WARNING: While most of the installation can be performed by the owner or the crew, a final commissioning can be done by your local agent/dealer when needed or required. AMEC and the local agent/dealer will not bear any responsibilities over any damages resulted from improper installation by...
  • Page 4 FOREWORD AMEC thanks you for the purchase of your new CUBO-161 AIS antenna splitter. CUBO-161 is strictly tested at the factory to meet the rigorous demands of the marine environment. With proper installation, operation and maintenance, the equipment will serve loyally and reliably at its optimum.
  • Page 6: Table Of Contents

    TART UP THE RANSPONDER LED I ................11 NDICATORS SPECIFICATIONS ................12 ..............12 RODUCT PECIFICATIONS ................. 14 IMENSIONS TROUBLESHOOTING ................ 15 FCC INTERFERENCE STATEMENT .............. 16 RF EXPOSURE WARNING ................ 17 DECLARATION OF CONFORMITY ............. 18 AMEC WORLDWIDE WARRANTY ............. 18...
  • Page 7: System Overview

    System Overview Product Description CUBO-161 is AMEC´ s latest AIS antenna splitter used to share a single VHF antenna for both VHF radio and AIS transponder or receiver. It provides also a feed for FM radio. The design of the splitter enables zero insertion loss for maximized reception range of your VHF radio and AIS device.
  • Page 8: Equipments In The Box

    Equipments in the Box Upon receiving the product please verify items in the box. If any is missing, please contact your local AMEC representative immediately.
  • Page 9: External Connections

    External Connections...
  • Page 10: What Is Ais

    What is AIS? The Automatic Identification System (AIS) is a Very High Frequency (VHF) radio broadcasting system that transfers packets of data over the VHF data link (VDL) and enables AIS equipped vessels and shore-based stations to exchange identification information and navigational data. Ships with AIS transponders continually transmit their ID, position, course, speed and other data to all nearby ships and shore stations.
  • Page 11 AIS Base Station:  is provided by aids-to-navigation authorities to enable the ship to shore / shore to ship transmission of information. Networked AIS Base Stations can assist in providing overall maritime domain awareness.  AIS AtoN (Aids to Navigation): provides an opportunity to transmit position and status of buoys and lights through the same VDL, which can then show up on AIS-ready devices within the range.
  • Page 12: Installation

    Installation Installation Procedures Please familiarize the manual content before begin installation. Depending on your hardware configuration, use the following recommended steps for installation. 1) Mount the splitter unit to an appropriate location 2) Connect the VHF antenna 3) Connect the VHF radio 4) Connect your AIS device 5) Connect an optional FM radio and appropriate power source (12V / 24V DC, 2A) 6) Perform LED checking and system functional test after the device is powered on...
  • Page 13: Mounting Transponder Main Unit

    Mounting Transponder Main Unit The following guidelines should be noticed when selecting the environment to install your AMEC CUBO-161:  Installation of the splitter should be undertaken in a safe environment without being exposed to any splashing water or rain.
  • Page 14 Figure 1 Mounting the AIS antenna splitter...
  • Page 15 Use the attached cables to connect your VHF antenna, VHF radio and AIS transponder or receiver as illustrated below: Figure 2 Get your CUBO-161 connected...
  • Page 16: Fm Radio And Power Supply Connection

    FM Radio and Power Supply Connection Practically, it is suggested to use the fuse panel before connecting directly to the battery/power supply. CUBO-161 requires a 12V or 24V power supply typically provided by the vessel’s battery. Figure 3 Wiring Instructions...
  • Page 17: Get Started

    GET STARTED Start up the Transponder The AIS antenna splitter will start up whenever the connected power source is ON. The operation status of the transponder can be checked from the LED lights on the unit. Description of the LED indications is provided in the following section. Please notice that VHF has priority when VHF radio and AIS transponder are transmitting at the same time.
  • Page 18: Specifications

    SPECIFICATIONS Product Specifications RF PERFORMANCE AIS & VHF Radio Frequency Range 156.025 MHz~162.025 MHz Insertion loss, AIS Receive path Typical 0dB Insertion loss, VHF Radio Receive path Typical 0dB Insertion loss, AIS Transmit path Typical 2.0dB Insertion loss, VHF Radio Transmit path Typical 2.5dB POWER SUPPLY Supply Voltage...
  • Page 19 PHYSICAL Width 128 mm (5.51 inch) Height 36 mm (1.97 inch) Depth 88 mm (7.87 inch) (exclude connector) Weight 230 g AIS port BNC : Max. 12.5W, 50Ω VHF Radio port PL-259 : Max. 25W, 50Ω Antenna port PL-259 FM Radio Wiring connection ENVIRONMENT Operating Temperature...
  • Page 20: Dimensions

    Dimensions...
  • Page 21: Troubleshooting

    The “AIS” LED not lighting when VHF radio is transmitting. Check the antenna output of the AIS transponder is correctly connected to the antenna splitter input. If you still encounter difficulties to set up or operate CUBO-161 correctly, please email to service@alltekmarine.com for further instructions.
  • Page 22: Fcc Interference Statement

    1) This device may not cause harmful interference, and 2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by AMEC for compliance could void of the user's authority to operate the equipment.
  • Page 23: Rf Exposure Warning

    RF Exposure Warning WARNING: This device generates and radiates RF electromagnetic energy and must be installed and operated according to the instructions contained in this manual. Failure to do so may result in product malfunction and/or exposure to potentially harmful levels of radio frequency radiation. WARNING: Never operate this device unless it is properly connected to a VHF antenna.
  • Page 24: Declaration Of Conformity

    AMEC original equipment manufacturer (a ‘AMEC OEM’), the date that such vessel was purchased by the first retail customer. AMEC will, at its sole option, repair or replace any defective products or components returned during the Warranty Period in accordance with the terms, conditions and limitations set forth below.
  • Page 25 Other conditions This Warranty is fully transferable provided that you furnish the original proof of purchase to the AMEC -certified service agent. This Warranty is void if the seal label is removed or defaced. THE LIABILITY OF AMEC TO A CUSTOMER UNDER THIS WARRANTY, WHETHER FOR...
  • Page 26 Alltek Marine Electronics Corporation 5F, No. 37, Ji-Hu Road, Neihu District, Taipei, 11492, Taiwan Tel: +886 2 2627 1599 Fax: +886 2 2627 1600 Email: service@alltekmarine.com Website: www.alltekmarine.com...
