advidia A-55 Quick Start Manual

Network bullet camera
Hide thumbs

Advertisement

Quick Links

A-55
Quick Start Guide
Quick Start Guide
Camera
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the A-55 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for advidia A-55

Summary of Contents for advidia A-55

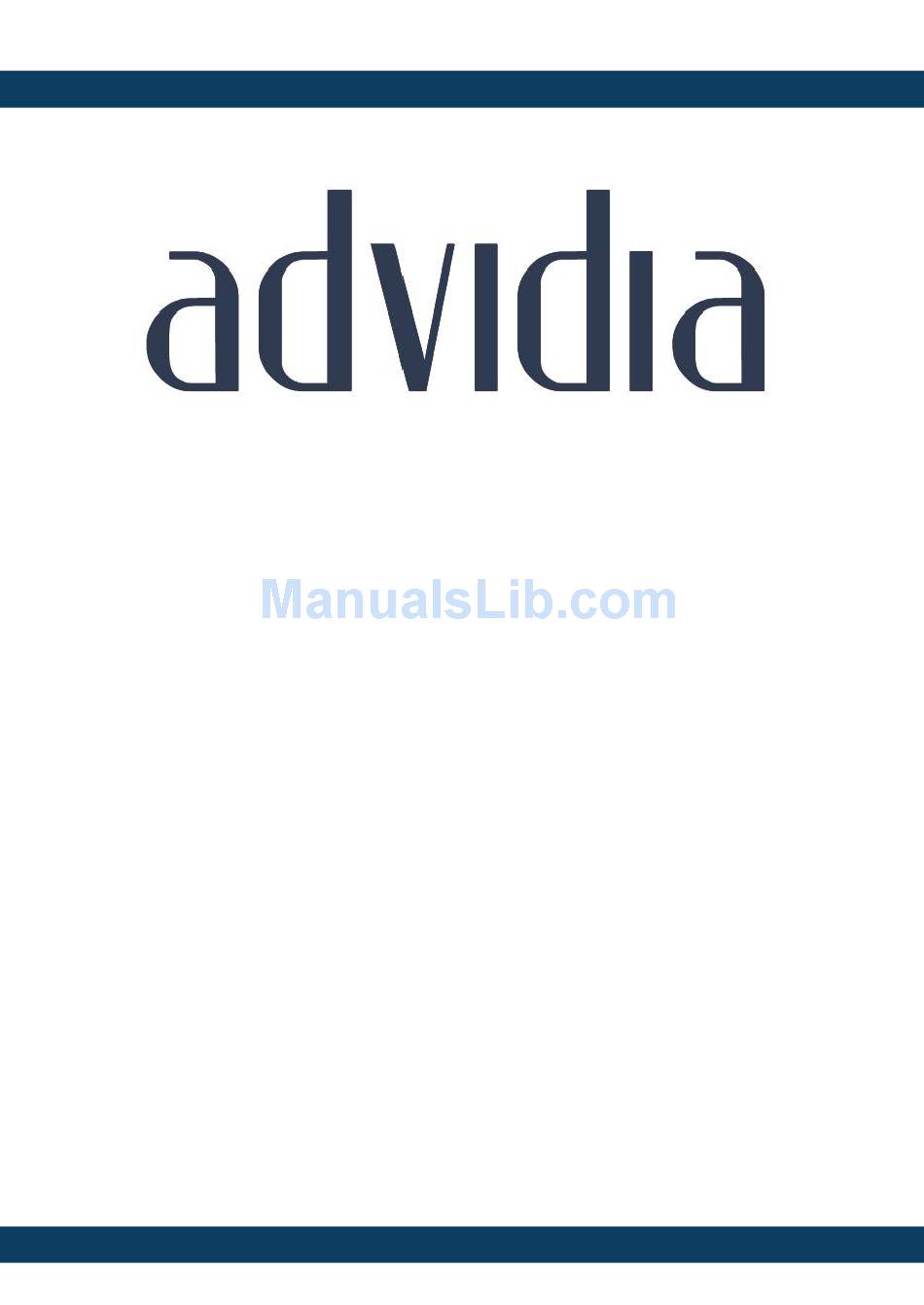

  • Page 1 A-55 Quick Start Guide Quick Start Guide Camera...

  • Page 2: Fcc Information

    About This Document This manual applies to the A-55 network camera. This manual may contain technical inaccuracies or printing errors, and the content is subject to change without notice. The updates will be added to the new version of this manual.
  • Page 3 A-55·Quick Start Guide used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.
  • Page 4 A-55·Quick Start Guide 2006/66/EC (battery directive): This product contains a battery that cannot be disposed of as unsorted municipal waste in the European Union. See the product documentation for specific battery information. The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg).

  • Page 5: Safety Instruction

    A-55·Quick Start Guide Safety Instruction These instructions are intended to ensure that user can use the product correctly to avoid danger or property loss. The precaution measure is divided into “Warnings” and “Cautions” Warnings: Serious injury or death may occur if any of the warnings are neglected.
  • Page 6 A-55·Quick Start Guide ● Do not connect several devices to one power adapter as adapter overload may cause over-heating or a fire hazard. ● Please make sure that the plug is firmly connected to the power socket. When the product is mounted on wall or ceiling, the device shall be firmly fixed.
  • Page 7 A-55·Quick Start Guide model has an “H” in its suffix), dusty or damp locations, and do not expose it to high electromagnetic radiation. ● To avoid heat accumulation, good ventilation is required for operating environment. ● Keep the camera away from liquid while in use.

  • Page 8: Table Of Contents

    A-55·Quick Start Guide Table of Contents 1 Appearance Description ..............8 1.1 Camera Description ............8 1.2 Wiring ................9 2 Installation ..................11 3 Setting the Network Camera over the LAN ........17 4 Accessing via Web Browser ............22...

  • Page 9: Appearance Description

    A-55·Quick Start Guide 1 Appearance Description Camera Description The overview of the network bullet camera is shown below: Overview Figure 1-1 Description Table 1-1 Description Description Sun Shield Bracket...

  • Page 10: Wiring

    A-55·Quick Start Guide Description Description Junction Box Reset SD Card Slot Front Box Analog Video Output Wiring Wiring (A) Figure 1-2 Description (A) Table 1-2 Description Power supply interface 10M/100M self-adaptive Ethernet interface...
  • Page 11 A-55·Quick Start Guide Wiring (B) Figure 1-3 Description (B) Table 1-3 Description AUDIO IN, G: Audio input interface AUDIO OUT, G: Audio output interface IN, G: Alarm input interface 1A, 1B: Alarm output interface D+, D-: RS-485 interface Power supply interface...

  • Page 12: Installation

    A-55·Quick Start Guide 2 Installation Before you start:  Make sure the device is in good condition and all the assembly parts are included.  Make sure all the related equipment is power-off during the installation.  Check the specifications of the products to ensure they match the installation environment.
  • Page 13 A-55·Quick Start Guide ● Make sure that there is no reflective surface too close to the camera lens. The IR light from the camera may reflect back into the lens causing reflection. ● The foam ring around the lens must be seated flush against the inner surface of the bubble to isolate the lens from the IR LEDS.
  • Page 14 A-55·Quick Start Guide Junction Box Install the Junction Box Figure 2-2 4. Route the cables of the camera.  Route the cables through the junction box and the cable hole if there is a cable hole drilled on the ceiling.
  • Page 15 A-55·Quick Start Guide 6. Tighten the screws to fix the camera to the junction box. Fix the Camera to the Junction Box Figure 2-3 7. Loosen the screws on the bracket to adjust the camera to the desired angle and then tighten the screws to secure the camera.
  • Page 16 A-55·Quick Start Guide Pan Adjust Nut Tilt Adjust Nut Adjust Monitoring Angle Figure 2-4 Note: Please loosen the screws slightly until you can adjust the camera without removing the screws from the bracket. 8. This product has an electronic lens, so adjust the camera to the...
  • Page 17 A-55·Quick Start Guide Zoom and Focus Adjustment Figure 2-5 9. Tighten all screws and adjust the sun shield to the desired position to finish the installation.

  • Page 18: Setting The Network Camera Over The Lan

     The following figure shows the cable connection of network camera and PC: Wiring over LAN Figure 3-1  Set the IP address of the camera for accessing via LAN. Steps: To set the IP address, please use the Advidia Camera Finder Utility as described below:...
  • Page 19  To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your PC. Then, install the Advidia Camera Finder Utility. Refer to the following introductions to set IP address with the...
  • Page 20 A-55·Quick Start Guide Note: To perform a manual search for additional cameras: Click the refresh icon to refresh the online device list manually. The newly discovered devices will be added to the list. Note: You can click on each column heading to order the information.
  • Page 21 A-55·Quick Start Guide Select a Device Figure 3-3 Login Manager Figure 3-4...
  • Page 22 A-55·Quick Start Guide Modify Network Parameters Figure 3-5 Figure 3-6 Edit Table Enter the desired IP address (or range if changing the IP address of more than one device) of the network camera in the address field of the edit table and click Apply Network Changes.

  • Page 23: Accessing Via Web Browser

    A-55·Quick Start Guide  For accessing the network camera from different subnets, please set the gateway for the network camera after you log in. 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version / Vista / Win7 / Server 2003 / Server 2008 32bits CPU: Intel Pentium IV 3.0 GHz or higher...
  • Page 24 A-55·Quick Start Guide Login Interface Figure 4-1 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of...
  • Page 25 A-55·Quick Start Guide Download Plug-in Figure 4-2...
  • Page 26 Figure 4-3 Install Plug-in (2) Figure 4-4 6. Reopen the web browser after the installation of the plug-in and repeat steps 2-4 to login. Note: For detailed instructions of further configuration, please refer to the user manual of A-55 network camera.
