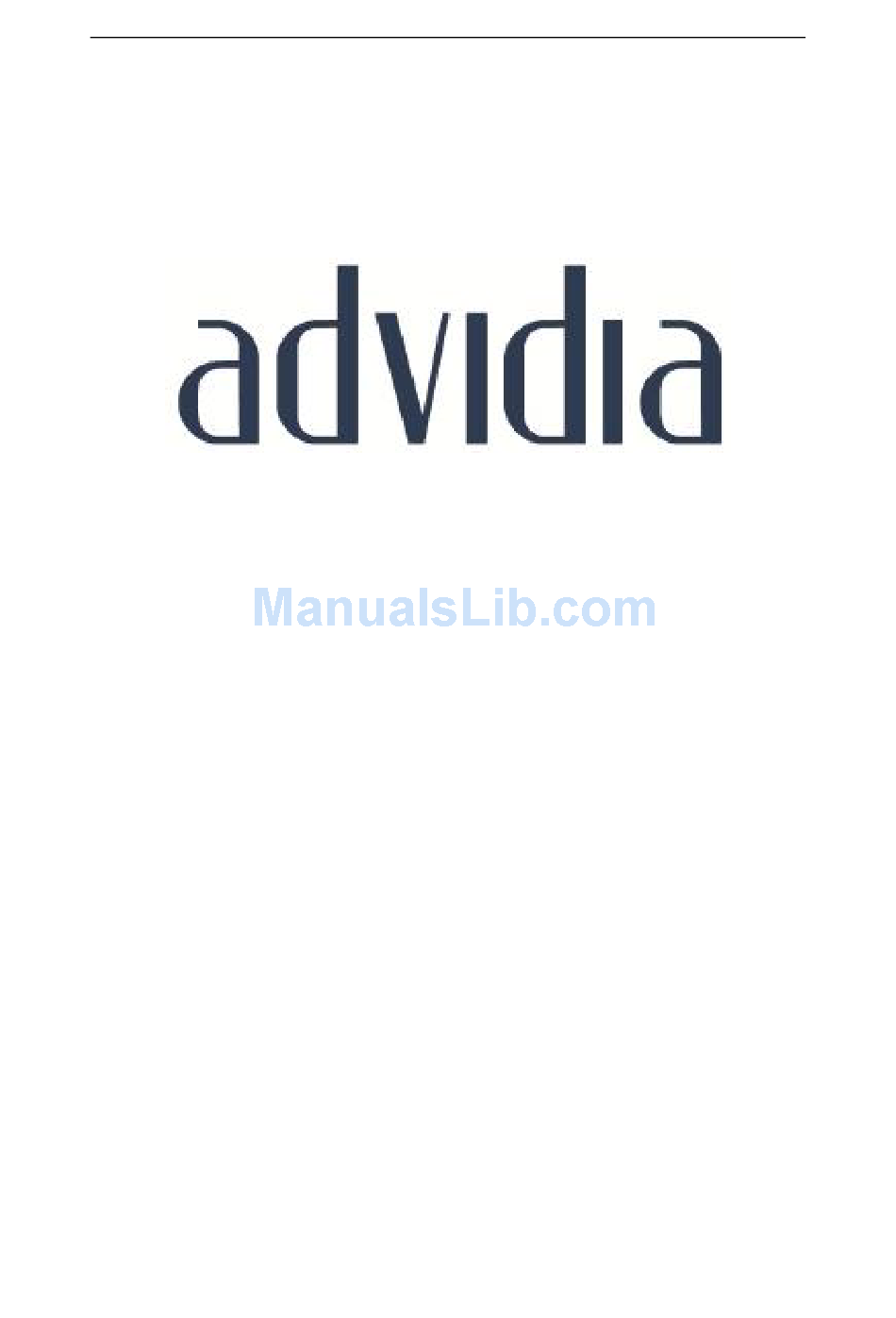

Advidia A-300 IR Speed Dome

User Manual

·
A-300 Speed Dome
User Manual
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-300 and is the answer not in the manual?

Questions and answers

Related Manuals for advidia A-300

Summary of Contents for advidia A-300

  • Page 1: User Manual

    Advidia A-300 IR Speed Dome User Manual · A-300 Speed Dome User Manual...
  • Page 2 · User Manual About this Manual This Manual is applicable to Advidia A-300 IR Speed Dome. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information hereinafter are for description and explanation only.

  • Page 3: Fcc Information

    Advidia A-300 IR Speed Dome User Manual · SECURITY RISKS; HOWEVER, OUR COMPANY WILL PROVIDE TIMELY TECHNICAL SUPPORT IF REQUIRED. SURVEILLANCE LAWS VARY BY JURISDICTION. PLEASE CHECK ALL RELEVANT LAWS IN YOUR JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW.

  • Page 4: Safety Instruction

    Advidia A-300 IR Speed Dome User Manual · marked with "CE" and comply therefore with the applicable harmonized European standards listed under the EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU. 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union.
  • Page 5 Advidia A-300 IR Speed Dome User Manual · Warnings Follow these safeguards to Cautions Follow these precautions to prevent serious injury or death. prevent potential injury or material damage. Warnings:  Please adopt the power adapter which can meet the safety extra low voltage (SELV) standard.
  • Page 6 Advidia A-300 IR Speed Dome User Manual ·  Do not aim the camera lens at the strong light such as sun or incandescent lamp. The strong light can cause fatal damage to the camera.  The sensor may be burned out by a laser beam, so when any laser equipment is being used, make sure that the surface of the sensor not be exposed to the laser beam.

  • Page 7: Table Of Contents

    Advidia A-300 IR Speed Dome User Manual · Table of Contents Chapter 1 System Requirement ................9 Chapter 2 Network Connection ................10 Setting the Network Camera over the LAN ............10 2.1.1 Wiring over the LAN ....................... 10 2.1.2 Activating the Camera ....................
  • Page 8 Advidia A-300 IR Speed Dome User Manual · Chapter 6 Network Settings ................44 Configuring Basic Settings ................44 6.1.1 Configuring TCP/IP Settings .................... 44 6.1.2 Configuring DDNS Settings ....................46 6.1.3 Configuring Port Settings ....................47 6.1.4 Configure NAT (Network Address Translation) Settings ..........48 Configure Advanced Settings ................
  • Page 9 Advidia A-300 IR Speed Dome User Manual · Configuring Net HDD ..................99 PTZ Configuration ................ 102 Chapter 10 10.1 Configuring Basic PTZ Parameters ..............102 10.2 Configuring PTZ Limits .................. 104 10.3 Configuring Initial Position ................105 10.4 Configuring Park Actions ................106 10.5...

  • Page 10: Chapter 1 System Requirement

    Advidia A-300 IR Speed Dome User Manual · Chapter 1 System Requirement Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024× 768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above...

  • Page 11: Chapter 2 Network Connection

    To view and configure the camera via a LAN, you need to connect the network camera in the same subnet with your computer, and install the Advidia Camera Finder Utility to search and change the IP of the network camera.

  • Page 12: Activating The Camera

    2.1.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, or Advidia Camera Finder Utility are both supported.  Activation via Web Browser Steps: 1.
  • Page 13 Advidia Camera Finder Utility is used for detecting the online device, activating the camera, and resetting the password. Get the Advidia Camera Finder Utility from the supplied disk or the official website, and install the Advidia Camera Finder Utility according to the prompts. Follow the steps to activate the camera.
  • Page 14 Advidia A-300 IR Speed Dome User Manual · Figure 2-4 Advidia Camera Finder Utility Interface 3. Create a password and input the password in the password field, and confirm the password. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum...
  • Page 15 Advidia A-300 IR Speed Dome User Manual · Figure 2-5 Modify the IP Address 6. Input the password and click the Save button to activate your IP address modification.

  • Page 16: Chapter 3 Access To The Network Camera

    Advidia A-300 IR Speed Dome User Manual · Chapter 3 Access to the Camera 3.1 Accessing by Web Browsers Steps: 1. Open the web browser. 2. In the browser address bar, input the IP address of the network camera, and press the Enter key to enter the login interface.
  • Page 17 Advidia A-300 IR Speed Dome User Manual · Figure 3-1 Login Interface 6. Install the plug-in before viewing the live video and operating the camera. Please follow the installation prompts to install the plug-in. Figure 3-2 Download and Install Plug-in Note: You may have to close the web browser to install the plug-in.

  • Page 18: Chapter 4 Live View

    Advidia A-300 IR Speed Dome User Manual · Chapter 4 Live View 4.1 Live View Page Purpose: The live view page allows you to view the real-time video, capture images, realize PTZ control, set/call presets and configure video parameters. Log in the network camera to enter the live view page, or you can click Live View to enter the live view page.

  • Page 19: Operating Ptz Control

    Advidia A-300 IR Speed Dome User Manual · Icon Description Start/Stop live view. The window size, 4:3, 16:9, X1 and Auto are optional. Full screen. Live view with main, sub, third stream. Click to select the third-party plug-in. Zoom in and out...
  • Page 20 Advidia A-300 IR Speed Dome User Manual · Figure 4-3 PTZ Control Panel Table 4-2 Descriptions of PTZ Control Panel Button Name Description Hold and press the direction button to pan/tilt the speed dome. PTZ Control Click and the speed dome...

  • Page 21: Auxiliary Functions

    Advidia A-300 IR Speed Dome User Manual · Button Name Description When the image is too dark, click to open the iris. When Iris close/open the image is too bright, click to close the iris. The auxiliary functions include light, wiper, auxiliary focus, lens...
  • Page 22 Advidia A-300 IR Speed Dome User Manual · Figure 4-4 Auxiliary Functions  Light Click to enable/disable the light supplement of the speed dome. This function is reserved.  Wiper Click to move the wiper once.  Auxiliary Focus The auxiliary focus function is reserved.

  • Page 23: Setting/Calling A Preset

    Advidia A-300 IR Speed Dome User Manual · Click to call one-touch patrol. For detailed information of setting one-touch patrol.  One-touch Park Click to save the current view as the preset No. 32 and start park at the the current position.
  • Page 24 Advidia A-300 IR Speed Dome User Manual · 5. You can click to delete the preset. Note: You can configure up to 256 presets.  Calling a Preset: In the PTZ control panel, select a defined preset from the list and click to call the preset.

  • Page 25: Setting/Calling A Patrol

    Advidia A-300 IR Speed Dome User Manual · Wiper Call patrol 8 Note: You may need to use the OSD (On Screen Display) menu when controlling the speed dome remotely. To display the OSD menu on the live view screen, you can call the preset number 95.

  • Page 26: One-Touch Patrol

    Advidia A-300 IR Speed Dome User Manual · 4.3.5 One-touch Patrol One-touch patrol is an automatically created patrol. The system automatically add preset No.1 to No.32 to the patrol path 8. You can call the one-touch patrol and the speed dome moves as the patrol path 8 automatically.
  • Page 27 Advidia A-300 IR Speed Dome User Manual · 2. Select a pattern number from the list as shown in Figure 4-7. Figure 4-7 Patterns Settings Interface 3. Click to enable recording the panning, tilting and zooming actions. 4. Use the PTZ control buttons to move the lens to the desired position after the information of PROGRAM PATTERN REMAINNING MEMORY %) is displayed on the screen.

  • Page 28: Recording And Capturing Pictures Manually

    Advidia A-300 IR Speed Dome User Manual · 4.4 Recording and Capturing Pictures Manually In the live view interface, click on the toolbar to capture the live pictures or click to record the live view. The saving paths of the captured pictures and clips can be set on the System >...

  • Page 29: Chapter 5 Network Camera Configuration

    Advidia A-300 IR Speed Dome User Manual · Chapter 5 Basic Configuration 5.1 Configuring Local Parameters Purpose: The local configuration refers to the parameters of the live view, record files and captured pictures. The record files and captured pictures are the ones you record and capture using the web browser and thus the saving paths of them are on the PC running the browser.
  • Page 30 Advidia A-300 IR Speed Dome User Manual · UDP: Provides real-time audio and video streams. HTTP: Allows the same quality as of TCP without setting specific ports for streaming under some network environments. MULTICAST: It’s recommended to select MCAST type when using the Multicast function.

  • Page 31: Configure System Settings

    Advidia A-300 IR Speed Dome User Manual · 5.2 Configure System Settings Purpose: Follow the instructions below to configure the system settings, include System Settings, Maintenance, Security, and User Management, etc. 5.2.1 Configuring Basic Information Enter the Device Information interface: System > Basic Information.
  • Page 32 Advidia A-300 IR Speed Dome User Manual · You can follow the instructions in this section to configure the time synchronization and DST settings. Steps: 1. Enter the Time Settings interface, System> Time Settings. Figure 5-3 Time Settings 2. Select the Time Zone of your location from the drop-down menu.

  • Page 33: Configuring Rs485 Settings

    Advidia A-300 IR Speed Dome User Manual · Figure 5-4 Time Sync by NTP Server Note: If the camera is connected to a public network, you should use a NTP server that has a time synchronization function, such as the server at the National Time Center (IP Address: 210.72.145.44).

  • Page 34: Configuring Dst Settings

    Advidia A-300 IR Speed Dome User Manual · The RS485 serial port is used to control the PTZ of the camera. The configuring of the PTZ parameters should be done before you control the PTZ unit. Steps: 1. Enter RS-485 Port Setting interface: System > RS485.

  • Page 35: Maintenance

    Advidia A-300 IR Speed Dome User Manual · Figure 5-7 DST Settings 2. Select the start time and the end time. 3. Select the DST Bias. 4. Click Save to activate the settings. 5.3 Maintenance 5.3.1 Upgrade & Maintenance The upgrade & maintenance interface allows you to process the operations, including reboot, partly restore, restore to default, export/import the configuration files, and upgrade the device.

  • Page 36: Log

    Advidia A-300 IR Speed Dome User Manual · to certain place. 2. Click Browse to select the saved configuration file and then click Import to start importing configuration file. Note: You need to reboot the camera after importing configuration file.

  • Page 37: System Service

    Advidia A-300 IR Speed Dome User Manual · Figure 5-8 Log Searching Interface 2. Set the log search conditions to specify the search, including the Major Type, Minor Type, Start Time and End Time. 3. Click Search to search log files. The matched log files will be displayed on the log list interface.

  • Page 38: Security Settings

    Advidia A-300 IR Speed Dome User Manual · Figure 5-9 Enable IR Light 5.4 Security Settings Configure the parameters, including Authentication, Anonymous Visit, IP Address Filter, and Security Service from security interface. 5.4.1 Authentication Purpose: You can specifically secure the stream data of live view.
  • Page 39 Advidia A-300 IR Speed Dome User Manual · Steps: 1. Enter the IP Address Filter interface: Security > IP Address Filter Figure 5-11 IP Address Filter Interface 2. Check the checkbox of Enable IP Address Filter. 3. Select the type of IP Address Filter in the drop-down list, Forbidden and Allowed are selectable.

  • Page 40: Security Service

    Advidia A-300 IR Speed Dome User Manual ·  Modify an IP Address Steps: (1) Left-click an IP address from filter list and click Modify. (2) Modify the IP address in the text filed. Figure 5-13 Modify an IP (3) Click the OK to finish modifying.

  • Page 41: User Management

    Advidia A-300 IR Speed Dome User Manual · Note: If the IP address is locked, you can try to login the device after 30 minutes. 5.5 User Management 5.5.1 User Management The admin user can add, delete or modify user accounts, and grant them different permissions.
  • Page 42 Advidia A-300 IR Speed Dome User Manual · 2. Input the User Name, select Level and input Password. Notes: ● Up to 31 user accounts can be created. ● Users of different levels own different default permissions. Operator and user are selectable.
  • Page 43 Advidia A-300 IR Speed Dome User Manual · Figure 5-16 Add a User  Modifying a User Steps: 1. Left-click to select the user from the list and click Modify. 2. Modify the User Name, Level and Password. STRONG PASSWORD RECOMMENDED–We highly recommend you...

  • Page 44: Online Users

    Advidia A-300 IR Speed Dome User Manual · Figure 5-17 Modify a User  Deleting a User Steps: 1. Click to select the user you want to delete and click Delete. 2. Click OK on the pop-up dialogue box to confirm the deletion.

  • Page 45: Chapter 6 Network Settings

    Advidia A-300 IR Speed Dome User Manual · Chapter 6 Network Settings Follow the instructions in this chapter to configure the basic settings and advanced settings. 6.1 Configuring Basic Settings Purpose: You can configure the parameters, including TCP/IP, DDNS, PPPoE, Port, and NAT, etc., by following the instructions in this section.
  • Page 46 Advidia A-300 IR Speed Dome User Manual · Figure 6-1 TCP/IP Settings 2. Configure the basic network settings, including the NIC Type, IPv4 or IPv6 Address, IPv4 or IPv6 Subnet Mask, IPv4 or IPv6 Default Gateway, MTU settings and Multicast Address.

  • Page 47: Configuring Ddns Settings

    Advidia A-300 IR Speed Dome User Manual · 6.1.2 Configuring DDNS Settings Purpose: If your camera is set to use PPPoE as its default network connection, you can use the Dynamic DNS (DDNS) for network access. Before you start: Registration on the DDNS server is required before configuring the DDNS settings of the camera.

  • Page 48: Configuring Port Settings

    Advidia A-300 IR Speed Dome User Manual · (1) Choose the DDNS Type as NO-IP. Figure 6-3 NO-IP DNS Settings (2) Enter the Server Address as www.noip.com (3) Enter the Domain name you registered. (4) Enter the User Name and Password.

  • Page 49: Configure Nat (Network Address Translation) Settings

    Advidia A-300 IR Speed Dome User Manual · RTSP Port: The default port number is 554 and it can be changed to any port No. ranges from 1 to 65535. HTTPS Port: The default port number is 443, and it can be changed to any port No.

  • Page 50: Configure Advanced Settings

    Advidia A-300 IR Speed Dome User Manual · Figure 6-5 NAT Settings 6.2 Configure Advanced Settings Purpose: You can configure the parameters, including SNMP, FTP, Email, HTTPS, QoS, 802.1x, etc., by following the instructions in this section. 6.2.1 Configuring SNMP Settings...
  • Page 51 Advidia A-300 IR Speed Dome User Manual · Note: The SNMP version you select should be the same as that of the SNMP software. And you also need to use the different version according to the security level you required. SNMP v1 provides no security and SNMP v2 requires password for access.

  • Page 52: Configuring Ftp Settings

    Advidia A-300 IR Speed Dome User Manual · Figure 6-6 SNMP Settings 2. Check the checkbox of Enable SNMPv1, Enable SNMP v2c, Enable SNMPv3 to enable the feature correspondingly. 3. Configure the SNMP settings. Note: The settings of the SNMP software should be the same as the settings you configure here.
  • Page 53 Advidia A-300 IR Speed Dome User Manual · captured pictures to the FTP server. The captured pictures can be triggered by events or a timing snapshot task. Steps: 1. Enter the FTP Settings interface: Network > FTP. Figure 6-7 FTP Settings 2.

  • Page 54: Configuring Email Settings

    Advidia A-300 IR Speed Dome User Manual · have the option to use the Device Name, Device Number or Device IP for the name of the directory; and when the Child Directory is selected, you can use the Camera Name or Camera No. as the name of the directory.
  • Page 55 Advidia A-300 IR Speed Dome User Manual · 1. Enter the TCP/IP Settings (Network > TCP/IP) to set the IPv4 Address, IPv4 Subnet Mask, IPv4 Default Gateway and the Preferred DNS Server. Note: Please refer to Section 6.1.1 Configuring TCP/IP Settings for detailed information.
  • Page 56 Advidia A-300 IR Speed Dome User Manual · strongly recommend the use of strong passwords for all functions and network devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

  • Page 57: Configure Https Settings

    Advidia A-300 IR Speed Dome User Manual · 6.2.4 Configure HTTPS Settings Purpose: HTTPS provides authentication of the web site and its associated web server, which protects against Man-in-the-middle attacks. Perform the following steps to set the port number of https.

  • Page 58: Configuring Qos Settings

    Advidia A-300 IR Speed Dome User Manual · (3) Enter the country, host name/IP, validity and other information. (4) Click OK to save the settings. Note: If you already had a certificate installed, the Create Self-signed Certificate is grayed out.

  • Page 59: Configuring 802.1X Settings

    Advidia A-300 IR Speed Dome User Manual · Steps: 1. Enter the QoS Settings interface: Network > QoS Figure 6-12 QoS Settings 2. Configure the QoS settings, including Video/Audio DSCP, Event/Alarm DSCP and Management DSCP. The valid value range of the DSCP is 0 to 63. The bigger the DSCP value is, the higher the priority is.
  • Page 60 Advidia A-300 IR Speed Dome User Manual · devices. The password should be something of your own choosing (using a minimum of 8 characters, including at least three of the following categories: upper case letters, lower case letters, numbers and special characters) in order to increase the security of your product.

  • Page 61: Chapter 7 Image Settings

    Advidia A-300 IR Speed Dome User Manual · Chapter 7 Image Settings Purpose: Follow the instructions below to configure the display settings, OSD settings, video setting, audio settings, ROI, and Display info. on Stream. 7.1 Configuring Display Settings Purpose: Configure the image adjustment, exposure settings, day/night switch, backlight settings, white balance, image enhancement, video adjustment, and other parameters in display settings.

  • Page 62: Image Adjustment

    Advidia A-300 IR Speed Dome User Manual · Figure 7-1 Display Settings of Day/Night Auto-Switch 2. Set the image parameters of the camera. Note: In order to guarantee the image quality in different illumination, it provides two sets of parameters for users to configure.
  • Page 63 Advidia A-300 IR Speed Dome User Manual · The value of shutter needs to be adjusted manually. The iris and gain values will be adjusted automatically according to the brightness of the environment. Figure 7-3 Shutter Priority Mode  Manual: In Manual mode, you can adjust the values of Iris, Shutter, Gain, Limit Gain and Slow Shutter manually.
  • Page 64 Advidia A-300 IR Speed Dome User Manual · Select the Day/Night Switch mode according to different surveillance demand. Day, Night, Auto, Scheduled-Switch, and Triggered by alarm input are selectable for day/night switch. Figure 7-5 Day/Night Switch Day: the camera stays at day mode.
  • Page 65 Advidia A-300 IR Speed Dome User Manual · in the scene affecting the image quality.  White Balance White balance is the white rendition function of the camera used to adjust the color temperature according to the environment. Figure 7-6 White Balance ...

  • Page 66: Configuring Osd Settings

    Advidia A-300 IR Speed Dome User Manual · check the checkbox of Lens Initialization. Zoom Limit: You can set Zoom Limit value to limit the maximum value of zooming. The value can be selected from the list. Local Output: You can enable or disable the video output through the CVBS interface on your demand.

  • Page 67: Configuring Image Parameters Switch

    Advidia A-300 IR Speed Dome User Manual · 3. Edit the camera name in the text field of Camera Name. 4. Select from the drop-down list to set the time format and date format. 5. Select from the drop-down list to set the time format, date format, display mode, OSD size and OSD color.

  • Page 68: Configuring Video Settings

    Advidia A-300 IR Speed Dome User Manual · preset.) Figure 7-8 Link to Preset Figure 7-9 Linked Scene 4. When you enable the function of Scheduled-Switch, check the corresponding checkbox, set the time period and the linked scene. 5. Click Save button to save the settings.
  • Page 69 Advidia A-300 IR Speed Dome User Manual · Figure 7-10 Video Settings 2. Select the Stream Type of the camera to main stream (normal), sub-stream or third stream. Notes: • The main stream is usually for recording and live view with good bandwidth, and the sub-stream can be used for live view when the bandwidth is limited.
  • Page 70 Advidia A-300 IR Speed Dome User Manual · Set the frame rate. The frame rate is to describe the frequency at which the video stream is updated and it is measured by frames per second (fps). A higher frame rate is advantageous when there is movement in the video stream, as it maintains image quality throughout.
  • Page 71 Advidia A-300 IR Speed Dome User Manual · You need to reboot the camera if you want to turn on or turn off the H.264+/H.265+. If you switch from H.264+ to H.265+ directly, and vice versa, a reboot is not required by the system.

  • Page 72: Configuring Audio Settings

    Advidia A-300 IR Speed Dome User Manual · It refers to the smoothness of the stream. The higher value of the smoothing is, the better fluency of the stream will be, though, the video quality may not be so satisfactory. The lower value of the smoothing is, the higher quality of the stream will be, though it may appear not fluent.

  • Page 73: Configuring Roi Encoding

    Advidia A-300 IR Speed Dome User Manual · 3. Click Save to save the settings. 7.6 Configuring ROI Encoding Purpose: ROI (Region of Interest) encoding helps to discriminate the ROI and background information in video compression, which means, the technology assigns more encoding resource to the region of interest, thus to increase the quality of the ROI whereas the background information is less focused.

  • Page 74: Display Info. On Stream

    Advidia A-300 IR Speed Dome User Manual · (2) Check the Enable checkbox to enable ROI function for the chosen region. (3) Click Drawing. Click and drag the mouse on the view screen to draw a red rectangle as the ROI region. You can click Clear to cancel former drawing.

  • Page 75: Chapter 8 Event Settings

    Advidia A-300 IR Speed Dome User Manual · Figure 7-13 Display Info. on Stream Chapter 8 Event Settings This section explains how to configure the network camera to respond to alarm events, including basic event and smart event. 8.1 Basic Events...
  • Page 76 Advidia A-300 IR Speed Dome User Manual · Tasks 1: Set the Motion Detection Area Steps: 1. Enter the motion detection settings interface: Event > Motion Detection. 2. Check the checkbox of Enable Motion Detection. 3. Check the checkbox of Enable Dynamic Analysis for Motion if you want to mark the detected objects with green rectangles.
  • Page 77 Advidia A-300 IR Speed Dome User Manual · Figure 8-2 Arming Schedule Steps: 1. Click Arming Schedule to edit the arming schedule. 2. Click on the time bar and drag the mouse to select the time period.
  • Page 78 Advidia A-300 IR Speed Dome User Manual · Figure 8-3 Arming Schedule Note: Click on the selected time period, you can adjust the time period to the desired time by either moving the time bar or input the exact time period.
  • Page 79 Advidia A-300 IR Speed Dome User Manual · Note: The linkage methods vary according to the different camera models.  Notify IP Server Send an exception or alarm signal to remote management software when an event occurs.  Send Email Send an email with alarm information to a user or users when an event occurs.
  • Page 80 Advidia A-300 IR Speed Dome User Manual · Figure 8-5 Expert Mode of Motion Detection  Day/Night Switch OFF Steps: 1. Draw the detection area as in the normal configuration mode. Up to 8 areas are supported. 2. Select OFF for Switch Day and Night Settings.

  • Page 81: Configuring Video Tampering Alarm

    Advidia A-300 IR Speed Dome User Manual · 3. Select the area by clicking the area No.. 4. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area in the daytime. 5. Slide the cursor to adjust the sensitivity and proportion of object on the area for the selected area at night.
  • Page 82 Advidia A-300 IR Speed Dome User Manual · certain alarm response actions. Steps: 1. Enter the video tampering Settings interface, Event > Video Tampering. Figure 8-7 Video Tampering Alarm 2. Check Enable Video Tampering checkbox to enable the video tampering detection.

  • Page 83: Configuring Alarm Input

    Advidia A-300 IR Speed Dome User Manual · 6. Click Save to save the settings. 8.1.3 Configuring Alarm Input Steps: 1. Enter the Alarm Input Settings interface: Event > Alarm Input. 2. Choose the alarm input No. and the Alarm Type. The alarm type can be NO (Normally Open) and NC (Normally Closed).

  • Page 84: Configuring Alarm Output

    Advidia A-300 IR Speed Dome User Manual · 8.1.4 Configuring Alarm Output Figure 8-9 Alarm Output Settings Steps: 1. Enter the Alarm Output Settings interface: Event > Alarm Output. 2. Select one alarm output channel in the Alarm Output drop-down list. You can also set a name for the alarm output (optional).

  • Page 85: Handling Exception

    Advidia A-300 IR Speed Dome User Manual · 8.1.5 Handling Exception The exception type can be HDD full, HDD error, network disconnected, IP address conflicted and illegal login to the cameras. Steps: 1. Enter the Exception Settings interface: Event > Exception.

  • Page 86: Configuring Audio Exception Detection

    Advidia A-300 IR Speed Dome User Manual · including audio exception detection, defocus detection, scene change detection, intrusion detection, and line crossing detection, etc. These events can trigger the linkage methods, such as Notify IP Server, Send Email, Trigger Alarm Output, etc.

  • Page 87: Configuring Face Detection

    Advidia A-300 IR Speed Dome User Manual · the sound steep rise in the surveillance scene. You can set the detection sensitivity and threshold for sound steep rise. 4. Check the checkbox of Sudden Decrease of Sound Intensity Detection to detect the sound steep drop in the surveillance scene.

  • Page 88: Configuring Intrusion Detection

    Advidia A-300 IR Speed Dome User Manual · Note: To mark the detected face on the live video, go to System > Local to enable the Rules. Click-and-drag the slider to set the detection sensitivity. The Sensitivity ranges from 1 to 5. The higher the value is, the more easily the face can be detected.
  • Page 89 Advidia A-300 IR Speed Dome User Manual · Note: Intrusion detection function varies according to different camera models. Steps: 1. Enter the Intrusion Detection settings interface, Event > Intrusion Detection. Figure 8-13 Intrusion Detection 2. Check the checkbox of Enable Intrusion Detection to enable the function.

  • Page 90: Configuring Line Crossing Detection

    Advidia A-300 IR Speed Dome User Manual · object can trigger the alarm. Percentage: Range [1-100]. Percentage defines the ratio of the in-region part of the object which can trigger the alarm. For example, if the percentage is set as 50%, when the object enters the region and occupies half of the whole region, the alarm is triggered.
  • Page 91 Advidia A-300 IR Speed Dome User Manual · Figure 8-14 Line Crossing Detection 2. Check the checkbox of Enable Line Crossing Detection to enable the function. 3. Select the line from the drop-down list for detection settings. 4. Click Area Settings tab and click Draw Area button, and a virtual line is displayed on the live video.

  • Page 92: Configuring Region Entrance Detection

    Advidia A-300 IR Speed Dome User Manual · 7. Click-and-drag the slider to set the detection sensitivity. Sensitivity: Range [1-100]. The higher the value is, the more easily the line crossing action can be detected. 8. Repeat the above steps to configure other lines. Up to 4 lines can be set. You can click the Clear button to clear all pre-defined lines.
  • Page 93 Advidia A-300 IR Speed Dome User Manual · Figure 8-15 Region Entrance Detection 2. Check the Enable checkbox to enable the function. 3. Select the Region from the drop-down list for detection settings. 4. Click Area Settings and click Draw Area button to start the area drawing.

  • Page 94: Configuring Region Exiting Detection

    Advidia A-300 IR Speed Dome User Manual · 8.2.6 Configuring Region Exiting Detection Purpose: Region exiting detection function detects people, vehicle or other objects which exit from a pre-defined virtual region, and some certain actions can be taken when the alarm is triggered.

  • Page 95: Chapter 9 Storage Settings

    Advidia A-300 IR Speed Dome User Manual · Sensitivity: Range [1-100]. The value of the sensitivity defines the size of the object which can trigger the alarm. When the sensitivity is high, a very small object exiting from the region can trigger the alarm.
  • Page 96 Advidia A-300 IR Speed Dome User Manual · Figure 9-1 Recording Schedule Interface 2. Check the checkbox of Enable to enable scheduled recording. 3. Click Advanced to set the camera record parameters. Figure 9-2 Record Parameters  Pre-record: The time you set to start recording before the scheduled time or the event.
  • Page 97 Advidia A-300 IR Speed Dome User Manual ·  Post-record: The time you set to stop recording after the scheduled time or the event. For example, if an alarm triggered recording ends at 11:00, and the post-record time is set as 5 seconds, the camera records until 11:00:05.

  • Page 98: Configure Capture Schedule

    Advidia A-300 IR Speed Dome User Manual · on the Motion Detection and Alarm Input Settings interfaces. Please refer to Section 8.1.1 and Section 8.1.3 for detailed information.  Record Triggered by Motion | Alarm If you select Motion | Alarm, the video will be recorded when the external alarm is triggered or the motion is detected.
  • Page 99 Advidia A-300 IR Speed Dome User Manual · Figure 9-3 Capture Configuration 2. Go to Capture Schedule tab to configure the capture schedule by click-and-drag the mouse on the time bar. You can copy the record schedule to other days by clicking the green copy icon on the right of each time bar.

  • Page 100: Configuring Net Hdd

    Advidia A-300 IR Speed Dome User Manual · number. Figure 9-5 Set Capture Parameters 6. Set the time interval between two snapshots. 7. Click Save to save the settings. 9.3 Configuring Net HDD Before you start: The network disk should be available within the network and properly configured to store the recorded files, log files, pictures, etc.
  • Page 101 Advidia A-300 IR Speed Dome User Manual · Figure 9-6 Add Network Disk (2) Enter the IP address of the network disk, and enter the file path. (3) Select the mounting type. NFS and SMB/CIFS are selectable. And you can set the user name and password to guarantee the security if SMB/CIFS is selected.
  • Page 102 Advidia A-300 IR Speed Dome User Manual · Figure 9-7 Storage Management Interface (2) If the status of the disk is Uninitialized, check the corresponding checkbox to select the disk and click Format to start initializing the disk. When the initialization completed, the status of disk will become Normal.

  • Page 103: Chapter 10 Ptz Configuration

    Advidia A-300 IR Speed Dome User Manual · Chapter 10 PTZ Configuration 10.1 Configuring Basic PTZ Parameters You can configure the basic PTZ parameters, including proportional pan, preset freezing, preset speed, etc. 1. Enter the Basic PTZ Parameter Configuration interface: PTZ >...
  • Page 104 Advidia A-300 IR Speed Dome User Manual · according to the amount of zoom. When there is a large amount of zoom, the pan/tilt speed will be slower for keeping the image from moving too fast on the live view image.

  • Page 105: Configuring Ptz Limits

    Advidia A-300 IR Speed Dome User Manual ·  Preset Status: Set the preset name display duration while calling the preset as 2 seconds, 5 seconds, 10 seconds, Always Close or Always Open.  Power-off Memory: The dome can resume its previous PTZ status or actions after it restarted from a power-off.

  • Page 106: Configuring Initial Position

    Advidia A-300 IR Speed Dome User Manual · When manual limit stops are set, you can operate the PTZ control panel manually only in the limited surveillance area.  Scan Stops: When scan limit stops are set, the random scan, frame scan, auto scan, tilt scan, panorama scan is performed only in the limited surveillance area.

  • Page 107: Configuring Park Actions

    Advidia A-300 IR Speed Dome User Manual · Figure 10-3 PTZ Configuration 5. Click the PTZ control buttons to find a position as the initial position of the dome; you can also call a defined preset and set it as the initial position of the dome.

  • Page 108: Configuring Privacy Mask

    Advidia A-300 IR Speed Dome User Manual · Figure 10-4 Set the Park Action 2. Check the checkbox of Enable Park Action. 3. Set the Park Time as the inactivity time of the dome before it starts the park actions.
  • Page 109 Advidia A-300 IR Speed Dome User Manual · Figure 10-6 Draw the Privacy Mask 2. Click the PTZ control buttons to find the area you want to set the privacy mask. 3. Click ; click and drag the mouse in the live video window to draw the area.

  • Page 110: Configuring Scheduled Tasks

    Advidia A-300 IR Speed Dome User Manual · 10.6 Configuring Scheduled Tasks You can configure the network dome to perform a certain action automatically in a user-defined time period. Steps: 1. Enter the Scheduled Task Settings interface: PTZ > Scheduled Tasks Figure 10-7 Configure Scheduled Tasks 2.

  • Page 111: Clearing Ptz Configurations

    Advidia A-300 IR Speed Dome User Manual · 5. Select the timeline of a certain day, click and drag the left button of the mouse to set the recording schedule (the start time and end time of the recording task).

  • Page 112: Configuring Ptz Control Priority

    Advidia A-300 IR Speed Dome User Manual · Figure 10-10 Configure Smart Tracking 2. Check the check box to enable smart tracking function. 3. Click the PTZ buttons to select an object. 4. Click to set the current zoom ratio as the tracking zoom ratio.

  • Page 113: Configuring Position Settings

    Advidia A-300 IR Speed Dome User Manual · controlling the speed dome, the User cannot control it. When the Operator finishes, the User can control the speed dome after the Delay time. The Delay time can be set in Priority PTZ interface as shown follows.

  • Page 114: Chapter 11 Playback

    Advidia A-300 IR Speed Dome User Manual · 2. Move PTZ button to the North and click Set as North button. When PTZ camera move to other direction, you can click Point to North button to make the camera back to the north direction.
  • Page 115 Advidia A-300 IR Speed Dome User Manual · Figure 11-1 Playback Interface 2. Select the date and click Search. Figure 11-2 Search Video 3. Click to play the video files found on this date. The toolbar on the bottom of Playback interface can be used to control playing process.
  • Page 116 Advidia A-300 IR Speed Dome User Manual · Start/Stop clipping video Pause files Audio on and adjust Stop volume/Mute Speed down Download Recording Speed up Download images Enable/Disable Playback by frame digital zoom Note: You can choose the file paths locally for downloaded playback video files and pictures in Local Configuration interface.
  • Page 117 Advidia A-300 IR Speed Dome User Manual ·...

Table of Contents
