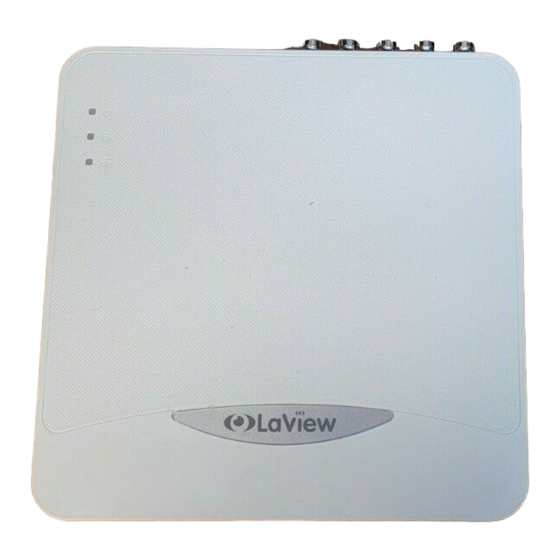

LaView LV-D1104CW SERIES User Manual
  1. Manuals
  2. Brands
  3. LaView Manuals
  4. DVR
  5. LV-D1104CW SERIES
  6. User manual

LaView LV-D1104CW SERIES User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Digital Video Recorder
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LV-D1104CW SERIES and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LaView LV-D1104CW SERIES

Summary of Contents for LaView LV-D1104CW SERIES

  • Page 1 Digital Video Recorder User Manual...

  • Page 2: Regulatory Information

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Regulatory Information FCC Information compliance: This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Thank you for purchasing our product. If there is any question or request, please do not hesitate to contact dealer. This manual is applicable to the following models: LV-D1104CW,LV-D1108CW, LV-D1116CW This manual may contain several technically incorrect places or printing errors, and the content is subject to change without notice.

  • Page 4: Preventive And Cautionary Tips

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Preventive and Cautionary Tips Before connecting and operating your device, please be advised of the following tips: • Ensure unit is installed in a well-ventilated, dust-free environment. • Unit is designed for indoor use only. •...

  • Page 5: Product Key Features

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Product Key Features General  PAL/NTSC adaptive video inputs.  H.264 video compression with high reliability and superior definition.  Encoding at up to WD1 (PAL: 960×576, NTSC: 960×480) resolution  Each channel supports dual-stream. ...
  • Page 6 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR  Zooming in when playback.  Playing reversely.  Support pause, speed up, speed down, skip forward, and skip backward when playback, locating by dragging the mouse.  4/8/16-ch synchronous playback. Backup  Export video clips when playback.

  • Page 7: Table Of Contents

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR TABLE OF CONTENTS Chapter 1 Introduction ....................... 9 Front Panel ....................... 10 IR Remote Control Operations ................. 11 USB Mouse Operation ..................13 Input Method Description ................14 Rear Panel ......................15 Starting Up and Shutting Down the Device ............. 16 Chapter 1 Getting Started ......................
  • Page 8 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 6.1.5 Playing Back by Searching System Log ........... 69 6.1.6 Playing Back External Files ..............70 Auxiliary Functions of Playback ..............71 6.2.1 Playing Back Frame by Frame ..............71 6.2.2 Digital Zoom ..................... 72 6.2.3 Reverse Playback of Multi-channel ............
  • Page 9 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.5 Checking HDD Status ..................121 10.6 Checking S.M.A.R.T. Information ..............122 10.7 10.7 Detecting Bad Sector ................123 10.8 Configuring HDD Error Alarms ..............124 Chapter 11 Camera Settings....................125 11.1 Configuring OSD Settings ................126 11.2 Configuring Privacy Mask ................

  • Page 10: Chapter 1 Introduction

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 1 Introduction...

  • Page 11: Front Panel

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Front Panel The front panel is shown below: Figure 1. 1 Front Panel Table 1.1 Description of Panel Name Function Description Indicator turns red when DVR is powered up. Indicator lights in red when data is being read from or written to HDD.

  • Page 12: Ir Remote Control Operations

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR IR Remote Control Operations The device may also be controlled with the included IR remote control, shown in Figure 1.4. Note: Batteries (2×AAA) must be installed before operation. Figure 1.2 Remote Control Table 1.2 Description of the IR Remote Control Buttons Name Description POWER...
  • Page 13 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Name Description INFO Button Reserved. Selecting all items on the list; VOIP/MON Button In live view or playback mode, it can be used to switch between main and auxiliary video output. MENU Button Back to the Main menu (after successful login).

  • Page 14: Usb Mouse Operation

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR USB Mouse Operation A regular 3-button (Left/Right/Scroll-wheel) USB mouse can also be used with this device. To use a USB mouse: 1. Plug USB mouse into one of the USB interfaces on the front panel of the device. 2.

  • Page 15: Input Method Description

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Input Method Description Figure 1.3 Soft Keyboard Table 1.4 Description of the Soft Keyboard Icons Description of the buttons on the soft keyboard: Icons Description Icons Description English Capital English Numbers Symbols Lowercase/Uppercase Backspace Space Enter...

  • Page 16: Rear Panel

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Rear Panel LV-D1108CW: Figure 1.4 Rear Panel of LV-D2104CS The LV-D1104CW provides 4 video input interfaces and the LV-D1116CW provides 16 Note: video input interfaces on the rear panel. Table 1.5 Description of Rear Panel Item Description VIDEO IN...

  • Page 17: Starting Up And Shutting Down The Device

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Starting Up and Shutting Down the Device Purpose: Proper startup and shutdown procedures are crucial to expanding the life of the device. Before you start: Check that the voltage of the extra power supply is the same with the device’s requirement, and the ground connection is working properly.

  • Page 18: Chapter 1 Getting Started

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 1 Getting Started...
  • Page 19 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR By default, the Setup Wizard starts once the device has loaded, as shown in Figure 2.1. Figure 2. 1 Start Wizard Interface Operating the Setup Wizard: 1. The Start Wizard can walk you through some important settings of the device. If you don’t want to use the Start Wizard at that moment, click .
  • Page 20 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 2. 4 Network Configuration 7. Click to enter the HDD Management window. Figure 2. 5 HDD Management 8. To initialize the HDD, select the HDD and click . Initialization removes all the data saved in the HDD.
  • Page 21 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 2. 7 Copy Record Settings 11. Click to complete the start wizard settings.

  • Page 22: Chapter 2 Live View

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 2 Live View...

  • Page 23: Introduction Of Live View

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Introduction of Live View Live view shows you the video image getting from each camera in real time. The device automatically enters Live View mode when powered on. It is also at the very top of the menu hierarchy, thus pressing the ESC many times (depending on which menu you’re on) brings you to the Live View mode.

  • Page 24: Operations In Live View Mode

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Operations in Live View Mode In live view mode, the following functions can be realized: • Single Screen: showing only one screen on the monitor. • Multi-screen: showing multiple screens on the monitor simultaneously. •...

  • Page 25: Quick Setting Toolbar In Live View Mode

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Auto-switch. Start Recording Start all-day normal recording or motion detection recording for all channels. Quick Set Set the video output mode to Standard, Bright, Gentle or Vivid. All-day Playback Play back the video of the selected channel. Aux Monitor Switch to the auxiliary output mode and the operation for the main output is disabled.
  • Page 26 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 3.3 Digital Zoom Image Settings Image Settings icon can be selected to enter the Image Settings menu. Steps: Set the period of a day for configuring independent image parameters so as to satisfy different light conditions, e.g., daylight and night time.
  • Page 27 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 3.5 Copy Image Settings to Other Camera (s) Select the camera (s) to be configured with the image settings. You can also click the checkbox of Analog to select all cameras. Click the OK button to finish the Copy settings. Note: You can click the Restore button to restore the current image settings to default parameters.

  • Page 28: Adjusting Live View Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Adjusting Live View Settings Purpose: Live View settings can be customized according to different needs. You can configure the output interface, dwell time for screen to be shown, mute or turning on the audio, the screen number for each channel, etc. Steps: 1.
  • Page 29 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 3.7 Live View- Camera Order To set the camera order: Click the View tab to enter the camera order settings interface. Select an output interface and select a screen layout. Click to select a screen in the right region and double-click to select a channel in the left region. Thus the selected channel will be displayed in the corresponding screen.

  • Page 30: Channel-Zero Encoding

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Channel-zero Encoding Purpose: Sometimes you need to get a remote view of many channels in real time from web browser or CMS (Client Management System) software, in order to decrease the bandwidth requirement without affecting the image quality, channel-zero encoding is supported as an option for you.

  • Page 31: User Logout

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR User Logout Purpose: After logging out, the monitor turns to the live view mode and if you want to do some operation, you need to enter user name and password to log in again. Steps: 1.

  • Page 32: Chapter 3 Ptz Controls

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 3 PTZ Controls...

  • Page 33: Configuring Ptz Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 4.1 Configuring PTZ Settings Purpose: Follow the procedure to set the parameters for PTZ. The configuring of the PTZ parameters should be done before you control the PTZ camera. Before you start: Check that the PTZ and the device are connected properly through RS-485 interface. Steps: 1.

  • Page 34: Calling Presets

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 4.2 PTZ- More Settings 2. Use the directional button to wheel the camera to the location where you want to set preset. 3. Click the round icon before Save Preset. 4. Click the preset number to save the preset. Repeat the steps2-4 to save more presets.
  • Page 35 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 4.4 PTZ- Call Preset 3. Choose the preset number. Call preset in live view mode: Steps: 1. Click the PTZ Control icon in the quick setting bar to enter the PTZ setting menu in live view mode.

  • Page 36: Customizing Patrols

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 4.2.3 Customizing Patrols Purpose: Patrols can be set to move the PTZ to different key points and have it stay there for a set duration before moving on to the next key point. The key points are corresponding to the presets. The presets can be set following the steps above in Customizing Presets.

  • Page 37: Calling Patrols

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 4.7 Key point Configuration 5. Click OK to save the key point to the patrol. Repeat the above steps to add more key points. You can also delete all the key points by clicking the trash icon Figure 4.8 KeyPoints Deletion 4.2.4 Calling Patrols Purpose:...

  • Page 38: Customizing Patterns

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 1. Press PTZ control on the IR remote, or click PTZ Control icon on the quick setting toolbar, to show the PTZ control toolbar. 2. Choose Patrol on the control bar. 3. Click the patrol you want to call. Figure 4.10 PTZ Toolbar- Patrol 4.2.5 Customizing Patterns Purpose:...

  • Page 39: Calling Patterns

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 4.11 PTZ- Pattern 3. Click , and use your mouse to drag the image or click the eight directional buttons in the control box under the image to move the PTZ camera. The movement of the PTZ is recorded as the pattern.

  • Page 40: Ptz Control Toolbar

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 2. And then choose Pattern on the control bar. 3. Double click the pattern number you want to call, or you can select the pattern number and click call the pattern. Figure 4.13 PTZ Toolbar- Pattern 4.3 PTZ Control Toolbar In the Live View mode, you can press the PTZ Control button on the IR remote control, or choose the PTZ Control icon...
  • Page 41 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Table 4.1 Description of the PTZ toolbar icons Icon Description Icon Description Icon Description Direction button and the Zoom+, Focus+, Zoom-, Focus-, auto-cycle button Iris+ Iris- The speed of the PTZ Light on/off Wiper on/off movement Image...

  • Page 42: Chapter 5 Record Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 5 Record Settings...

  • Page 43: Configuring Encoding Parameters

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Encoding Parameters Purpose: By configuring the encoding parameters you can define the transmission stream type, the resolution and so on. Before you start: 1. Make sure that the HDD has already been installed. If not, please install a HDD and initialize it. (Menu>HDD>General) Figure 5.1 HDD- General 2.
  • Page 44 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configure the following parameters for the Main Stream (Normal) and the Main Stream (Event): • Stream Type: Set the stream type to be Video or Video & Audio. • Resolution: Set recording at resolution of WD1, 4CIF, 2CIF, CIF or QCIF. •...
  • Page 45 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Click the Substream tab to enter the Substream settings interface. Figure 5.5 Encoding Parameters-Sub-stream Configure the parameters for the sub-stream. Refer to the step of main stream settings. Click Apply to save the settings. Note: You can click the Restore button to restore the current sub-stream settings to the default parameters.

  • Page 46: Configuring Record Schedule

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Record Schedule Purpose: Set the record schedule, and then the camera automatically starts/stops recording according to the configured schedule. Steps: 1. Enter the Record Schedule interface. Menu>Record>Schedule 2. Configure Record Schedule 1) Click Schedule to enter the record schedule settings interface. Figure 5.6 Record Schedule 2) Choose the camera you want to configure.
  • Page 47 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 5.7 Edit Schedule 5) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time and Type. Note: Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each other. Repeat the above steps2)-5) to schedule recording for other days in the week.
  • Page 48 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Steps: Click the icon on the right to select a record type. Different recording types are available for different models: Normal and Motion. Note: To enable Motion triggered recording, you must configure the motion detection settings. For detailed information, refer to Chapter 8.1 and Chapter 8.2.

  • Page 49: Configuring Motion Detection Record

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Motion Detection Record Purpose: Follow the steps to set the motion detection parameters. In the live view mode, once a motion detection event takes place, the device can analyze it and perform some response actions to handle it. Enabling motion detection function can trigger certain channels to start recording, or trigger full screen monitoring, audio warning, notify the surveillance center and so on.
  • Page 50 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 5.14 Motion Detection Handling 5) Select the channels which you want the motion detection event to trigger recording. 6) Click Apply to save the settings. 7) Click OK to back to the upper level menu. 8) Exit the Motion Detection menu.
  • Page 51 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 5.17 Edit Schedule- All Day 6) To arrange other schedule, leave the All Day checkbox blank and set the Start/End time. Note: Up to 8 periods can be configured for each day. And the time periods can’t be overlapped each other.

  • Page 52: Configuring Manual Record

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Manual Record Purpose: Follow the steps to set parameters for the manual record. When using manual record, you need to manually cancel the record. The manual recording is prior to the scheduled recording. Steps: Enter the Manual settings interface.

  • Page 53: Configuring Holiday Record

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Holiday Record Purpose: You may want to have different plan for recording on holiday. Follow the steps to configure the record schedule on holiday. Steps: Enter the Record setting interface. Menu>Record Choose Holiday on the left bar. Figure 5.22 Holiday Settings Enable Edit Holiday schedule.
  • Page 54 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 2) Check the checkbox after Enable Schedule. 3) Click Edit. 4) Select Holiday from the Schedule dropdown list. Figure 5.24 Edit Schedule- Holiday 5) Select Motion or Normal from the Type dropdown list. 6) If you need all day recording, check the All Day checkbox.

  • Page 55: Configuring Redundant Record

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Redundant Record Purpose: Enabling redundant recording, which means saving the record files not only in the R/W (read/write) HDD but also in the redundant HDD, will effectively enhance the data safety and reliability. Note: You must set the Storage mode in the HDD advanced settings to Group before you set the HDD property to Redundant.
  • Page 56 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 5.27 Encoding Record 2) Select Camera you want to configure. 3) Check the checkbox of the Redundant Record. 4) Click Apply to save settings and back to the upper level menu. Repeat the above steps2)-4) for configuring other channels.

  • Page 57: Configuring Hdd Group For Record

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring HDD Group for Record Purpose: You can group the HDDs and save the record files in certain HDD group. Steps: Enter HDD setting interface. Menu>HDD Figure 5.28 HDD-General Select Advanced on the left bar. Check whether the storage mode of the HDD is Group.

  • Page 58: Files Protection

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Files Protection Purpose: You can lock the recorded files or set the HDD property to Read-only to protect the record files from being overwritten. Protect file by locking the record files: Steps: Enter Export setting interface. Menu>...
  • Page 59 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 5.32 Unlocking Attention Protect file by setting HDD property to Read-only Note: To edit HDD property, you need to set the storage mode of the HDD to Group. See Chapter 10.4 Managing HDD Group. Steps: Enter HDD setting interface.

  • Page 60: Chapter 6 Playback

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Playback Chapter 6...

  • Page 61: Playing Back Record Files

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Playing Back Record Files 6.1.1 Playing Back by Channel Purpose: Play back the recorded video files of a specific channel in the live view mode. Channel switch is supported. Instant playback by channel: Choose a channel in live view mode using the mouse and click the button in the quick setting toolbar.
  • Page 62 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 6. 3 Playback Interface Click the channel(s) if you want to execute synchronous playback of multiple channels. Figure 6. 4 Toolbar of Playback Table 6. 1 Detailed Explanation of Playback Interface Note: indicates the start/end time of the record.

  • Page 63: Playing Back By Time

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 6.1.2 Playing Back by Time Purpose: Play back video files recorded in specified time duration. Multi-channel simultaneous playback and channel switch are supported. Steps: 1. Enter Playback interface. Menu>Playback 2. Check the checkbox of channel(s) in the channel list and then double-click to select a date on the calendar.

  • Page 64: Playing Back By Event Search

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Table 6. 2 Detailed Explanation of Playback-by-time Interface Note: indicates the start/end time of the record. Button Operation Button Operation Button Operation Button Operation Start/Stop Add default Audio on /Mute customized clipping Pause reverse play/ Digital Tag management...
  • Page 65 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 6. 8 Video Search by Motion 4. Click to get the search result information listed in the right-side panel. Figure 6. 9 Result of Video Search by Motion 5. Click button to play back the record files. You can click to return to the search interface.
  • Page 66 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR The toolbar in the bottom part of Playback interface can be used to control playing process. Figure 6. 10 Interface of Playback by Event Figure 6. 11 Toolbar of Playback by Event Table 6. 3 Detailed Explanation of Playback-by-event Interface Button Operation Button...

  • Page 67: Playing Back By Tag

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 6.1.4 Playing Back by Tag Purpose: Video tag allows you to record related information like people and location of a certain time point during playback. You are also allowed to use video tag(s) to search for record files and position time point. Before playing back by tag: 1.
  • Page 68 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 6. 13 Tag Management Interface Steps: 1. Enter Playback interface. Menu>Playback 2. Click and select to enter the Tag Playback interface. 3. Choose channels, edit the Start and End time, and click to enter Search Result interface.
  • Page 69 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 6. 15 Interface of Playback by Tag Figure 6. 16 Toolbar of Playback by Tag Table 6. 4 Detailed Explanation of Playback-by-tag Interface Button Operation Button Operation Button Operation Button Operation Start/Stop Add default Audio on /Mute customized...

  • Page 70: Playing Back By Searching System Log

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 6.1.5 Playing Back by Searching System Log Purpose: Play back record file(s) associated with channels after searching system logs. Steps: 1. Enter Log Information interface. Menu>Maintenance>Log Information>Log Search Figure 6. 17 Log Search Interface 2.

  • Page 71: Playing Back External Files

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 6. 19 Interface of Playback by Log 6.1.6 Playing Back External Files Purpose: Perform the following steps to search and play back record files stored in the external storage devices, e.g., USB flash drives, USB HDDs. Before you start: Please insert the external device(s) with record files into the device.

  • Page 72: Auxiliary Functions Of Playback

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Auxiliary Functions of Playback 6.2.1 Playing Back Frame by Frame Purpose: Play video files frame by frame, in order to check image details of the video when abnormal events happen. Steps: • Using a Mouse: Go to Playback interface.

  • Page 73: Digital Zoom

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 6.2.2 Digital Zoom Steps: 1. Enter the Playback interface and play a record file. Refer to Chapter 6.1.2 for the detailed information about searching and playback of the record files. 2. Click the on the playback control toolbar to enter Digital Zoom mode.
  • Page 74 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 6. 22 4-ch Synchronous Playback Interface 3. Click to play back the record files reversely.

  • Page 75: Chapter 7 Backup

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Backup Chapter 7...

  • Page 76: Backing Up Record Files

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Backing up Record Files Before you start: Please insert the backup device(s) into the device. 7.1.1 Quick Export Purpose: Export record files to backup device(s) quickly. Steps: 1. Enter Video Export interface. Menu>Export>Normal Choose the channel(s) you want to back up and click Note: The time duration of record files on a specified channel cannot exceed one day.

  • Page 77: Backing Up By Normal Video Search

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7. 3 Export Finished 3. Check backup result. Choose the record file in Export interface and click button to check it. Note: The Player player.exe will be exported automatically during record file export. Figure 7.
  • Page 78 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Two different File types are selectable: Unlocked and Locked. Figure 7. 5 Normal Video Search for Backup 3. Select record files you want to back up. Click button to play the record file if you want to check it. Check the checkbox before the record files you want to back up.
  • Page 79 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7. 7 Export by Normal Video Search using USB Flash Drive Figure 7. 8 Export by Normal Video Search using USB Writer Stay in the Exporting interface until all record files are exported with pop-up message box “Export finished”.
  • Page 80 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Choose the record file in Export interface and click button to check it. Note: The Player player.exe will be exported automatically during record file export. Figure 7. 10 Checkup of Export Result using USB Flash Drive Figure 7.

  • Page 81: Backing Up By Event Search

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 7.1.3 Backing up by Event Search Purpose: Back up event-related record files using USB devices (USB flash drives, USB HDDs, USB writer), or DVD-R/W. Quick Backup and Normal Backup are supported. Steps: 1. Enter Export interface. Menu>Export>Event Select Motion from the dropdown list of Event Type.
  • Page 82 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7. 13 Event Details Interface 3. Export. Click and start backup. Note: If the inserted USB device is not recognized: • Click • Reconnect device. • Check for compatibility from vendor. You can also format USB flash drive or USB HDDs via the device. Figure 7.
  • Page 83 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7. 15 Export Finished 4. Check backup result. Note: The Player player.exe will be exported automatically during record file export. Figure 7. 16 Checkup of Event Export Result Using USB Flash Drive...

  • Page 84: Backing Up Video Clips

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 7.1.4 Backing up Video Clips Purpose: You may also select video clips to export directly during Playback, using USB devices (USB flash drives, USB HDDs, USB writer), or DVD-R/W. Steps: 1. Enter Playback interface and play back the record file you want to set video clips. Please refer to Chapter 6.1 Playing Back Record Files.
  • Page 85 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7. 19 Export Video Clips Using USB Flash Drive Stay in the Exporting interface until all record files are exported with pop-up message “Export finished”. Figure 7. 20 Export Finished 6. Check backup result. Note: The Player player.exe will be exported automatically during record file export.

  • Page 86: Managing Backup Devices

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Managing Backup Devices Management of USB flash drive, USB HDD. Enter Search Result interface of record files. Menu>Export>Normal Set search condition and click Search button to enter Search Result interface. Note: At least one channel shall be selected. Figure 7.1 Normal Video Search Select record files you want to back up.
  • Page 87 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7.3 USB Flash Drive Management Management of USB writers and DVD-R/W Enter Search Result interface of record files. Menu>Export>Normal Set search condition and click Search button to enter Search Result interface. Note: At least one channel shall be selected.
  • Page 88 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 7. 5 Result of Normal Video Search for Backup Backup device management. Click Erase button if you want to erase the files from a re-writable CD/DVD. Note: There must be a re-writable CD/DVD when you make this operation. Note: If the inserted USB writer or SATA writer is not recognized: •...

  • Page 89: Chapter 8 Alarm Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Alarm Settings Chapter 8...

  • Page 90: Setting Motion Detection

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Setting Motion Detection Steps: 1. Enter Motion Detection interface and choose a camera you want to set motion detection. Menu> Camera> Motion Figure 8.1 Motion Detection Setup Interface 2. Set motion detection area and sensitivity. Check the checkbox of Enable Motion Detection to enable motion detection, use the mouse to draw detection area(s) and drag the sensitivity bar to set sensitivity.
  • Page 91 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 4. Set up arming schedule of the channel. Select Arming Schedule tab to set the channel’s arming schedule. Choose one day of a week and up to eight time periods can be set within each day. Click Apply to save the arming settings of the selected day.

  • Page 92: Detecting Video Loss

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 8.6 Copy Settings of Motion Detection Detecting Video Loss Purpose: Detect video loss of a channel and take alarm response action(s). Steps: 1. Enter Video Loss interface of Camera Management. Menu> Camera> Video Loss Figure 8.7 Video Loss Setup Interface 2.

  • Page 93: Detecting Video Tampering

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 8.8 Set Arming Schedule of Video Loss 6. Click Apply to save the video loss alarm settings. Detecting Video Tampering Purpose: Trigger alarm when the lens is covered and take alarm response action(s). Steps: 1.
  • Page 94 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR copy the above settings to it. Figure 8.10 Copy Settings of Video Tampering...

  • Page 95: Handling Exceptions

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Handling Exceptions Purpose: Exception settings refer to the handling method of various exceptions, e.g., • HDD Full: The HDD is full. • HDD Error: Writing HDD error, unformatted HDD, etc. • Network Disconnected: Disconnected network cable. •...

  • Page 96: Chapter 9 Network Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Network Settings Chapter 9...

  • Page 97: Configuring General Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring General Settings Purpose: Network settings must be properly configured before you operate device over network. Steps: 1. Enter the Network Settings interface. Menu > Configuration > Network 2. Select the General tab. Figure 9.1 General Network Settings 3.

  • Page 98: Configuring Advanced Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Configuring Advanced Settings 9.2.1 Configuring PPPoE Settings Purpose: Your device also allows access by Point-to-Point Protocol over Ethernet (PPPoE). Steps: Enter the Network Settings interface. Menu > Configuration > Network Select the PPPoE tab to enter the PPPoE Settings interface. Figure 9.2 PPPoE Settings Interface Check the PPPoE checkbox to enable this feature.
  • Page 99 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 9.4 DDNS Settings Interface Check the DDNS checkbox to enable this feature. Select DDNS Type. Five different DDNS types are selectable: IPServer, DynDNS, PeanutHull, NO-IP and HiDDNS. • IPServer: Enter Server Address for IPServer. Note: The Server Address should be the IP address of the PC that runs IPServer.
  • Page 100 Figure 9.9 HiDDNS Settings Interface • Laview DDNS: Enter the Server Address and Device Domain Name for LTS. 1) Enter the Server Address of the LTS server, which is ns1.dvrlist.com by default. 2) Enter the Device Domain Name. You can use the alias you registered in the LTS server or define a new device domain name.

  • Page 101: Configuring Ntp Server

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 9.2.3 Configuring NTP Server Purpose: A Network Time Protocol (NTP) Server can be configured on your device to ensure the accuracy of system date/time. Steps: Enter the Network Settings interface. Menu > Configuration > Network Select the NTP tab to enter the NTP Settings interface.

  • Page 102: Configuring Upnp

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Check the SNMP checkbox to enable this feature. Configure the SNMP settings. Figure 9.13 Configure SNMP Settings Click the Apply button to save and exit the interface. Note: Before setting the SNMP, please download the SNMP software and manage to receive the device information via SNMP port.

  • Page 103: Configuring Remote Alarm Host

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR HTTP port and RTSP port respectively. Notes: You can use the default port No., or change it according to actual requirements. External Port indicates the port No. for port mapping in the router. Figure 9.15 External Port Settings Dialog Box 6.

  • Page 104: Configuring Multicast

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR The Alarm Host IP refers to the IP address of the remote PC on which the CMS (Client Management System) software (e.g., NVMS7000) is installed, and the Alarm Host Port must be the same as the alarm monitoring port configured in the software (default port is 7200).

  • Page 105: Configuring Server And Http Ports

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Select the More Settings tab to enter the More Settings men. Figure 9.20 RTSP Settings Interface Enter the RTSP port in the text field of RTSP Service Port. The default RTSP port is 554, and you can change it according to different requirements.
  • Page 106 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR maintains an SMTP mail server. The network must also be connected to either an intranet or the Internet depending on the location of the e-mail accounts to which you want to send notification. Steps: Enter the Network Settings interface.
  • Page 107 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Select Receivers: Select the receiver. Up to 3 receivers can be configured. Receiver: The name of user to be notified. Receiver’s Address: The Email address of user to be notified. Enable Attached Pictures: Check the checkbox of Enable Attached Picture if you want to send email with attached alarm images.

  • Page 108: Checking Network Traffic

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Checking Network Traffic Purpose: You can check the network traffic to obtain real-time information of device such as linking status, MTU, sending/receiving rate, etc. Steps: Enter the Network Traffic interface. Menu > Maintenance > Net Detect Figure 9.26 Network Traffic Interface You can view the sending rate and receiving rate information on the interface.

  • Page 109: Network Detection

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Network Detection Purpose: You can obtain network connecting status of device through the network detection function, including network delay, packet loss, etc. 9.4.1 Testing Network Delay and Packet Loss Steps: Enter the Network Traffic interface. Menu >...
  • Page 110 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 3. Select the backup device from the dropdown list of Device Name. Note: Click the Refresh button if the connected local backup device cannot be displayed. When it fails to detect the backup device, please check whether it is compatible with the device. You can format the backup device if the format is incorrect.

  • Page 111: Checking Network Status

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 9.4.3 Checking Network Status Purpose: You can also check the network status and quick set the network parameters in this interface. Steps: Click Status on the right bottom of the page. Figure 9.31 Checking Network Status If the network is normal the following message box pops out.

  • Page 112: Checking Network Statistics

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 9.4.4 Checking Network Statistics Purpose: You can check the network statistics to obtain the real-time information of the device. Steps: 1. Enter the Network Statistics interface. Menu > Maintenance> Net Detect 2. Click the Network Stat. tab to enter the Network Statistics menu. Figure 9.34 Network Stat.

  • Page 113: Chapter 10 Hdd Management

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 10 HDD Management...

  • Page 114: Initializing Hdds

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.1 Initializing HDDs Purpose: A newly installed hard disk drive (HDD) must be initialized before it can be used with your device. Steps: Enter the HDD Information interface. Menu > HDD>General Figure 10.1 HDD Information Interface Select the HDD to be initialized.

  • Page 115: Managing Network Hdd

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.2 Managing Network HDD Purpose: You can add the allocated NAS or disk of IP SAN to device, and use it as network HDD. Steps: Enter the HDD Information interface. Menu > HDD > General Figure 10.4 HDD Information Interface Click the Add button to enter the Add NetHDD interface, as shown in Figure 10.5.
  • Page 116 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 10.6 Add NAS Disk • Add IP SAN: 1) Enter the NetHDD IP address in the text field. 2) Click the Search button to the available IP SAN disks. 3) Select the IP SAN disk from the list shown below. 4) Click the OK button to add the selected IP SAN disk.
  • Page 117 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Note: If the added NetHDD is uninitialized, please select it and click the Init button for initialization. Figure 10.8 Initialize Added NetHDD...

  • Page 118: Managing Hdd Group

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.3 10.3 Managing HDD Group 10.3.1 Setting HDD Groups Purpose: Multiple HDDs can be managed in groups. Video from specified channels can be recorded onto a particular HDD group through HDD settings. Steps: Enter the Storage Mode interface.

  • Page 119: Setting Hdd Property

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 10.11 Local HDD Settings Interface Select the Group number for the current HDD. Note: The default group No. for each HDD is 1. Click the OK button to confirm the settings. Figure 10.12 Confirm HDD Group Settings In the pop-up Attention box, click the Yes button to finish the settings.
  • Page 120 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 10.13 Set HDD Property Set the HDD property to R/W, Read-only or Redundancy. Click the OK button to save the settings and exit the interface. In the HDD Information menu, the HDD property will be displayed in the list. Note: At least 2 hard disks must be installed on your device when you want to set a HDD to Redundancy, and there is one HDD with R/W property.

  • Page 121: Configuring Quota Mode

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.4 Configuring Quota Mode Purpose Each camera can be configured with allocated quota for the storage of recorded files. Steps Enter the Storage Mode interface. Menu > HDD > Advanced Set the Mode to Quota. Note: The device must be rebooted to enable the changes to take effect.

  • Page 122: Checking Hdd Status

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.5 Checking HDD Status Purpose: You may check the status of the installed HDDs on device so as to take immediate check and maintenance in case of HDD failure. Checking HDD Status in HDD Information Interface Steps: Enter the HDD Information interface.

  • Page 123: Checking S.m.a.r.t. Information

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.6 Checking S.M.A.R.T. Information Purpose: The S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a monitoring system for HDD to detect and report on various indicators of reliability in the hopes of anticipating failures. Steps: Enter the S.M.A.R.T.

  • Page 124: Detecting Bad Sector

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.7 10.7 Detecting Bad Sector Purpose: The bad sectors of a HDD may cause the system to slow down when reading or writing data. You can detect the bad sectors of the HDD and thus to take immediate measures to repair it. Steps: 1.

  • Page 125: Configuring Hdd Error Alarms

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 10.8 Configuring HDD Error Alarms Purpose: You can configure the HDD error alarms when the HDD status is Uninitialized or Abnormal. Steps: Enter the Exception interface. Menu > Configuration > Exceptions Select the Exception Type to HDD Error from the dropdown list. Click the checkbox(s) below to select the HDD error alarm type (s).

  • Page 126: Chapter 11 Camera Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 11 Camera Settings...

  • Page 127: Configuring Osd Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 11.1 Configuring OSD Settings Purpose: You can configure the OSD (On-screen Display) settings for the camera, including date /time, camera name, etc. Steps: 1. Enter the OSD Configuration interface. Menu > Camera > OSD 2.

  • Page 128: Configuring Privacy Mask

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 11.2 Configuring Privacy Mask Purpose: You are allowed to configure the four-sided privacy mask zones that cannot be viewed by the operator. Steps: 1. Enter the Privacy Mask Settings interface. Menu > Camera > Privacy Mask 2.

  • Page 129: Configuring Video Parameters

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 11.3 Configuring Video Parameters Steps: 1. Enter the Image Settings interface. Menu > Camera > Image 2. Select the camera to set image parameters. 3. Set the period of a day for configuring independent image parameters so as to satisfy different light conditions, e.g., daylight and night time.

  • Page 130: Chapter 12 Device Management And Maintenance

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 12 Device Management Maintenance...

  • Page 131: Viewing System Information

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 12.1 Viewing System Information 12.1.1 Viewing Device Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Device Info tab to enter the Device Information menu to view the device name, model, serial No. , firmware version and encoding version.

  • Page 132: Viewing Network Information

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR parameters of each camera. Figure 12.3 Record Information Interface 12.1.4 Viewing Network Information Steps: 1. Enter the System Information interface. Menu > Maintenance > System Info 2. Click the Network tab to enter the Network Information menu to view the network information. Figure 12.4 Network Information Interface 12.1.5 Viewing HDD Information Steps:...
  • Page 133 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 12.5 HDD Information Interface...

  • Page 134: Searching & Exporting Log Files

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 12.2 Searching & Exporting Log Files Purpose: The operation, alarm, exception and information of the device can be stored in log files, which can be viewed and exported at any time. Steps: 1. Enter the Log Search interface. Menu >...
  • Page 135 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 12.8 Log Details 6. If you want to export the log files, click the Export button to enter the Export menu. You can also export all the log files stored in the HDD. Enter the Log Export interface.

  • Page 136: Importing/Exporting Configuration Files

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 7. Select the backup device from the dropdown list of Device Name. 8. Click the Export to export the log files to the selected backup device. You can click the New Folder button to create new folder in the backup device, or click the Format button to format the backup device before log export.

  • Page 137: Upgrading System

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 12.4 Upgrading System Purpose: The firmware on your device can be upgraded by local backup device or remote FTP server. 12.4.1 Upgrading by Local Backup Device Steps: 1. Connect your device with a local backup device where the update firmware file is located. 2.
  • Page 138 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 12.13 FTP Upgrade Interface 3. Enter the FTP Server Address in the text field. 4. Click the Upgrade button to start upgrading. 5. After the upgrading is complete, reboot the device to activate the new firmware.

  • Page 139: Restoring Default Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 12.5 Restoring Default Settings Steps: Enter the Default interface. Menu > Maintenance > Default Figure 12.14 Restore Factory Default Click the OK button to restore the default settings. Note: Except the network parameters (including IP address, subnet mask, gateway, MTU and server port), all other parameters of the device will be restored to factory default settings.

  • Page 140: Chapter 13 Others

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 13 Others...

  • Page 141: Configuring General Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 13.1 Configuring General Settings Purpose: You can configure the BNC output standard, VGA/HDMI output resolution, mouse pointer speed, etc. Steps: Enter the General Settings interface. Menu > Configuration > General Select the General tab. Figure 13.1 General Settings Interface Configure the following settings: •...

  • Page 142: Configuring Dst Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 13.2 Configuring DST Settings Steps: Enter the General Settings interface. Menu >Configuration>General Choose DST Settings tab. Figure 13.2 DST Settings Interface You can check the checkbox before the Auto DST Adjustment item. Or you can manually check the Enable DST checkbox, and then set the date of the DST period.

  • Page 143: Configuring More Settings

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 13.3 Configuring More Settings Steps: Enter the General Settings interface. Menu > Configuration > General Click the More Settings tab to enter the More Settings interface. Figure 13.3 More Settings Interface Configure the following settings: •...

  • Page 144: Managing User Accounts

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 13.4 Managing User Accounts Purpose: There is a default account in the device: Administrator. The Administrator user name is admin and the password is 12345. The Administrator has the permission to add and delete user and configure user parameters. 13.4.1 Adding a User Steps: Enter the User Management interface.
  • Page 145 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Click the OK button to save the settings and go back to the User Management interface. The added new user will be displayed on the list, as shown in Figure 13.6. Figure 13.6 Added User Listed in User Management Interface Select the user from the list and then click the button to enter the Permission settings interface.

  • Page 146: Deleting A User

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR • Remote Live View: Remotely viewing live video of the selected camera (s). • Local Manual Operation: Locally starting/stopping manual recording, picture capturing and alarm output of the selected camera (s). • Remote Manual Operation: Remotely starting/stopping manual recording, picture capturing and alarm output of the selected camera (s).

  • Page 147: Changing Password Of Admin

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 13.10 Edit User Interface Edit the user information, including user name, password, level and MAC address. Click the OK button to save the settings and exit the menu. 13.4.4 Changing Password of Admin Purpose: The password of the admin user account can be changed in the User Management menu.
  • Page 148 User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Figure 13.12 Change Password Enter the old password, check checkbox, enter new password and confirm password on the menu. Click to save the settings and exit the menu.

  • Page 149: Logging Out/Shutting Down/Rebooting Device

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 13.5 Logging out/Shutting down/Rebooting Device Steps: 1. Enter the Shutdown interface. Menu > Shutdown Figure 13.13 Shutdown Menu 2. Click the Logout button to log out, or Click the Shutdown button to shut down the device, or Click the Reboot button to reboot the device.

  • Page 150: Chapter 14 Appendix

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR Chapter 14 Appendix...

  • Page 151: Glossary

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 14.1 Glossary • Dual Stream: Dual stream is a technology used to record high resolution video locally while transmitting a lower resolution stream over the network. The two streams are generated by the device, with the main stream having a maximum resolution of 4CIF and the sub-stream having a maximum resolution of CIF.

  • Page 152: Faq

    User Manual of LV-D1104CW,LV-D1108CW, LV-D1116CW Series DVR 14.2 • Why does my device make a beeping sound after booting? The possible reasons for the warning beep on the device are as follows: There is no HDD installed in the device. The HDD is not initialized.

This manual is also suitable for:

Lv-d1116cw seriesLv-d1108cw series

Table of Contents
