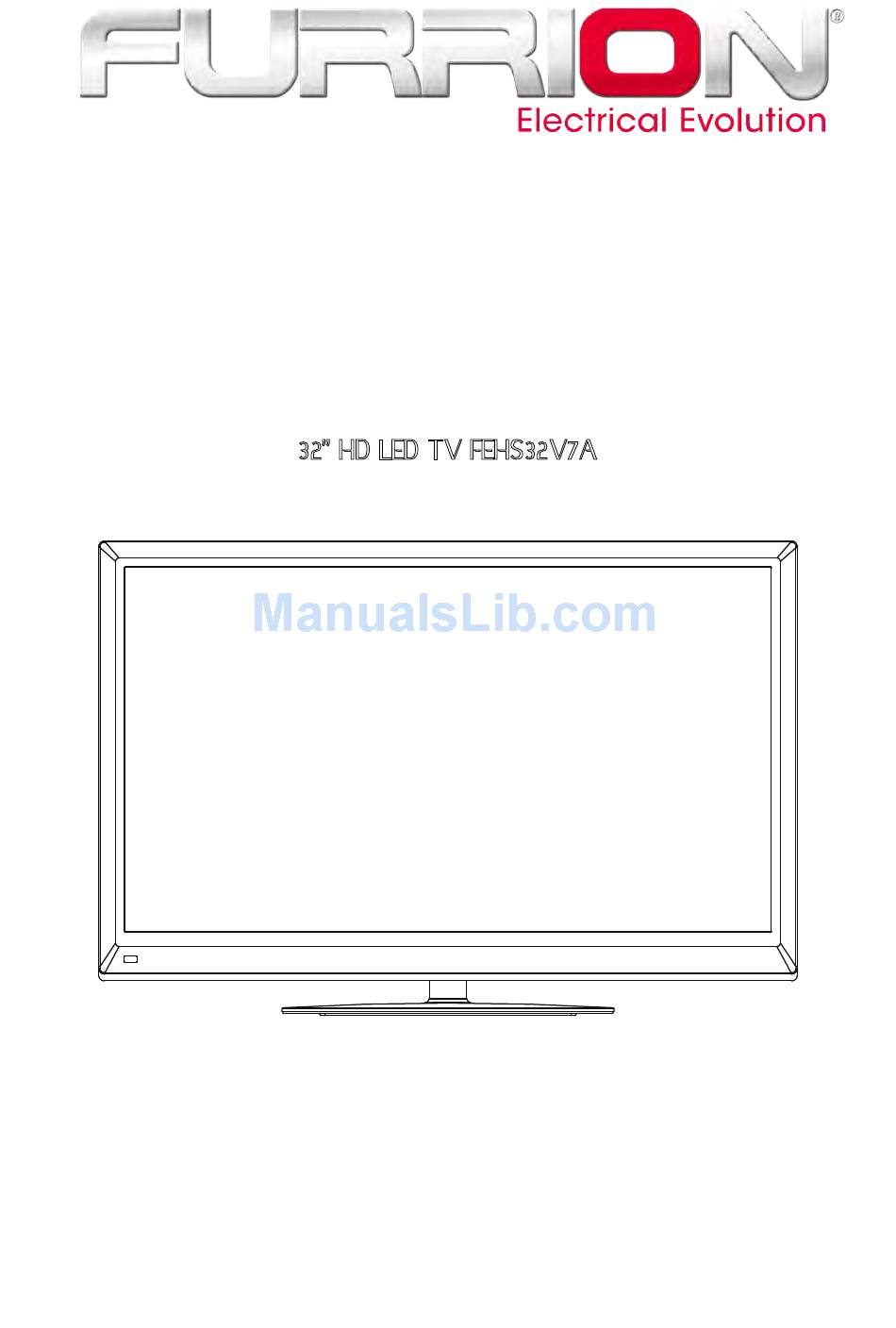

- Page 1 USER’S MANUAL LED TV SET 32” HD LED TV FEHS32V7A...
-
Page 2: Table Of Contents
Contents Introduction Warning Caution Main Unit Description Remote Control OSD basic adjustment ATSC Features USB Features Specifications Trouble Shooting... -
Page 3: Introduction
Introduction Thank you very much for your purchase of our product of LED TV. It serves as a normal color TV and PC monitor. To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready reference. INSTALLATION ①... -
Page 4: Warning
Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel. -
Page 5: Caution
Caution Caution High voltages are used in the operation of this product. Do not remove the back cabinet from your set. Refer servicing to qualified service personnel. Caution To prevent fire or electrical shock hazard, Do not expose the main unit to moisture, do not place objects filled with liquids, such as vases, on the apparatus. - Page 6 Caution Caution Never stand on, lean on, push suddenly the product or its stand. You should pay special attention to children. Caution Do not place the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.
-
Page 7: Main Unit Description
Main unit description Control Panel Button Function VOL+ : Volume up. VOL- : Volume down. CH+ : TV channel up. CH- : TV channel down. MENU : Press to select the main menu. TV/AV : Select the input signal. POWER : Switch on when at standby mode or enter the standby mode. TV Terminal Connections 1. -
Page 10: Remote Control
Remote control POWER: Power on/off button, press once to turn the TV on and press again to turn the TV off. MUTE: Press this button to mute or restore sound. MTS/AUDIO: When stereo program is received, press this key to switch sound system between mono and stereo. -
Page 11: Installation Guide
Installation Guide Press MENU button to display the MAIN OSD MENU; Press ◄ / ►button to select the MENU you want; Press ENTER button to enter the sub menu; Press ▼ / ▲ button to select the option and then press ◄... -
Page 12: Screen Size
Press ▼ / ▲ button to select Brightness, then press ◄ / ► button to adjust. . Press ▼ / ▲ button to select Contrast, then press ◄ / ► button to adjust. . Press ▼ / ▲ button to select Color, then press ◄ / ►... -
Page 13: Color Temperature
Press ▼ / ▲ button to select Reset, then press ENTER button to reset the options above. Color Temperature Press ENTER when the Color Temperature item is highlighted. Then press ◄ / ► button to adjust. Advanced Picture Settings Note: This option in the PC mode no role! Dynamic Contrast Press ▼... - Page 14 SOUND Sound Settings Press ENTER when the Sound Settings item is highlighted. Then you will go to the sub-menu as following. Press ▼ / ▲ to select the desired menu item. Press ENTER to proceed if necessary. Press / to adjust the item the desired level. When you have changed the settings, you can exit from the menu by pressing MENU.
-
Page 15: Surround Mode
Surround Mode Press ▼ / ▲ button to select the item Surround Mode, then press ENTER button to adjust. Press ▼ / ▲ button to select the item AVL, then press ENTER button to adjust. Analog Sound Press ▼ / ▲ button to select the item Preferred Analog Sound, then press ◄ / ► button to select the prefer audio Digital Sound Press ▼... -
Page 16: Channel List
Channel List Press ▼ / ▲ button to select Channel List, then press enter scan the Channel List. If you select the press enter button to option “In Channel List” On, the channel label will display in the list. Favorite List Press ▼... -
Page 17: Signal Type
Skip Set the channel to be skipped when using CH+/Ch- to view channels. Favorite Set the channel to your favorite list. Label Rename label of the channel. Signal Type Press ▼ / ▲ button to select Signal Type, then press button ◄ / ► to select the type you want to set. There are two selections: Air and Cable. -
Page 18: Parental Control
PARENTAL CONTROL Input password to enter, default password is “0000”. V-CHIP Press ▼ / ▲ button to select V-CHIP, then press ENTER button to adjust. A Sub Menu Will appear as below. -
Page 19: Movie Rating
US V-CHIP Press ▼ / ▲ button to select US V-CHIP, then press ENTER button to adjust. A Sub Menu Will appear as below. Movie Rating Press ▼ / ▲ button to select Movie Rating, then press ENTER button to adjust. A Sub Menu Will appear as below. -
Page 20: Downloadable Rating
CANADA V-CHIP Press ▼ / ▲ button to select CANADA V-CHIP , then press ENTER button to adjust. A Sub Menu Will appear as below. The operation of CANADA V-CHIP is the same as the operation of US V-CHIP. Block Unrated Show Press ▼... -
Page 21: Change Password
the DTV program doesn’t have this rating information, this option will be in gray. Clear Downloadable Data Press ▼ / ▲ button to select Clear Downloadable Data, then press ENTER button to set the rating. Note: The above two operation only valid when playing the downloadable data stream. The operations are the same as US V-CHIP. -
Page 22: Setup Menu
Setup Menu Closed Caption Press ▼ / ▲ button to select the item Closed Caption, then press ◄ / ► button to adjust. -
Page 23: Caption Display
Caption Display Press ▼ / ▲ button to select Caption Display, then press ◄ / ► button to select ON or OFF. Analog Caption Type Press ▼ / ▲ button to select Analog Caption Type, then press ◄ / ► button to select the type. Digital Caption Type Press ▼... -
Page 24: Menu Language
CC Opacity Press ▼ / ▲ button to select CC Opacity, then press ◄ / ► button to select the Opacity. Text Color Press ▼ / ▲ button to select Text Color, then press ◄ / ► button to select the color. CC Background Opacity Press ▼... -
Page 25: Others Menu
OTHERS MENU Blue Back Press ▼ / ▲ button to select Blue Background, then press ENTER button to select when there is no signal, whether set the background in blue or not. No Signal Power Off Press ▼ / ▲ button to select No Signal Power Off, then press ENTER button to select it On or Off. When set it on, if there is no signal input, it will go into standby. -
Page 26: Usb Features
USB Features Connect the USB and press the source button, select “Media” by“/”button, then press “ENTER” button to enter USB mode. Music Press and press “ENTER” button to enter. “/”button to select the music menu, Press the button to select the drive disk you want to watch, and press “ENTER” “/”... - Page 27 Press the button to select the file you want to watch in the file selecting menu, then “/” press “ENTER” button to display picture. the drive disk, When you select you can press“/”button to select “Open”、 “Thumbnail”or “Slideshow”, Then press“ENTER” button to enter. Press Source button to change to other signal channel.
-
Page 28: Hdmi Input
RGB INPUT Model Resolution Horizontal Frequency(KHz) Vertical Frequency(HZ) 720x400 31.5 640x480 31.5 SVGA 800x600 37.9 1024x768 48.4 WXGA 1360x768 47.7 HDMI INPUT Horizontal Frequency Vertical Frequency Mode Resolution (KHz) (HZ) 480i 720 x480i 15.73 59.94/60 480p 720 x480p 31.47 59.94/60 720p 1280 x 720p 37.50 44.96... - Page 29 Before consulting service personnel, check the following chart for possible solutions. PROBLEM SOLUTION ●Make sure the power cord is plugged in. ●The batteries in the remote control may be Exhausted; replace the TV will not turn on batteries. ●Check the cable between TV and antenna/ external AV device.
- Page 30 We are pleased to provide you with a 1 year warranty on all Furrion products. The details of this warranty are set out in the terms and conditions (see below) which supplement the authorized dealer’s Terms and Conditions of Sale.
- Page 31 6. Following the filing of a claim, Furrion will investigate the claim and if we believe there is a defect or fault covered by the warranty, we will at our option either repair the defective Furrion product (or part), replace the defective Furrion product (or part), or issue a refund of the price you paid for the product.
