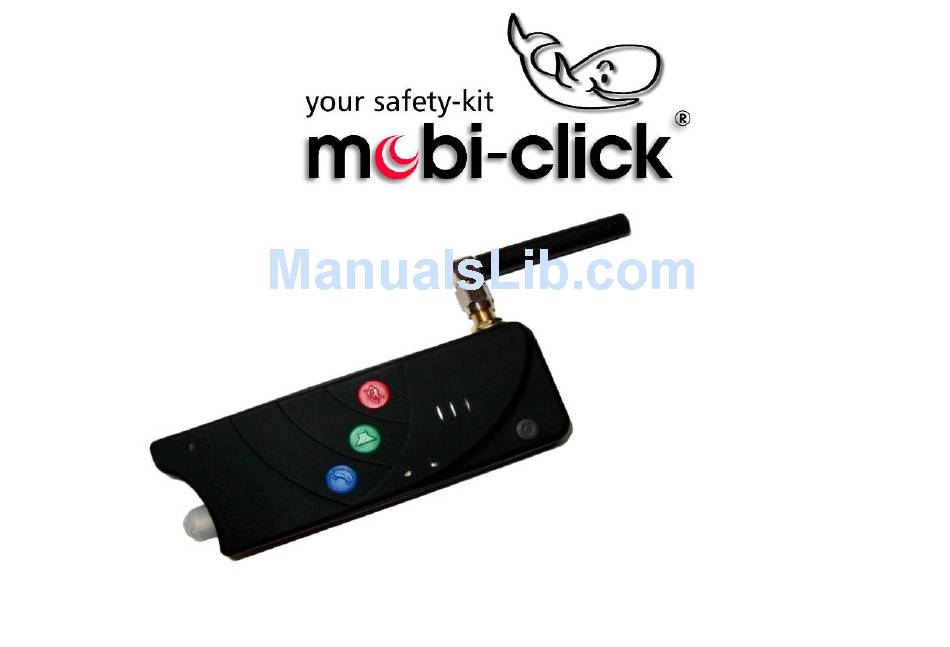

  • Page 1 Compact IIP+A1 Ver. 1.9xP User manual www.mobi-click.com 20.03.2015...

  • Page 2: Table Of Contents

    Contents Product description: General information about the Mobi-Click Compact IIP+A Usage of the Compact IIP+A at home First actions with the device: Important information Good to know! Change the PIN-code Switching on and off of the device Mobile phone, emergency and alarm system at the same time!
  • Page 3 Functions of different sensors: Which sensors should I choose in alarm situations? How do I set the sensitivity of sensors? How can I detect the disappearing of vibrations? Warning actions of the device in case of vibrations How can I connect external sensors? Additional features of the device: PIN-code –...

  • Page 4: Product Description

    Product description General information about the Mobi-Click Compact IIP+A Compact IIP+A works nearly like a usual mobile phone, just much more easier! You can receive any calls and call three pre-programmed phone numbers directly. 1. Alarm system As an alarm system it protects you in various situations:...
  • Page 5 Product description General information about the Mobi-Click Compact IIP+A 3. Time switch Compact IIP+A has a time switch. Thank to this time switch you can programme alarm times for the whole week before (see page 47). Compact IIP+A has an external contact. You can connect to this contact either the Commander CO-116 or the external motion sensor PIR (Z 101-10) with a cable of 2 meters.

  • Page 6: Usage Of The Compact Iip+A At Home

    Product description Usage of the Compact IIP+A at home Burglary With Compact IIP+A you can monitor your apartment, your house or office Reliably. The motion sensor registers people, which move within a distance of 5 meters. If a stranger enters the room, an alarm will be caused silently immediately.

  • Page 7: First Actions With The Device Important Information

    First actions with the device Important information First steps before using the Compact IIP+A Compact IIP+A possesses an integrated circuit for the protection of the battery from View of the Compact IIP+A over and under charging as well as from short-circuit. This protective circuit is activated from the rear: with a small slide switch (see design).
  • Page 8 First actions with the device Important information Important information: Leave the Compact IIP+A connected to the battery charger for a minimum of 40 minutes to ensure that the battery is fully charged. When switching on the Compact IIP+A (with the ON/OFF key) the battery charger can be disconnected.

  • Page 9: Good To Know

    First actions with the device Good to know! for example: Do not forget to put the spaces between the single words/digits by writing every kind of SET KEY +41791234567 message. On the left please find an example +41781112345 for SET KEY (see pages 18/19). +41762223344 Do not forget to put always international prefixes (e.g.
  • Page 10 First actions with the device Good to know! for example: SMS commands consist of 2 words: RESET AUTO 1. word: what do I want to do? switch on RESET switch off TEST test 2. word: determine situation or sensors AUTO = vibration sensor - car monitoring HOME = motion sensor - room monitoring BABY = noise sensor - baby phone We will explain further commands in detail gradually.

  • Page 11: Change The Pin-Code

    First actions with the device Change the PIN-code As Compact IIP+A has only 3 keys and a ON/OFF power key, some settings have to be done on a second "normal" mobile phone at the first use. These settings have to be done just once! Changing of the PIN-code: For the use of Compact IIP+A you also need a SIM-card which is like the SIM-cards you need for other mobile phones.
  • Page 12 Ready to start! "normal" mobile phone. SIM- card Enter the original PIN-code. SIM- card Change the PIN-code Bottom (see previous page). Compact IIP+A Place SIM-card with the changed Take the SIM-card out PIN into Mobi-Click Compact of the mobile phone again. IIP+A.

  • Page 13: Switching On And Off Of The Device

    Switching on and off of the device Press the ON/OFF key for Switch on Press the ON/OFF until beep. about 3 seconds. Mobi-Click Compact IIP+A Yellow LED blinks and green works only if.. LED is ON (looking for network) .
  • Page 14 You need 1 Mobi-Click Compact IIP+A.  1 SIM-card.   1 mobile phone for changing the PIN-code of the SIM-card and to program further functions. Connect Compact IIP+A Ensure the Compact IIP+A is turned OFF and connect the battery ...

  • Page 15: Mobile Phone, Emergency And Alarm System At The Same Time

    First actions with the device Mobile phone, emergency and alarm system at the same time! Activate as mobile phone Activate as emergency system (=RED) Keep the two (=GREEN) Press when switching on keys pressed power ON/OFF key. when switching on until you hear (=BLUE) a signal tone! GREY...
  • Page 16 Activate as alarm system Activate test mode Keep the two Keep the two keys keys pressed pressed Green and when switching ON/OFF (drawing on until you hear OK) when switching a signal tone! on until you hear BLUE ON/OFF ON/OFF GREEN a signal tone! Switch on alarm standby...

  • Page 17: Compact Iip+A As A Mobile Phone Saving Of The Three Phone Numbers

    Compact IIP+A as a mobile phone Saving of the three phone numbers As easy as SMS... With Compact IIP+A you can call 3 different numbers, without the tiring typing of the phone numbers: just press one of the three coloured keys and you are connected directly to the number you have chosen! Before you can profit from this short...
  • Page 18 SET KEY2 Number saved under the Send this green key. For saving command to   numbers 1- KEY2 +41781112345 Mobi-Click 2 (green, Compact. blue) You receive a confirmation per SMS. (space) space) SET KEY3 Number saved under the For saving blue key.

  • Page 19: Volumes And Ring Tones

    Compact IIP+A as a mobile phone Volumes and ring tones AUDIO As in any other mobile phone, (space) (space) (space) (space) (space) Compact IIP+A allows the user to choose individual ring tones and do personal volumes speaker volume [0-9] selections. microphone volume [0-9] ring tone number [0-9] ring tone volume [0-9]...

  • Page 20: Keypad Lock And Unlock

    Compact IIP+A as a mobile phone Keypad lock and unlock Keypad lock Keypad unlock For unlock the keypad again, do the For this function, Compact IIP+A same as for locking: must be switched on. When the device is ready, do the following: -press the red key -press the red key -press the blue key...

  • Page 21: My First Phone Call With Compact Iip+A

    Compact II as mobile phone My first phone call with Compact IIP+A PRESS The Compact II is going to call Short beep after pressing. the chosen number. The Compact II Yellow LED is on. is dialling the chosen number. Switch the PRESS device on GREEN...
  • Page 22 Reject the call If it’s Answer the call ringing: loudly Answer the call normally Switch to mute Answer a call automatically: during the Elderly and handicapped people are Loudspeaker phone call: often living alone. Especially this group (free speaker) of people is often exposed to dangerous situations: a fall or an unexpected Hang up collapse could have bad consequences.

  • Page 23: Sending Sms Messages With Compact Iip+A

    Compact II as mobile phone Sending SMS messages with Compact IIP+A At first, you have to choose further three numbers to which you can send SMS messages. The SMS messages inform the person that a call will be done in the next few seconds. That means, by pressing one of the key, the according number will get a SMS message and if the numbers with SET KEY (see pages 18/19) are programmed too, the Compact IIP+A will call these numbers after sending the SMS to the numbers you save as below:...
  • Page 24 PRESS The Compact IIP+A is processing Short beep after pressing. the SMS that will be sent to the SMS-Number. The Compact IIP+A is sending Yellow LED is on. the SMS and dialling the KEY number. PRESS message sent to receiver. GREEN The Compact IIP+A is establishing Red LED blinks alternately.

  • Page 25: Compact Iip+A As An Alarm System

    Compact IIP+A as an alarm system Usage of the Compact IIP+A as an alarm system The usage of the alarm system is very simple: you just have to chose, in which kind of alarm situations you want to use your Compact IIP+A: for protection of the car, for protection against burglary or as baby phone! Activation of the alarm system on the Compact IIP+A: car monitoring Activation of the...

  • Page 26: Saving Of Personal Alarm Messages

    Compact IIP+A as an alarm system Saving of personal alarm messages Personal texts are used to describe an alarm which had happened more exactly, especially if the alarm message goes to a third person or if there are several Compact IIP+A devices in order. Changing name of the Compact IIP+A: The Compact IIP+A is named NAME...

  • Page 27: Usage Of The Compact Iip+A As An Alarm System In Diagnose Mode

    Compact IIP+A as an alarm system Usage of the Compact IIP+A as an alarm system in diagnose mode Diagnose mode is extended test mode for all sensors available in Compact IIP+A. In this mode user can activate sensor without alarm message from Compact IIP+A. When sensor is exited only short beep sound will be heard.

  • Page 28: Changing Of Time And Date

    Compact IIP+A as an alarm system Changing of time and date Compact IIP+A provide simple SETtings of date and time with weekday calculation. When time and date is SET the weekday is count automatically. To SET date and time send SMS as in example below (format: hh mm yy mm dd): TIME (space) (space)

  • Page 29: How Will I Be Informed In Case Of An Alarm? 1/2

    Compact IIP+A as an alarm system How will I be informed in case of an alarm? 1/2 You can choose by yourself in which kind you and the other people (saved numbers under the three keys) have to be informed in alarm situations. For the numbers you have saved with the commands SET KEY/2/3, you can choose the way of information as below, for the further three SMS-numbers you have saved (see page 24) please consider the steps on next page.
  • Page 30 This command allows you to install further three numbers to be informed per SMS in alarm situations. That means, totally 6 numbers can be informed. First three numbers, please see on previous page, and for the further three numbers, please consider the following steps: Now, the numbers are SMSALARM (space)
  • Page 31 Compact IIP+A as an alarm system How will I be informed in case of an alarm? 2/2 You can also be informed in alarm situation by e-mail. In addition you need an e-mail receiver to be informed in case of an emergency. This is useful if, for example, you daughter is to be informed, however she is in the office all day, so a message is more suitable by e-mail, since she may not use her mobile phone during the day, or does not have her own one.

  • Page 32: I Am Well

    The command “ Test CARE invokes CARE procedure." The command SET Care is a quite important function, which puts the Mobi-Click at the owners disposal. You can determine at which times (max. 4 clock times) you would like to hear a beep tone.

  • Page 33: Security Zone And Localization Of People Or Objects

    Compact IIP+A as an alarm system Security zone and localization of people or objects With Compact IIP+A a protected zone, (e.g. the areas in which the user is most often present) can be defined. In prin- ciple Compact IIP+A saves automatically and permanently the last 28 zones you crossed with Compact IIP+A in a table. How you have to save these zones, please see below: Defining protected zones.
  • Page 34 AREA Activation of the monitoring. (space) Special function: Asking for present TEST CELL (space) This command activates all location. the zones you have saved in your table (max. 28 zones). If you make this activation, With this command you have the possibility to check the you will get an alarm message present location of the Compact IIP+A.

  • Page 35: What Should I Do In Case Of An Alarm

    Compact IIP+A as an alarm system What should I do in case of an alarm? KEEP COOL! A Compact IIP+A alarm message has always to be taken serious! Keep cool in any case and consider your next steps exac Reports 3 previously TEST (space) programmed phone...
  • Page 36 Protection of privacy is the constitutional right of citizens of many countries. A Compact IIP+A user should not, and is not, allowed to abuse Compact IIP+A for unauthorized monitoring purposes! Now you know, who has been informed and you can do next steps. After you have sent this command, Compact IIP+A will call you immediately...

  • Page 37: Functions Of Different Sensors Which Sensors Should I Choose In Alarm Situations

    Functions of different sensors Which sensors should I choose in alarm situations? For every single sensor that is integrated in the Compact IIP+A, you can choose a personal text which is allowed to consist of max. 21 signs. See the different sensor functions below: Acoustic-sensor (microphone): The hyper-sensitive micro- VOICE TEXT (space)

  • Page 38: How Do I Set The Sensitivity Of Sensors

    Functions of different sensors How do I SET the sensitivity of sensors? All integrated sensors of Compact IIP+A are SET in the factory optimal for the appropriate monitoring situation. The sensitivity can be adjusted with a simple command and so can be SET to be more or less sensitive. Choose one of the sensors mentioned on previous page and complete this sensor with a further command which influence the sensitivity.

  • Page 39: How Can I Detect The Disappearing Of Vibrations

    Functions of different sensors How can I detect the disappearing of vibrations? With the command below you can detect if the vibrations of the device die out, disappear or decline. As soon as the device recognizes this command, this function starts within 10 seconds and the vibrations are going to be detected with the selected sensitivity.

  • Page 40: Warning Actions Of The Device In Case Of Vibrations

    12 warning tones will be given. After this third action, the Mobi-Click Compact IIP+A is causing immediately a warning...

  • Page 41: How Can I Connect External Sensors

    Functions of different sensors How can I connect external sensors? You can also connect external sensors to Compact IIP+A. The connected sensor must operate with standards NO or NC. You can connect as well simple short/open detectors. The defined mode allows you to choice type of the external equipment between normally opened and normally closed.

  • Page 42: Additional Features Of The Device

    Additional features of the device PIN-code – how to protect against outside access? With this function Compact IIP+A can be protected against outside access. The PIN-code consists of the word "PIN" and a code. The code is always 4-digit and cannot contain any signs, but just digits (e.g. "1234"). IMPORTANT: If you have saved your own Compact IIP+A text responses, then all commands which you transmit to Compact IIP+A must have the same text and PIN-code at the end, e.g.

  • Page 43: How Can I Control External Device

    Additional features of the device How can I control external device? (only with special adapter) With Compact IIP+A You can also control some external device for example camera, light relay. It is only one condition: device must have digital input. For this purposes it is possible to use external port connector. Please find more information below.

  • Page 44: How Can I Operate External Device

    Additional features of the device How can I operate external device? To RESET controlling external device in alarm situation by Compact IIP+Ayou must send RESET Relay Alarm. RESET RELAY ALARM (space) (space) Notice: When Relay function is active external sensors like EXTERN PIR or EXTERN NO or EXTERN NC can not be used.

  • Page 45: How Can I Monitor Temperature Variation

    Additional features of the device How can I change the quantity of alarm notifications and time? The temperature range of the sensor is from -40° C to +100° C. If the min. or max. value is exceeded, Compact IIP+A send an alarm message to all the saved phone numbers. To SET the function use the following command: SET TEMPERATURE <temp1>...

  • Page 46: How Can I Change The Quantity Of Alarm Notifications And Time

    Additional features of the device How can I change the quantity of alarm notifications and time? Frequency of appearing alarms of the same type can be customized. This function is useful especially, when user wants reduce number of notifications from any triggered sensor. When any alarm is released Compact II send a notification with cause.

  • Page 47: How Can I Change The Duration Of Eavesdropping

    Additional features of the device How can I hold alarm system for definite time and weekday? Active alarm can be hold in any time for definite time and weekday. When any of sensor is active (see page 17, 26, 38, 39), command SET HOLDALARM causes holding alarm system from the time between first and second parameter (Stop hour and minute) and the time defined by third and fourth parameter (Start hour and minute).

  • Page 48: How Can I Activate The Alarm At A Definite Time

    Additional features of the device Return to factory SETtings RESET System: When the device is switched off, while pressing red, green, blue keys, switch the device ON. After a long beep the device SETtings is erased. The same could be done by SMS with special service command RESET SYSTEM 12345678 You can also make a general RESET by switching the little slide switch (see page 8/9) to off.

  • Page 49: How Can I Programme The Monitoring Time, When The Time Starts

    Additional features of the device How can I test, if everything is SET correctly? General information: To test the savings, always write the word TEST instead of the seen messages as SET or RESET. After sending a text message, you will get a message which contains information about the present Status of the device.

  • Page 50: Safety Information

    Further product information Safety information Mobi-Click Compact II was produced by keeping to the strict manufacturing and quality controls. Thus your device works correctly and to prevent that the guarantee expires, there has to be considered the following security councils: Take care of your Compact IIP+A.

  • Page 51: Technical Data

    Class 1 (1 Watt) as per DCS1800 Data Service: Mobi-Click is designed to the following standards: GSM 03.03: “Digital cellular telecommunications system (Phase 2+); numbering, adressing and indentification“. Version 6.6.0. GSM 03.13: “Digital cellular telecommunications system (Phase 2+); Discontinuous Reception (DRX) in the GSM system“. Version 6.0.0.

  • Page 52: Further Product Information: Safety Information

    Further product information Declaration of Conformity We, MOBI_CLICK AG; Pfad 1 A; CH-6330 Cham/ZG declare under sole responsibility that the product: Mobi-Click Compact IIP+A Mobile Phone and Security System (suitable for GSM/E-GSM 900 MHz and PCN 1800 MHz) To which this declaration relates, is in conformity with the following essential requirements of the Directive 1999/5/EC: Article 3.1 a), 3.1 b) and 3.2...
  • Page 53 Your notes...
