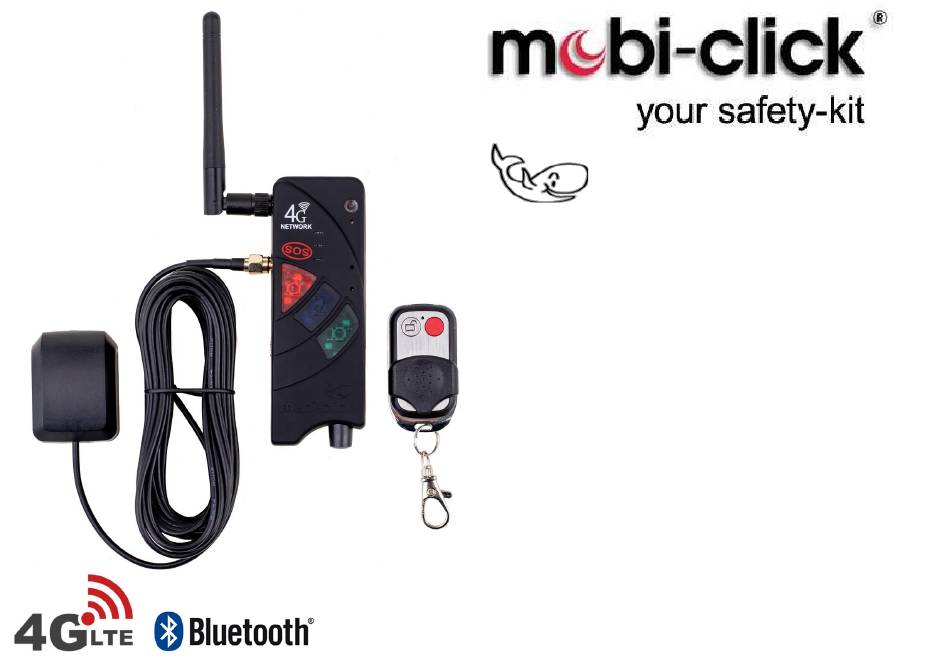

- Page 1 User manual Compact 4P LTE Ver. 4.03 C110-5-4G 22.04.2024...
- Page 2 User manual Compact 4P LTE 4G introduction Dear Customer, Thank you for purchasing this Compact 4P LTE mobile monitoring device. It is another quality product from our range of high quality GSM alarm and alarm devices. If you have any technical questions, please contact:...
-
Page 3: Table Of Contents
24. Turning off the LED during Alarms …………………………….………..………. 6. SIM card ……………………………………………………………………………………………………………………. 25. Key lock ………………………………………………………….…………………………………………..…...………………. 7. Switching on the device 26. Compact 4P LTE as an alarm system in ………………………………………………………….………….…. 8. Configuration via SMS Diagnosis mode ……………………………………………………..……..………….…. .…………………………………………………………..…………………….….……….………. 27. Eavesdropping on the device 9. -
Page 4: Before Using The Device
1. Before putting the device into operation Before charging the device, you must turn the battery safety switch to ON. The battery safety switch is only used to safely transport the battery in the device. ON/OFF switch... -
Page 5: Introduction- How The Buttons Work
2. Introduction- How the buttons work ON/OFF button GSM antenna A1 Alternatively, an A2 Blue LED 3 – GPS antenna with 3 meter cable can be used. speaker GPS antenna connector For connecting the active Red/green LED 2 – battery GPS antenna. -
Page 6: Accessories
Accessories Including accessories Optional accessories Compact 4 LTE USB power supply Battery pack B-125 External PIR Z101-10 External antenna A3 Z101-17 GSM antenna Radio siren GPS antenna SI-146 remote control cable mini USB Commander CO-116... -
Page 7: How Do Leds Work
4. How do LEDs work? LED 1 – GSM: The current GSM status can be seen on this LED. The LED has the following display options: • LED lights up green = GSM network is being searched • LED flashes green (every 1 second) = device is registered on the GSM 2G network •... -
Page 8: Charging The Compact 4P Lte Device
LED 3 – GPS: This LED shows the activity and status of the GPS receiver. The following display options are available: • LED flashes blue: Current GPS position is correctly determined • LED lights up blue: GPS position is not determined or cannot be determined •... -
Page 9: Sim Card
(e.g. language selection) must also be made at the beginning. Therefore, before starting to use the Compact 4P LTE, the user must make a test call on a normal cell phone! - Page 10 Regardless of whether you use a prepaid or contract card, please make sure that the phone number is included! Compact 4P LTE only serves its purpose if the user is recognized by their phone number. If the phone number is not sent, remove the suppression of the phone number (also in a normal cell phone). If this does not work, contact your network provider to have the cell phone number transmitted.
- Page 11 Insert the SIM card with the changed PIN code into the Compact4. Insert the SIM card To insert the SIM card into the Compact 4P LTE, the cover on the back must first be opened. Please do this carefully by applying slight pressure on the lid behind the lid lock with your fingernail and then pulling it away from the housing.
-
Page 12: Switching On The Device
Compact 4P LTE will not function. Switch on the device Compact 4P LTE can be switched on using the black ON/OFF button. Press this for approx. 3 seconds until you hear a beep. The device then searches for the mobile network. This usually takes around 10 - 20 seconds, but can be longer if reception is weak. -
Page 13: Configuration Via Sms
Configuration via SMS Structure of SMS commands We send SMS commands from any phone to the SIM card in the Compact 4 device. The SMS commands for programming the device are structured according to the following scheme: <…> <AKTION> < FUNCTION > <PARAMETER1>... - Page 14 Example: TEL1 0049123456789 #1513 (DISTANCE) (DISTANCE) (DISTANCE) (DISTANCE) Meaning: The telephone number 0049123456789 is saved in the phone book as an ALARM for sending SMS. Without “#PIN” at the end of the SMS, it will be discarded and no reply SMS will be generated! The individual words and parameters must each be separated by a space.
-
Page 15: Using The Sms Configuration Program
9. Using the SMS configuration program Configuration program via SMS for Compact devices – works on devices with Android versions 7 – 13. The application can be downloaded from the server by entering the website address Scan with the QR code with your smartphone. Application name Compact.apk, version 1.0 You can also download the application by entering the website address: http://tsl.webd.pro/download/Compact.apk After you have downloaded the application, install it on the smartphone. -
Page 16: Subsequent Change Of The Pin Code
SET PIN 1111 #1513 If this SMS was written correctly, you will now receive a confirmation via SMS from the Compact 4P LTE to your cell phone from which you sent the SMS command. If the text was incorrect, you will receive an SMS with the error message: “Command format incorrect”. -
Page 17: Programming The Telephone Numbers
Programming of telephone numbers You can save six phone numbers that will be notified in the event of an emergency, via SMS and/or call. In any case, at least one SMS notification must be selected so that the GPS coordinates can be transmitted. By the way, you can have the same phone number notified via SMS as well as a call. -
Page 18: Choice Of Alarm Type
Check saved phone numbers: SMS command: TEST TEL #1513 Choice of alarm type There is an option to choose two alarm types for the “PANIC” and “ALARM” functions: MODE 1: The device calls all telephone numbers programmed for the “PANIC” or “ALARM” function until each of these numbers answers the call. -
Page 19: Status Query Of The Device
Deleting the status query: SMS command: RESET STATUS INTERVAL #1513 Programming the sensors (MOVE, VOICE, VIBRA) Compact 4P LTE is equipped with three sensors, i.e. a motion sensor, a sound sensor and a shock sensor, which can work separately or all at once. - Page 20 Motion sensor activation: SMS command:: SET MOVE X #1513 Meaning: X - Select sensitivity range between 1 and 10. SET MOVE 5 #1513 Example: Deactivation of the motion sensor - SMS command: RESET MOVE #1513 Activation of the noise sensor: SMS command: SET VOICE X #1513 Meaning: X - Select sensitivity range between 1 and 10.
- Page 21 Change alarm text. With these commands you can define the alarm text of the respective sensors yourself: motion sensor : SMS command: SET MOVE TEXT < new alarm text > #1513 SET MOVE TEXT Der Bewegungssensor #1513 Example: Set default text: SMS command: RESET MOVE TEXT #1513 ...
-
Page 22: Alarm Mode / Security Mode
Alarm mode / security mode (button 2) You can activate alarm mode in three different ways: You can turn alarm mode on/off by pressing button 2 (blue). Activate via remote control: Right button – emergency call Left button - alarm activation/deactivation You leave the room and press the left alarm button on the remote control. -
Page 23: Audio Volume Control And Ringtones
Audio volume control and ringtones As with all other mobile phones, you can also use the Compact 4P LTE to set individual ring tones and make your own volume controls. SET AUDIO 2 0 3 9 1 #1513 SMS command:... -
Page 24: Change Of Device Name
SMS command: <new Name> Meaning: The maximum length of the device name is 16 characters. Example: Renaming the Compact 4P LTE to „NEWNAME“: SET NAME NEWNAME #1513 Restore default names – SMS command: RESET NAME #1513 Setting the language (“Language” command) With this command you can set the language of the device. -
Page 25: Setting The Time And Date
Setting the time and date The product offers time and date setting. When the time and date are set, the day of the week is automatically calculated. This saves the exact time and date when the SMS was created in the SMS; regardless of when the SMS was sent or received. -
Page 26: Technical Alarms
Technischer Alarm (2): GSM Netzempfang ist zu schwach (Empfang bei X %) The X stands for the reception power. In such cases, it is advisable to speak to the Compact 4P LTE user and ask them to move back to an area with better GSM reception. - Page 27 RESET GSMALARM #1513 GPS reception alarm If GPS reception drops to a critical value, Compact 4P LTE sends a GPS alarm message with the following text to the stored SMS phone numbers: Technischer Alarm (3): GPS Signal ist zu schwach (Sat: X) The X stands for the number of satellites found.
-
Page 28: Time Between Two Alarm Notifications
RESET GPSALARM #1513 • Sensor alarm If there is a defect in the sensor, Compact 4P LTE sends a sensor alarm message with the following text to the stored SMS phone numbers: Technischer Alarm (4): Sensor defekt / ohne Funktion In the event of a sensor alarm, the user is no longer monitored. -
Page 29: Hold Alarm
SMS command: SET IDLEALARM <Zeit> #1513 Meaning: <Time> can be set between 1 and 240 minutes. Example: Time setting in 15 minutes SET IDLEALARM 15 #1513 Important: During this period you will not be informed whether the reason for the alarm has changed again. You must pay attention to the fact that you have to control the parameter yourself during this time. - Page 30 If you had a previous model of the device - Compact2 - and are used to setting the active alarm time, you can change the setting. SMS command: HOLDALARM = active (as with Compact 2) SET TIMEACTIVE #1513 SMS command: HOLDALARM = inactive SET TIMEINACTIVE #1513 With the HOLDALARM command you can define a period of time per day in which the predefined mode should function.
- Page 31 Example: The monitoring of the object should be paused (set inactive) on Tuesdays and Wednesdays from 8:00 a.m. to 2:15 p.m SET HOLDALARM 08 00 14 15 TU WE #1513 Example: Monitoring of the object should be paused (set inactive) on Thursday and Friday from 10:00 p.m. on Thursday evening until 3:30 a.m.
- Page 32 Hold alarm activated the alarms. Hold alarm has disabled alarms • HOLDALARM2 function This function allows you to set additional time intervals (up to 6) within a day. Setting HOLDALARM2 (if the factory setting TIMEINACTIVE is set). Monitoring of the property will be deactivated on Wednesday from 3:00 p.m. to 4:40 p.m., 5:00 p.m. to 6:00 p.m. and 7:00 p.m.
- Page 33 SMS command: Verification of the setting TEST HOLDALARM2 #1513 SMS response - the reading of the received SMS based on the example above for Holdalarm2 works as follows: 1. 15:00-16.40 0001000 2. 17:00-18.00 0001000 3. 19:00-22.00 0001000 4. Off 5. Off 6.
-
Page 34: Setting The External Contact For Various Applications
• RELAY command Using the RELAY command we can control the external contact in Compact 4P LTE (Jack), to which, for example, a SI- 136 siren can be connected. The siren is activated when the Compact 4P LTE device detects movement, sound or vibration. The user can determine the time for how long the siren should be active during the alarm. - Page 35 Meaning: XX - NO or NC (NC – normally closed; NO – normally open). <Time> The range of time is from 1 to 3600 seconds. Example: The above command causes the Compact 4P LTE device to trigger an alarm if the external sensor is closed for more than 60 seconds.
- Page 36 RESET EXTERN #1513 Commander Funktion You can connect our Commander CO-116 to the Compact 4P LTE via the external contact. With our Commander you can connect another 10 wireless sensors, e.g. smoke detectors, motion detectors, remote control, window/door contacts, siren, etc.
- Page 37 USB power supply Compact 4 is designed for continuous operation when the power supply is connected to a USB port. If someone accidentally turns off the power adapter from the device or otherwise loses power, you can set a power outage alarm on the USB port.
-
Page 38: Turning Off The Led During Alarms
If there is no voltage at the USB socket, you will receive an SMS with the content: SMS command: Check the status of the power failure alarm on the USB port TEST USB #1513 SMS command: Turn off the USB port RESET USB #1513 Turn off the LED during the alarm There is a way to turn off all LEDs in alarm mode if we want to prevent the device from being conspicuous. -
Page 39: Compact 4P Lte As An Alarm System In Diagnosis Mode
SMS command: To deactivate the key lock again: RESET LOCK #1513 Compact 4P LTE as an alarm system in diagnostic mode The diagnostic mode is an extended test mode for all sensors available in the Compact. In this mode, the user can activate the sensor without alarm notification from the Compact. -
Page 40: Eavesdropping On The Device
RESET DIAGNOSE #1513 Eavesdropping on the device Important!. The protection of privacy is enshrined in the constitutions of many countries. Mobi-Click should not and must not be misused for unauthorized wiretapping purposes! There is a way to listen silently into the room using the HEAR function. Listening in standard mode takes up to 3 minutes and then the Compact device stops listening. -
Page 41: Determining The Normal Position Of The Device
SMS command: Changing the mode to standard. All calls made from the Compact device last up to 3 minutes and then are interrupted. RESET LONGHEAR #1513 SMS command: After sending the SMS below, you can call the Compact 4 device to listen. SET INCALL CALLSILENT #1513 SMS command: Turn off call mode. - Page 42 General GPS positioning (GPS), switching the GPS functions on and off Important: The GPS module is disabled by default. To use the location function To be able to do this, you must activate it. SMS command: Switch on SET GPS #1513 SMS command: Turn off RESET GPS #1513 With the following command, the current GPS coordinates are queried and sent back in an SMS without evaluation.
- Page 43 SMS command: TEST GPSMAP #1513 Example of the response: After you click on the link, you will see on your mobile phone display: where the device is located. Change zoom and map provider: There are two map providers available, and a specific zoom mode can also be set. SMS command: SET GPSMAP <NR>...
- Page 44 The linked OpenStreetMap.org website requires a current Internet browser to display and control the map material. Therefore, a smartphone is required here. Both variants require an internet connection via your cell phone. Energy saving mode (GPSSAVE) When the device is connected to an external power source, the current location is checked every second. To save energy when running on battery power, the GPS receiver switches off automatically and is only activated once an hour.
-
Page 45: Programming The Gps Zone
Longitude 1 = left border (west) Longitude 2 = right border (east direction) The GPS coordinates for Compact 4P LTE are given in degrees and minutes with six decimal places. Data entry is possible in a range from xx.000000° to xx.999999°. - Page 46 The following example shows the data entry format: Latitude – gg.gggggg N (degrees) e.g.: 49° 59,5058’ N = 49.991763 N Longitude – ggg.gggggg E (degree) e.g.: 11° 57,0399’ E = 011.950665 E Care must be taken to fill in missing numbers with “0”. Example: 3° 3.23’ E = 003.032300 E Example: SET GPSZONE 49.739280N 011.9252620E 49.939280N 011.552620E #1513 The following message is sent back as confirmation:...
- Page 47 SMS command: To delete a single zone: Several zones can be combined to form a RESET GPSZONE < No. of the zone > #1513 corridor. The boundaries of the zones run < No. of the zone > Meaning: Values 1 to 10 are permitted. along the specified longitude and latitude.
-
Page 48: Programming The Remote Controls
Programming the remote controls The remote control was programmed with the Compact 4 LTE device. The following commands are used to program subsequent remote controls. First you need to open the SIM card cover and insert the SIM card. This way you can turn on the device. Then press the button under the SIM card. -
Page 49: Creating The Factory Settings
Restore factory settings via SMS (RESET SETUP) If you want to reset the product to its factory state, use the following command: RESET SETUP 12345678 #1513 All settings made so far will be lost and permanently deleted. The PIN code of the SIM card is not changed when resetting to the default settings. After the restart, the product cannot log in again (SIM card = last set PIN code, product = 1513). -
Page 50: Configuration Program
PC Configuration Program User Guide • Program installation Compact4 also configuration program, which find website https://cdn.shopify.com/s/files/1/0098/7453/8559/files/Konfigurationsprogramm_Compact4.rar?v=1699825574 or you can request it from us via email. All functions have been described in the main manual. Install the program /Compact4 Configurator Setup DE.msi/. The configurator program is installed first. After the installation of the configurator is completed, the installation of USB drivers follows. - Page 51 1. Please turn on the device 2. Start the configurator program 3. Connect the device to the computer via USB 4. Click Update in the program. 5. Select the appropriate COM port Then right-click on the START MENU button in Windows.
- Page 52 The following menu will be displayed, please select Device Manager.
- Page 53 Then the page of Device Manager open. Please click on connections (COM &LPT).. Now you can read the number of the COM port in which you have installed the USB driver for the Life Tel (Silicon Labs CP210x). In this case it is port COM3.
- Page 54 If the exclamation mark appears on the Silicon Labs name, it will mean that the USB drivers have not been installed correctly. In this case, please disconnect the Compact4 from the computer in advance and restart the computer. Then please connect the Compact4 to the computer again and check in the device manager whether the problem is solved. If it doesn't help, please repeat the driver installation.
- Page 55 After turning on the configuration program, press the "Update" button. Please select the correct COM port from the list, which you could read in Device Manager.
- Page 56 Important. If the blue GPS LED is on, wait a moment until it turns off. Press the "Read configuration" button to import the Compact4 settings. If there is no connection when you first press it (red X), click the “Read configuration” button (UART port) a second or third time. GOOD...
- Page 57 • Telephone alarms In this area the user can program six telephone numbers and determine their function: You decide whether you want to receive a notification via SMS or a telephone notification (CALL). There are two modes to choose from: TIMEINACTIVE (factory setting) and TIMEACTIVE. The first mode, TIMEINACTIVE, works analogously to its predecessor Compact 2, i.e.: the alarm is inactive in the selected periods.
- Page 58 Saving the settings and ending the work of the configuration program To save the previously selected settings, press the “ENTER CONFIGURATION” button. If the process is completed successfully, the “CLOSE PORT” button should be pressed to exit the configuration. Finally, you can remove the USB cable from the computer.
- Page 59 If this function has not been checked, the following functions will only become active if the calling telephone number has previously been (pre-)programmed in the Compact 4P LTE. When the feature is checked, each phone number can enable the following features: ...
- Page 61 • Sensors The user can adjust the sensitivity of the sound sensor (voice), motion sensor and shock sensor. “Keyboard lock” function – blocks the keyboard so that no one can turn off the alarm mode manually, only the user can do this via SMS. Listen longer than 3 minutes - “Listen unlimited”...
- Page 62 Konfiguration des externen Kontaktes für die Funktionen „Relais“ und „Extern“: Relay ALARM – for example a siren will sound for 1 minute. External NO – connections for the NO contact (operating time in seconds) External NC – connections for the NC contact (operating time in seconds) ...
- Page 64 GPS settings Several zones (max. 10) can be combined to form a corridor. The boundaries of the zones run along the specified longitude and latitude. Diagonal zones cannot be specified. The zones must overlap each other if they belong together to form a corridor.
- Page 65 Firmware settings Important !!! The UPDATE function in the PC Configurator program only works for Compact 4 - 2G devices. For Compact 4 LTE 4G devices, updates are provided via a Bluetooth running application. Saving the settings and ending the work of the configuration program To save the previously selected settings, press the “ENTER CONFIGURATION”...
-
Page 66: Disposal Of The Device
We, Mobi - Click Sp. z o.o, ul. Okólna 31, 66-400 Gorzow Wlkp., hereby declare that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. And we, Mobi-Click representative Germany Gerhard Pütter Karl-Liebknecht-Str. 60 / 15230 Frankfurt /Oder. declare fully responsible that the product: declare fully responsible that the product:... -
Page 67: Technical Data
Band 850/900/1800/1900 MHz 2G (WCDMA): 850/900/2100 MHz 4G (FDD-LTE): B1 (2100) / B3 (1800) / B7 (2600) Module: Simcom A7682E Battery: 1100mAh Charging time: 45 minutes SIM card: 3 volts Sales: Mobi-Click representative Germany Gerhard Pütter Karl-Liebknecht-Str.60, 15230 Frankfurt /Oder. Service: info@mobi-click.com... - Page 68 Important! Before commissioning, the slide switch must be set from OFF to ON! Only then can you charge the battery! The slide switch is located located under the SIM card holder. PC configuration program Compact 4 You can download the program from our website. You click on SERVICE Downloads and PC configuration program Compact 4 LTE and download the PC configuration program...
