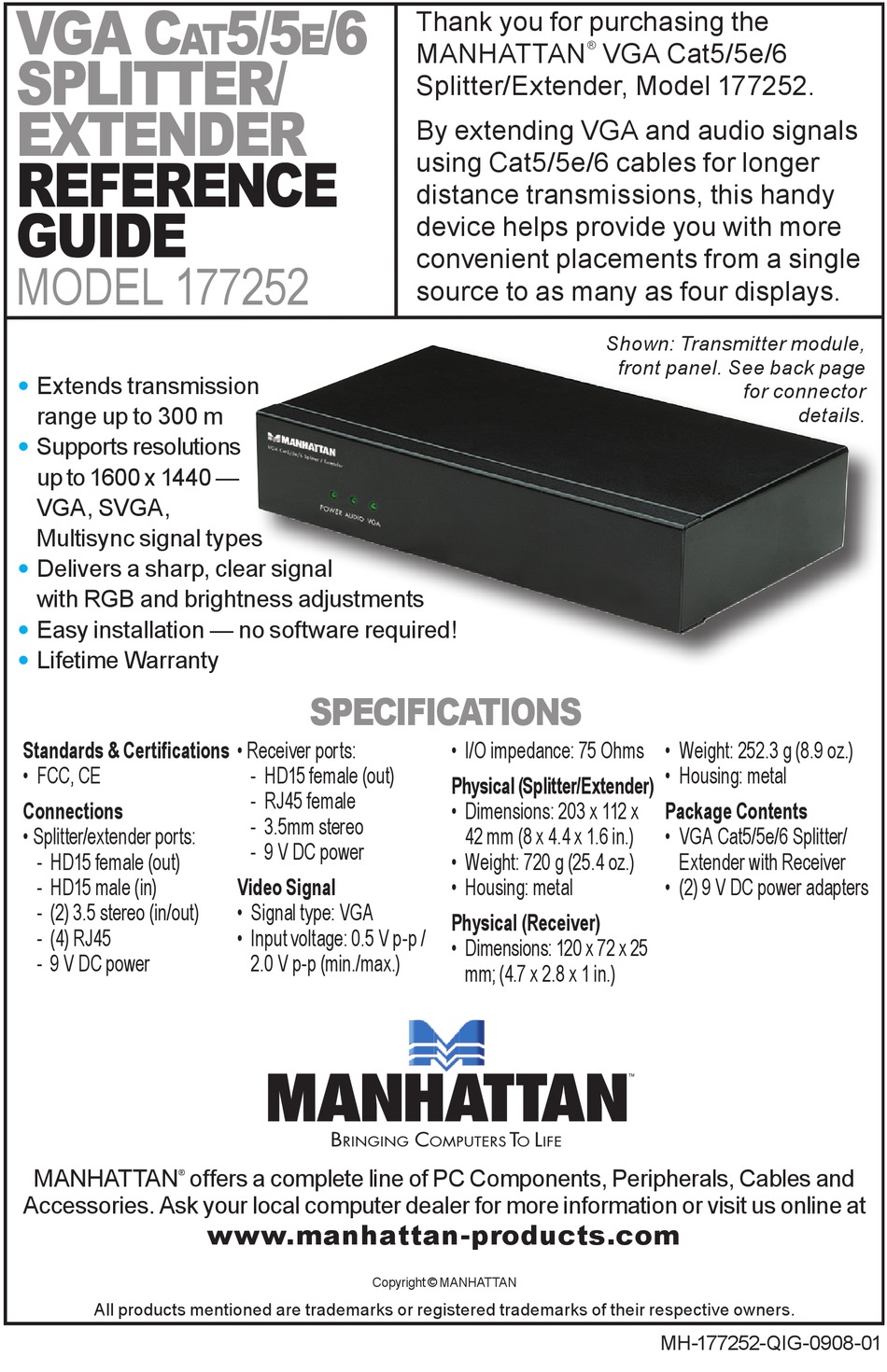

Manhattan 177252 Reference Manual

VGA C
at
splitter/
extender
reFerenCe
GUide
Model 177252
•
Extends transmission
range up to 300 m
•
Supports resolutions
up to 1600 x 1440 —
VGA, SVGA,
Multisync signal types
•
Delivers a sharp, clear signal
with RGB and brightness adjustments
•
Easy installation — no software required!
•
Lifetime Warranty
Standards & Certifications
• FCC, CE

Connections

• Splitter/extender ports:
- HD15 female (out)
- HD15 male (in)
- (2) 3.5 stereo (in/out)
- (4) RJ45
- 9 V DC power
MANHATTAN
®
Accessories. Ask your local computer dealer for more information or visit us online at
All products mentioned are trademarks or registered trademarks of their respective owners.
5/5 /6
e

speCiFiCAtions

• Receiver ports:
- HD15 female (out)
- RJ45 female
- 3.5mm stereo
- 9 V DC power

Video Signal

• Signal type: VGA
• Input voltage: 0.5 V p-p /
2.0 V p-p (min./max.)
offers a complete line of PC Components, Peripherals, Cables and
www.manhattan-products.com
Thank you for purchasing the
MANHATTAN
Splitter/Extender, Model 177252.
By extending VGA and audio signals
using Cat5/5e/6 cables for longer
distance transmissions, this handy
device helps provide you with more
convenient placements from a single
source to as many as four displays.
• I/O impedance: 75 Ohms

Physical (Splitter/Extender)

• Dimensions: 203 x 112 x
42 mm (8 x 4.4 x 1.6 in.)
• Weight: 720 g (25.4 oz.)
• Housing: metal

Physical (Receiver)

• Dimensions: 120 x 72 x 25
mm; (4.7 x 2.8 x 1 in.)
Copyright © MANHATTAN
VGA Cat5/5e/6
®

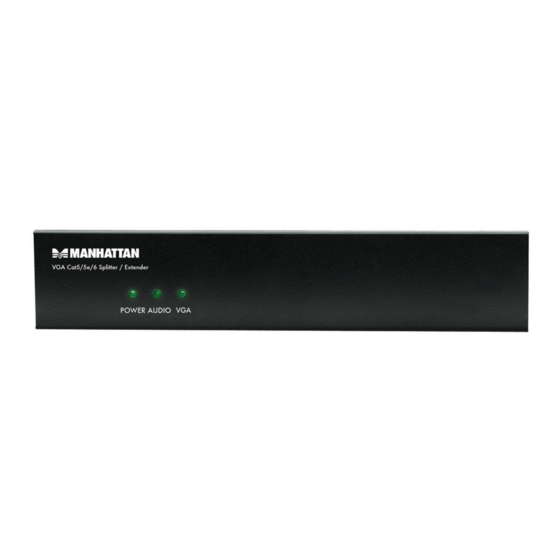

Shown: Transmitter module,
front panel. See back page
for connector
• Weight: 252.3 g (8.9 oz.)
• Housing: metal

Package Contents

• VGA Cat5/5e/6 Splitter/
Extender with Receiver
• (2) 9 V DC power adapters
MH-177252-QIG-0908-01
details.
