Manhattan 177344 Reference Manual

VGA C
at
ExtEndEr
rEFErEnCE
GUIdE
Model 177344

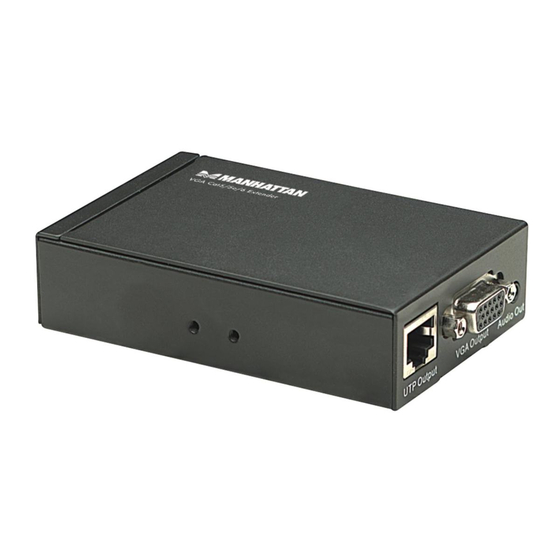

Shown: Transmitter module.
See back page for
connection details.
•
Extends transmission
range up to 300 m
•
Easy installation: No software
required!
•
Supports resolutions up to 1920 x 1200
•
Delivers a sharp, clear signal with Gain and Peak adjustments
•
Lifetime Warranty
Standards/Certifications
• FCC, CE
General
• Transmission range:
up to 300 m
• Resolution supported:
up to 1920 x 1200;
VGA, SVGA,
Multisync signal types
• Manual adjustments:
Gain, Peak
• Power adapter: (2)
5 V DC / 2 A
MANHATTAN
®
Accessories. Ask your local computer dealer for more information or visit us online at
All products mentioned are trademarks or registered trademarks of their respective owners.
5/5 /6
e

spECIFICAtIons

Connections
• Transmitter ports:
- HD15 female (out)
- HD15 female (in)
- (2) 3.5 mm stereo
(in/out)
- RJ45 (output)
- 5 V DC power
• Receiver ports:
- HD15 female (out)
- RJ45 (in)
- 3.5 mm stereo
(audio out)
offers a complete line of PC Components, Peripherals, Cables and
www.manhattan-products.com
Thank you for purchasing the MANHATTAN
VGA Cat5/5e/6 Extender, Model 177344.
By extending VGA and audio signals
using Cat5/5e/6 cables for longer-
distance transmissions, this handy
device helps provide you with more
convenient placements from a single
source to another display.
- 5 V DC power
Video Signal
• Signal type: VGA
• Input voltage: .5 V p-p /
2.0 V p-p (min./max.)
• I/O impedance: 75
Ohms
Resolution & Range
• 640 x 480 300 m
• 800 x 600 300 m
• 102 x 768 200 m
• 1280 x 720 200 m
Copyright © MANHATTAN
• 1280 x 768 200 m
• 1280 x 960 200 m
• 1280 x 1024 200 m
• 1600 x 900 100 m
• 1600 x 1200 100 m
• 1920 x 1080 100 m
• 1920 x 1200 10 m
Physical (Splitter/
Extender)
• 100 x 65 x 25 mm
(3.9 x 2.5 x 1 in.);
312 g (11 oz.)
• Housing: metal
MH-177344-QIG-0908-02
®
Physical (Receiver)
• 81.5 x 43 x 23 mm
(3.2 x 1.7 x 0.9 in.);
108 g (3.8 oz.)
• Housing: metal
Package Contents
• VGA Cat5/5e/6
Extender (receiver &
transmitter modules)
• (2) 5 V DC power
adapters
• Reference guide
