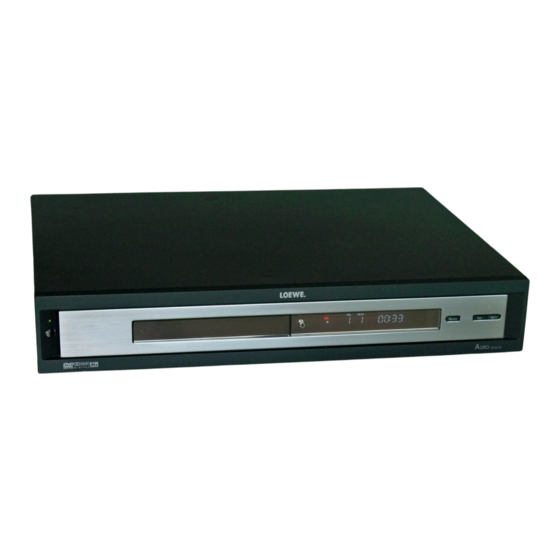

- Page 1 Operating Manual Equipment Auro 2216 PS...
-
Page 2: Table Of Contents
Disposal Cleaning For your safety Advantages of connection to a Loewe TV set First installation Connection Wiring Loewe Flat TV – Auro – Individual Sound/Tremo Wiring Auro – audio system Remote control Setting the language Activate Digital Link Switch over PAL/NTSC... -
Page 3: Remote Control Assist - Dvd-Operation
Remote control Assist – DVD-operation (page 38) ... TV Sound off/on LED indicator for current operating mode Switch over to operate TV set Switch over to operate Recorder (page 18) ...Sleep timer DISK: Set TV picture format; (page 37) ...RADIO: Mono/Stereo (page 3) ...DISC: Repeat; RADIO: display RDS name/frequency of station (page 18) ...DISC: User interface of loaded DVD on (page 16) ...Show/hide menu;... -
Page 4: Auro 2216 Ps Front Panel
Auro 2216 PS Front Panel Operating indicator D I G I T A L S U R R O U N D Power button Switch off in standby Headphones jack Disc tray THEATER DIGITAL PRO LOGIC 1234567890 3 STEREO Disc tray... -
Page 5: Auro 2216 Ps Rear Panel & Display
Auro 2216 PS Rear Panel & Display Mains cable Analog audio input (AUX 1) Multi-channel audio out- Analog au- puts; to speaker system dio output (Tremo) or active speakers Caution: Do not touch the inner pins of connection sockets on the rear panel. Electrostatic discharge may cause permanent damage to the unit. -
Page 6: Welcome
You can control four units with the remote control, a Loewe TV set, a Loewe video recorder or a Loewe DVD recorder in addition to this DVD preceiver. -
Page 7: Cleaning
Advantages of connection to a Loewe TV set If you connect your Auro to a Loewe TV, you are able to enjoy the Loewe system communication ”L-Link”. With L-Link, Auro and your TV join forces in an intel- ligent network and form a high-performance home cinema system. -
Page 8: First Installation
First installation Connection line cord Attention: : All the devices involved must be disconnected from the mains when you are connecting the cables. Connecting antennae Connect the antennae for VHF (FM) and medium wave (AM) as shown in the drawing: • Connect the enclosed AM antenna to the appropriate terminals –... -
Page 9: Wiring Loewe Flat Tv - Auro - Individual Sound/Tremo
PREOUT Connect the cables as shown in the graphic: • Connect the Auro to socket AV of the Loewe Flat TV. If your Loewe TV set has three AV sockets, use socket AV3. • You must use a Euro-AV cable in which all contacts are connected with each other (1-fold as in the case with the enclosed cable). -
Page 10: Wiring Auro - Audio System
AUX OUT AUX 2 DIGITAL DIGITAL 12V / 15mA L-LINK Aktive 5.1 loudspeaker system e.g. Loewe Individual Sound/Tremo Satellite Speaker OUT PRE IN Satellite loudspeakers Connect the cables as shown in the graphic: • Use a six-wire cinch cable to connect the PRE OUT outputs of the Auro to the corresponding inputs of the active 5.1 loudspeaker system. -
Page 11: Switching On For The First Time
First installation Switching on for the first time Power mains Connect the TV set to a 220-240V/50- 60 hertz power outlet. Note: First, read section ”About operation” on pg. 15/16 to find out about the basic operation of Auro. Press the button on the front of the device set the remote control to DVD-Preceiver mode and switch on DVD/CD press the button on the remote control briefly and switch on... -
Page 12: Activate Digital Link
The DVD menu is closed when you press the END button. Activate Digital Link With Digital Link, Loewe TVs pass on the remote control signals to Auro via the Euro-AV connection. Digital Link is useful when you want to install Auro con- cealed, e.g. -
Page 13: Setting The Loudspeaker System
Back Specify whether you have connected large or small front speak- ers to Auro. The Loewe Individual Sound S1 satellite speakers must be logged in as “small”. The Loewe Individual Sound L1 standing speakers must be logged in as “large”. - Page 14 First installation Entering the distance between speakers Open the “Loudspeaker System” menu as described on page Go to the item ”Listener/speaker Distances”. Press 4 The ”Listener/Speaker distances” window opens. DVD menu Listener/speaker Distances Distance A 2.1m Distance B1 Distance B2 Distance C1 Distance C2 Set the right distance value A (distance listener from center loudspeaker).
-
Page 15: About Operation
When you select the operating mode with the buttons , the appropriate device is switched on unless it already was. You can operate the various Loewe units with the RC4A remote control (see page 41). Operation of the Auro with a DVD inserted is described in this chapter. Operation is performed with the remote control. -
Page 16: Context Help
About operation Change between the items in the menu bar with 56. A white background inside an element means: this element is currently active (in the figure: ”Select chapter”). All the operating steps you now perform relate to this element. Functions which are currently unavailable are shown in gray in the menu bar (above, for example, ”Select sound format”). -
Page 17: Status Display
About operation You can perform the following operating steps here as you can see in the bottom part of the window: Change to the ”Settings” function with 5 to show the context help for ”Settings”. Change to the ”Sound” function with 6 to show the context help for ”Sound”. -
Page 18: User Interface Of The Inserted Dvd
About operation User interface of the inserted DVD Two userinterfaces are available for operating DVDs: the Auro interface and the DVD interface itself. Both interfaces are totally independent of each other. The DVD’s own interface is visible after inserting the DVD and running the intro with which most DVDs are equipped. -
Page 19: Dvd
DVDs (Digital Versatile Disc) are recognizable from this logo. Inserting a disc Press the button on the device. The disc drawer is opened, OPEN appears in the Auro display. Place the disc in the drawer with the labeled side up. Press the button on the device. The drawer is closed. -
Page 20: Select Chapter
Select chapter Chapter forward or back Select chapter. Message: Chapter 3 (of Title 2) If you have pressed 5 or “P+“: Playback starts at the beginning of the next chapter. If you have pressed 6 or “P-“: Playback starts at the beginning of the current chapter. If you press twice in quick succession, you go to the beginning of the previous chapter. -
Page 21: Interrupting Playback
Search Note: The sound is off while the search is running. Press the button long, Press the button 4. Playback runs forward at double speed, the following message appears: Search x2 Search in reverse direction: Press the button long, Press the button 3. Playback runs in reverse at double speed, the following mes- sage appears: Search x2... -
Page 22: Extended Functions
Extended functions Selecting sound format With these functions, you can select another sound format on the DVD (if several sound formats are available on the DVD). Press the button. Menu bar is displayed. Go to the ”Select sound format” element with 56. Select the desired sound format with 34. Press the button OK . - Page 23 You can change the camera position while this element is displayed. If you want to change the camera position: Select alternative camera position. Press the button OK. Playback continues from the selected camera position. Change the camera position later: Press the button red. Select alternative camera position by repeatedly pressing the red button.
-
Page 24: Using Markers
Select the desired zoom factor (”x4” or ”x16”). Press the button OK. The central section of the whole image is magnified by the set value. Menu bar is hidden, ”Zoom” display appears: To move the magnified image section over the whole image: Press the direction arrows. -
Page 25: Slow Motion
Slow motion Note: The sound is off while slow motion is running. Press the button. DVD picture freezes, the Pause menu appears in the fore- ground, the ”Pause” option is selected: Single Frame Pause next Slow Motion Go to the ”Slow Motion” function with 6. The ”Slow Motion”... -
Page 26: Special Features Of Dvd Audio 6
Setting Digital Sound Output Note: This section only concerns you if you use the digital audio output of Auro. Change from the ”Settings” window to the ”Digital Sound Output” window in the DVD menu: DVD menu Digital Sound Output Depending on the disc format you can select which sound is provided by the digital sound output. - Page 27 7 -...
-
Page 28: Audio-Cd
Audio-CD Status display When you insert an audio CD and there is an L-link to the TV set, the TV picture is switched off automatically. To show the status display, press the button takes a few seconds for the TV picture to appear). Note: If there is no L-link to the TV set you have to select the Euro-AV socket of the Auro on the TV set to display the status display on the TV set. - Page 29 Audio-CD CD Random When you switch this function on, the titles of your VCD/SVCD are played in random order. Press the button. Menu bar is displayed. Go to the element ”CD Random”: Select the ”on” option. Press the button OK. From now on, the titles on your disc are played in random order.
- Page 30 Audio-CD Title Programming With the ”Title Programming” function, you can play the titles on your disk in a freely selectable order. Press the button. The ”Title Programming/Custom File” window is displayed. Select the item ”Title”: Title Programming / Custom File Play Program Title 1 2 3 4 5 6 7 List...
- Page 31 Audio-CD Save program (Custom File) A program you have compiled with ”Title Programming” can be saved in a spe- cial memory in the Auro, Custom File, and played again and again – even when you have inserted other discs in the meantime. The CD then appears as if it only contained the program saved in the Custom File.
-
Page 32: Mp3 And Jpeg
MP3 and JPEG Status display When you insert an MP3 CD and there is an L-link to the TV set, the TV picture is switched off automatically. To show the status display, press the button takes a few seconds for the TV picture to appear). Note: If there is no L-link to the TV set you have to select the Euro-AV socket of the Auro on the TV set to display the status display on the TV set. - Page 33 MP3 and JPEG Folder/Title Table You can show the Folder/Title Table with the OK button. Operation of MP3 and JPEG data is identical. Folder/Title Table Lee Perry: Dub Syndicate Revolution Dub Folder Level Select and listen with OK • In the graphic, we assume that the inserted medium only contains MP3 data; the data are stored in several folder levels.
-
Page 34: Child Lock
Child Lock With the child lock you can prevent your children from playing unsuitable DVDs. A child lock is not available for other kinds of media (Audio-CD, MPEG, JPEG). With appropriately equipped DVDs, it is even possible to have certain chapters (scenes) replaced by alternative scenes which are suitable for children. -
Page 35: Using The Child Lock
Child Lock Using the child lock The ”Child Lock” window has the following structure on DVDs: DVD menu Child Lock Lock level Change PIN Delete PIN Location of Set Lock disc Lock level Go to the ”Lock level” item in the ”Child Lock” window. The selection bar opens, the ”off”... -
Page 36: Tuner
Tuner Initial installation FM The sub-device DVD/CD is active when you switch on Auro for the first time. You have to change to the radio first: Press the button long. The ”Tuner” is active on the Auro, the FM wavelength is switched on. In the Auro display, 1ST INST and WAIT. - Page 37 Tuner Individual resorting You can change the layout of the stations/program places at any time. You can place your favorite station at program place 1, for example. Please note that the station that was previously at program place 1 will be lost. Select the station which is also to be stored at the new pro- gram place (program place is copied).
-
Page 38: Audio Functions
Tuner Programming the station manually Set the desired frequency with the functions ”Manual station search” and ”Fine tuning” if necessary. Press the button on the device short. Store The Auro display offers the possibility of storing this frequency at the next free program place (e.g. number 30 flashes); if all program places are occupied, the first program place is offered (digit 1 flashes). -
Page 39: Night Mode
Audio functions with the DVD menu: Press the button. The DVD menu is displayed. Go to the item ”Sound”. Open the ”Sound” window. Menu DVD Sound Treble Bass Night mode Info Back Go to the item ”Treble” or ”Bass”. Change the current setting as you wish; you can follow the procedure on the bar and the number in front of it. -
Page 40: Sound Mode
The above displays appear in clear text in the message line (see page 5) ad- ditionally for two seconds. Setting the remote control The different Loewe sets can be set as follows on the Assist remote control: Device Loewe TV (Chassis L2650 ≥ V4.4) -
Page 41: Remote Control Assist - Tv-Operation
Remote control Assist – TV-operation Sound off/on LED indicator for current operating mode Switch over to operate TV set Switch over to operate Recorder Call timer list Set picture format Electronic Programme Guide (EPG) on/off Teletext on/off Show/hide menu V–/V+ Volume down/up Station list on;... -
Page 42: What To Do, If
Disconnect the TV and Auro from the mains and switch back on. Connect the “AUDIO OUT L/R” sockets of the Loewe TV device to the SCART socket “TO TV” of Auro us- ing an adapter cable stereo cinch -> SCART (available in specialised trade). -
Page 43: Technical Data
• Manufactured under license from Dolby Laboratories. Dolby, ProLogic and the • double-D symbol are trademarks of Dolby Laboratories. • “DTS“ and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc. CH/08/06/6 © by Loewe Opta 008 43 -... -
Page 44: Service
Fax +971 - 4 343 77 48 Email dacdubai@emirates.net.ae THE SOUNDLAB (PTY) LTD P.O. Box 3195, Kyalami 1684 Republic of South Africa Tel +7 - 1 14 66 47 00 Fax +7 - 1 14 66 4 85 Email loewe@mad.co.za © by Loewe Opta 90508...
