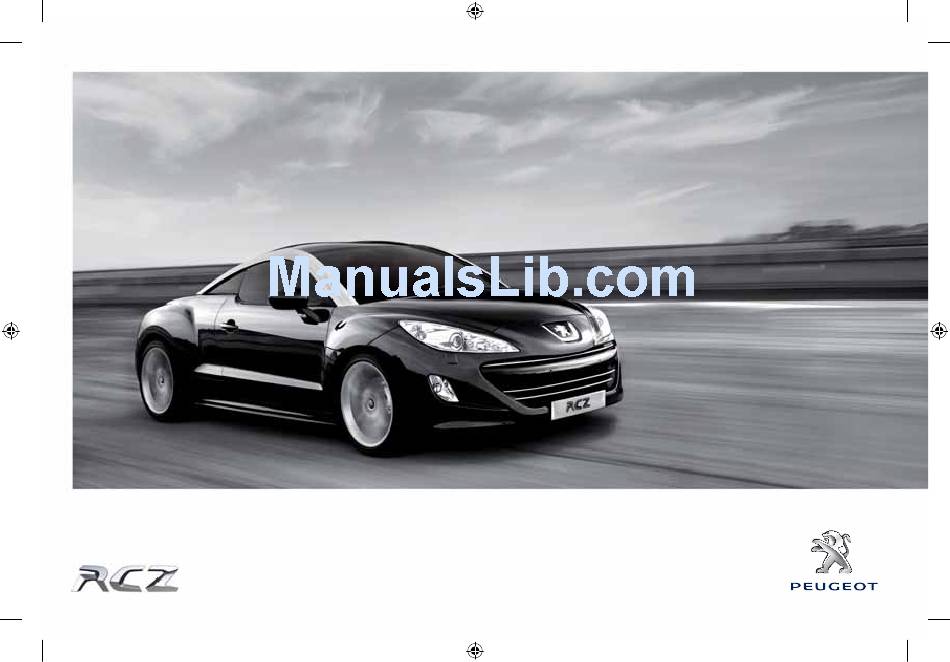

- Page 1 HANDBOOK APp-RCZ_01_2010_anglais_cag_pdf_couv1 couv1 APp-RCZ_01_2010_anglais_cag_pdf_couv1 couv1 03/11/2010 18:25:15 03/11/2010 18:25:15...
- Page 2 EXTERIOR 1 Welcome lighting This additional exterior and interior lighting, controlled remotely, makes your approach to the vehicle easier when the light is poor. 2 Directional lighting This lighting automatically provides additional visibility when cornering. 3 Active spoiler 4 Front and rear parking 5 Temporary tyre repair kit Aluminium arches sensors...
-
Page 3: Remote Control Key
OPEN REMOTE CONTROL KEY Normal locking WELCOME LIGHTING (press once; xed lighting of the direction indicators). When poor light is detected by a sensor, the remote switching on of the dipped beam headlamps and sidelamps makes your approach to the vehicle easier. Deadlocking the vehicle (press twice in succession;... -
Page 4: Fuel Tank
BOOT FUEL TANK Vehicle locked 1. Unlocking and partial opening of the boot lid. 2. Opening of the boot lid. For access to the fuel ller cap, the vehicle must be unlocked. 1. Open the fuel ller ap by pressing at its rear edge. Vehicle unlocked 2. - Page 5 2 Audio and telematics systems This equipment bene ts from the latest technology: MP3 compatible Peugeot Connect Sound, Bluetooth, Peugeot Connect Media with 16/9 retractable colour screen, JBL audio system, auxiliary sockets.
-
Page 6: Instruments And Controls
INSTRUMENTS AND CONTROLS 1. Cruise control/speed limiter switches. 2. Steering wheel adjustment control. 3. Lighting and direction indicators control stalk. 4. Instrument panel. 5. Driver's airbag. Horn. 6. Gear lever. 7. Parking brake. 8. Bonnet release. 9. Fusebox. 10. Manual headlamp height adjustment. 11. - Page 7 INSTRUMENTS AND CONTROLS 1. Wipers/screenwash/trip computer control stalk. 2. Steering lock and ignition. 3. Audio and telematics system steering wheel control stalk. 4. Door mirror controls. Electric window controls. 5. Central adjustable air vents. 6. Windscreen demisting vent. 7. Sunshine sensor. 8.
-
Page 8: Centre Consoles
RADIO MEDIA TRAFFIC BOOK SETUP PEUGEOT services button. PQRS WXYZ 8. Peugeot Connect Sound and storage compartment or Peugeot Connect Media. AUTO 9. Heating/air conditioning controls. AUTO 10. Front ashtray. 11. 12 V accessories socket. 12. Active spoiler control. 13. Storage compartment or instrument panel navigator associated with the Peugeot Connect Media. -
Page 9: Sitting Comfortably
SITTING COMFORTABLY FRONT SEATS Forwards-backwards Height Seat back angle MANUAL ADJUSTMENTS ELECTRIC ADJUSTMENTS APp-RCZ_01_2010_anglais_cag_pdf_11 11 APp-RCZ_01_2010_anglais_cag_pdf_11 11 03/11/2010 18:26:04 03/11/2010 18:26:04... -
Page 10: Front Seats
SITTING COMFORTABLY FRONT SEATS STEERING WHEEL ADJUSTMENT FRONT ARMREST Other functions available... 1. Unlock the control. 2. Adjust for height and reach. Lumbar adjustment. 3. Lock the control. Heated seats. As a safety precaution, these operations must only be carried out when stationary. -
Page 11: Door Mirrors
SITTING COMFORTABLY DOOR MIRRORS REAR VIEW MIRROR FRONT SEAT BELTS 1. Fitting the belt. Manual day/night model 1. Selection of the "day" position of the mirror. 2. Adjustment of the mirror. Adjustment A. Selection of the mirror to be adjusted. B. -
Page 12: Seeing Clearly
SEEING CLEARLY LIGHTING DIRECTION INDICATORS WINDSCREEN WIPERS 2. Fast wipe. 1. Normal wipe. Intermittent wipe. 0. Park. AUTO Automatic wipe or single wipe. Wash-wipe: pull the stalk towards you. Ring A Raise or lower the lighting stalk passing the point of resistance; the corresponding Lighting off. -
Page 13: Instrument Panel
"OIL OK" for a few seconds. E. Deactivation of the front and rear parking If the levels are not correct, top up the levels sensors. which are low. Access to PEUGEOT services. APp-RCZ_01_2010_anglais_cag_pdf_15 15 APp-RCZ_01_2010_anglais_cag_pdf_15 15 03/11/2010 18:26:25 03/11/2010 18:26:25... -
Page 14: Passenger Safety
PASSENGER SAFETY STARTING PASSENGER'S FRONT AIRBAG SEAT BELTS AND IGNITION SWITCH PASSENGER'S FRONT AIRBAG A. Front and/or rear seat belts not fastened/ 1. Stop position. Selection of the position: unfastened warning lamp. "OFF" (deactivated), with "rear facing" 2. Running position. B. -
Page 15: Rear Seat Belts
AT THE REAR ACCESS TO THE REAR SEATS REAR SEAT BELTS FOLDING DOWN THE REAR BACKREST 1. Release the backrest by pulling the handle from the boot. 1. Releasing the backrest. 2. Tilting the backrest. The control giving access to the rear seats does not release the seat. -
Page 16: Driving Safely
DRIVING SAFELY SPEED LIMITER "LIMIT" CRUISE CONTROL "CRUISE" DISPLAY ON THE INSTRUMENT PANEL km/h CRUISE Pause km/h 1. Limiter mode Selection/Off. 1. Cruise control mode Selection/Off. The cruise control or speed limiter mode appears on the instrument panel when it is 2. - Page 17 APp-RCZ_01_2010_anglais_cag_pdf_19 19 APp-RCZ_01_2010_anglais_cag_pdf_19 19 03/11/2010 18:26:27 03/11/2010 18:26:27...
