Summary of Contents for Digital Juice EVO PRO Fluid Head

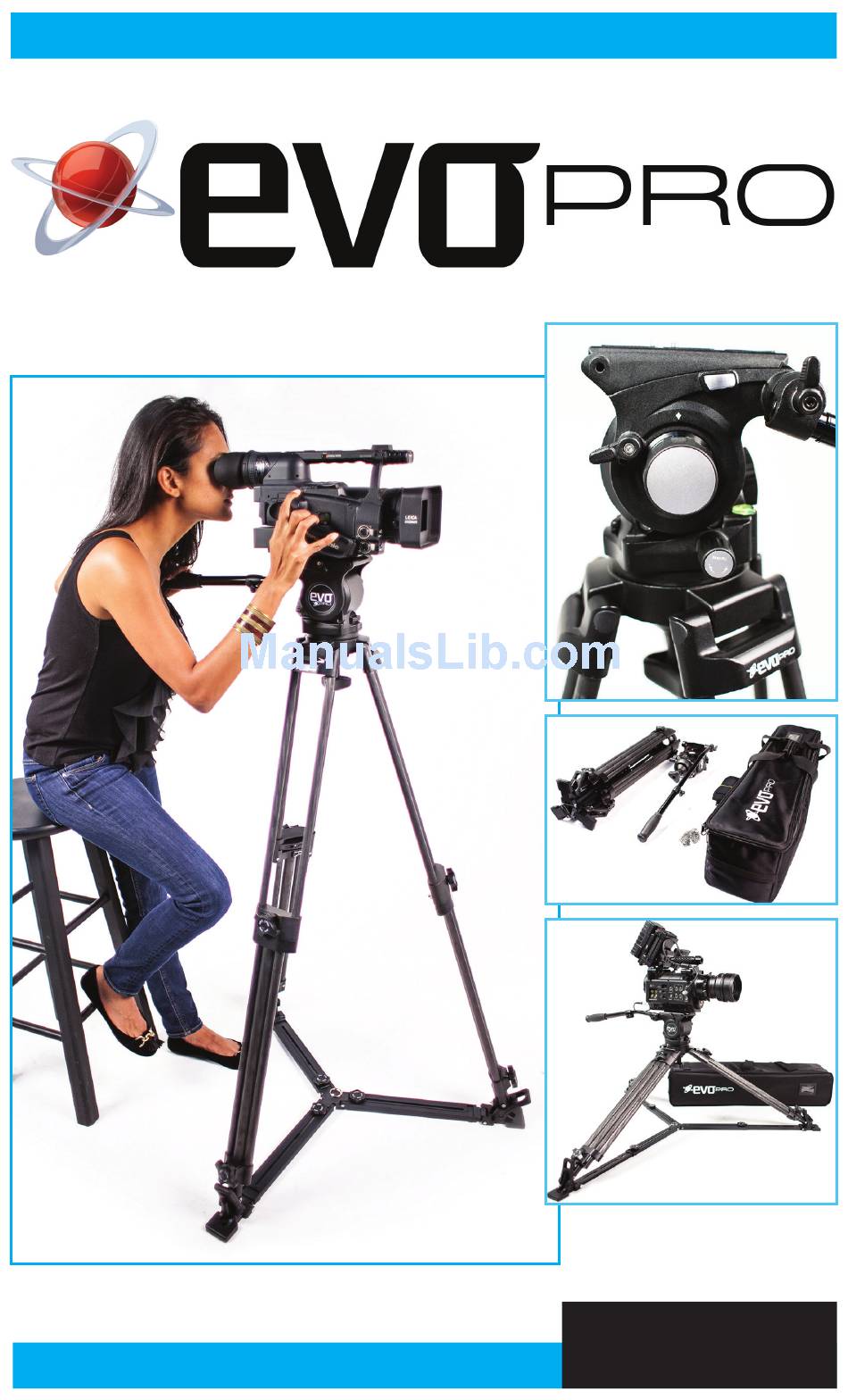

- Page 1 Tripod System With fl uid Head USER’S GUIDE...
- Page 2 ATTENTION To ensure the best performance of your EVO PRO Fluid Head, each time you set it up, dial back the Pan and Tilt Drag knobs to their lowest resistance level and move the fluid head briskly left, right, up and down a few times so that the internal damping fluid is warmed up.
-
Page 3: Table Of Contents
Setting up the tripod for use on smooth even surfaces Setting up the tripod for use on uneven surfaces Attaching the EVO PRO Fluid Head to tripod Attaching your camera to the EVO PRO Fluid Head Adjusting the counterbalance of your camera on the EVO PRO Adjusting Tilt Drag Adjusting Pan Drag Maintenance &... -
Page 4: About The Evo Pro Tripod System With Fluid Head
The included EVO PRO Fluid Head features a 100mm bowl, a large quick-release plate, a continuously variable fluid damping system on both pan and tilt movements, a patented variable counterbalance, and boasts a load capacity of up to 22 pounds, allowing the unit to be used with just about any existing ENG, DV or DSLR camera. -
Page 5: Evo Pro Fluid Head Controls
USER’S GUIDE EVO PRO Fluid Head Controls Balance Knob Tilt Drag Knob Pan Drag Knob Tilt Lever Lock Pan Lever Lock (10) Quick Release Plate (11) QRP Release Button (12) QRP Slide Lever Lock (13) Bubble Level (14) Bubble Level Light Button (15) Bubble Level Light Battery... -
Page 6: Key Features
USER’S GUIDE EVO PRO • Variable counterbalance adjustment to accomodate different weights of equipment (19) Key Features • Variable 360 degree pan (20) and 180 degree tilt damping (21) plus pan and tilt lock levers means consistent drag for fast or slow panning and full +/-90 degrees of smooth tilt movement, plus each axis on the head can be locked at any selected position. -
Page 7: Setup & Use Of The Evo Pro Tripod System
USER’S GUIDE Setup & Use Setting up the tripod for use on smooth even surfaces of the Remove the EVO PRO tripod from its case and make sure the ground spreader (28) with its rubber shoes is attached. EVO PRO Tripod System If spreader is not attached, place each spiked tripod foot into the appropriate socket at the rubber foot end of each arm of the... -
Page 8: Setting Up The Tripod For Use On Uneven Surfaces
Attaching the EVO PRO fluid head to tripod Remove the ergonomic triangular knob from the base of the EVO PRO Fluid Head and place the fluid head into the tripod bowl (35). Secure it to the tripod by loosely tightening the knob. -
Page 9: Attaching Your Camera To The Evo Pro Fluid Head
(38). Attaching your camera to the EVO PRO fluid head Remove the quick-release plate from the EVO PRO by loosening the lever on the right side (39). -
Page 10: Tilt Drag
USER’S GUIDE Setup & Use Place both pan and tilt lock levers in the locked position. To do this, rotate the pan lock lever on the front side of the head to the of the EVO PRO right (towards the right side of the head) to engage the lock (41) Tripod System and rotate the tilt lock lever on the left side of the head upwards... -
Page 11: Adjusting The Counterbalance Of Your Camera On The Evo Pro
USER’S GUIDE Setup & Use Adjusting the counterbalance of your camera on the EVO PRO of the EVO PRO Before using either the tilt or pan drag on the fluid head, you will need to accurately counterbalance your camera in order to Tripod System counteract the effects of gravity and neutralise the effect of the (continued) -
Page 12: Adjusting Pan Drag
Replacing the battery on the illuminated bubble level & Cleaning If the light on the EVO PRO fluid head bubble level dims or stops working, it may mean the battery needs replacing. To replace the battery on the illuminated bubble level: Locate the battery cover next to the red bubble level light button. -
Page 13: Cautions & Warnings
USER’S GUIDE Maintenance During normal operation of the EVO PRO Fluid Head, the only cleaning required is a periodic wipe down with a lint-free cloth. If & Cleaning any dirt accumulates on the unit, it may be removed with a semi- (continued) stiff brush. -
Page 14: Return Policy & Limited Warranty
Warranty Digital Juice, Inc. warrants all Digital Juice products purchased new by origi- nal owner to be free from defects in the material and workmanship under normal use for a period of 12 months from the date of purchase. Warranty is void when misuse or neglect is the cause. - Page 15 The customer’s remedies with respect to defective Digital Juice Product and accessories shall be exclusively limited to the repair or replacement remedy as above provided and in no event shall Digital Juice be liable for loss of profits, revenues, savings, inconvenience, associated costs, expense for...
- Page 16 www.digitaljuice.com...
