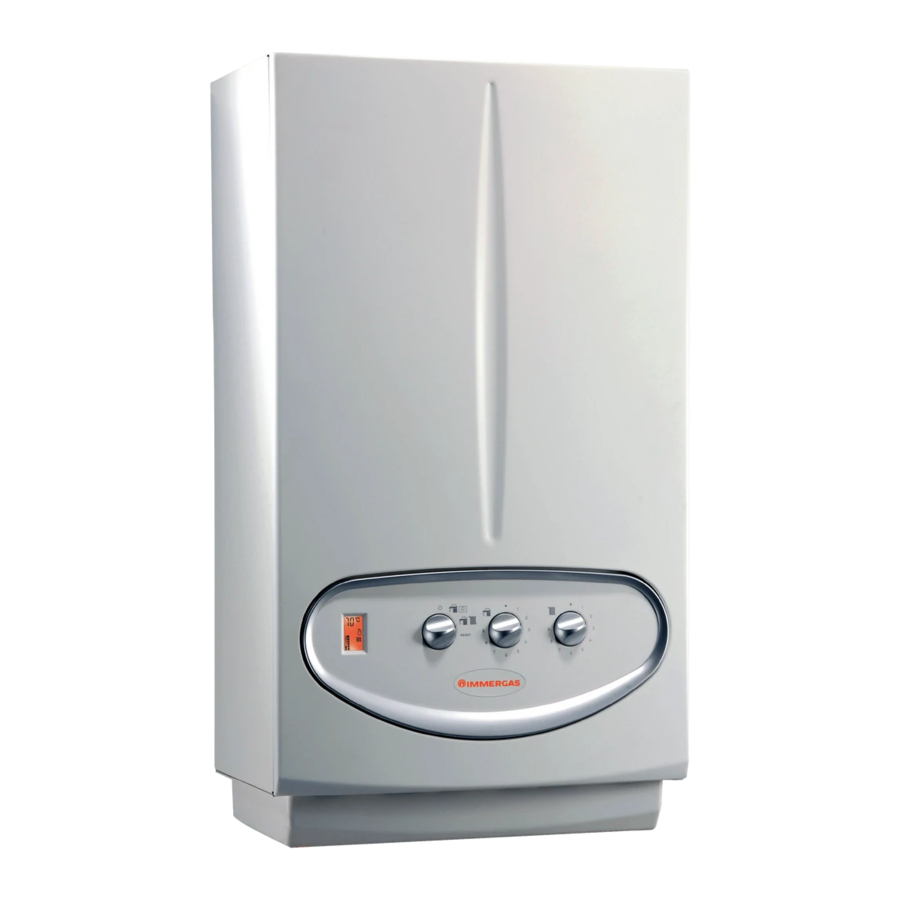

Victrix 24kW X Instructions

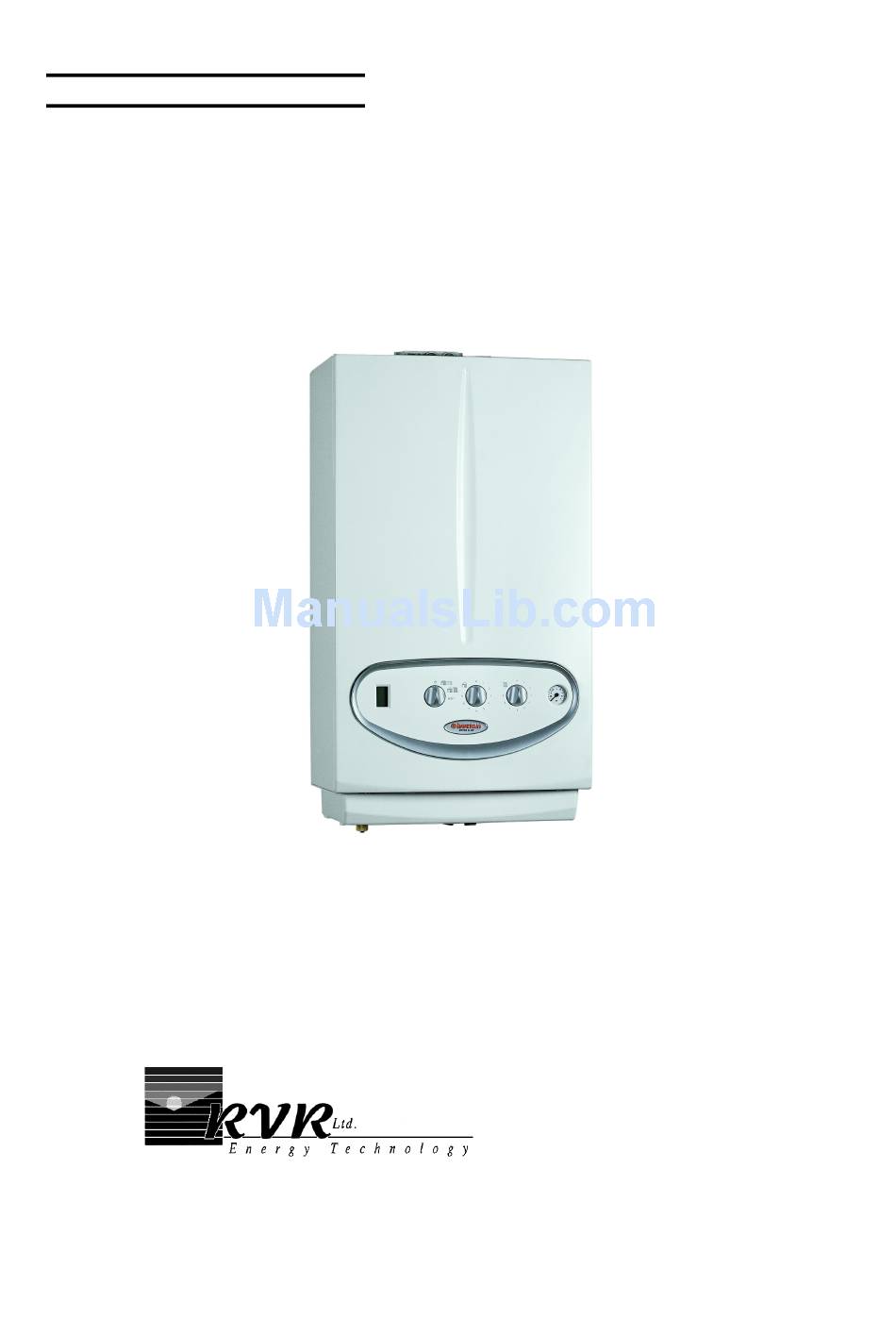

VICTRIX 24kW X
Instruction Booklet
Wall Mounted Condensing boilers with hot water priority
Read these instructions completely before using or installing the Victrix 24kW X gas boilers
LEAVE THESE INSTRUCTIONS WITH THE USER
For Technical assistance, spare parts or service call:
RVR Energy Technology Limited, Kenmare, Co. Kerry Tel: 064 41344, Fax: 064 89520
Doc. Ref.: ALT107/181207
Page
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RVR Energy Technology VICTRIX 24kW X
Summary of Contents for RVR Energy Technology VICTRIX 24kW X
- Page 1 VICTRIX 24kW X Instruction Booklet Wall Mounted Condensing boilers with hot water priority Read these instructions completely before using or installing the Victrix 24kW X gas boilers LEAVE THESE INSTRUCTIONS WITH THE USER For Technical assistance, spare parts or service call: RVR Energy Technology Limited, Kenmare, Co.
-
Page 2: Using The Boiler
Victrix 24kW X Instructions Introduction The Victrix 24kW X boiler is a condensing wall hung, room sealed boiler. This boiler has the highest efficiency possible for a gas boiler, ie 4 stars (****) in conformity with European Directive 92/42 EEC. - Page 3 Victrix 24kW X Instructions Rated heating power kW (kcal/h) 27.0 (23219) Min. heating power kW (kcal/h) 5.0(4328) Rated heat output (useful) kW (kcal/h) 26.0 (23337) Min. heat output (useful) kW (kcal/h) 4.7 (4042) Useful thermal efficiency 80/60 Rated/Min 96.4 / 93.4 Useful thermal efficiency 50/30 Rated/Min 104.9 / 105.0...
- Page 4 Victrix 24kW X Instructions Dimensions – Victrix 24kW X V - Electrical connection G - Gas supply RU - Cylinder return (optional) MU - Cylinder flow (optional) RR - System filling SC - Condensate drain (min internal diameter ø 13mm)
- Page 5 Victrix 24kW X Instructions Main Boiler Components 1. Electrical connection board 10. Burner 19. Electrodes (very low voltage) 2. System drain cock 11. Flue Overheat Stat 20. Delivery sensor 3. Condensation drain air trap 12. Detection Electrode 21. Safety thermostat 4.
-
Page 6: General Installation Information
Victrix 24kW X Instructions General Installation Information Gas Supply The meter and supply pipes must be sized to deliver the gas rate and pressure given on page 3. boiler requires at least a 22 mm (3/4”) gas supply pipe. The complete installation, including the meter, must be tested for gas soundness and purged as described in IS 813:2002. -
Page 7: Flue Systems
Victrix 24kW X Instructions Flue Systems When the boiler is installed on an external wall, the standard horizontal concentric 60/100 flue kit will normally be used to flue the boiler. This is shown in the diagram. It is often necessary to install a longer flue system to cater for site conditions. There are several different flue system sizes available for the Victrix 24kW boiler. - Page 8 Victrix 24kW X Instructions Separated Flue Systems Separated 80/80 flue kit This kit enables separation of the exhaust and air intake pipes as shown in the figure. Combustion products are expelled from pipe (A) (in plastic material resistant to acidic condensates). Air is taken in through pipe (B) (also in plastic material) for combustion.
- Page 9 Victrix 24kW X Instructions Flue calculations for more complex systems Each component of the air inlet/flue system has a resistance factor . These are given in the following tables. The resistance factor varies depending on whether the component in question conveys fresh inlet air or hot combustion gases.
- Page 10 Victrix 24kW X Instructions Example: Flue system consists of 9m of 80mm air intake pipe with 3 x 90 bends and 6m of exhaust pipe with 2 x 90 bends. Component Resistances: Component Resistance Quantity Total In this case the total resistance of the 80mm Intake pipe 0.87...
- Page 11 IMPORTANT— Failure to install flue systems correctly may lead to serious injury or death. Ensure that: Only flues specifically designed for condensing boilers and provided by RVR Energy Technology • Limited are used.
-
Page 12: Boiler Location
Victrix 24kW X Instructions Boiler Location The boiler is not suitable for external installation. The boiler must be installed on a flat vertical wall which is capable of supporting the weight of the boiler. The boiler can be fitted to or adjacent to a wall comprising of a combustible material without the need for a special thermal insulation barrier. -
Page 13: Central Heating System
Victrix 24kW X Instructions Central Heating System The boiler is designed for use in a sealed central heating system. The system should be designed to operate with flow temperatures of up to 80°C. When designing the system, the pump head, expansion vessel size, mean radiator temperature, etc. -
Page 14: Filling The Central Heating System
Victrix 24kW X Instructions The boiler has two sets of flow/return connections. One set is used for connection to the central system while the other set is connected to the coil of the domestic hot water heating tank. The boiler incorporates a diverter valve which diverts all flow to heat the DHW tank when the temperature of the hot water tank is below the temperature set on the boiler. - Page 15 Victrix 24kW X Instructions Operation and Maintenance Instructions An annual maintenance of the boiler and heating system is recommended. This ensures that the optimal safety, performance and operation characteristics of the boiler remain unchanged over time. Warnings Never expose the wall-mounted boiler to direct vapours from a cooking surface. Use of the boiler by un- skilled persons or children is strictly prohibited.
- Page 16 Victrix 24kW X Instructions Operation and Maintenance Instructions Key to control panel display symbols Description Symbol Figures to indicate temperature, any error codes or optional external temperature sensor correlation factor Degrees symbol External sensor connection symbol (Optional) Symbol of connection to Remote Fiend Control device (Optional)
-
Page 17: Annual Maintenance Procedures
Victrix 24kW X Instructions Annual maintenance procedures The following checks and maintenance should be performed at least once a year. - Clean the flue side of the heat exchanger. - Clean the main burner. - Make a visual inspection of the flue extraction hood for wear or corrosion. -
Page 18: Variable Heat Output
Victrix 24kW X Instructions Variable Heat Output: Victrix 24kW X Page 18... - Page 19 Victrix 24kW X Instructions Victrix 24kW X Wiring Diagram: Page 19...
