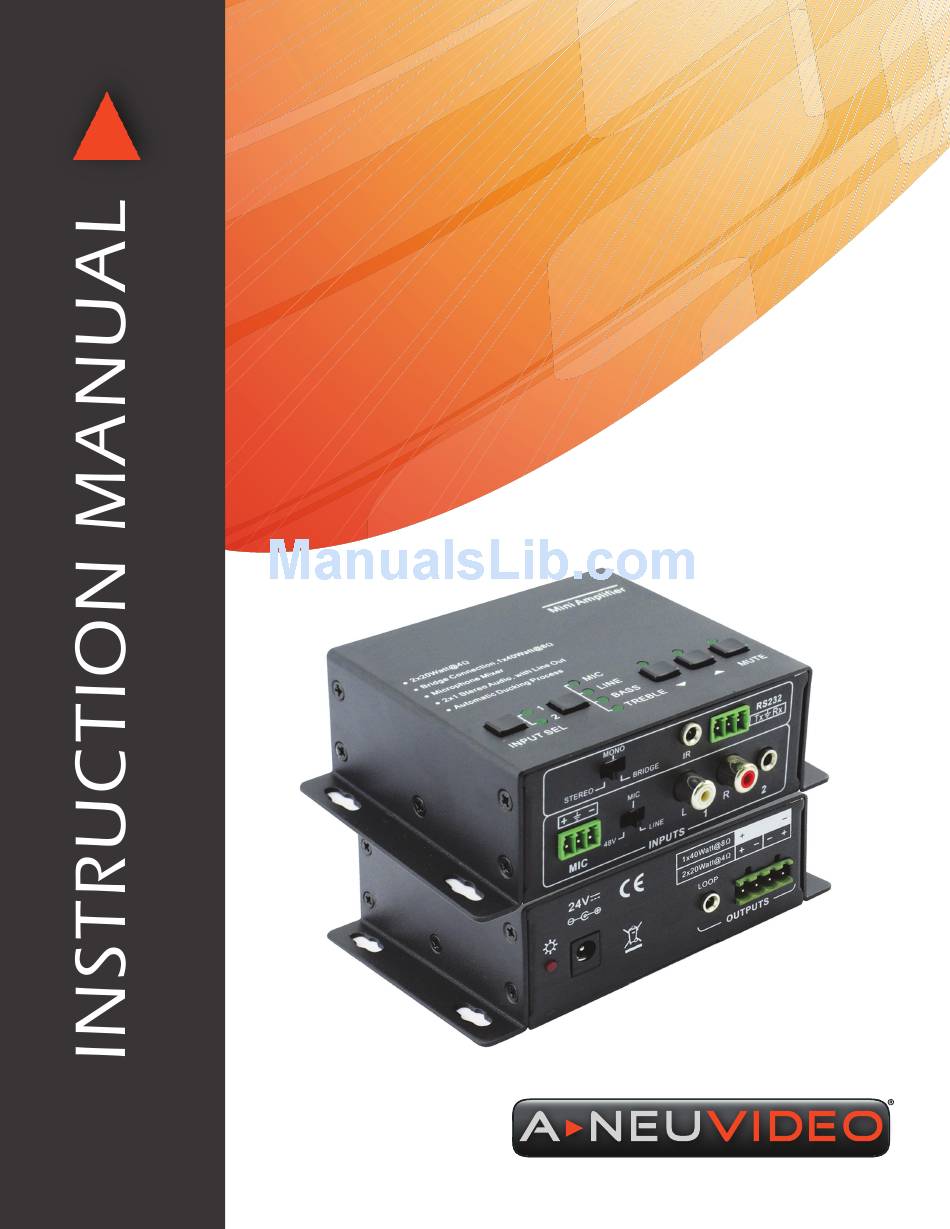

- Page 1 ANI-PA Mini Digital Amplifier with EQ/Mixer A-NeuVideo.com Frisco, Texas 75034 (317) 456-2461 V3.0 AUDIO / VIDEO MANUFACTURER...
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
INTRODUCTION sufficient space for air to circulate around the unit. ANI-PA is a compact-size digital amplifier (Class-D) with (3) inputs (2 line level and 1 MIC). It is integrated with many useful functions, including volume control, bridge connection to additional ANI-PA’s, DISCLAIMERS dual-mono, EQ control, microphone mixer, etc. -
Page 4: Features
• Noise gate function. It keeps detecting the audio and MIC input, will mute the output after 10 seconds when there is no input. • Ultra low inrush current, no need for power sequencing. This allows multiple ANI-PA to be powered on simultaneously without overloading power circuits. -
Page 5: Audio Connection
Connecting only two pins. Dual-Mono Output: The ANI-PA also has the function of double-mono output. It can sum up the left and right channel, to be mono audio output. In this way, both of the outputs are showing the same mono audio. -
Page 6: Microphone Input
NEUVIDEO REAR PANEL Microphone input The microphone input of ANI-PA has (3) modes, and different modes use different connections, as the picture below: Input modes switch. 1. 48V Phantom Power Input: When the switch is set to “48V”, the MIC input will provide a 48V phantom power. This is usually used for power supply for condenser microphone, Connection is: “+”... -
Page 7: Buttons Control
NEUVIDEO Buttons Control The buttons provides control of volume/EQ and switching. Audio switching There are (2) switchable stereo audio inputs, (1) 2x RCA input, and one 3.5mm jack input, switchable through the buttons as below: Source Selection Volume/EQ controlling The line volume and MIC volume can be controlled by the buttons. The MIC Volume/LINE volume/LINE bass/LINE treble will be selected by the buttons, and control up/down/mute by the function buttons. -
Page 8: Rs-232 Cable Pins Used
NEUVIDEO RS-232 Cable Pins Used 1. Transmission Rate: 9600 bps 2. Data Format: 8 data bits, No parity , 1 start bit, and 1 stop bit 3. Flowing Control: None Also known as 9600,8,n,1... -
Page 9: Rs-232 Communication Protocol
NEUVIDEO RS-232 Communication Protocol Note: 1. The letter inside the bracket [ ] is the variable code, which is changeable. 2. The bracket [ ] is not part of the command. 3. Any dot “.” after the letters is part of the command. Example 1: Switch the Input 2 to the line out. -
Page 10: System Diagram/ Panel Drawing
NEUVIDEO System Diagram / Panel Dra wing System Diagram Panel Dra wing... - Page 12 BY, THROUGH OR UNDER A-NeuVideo, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to A-NeuVideo, Inc. at the return address set forth on the Product’s packing label at your expense.
