OPERATOR'S / PARTS
MANUAL
TENCO SNOWBLOWER
Models
48T
&
54T
No. B1002
04/2008

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 48T and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Tenco 48T

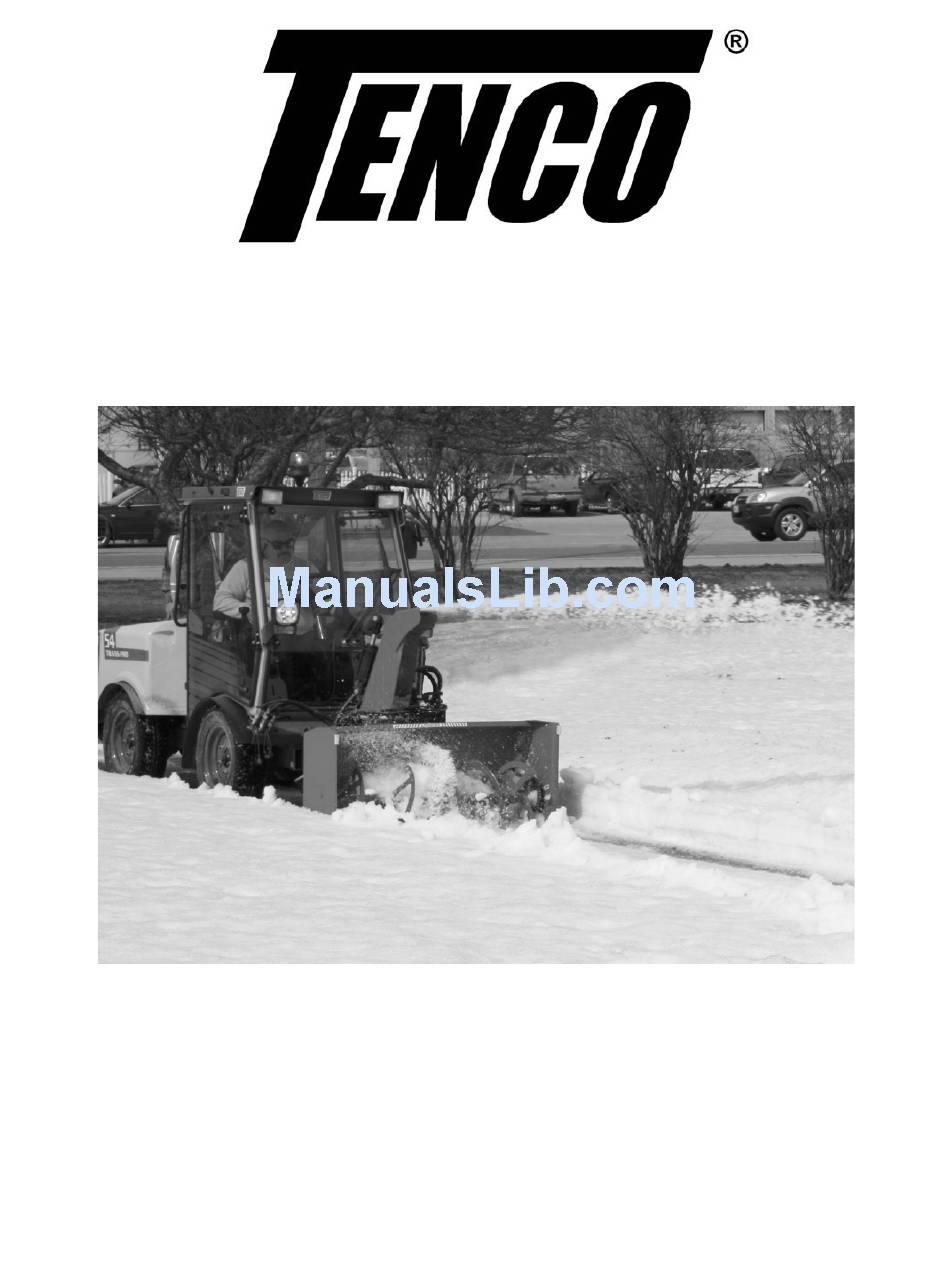

  • Page 1 OPERATOR'S / PARTS MANUAL TENCO SNOWBLOWER Models & No. B1002 04/2008...
  • Page 2 Copyright © Les Machineries Tenco Machinery (CDN) ltée/ltd, 2008 All rights reserved. Printed in Canada.
  • Page 3: Table Of Contents

    Maintenance ........................ 9 Storage ........................10 Specifications ......................11 Parts List ........................12 Snowblower 48T 54T ..................13 Manual Chute Kit MD-4872 ................15 Hydraulic Chute Kit (cylinder) ............... 16 Hydraulic Chute Kit (motor) ................17 Hydraulic circuit: Motor ................. 18 Gear Box 6550 ....................
  • Page 5: Introduction

    In this manual, the right and left sides are identified as Figure 1 shown on Figure 1. If you require additional information on your Snowblower, please contact your TENCO Dealer. MODEL: NOW take a moment to enter the model, serial SERIAL NO.:...
  • Page 6: Safety

    SAFETY GENERAL SAFETY WHEN YOU SEE THIS SYMBOL 8) Prolonged exposure to noise may hamper hearing. Protect yourself by wearing adequate protection devices. 9) Hydraulic fluids under pressure can damage your skin. Do not use your hands to locate a leak. 10) Before the beginning of the snow season, inspect all areas where the Snowblower will be used and remove any object which may cause an accident and/or damage...
  • Page 7: Safety With Maintenance

    SAFETY (cont'd) SAFETY IN TRANSPORT 10) Do not operate in excessive inclined conditions. Be careful when turning in slopes. ) On public roads, use proper safety lights and check 11) Never operate your Snowblower with missing guards or local regulations. without protective devices in place.
  • Page 8: Decals

    DECALS SAFETY DECALS The safety decals ara affixed wherever special safety precautions are indicated. Locate them on the machine and read them carefully. If a decal is damaged, lost or illegible, install a new one. Each decal is shown and identified with a part number.
  • Page 9: Maintenance

    MAINTENANCE 1) Wipe off all grease fittings with a clean cloth 6) Check tension of drive chain every 25 hours of before adding grease in order to avoid injecting operation and adjust if necessary. dirt and sand. 7) Check for tightness of bearing collars every 50 2) Repair or replace damaged grease fittings.
  • Page 10: Storage

    STORAGE 1) Store the Snowblower in a cool, dry place. 5) Thoroughly inspect all parts of the Snowblower. Replace or repair worn or defective parts. 2) Support the Snowblower with wooden blocks. 6) Touch-up or repaint if necessary. 3) Keep all piston rods in the retracted position. This will assure better protection against the elements.
  • Page 11: Specifications

    SNOWBLOWER SPECIFICATIONS MODEL Horse power recommended 15 to 20 GPM at 2500 psi (approx. 15 to 19 HP) Drive motor MLHS100 Working width 48" 54" Cutting height 24½" Impeller diameter 20" Depth of drum 6" Impeller blades Size of impeller shaft 1"...
  • Page 12: Parts List

    SNOWBLOWERS 48T 54T 170-04971 - 12 -...
  • Page 13: Snowblower 48T 54T

    (cont'd) SNOWBLOWERS 48T 54T REF. PART # DESCRIPTION 120-04502 Frame 48" ................... 120-00543 Frame 54" ................... 110-03331 1 ..................Pin category Std. 5/32" ................Hitch pin clip 6550 1" ø x 1-15 splines ..............Gear box 140-03871 Key 1/4" x 1/4" x 1 5/8" lg ..............
  • Page 14 (cont'd) SNOWBLOWERS 48T 54T REF. PART # DESCRIPTION 110-15341 Skid shoe (right side) ................... 110-15342 Skid shoe (left side) ..................130-18393 Chute retaining bracket ................25TR04 Cylinder 2 1/2" dia. x 4" stroke .............. opt. opt. 6004 Pin 1" x 3 1/8" lg (2) ................
  • Page 15: Manual Chute Kit Md-4872

    MANUAL CHUTE KIT MD-4872 170-04301 REF. PART # DESCRIPTION 110-27702 Crank ....................... 110-27712 Base ......................Std. Roll pin 1/4" x 1 3/4" lg................Std. Grease fitting 1/4"-28 straight ..............- 15 -...
  • Page 16: Hydraulic Chute Kit (Cylinder)

    HYDRAULIC CYLINDER CHUTE KIT HRD-4872 170-04311 REF. PART # DESCRIPTION 110-27653 Shearplate ....................110-27583 Base ......................110-27613 Rack gear ....................25TR04 Cylinder 2 1/2" x 4" stroke ................. Std. Bolt 1/4" NC x 1 1/2" lg grade 5 + nylon locknut .......... Std.
  • Page 17: Hydraulic Chute Kit (Motor)

    HYDRAULIC ORBIT CHUTE KIT HMD-4872 170-04321T REF. PART # DESCRIPTION 110-32171 Sprocket ....................300-38280 Bolt 7/16" NC x 1 1/4" lg + flat washer & nylon locknut ....... 160-19701 Spacer ..................... 110-32531 Base ......................300-36250 Bolt 3/8" NC x 1" + lock washer ..............130-53751 Orbit motor support ...................
  • Page 18: Hydraulic Circuit: Motor

    HYDRAULIC CIRCUIT 170-03031R2 HOSE NOT HOSE NOT INCLUDED INCLUDED REF. PART # DESCRIPTION MLHS-100 3159-12 Plug ....................... 9457-12-12 «T» fitting ....................3109-12-08 Fitting (reducer) ..................190-05241 Hose 3/8" R1 x 20" lg + 2 fittings 6U108 ..........3209-08-08 Fitting ....................9405-08-08 Fitting 90 deg.
  • Page 19: Gear Box 6550

    GEAR BOX # 6550 REF. PART # DESCRIPTION 6547 Gear Z24 ....................6548 Outside circlip ................... 6549 Parallel key 8 x 7 x 25 ................6562 Shim ......................6205-2RS Bearing 6205 .................... 6552 Oil seal ..................... 7 6205-2RSx1" Bearing ..................... 6554 Shim ......................
  • Page 20: Cylinder 25Tr04

    CYLINDER 25TR04 14 1/4" REF. PART # DESCRIPTION 1 See #RK25TR O-ring 1/8" x 2¼" x 2½" ................2 See #RK25TR Back-up 2½" o.d. x 3/16 ø ................. 3 See #RK25TR O-ring 3/16" x 2 1/8" x 2½" ............... 4 See #RK25TR O-ring 1/16"...
  • Page 21: Hydraulic Motor Mlh125

    HYDRAULIC MOTOR # MLH-125 CUSHION VALVE H110 MOTOR REF. PART # DESCRIPTION 8368 Set of seals ....................8369 Key for "Orbit" motor ................. - 21 -...
  • Page 22: Hydraulic Motor Mlhs100

    HYDRAULIC MOTOR MLHS100 REF. PART # DESCRIPTION 8371 Repair kit ....................- 22 -...
  • Page 23: Torque Chart

    TORQUE CHART TORQUE SPECIFICATION TABLE Thread UNC and UNF Grade 2 Grade 5 Grade 8* Bolt size Torque Torque Torque Pound feet Newton meters Pound feet Newton meters Pound feet Newton meters Inches min. max. min. max. min. max. min. max.
  • Page 24: Warranty

    WARRANTY TENCO warrants this product to the initial purchaser All TENCO spare parts purchased are covered by a for the period of one year from the date of purchase three (3) month warranty. against defects in materials and workmanship. This warranty becomes void and nul if the equipment...
  • Page 28 TENCO NEW ENGLAND INC. 450, North Main Street, Barre, VT 05641 Tel.: (802) 476-3161, Fax: (802) 476-1003 LES MACHINERIES TENCO MACHINERY (CDN) ltée/ltd 1318, Principal, C.P./P.O. Box 60, St-Valérien-de-Milton, Qc, Canada, J0H 2B0 Tel.: (450) 549-2411, Fax: (450) 549-2410 Website: www.tenco.ca...

This manual is also suitable for:

54t
