User Manual

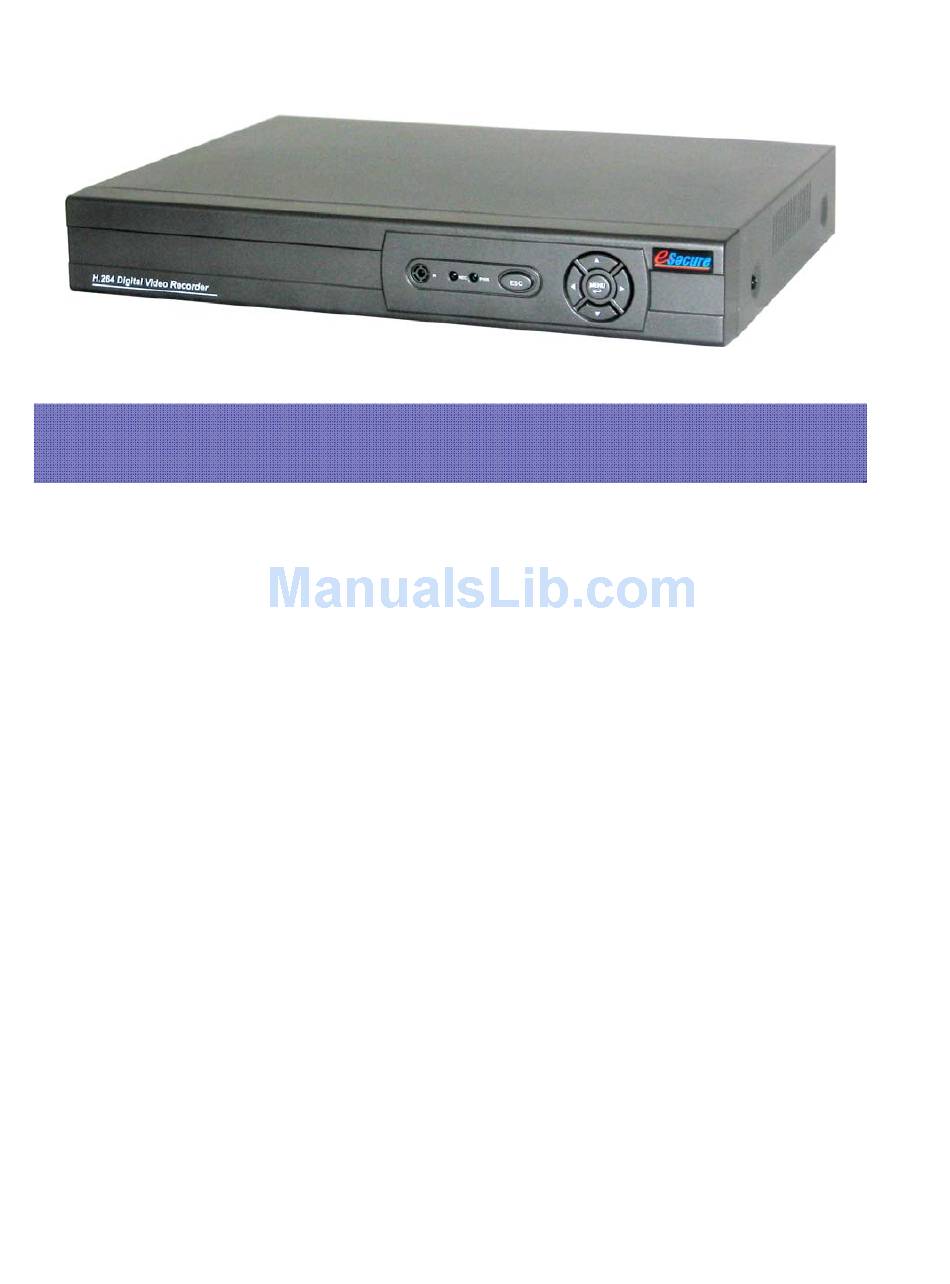

H.264 DVR Quick Start Guide
Before You Begin
1 Introduction ................................................................................................................................................. 2
1.1 Safety Information ............................................................................................................................ 2
1.2 Contents of the box.......................................................................................................................... 2
1.3 Hard disk installation ....................................................................................................................... 2
1.4 Front panel ........................................................................................................................................ 3
1.5 Rear panel ......................................................................................................................................... 4
1.6 Mouse Control ............................................................................................................4
2 Basic operation ........................................................................................................................................... 5
2.1
2.2
2.2.1
2.2.2
2.2.3
2.2.4
2.2.5
2.2.6
3 Appendix .............................................................................................................................14
A. Network Security Setting................................................................................................14
B. Connection Setting........................................................................................................15
............................................................................................................................ 5
.................................................................................................................................. 5
................................................................................................................. 6
...................................................................................... 8
................................................................................................................................ 9
......................................................................................................................... 10
........................................................................................................................... 12
........................................................................................................................ 13
Model: ES00M140, ES00M180
1
Version 1.a
Advertisement
Table of Contents
Related Manuals for eSecure ES00M140
Summary of Contents for eSecure ES00M140
-
Page 1: Table Of Contents
H.264 DVR Quick Start Guide Version 1.a Model: ES00M140, ES00M180 Before You Begin 1 Introduction ..............................2 1.1 Safety Information ..........................2 1.2 Contents of the box.......................... 2 1.3 Hard disk installation ........................2 1.4 Front panel ............................3 1.5 Rear panel ............................4 1.6 Mouse Control ………………………………………………………………………………………….…..4... -
Page 2: Introduction
1. Introduction 1.1 Safety Information • Before setting up the DVR, carefully read all the documentation that came with your package. • To prevent fire and shock hazard, never expose the DVR to rain or moisture. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. -
Page 3: Front Panel
installation. Please connect the power cable to the appropriate socket, and the data cables to their corresponding connectors. 1. Loosen the cover screw 2. Remove the cover 3. Insert the hard disk 4. Tighten the hard disk screw 5.Connect the data wire 6.Connect the power wire 7. -
Page 4: Rear Panel
1.5 Rear panel (1) Video inputs (2) BNC outputs (3) Audio input (4) Audio output (5) USB (6) Network (7) Power supply (8) VGA output (9) Power Switch (ESOOM140 without this switch) 1.6 Mouse Control You can use a mouse to operate the DVR as well. The mouse operates just like a mouse on a Windows PC. -
Page 5: Basic Operation
Getting Started and Main Menu 2. Basic operation 2.1 Login System In preview mode you can right click the mouse to get a desktop shortcut menu. Right click the mouse again, and you will see the following: Input your username and password and select OK. Note: The default password for admin is blank when you receive the new DVR. -
Page 6: System Setup
When the Main Menu appears, click the system icon in the main menu shown below: 2.2.1 System setup Set all the system parameters by clicking each icon .i.e. Language, Date/Time, Account, GUI Display, and Video. After setting all the parameters, click “Exit” on the System Menu. —>... - Page 7 Click [Language] ---> Select your language from the drop down menu. Then click “OK”. 【System time】Set the system date and time on the Date/Time Menu Enter the month, date, and time using the virtual keypad...
-
Page 8: Format Hard Drive
【DST】Click for Daylight Saving Time. Daylight savings time “On” means DST is enabled. You can setup the start time and end time of DST. 2.2.2 Format Hard Drive If you install a new hard drive (HDD), you must format the HDD before using it to record. To format a drive, go back to the main menu, click >... -
Page 9: Record
2.2.3 Record The User needs to install and format a HDD, and set all the recording parameters before recording. There are 2 record modes: Scheduled, and Manual, along with Stop for (No record). Note: Record frame rate, resolution, quality and hard drive space will affect the total recording time of DVR system. -
Page 10: Playback
【REC. Size】It will pack by the time you selected. Click “OK” and “OK” again in each following menu to return to the Main Menu. Note: ES00M140,ES00M180 both do not have the “ Alarm” function. 2.2.4 Playback The DVR supports live recorded playback, and time search. Select Main Menu > Playback > Search —>... - Page 11 —> 【Search】Use the Quick click button and enter the time period you want to search using the virtual keypad, then click the search button Enter the time period you want to search, and click the search button Then, select one file, and click the play button or double click the file Note: Record setup will affect the total channels you can playback at the same time.
-
Page 12: Network
Note : The recording mode set to both “Regular” and “Detect”. If you want to playback “Regular”, you must select file type to be “All”, not general. And you want to playback the “Detect”, you can choice the file type to be “MD”. 2.2.5 Network To connect the DVR to the internet, certain settings must be input to the DVR. -
Page 13: Web View
【Media Port】Transfers video data between client and device, default is 34567 【Web Port】Sets up the port of IE browser via HTTP，default is 80 【IP Address】Set up the IP address 【Subnet Mask】Set up the Subnet mask 【Gateway】Set up the default gateway 【DNS】Set up the domain name sever 【DDNS】Click the button . -
Page 14: Appendix
After you login, you will see the following screen. Click the Ok button If you want to exit at this point, please select the Logout button [Main Stream] This choice will provide the user with the best image to view but will affect the frame rate the user can receive. -
Page 15: Connection Setting
(3) Click “Customization level” to enter into the security Setting Set the ActiveX control and pluggable unit. Select the following options √ ActiveX control auto-prompting √ Run the script of the ActiveX control which is marked to safely implement the script. √... - Page 16 Step 4: Double click “Internet protocol (TCP/IP)”. Step 5: Examine the IP address, subnet mask, and default gateway on the PC. Step 6: Set the corresponding IP address, subnet mask, and default gateway on the DVR. If the subnet mask and default gateway on the DVR are the same as those of the PC, then the IP address must be in the same network section but cannot be the same as the used one.
