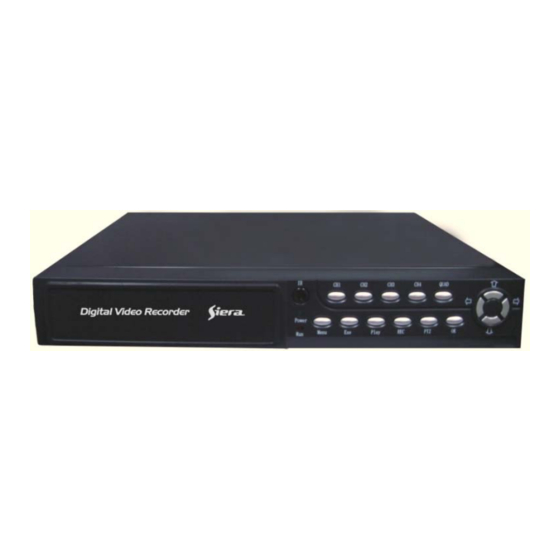

- Page 1 SDR 1004‐1008‐1016 ...
-
Page 2: Installation Notes
SDR 1004‐1008‐1016 Thank you for purchasing our DVR! This operating manual is designed to be a reference tool for the installation and operation of your system. ... -
Page 3: Hardware Environment
SDR 1004‐1008‐1016 2．According to the actual need to connect all the cables (video signal input cable, audio signal input line, RS‐485 control signal lines, cable, etc.) 3．Connection: first the rear panel, and then the front panel. Remove the power supply adapter or power cord, and finally power. ... -
Page 4: Hdd Installation
SDR 1004‐1008‐1016 The product model in front panel is the important information, please check with your orders The sticker on the rear panel is very important for our sales service, please keep it in a good situation, do not tear up, and discard. It is needed to provide the product series number when you call for sales service Check after open the case converter Please check whether there is any visible damage on the cover, and the data cable in front panel, power cable, fan power connections. -
Page 5: Rack Mounting
SDR 1004‐1008‐1016 1.6 Rack Mounting We DVR use standard 2U enclosure and adapt for industry rack mount. Steps and notes: 1. Temperature should be lower than 35 (95°f). 2. 15 cm (6 Inch) free space around the unit, be sure air flow is not obstructed. 3. Fix the enclosure by 6 screws； 4. Install the unit from top to bottom ... - Page 6 SDR 1004‐1008‐1016 Enter Ok Confirm operation; Open the system menu when in preview ESC ESC Close upper interface or controls. Rec Rec Manually stop/start recording Multi Multi/QUAD Multi display channels Playback or paused mode, click this button to realize normal Play/Pause ...
-
Page 7: Remote Controller
SDR 1004‐1008‐1016 In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button. In ... - Page 8 SDR 1004‐1008‐1016 PTZ In PTZ function: enable PTZ Click this button to switch between 4 Shift numeral,English (Small/Capitalized), ...
-
Page 9: Video Input And Output
SDR 1004‐1008‐1016 In playback mode, playback the n Play next video Focus + 3.1 Video Input and Output Video input connections: ... -
Page 10: Audio Input And Output
SDR 1004‐1008‐1016 Make sure both camera and DVR are grounding properly The coaxial cable should away from any devices or circuit with electromagnetic interference ... - Page 11 SDR 1004‐1008‐1016 4 channels switching alarm output （ normal open contact） , alarm device should be with individual power supply Alarm when loop alarm grounding To avoid overload, please refer to relay specification as below: Alarm output note： Max alarm output no more than 1A ...
- Page 12 SDR 1004‐1008‐1016 Length of close Max 3ms. time Mechanical 50×106 times (3Hz) Longevity Electrical 200×103 times (0.5Hz) Temperature Alarm input sockets: Show on the figure, the second row 1, 2, 3, 4, 5, 6, 7, 8, corresponded to alarm input ALARM1～ALARM8 ...
-
Page 13: System Boot Up
SDR 1004‐1008‐1016 2．Alarm output connection Alarm output normally is disconnected, when the need to send an alarm when closed, does not have voltage output, external speaker, lights, sirens, etc. the need for external power supply to ... -
Page 14: Login
SDR 1004‐1008‐1016 boot up. Default display mode is multiple picture output System will start record video if set at schedule record mode, and the record channel indicator light up. 4.2 Login When the system boots up, Click Enter or left click mouse, you can see the login interface. There are 2 default users: “admin” “guest”. “admin” ... -
Page 15: Auto Resume After Power Failure
SDR 1004‐1008‐1016 screen when video lost when camera masking occur occur 4.5 Auto Resume after Power Failure The system can automatically backup video and resume previous working status after power failure. 4.6 Replace Button Battery Please make sure to use the same battery model if possible. ... - Page 16 SDR 1004‐1008‐1016 Addenda A FAQ 1. DVR cannot boot up properly. There are following possibilities: Input power is not correct. Power connection is not correct. Power switch button is damaged. ...
- Page 17 SDR 1004‐1008‐1016 6. Real‐time video color is distorted. There are following possibilities: When using BNC output, NTSC and PAL setup is not correct. The real‐time video becomes black and white. DVR and monitor resistance is not compatible. Video transmission is too long or degrading is too huge. DVR color or brightness setup is not correct. ...
- Page 18 SDR 1004‐1008‐1016 12. DVR cannot control PTZ. There are following possibilities: Front panel PTZ error PTZ decoder setup, connection or installation is not correct. Cable connection is not correct. PTZ setup is not correct. ...
- Page 19 SDR 1004‐1008‐1016 16. Network connection is not stable. There are following possibilities: Network is not stable. IP address conflict. MAC address conflict. PC or DVR network card is not good. 17.
- Page 20 SDR 1004‐1008‐1016 ...
