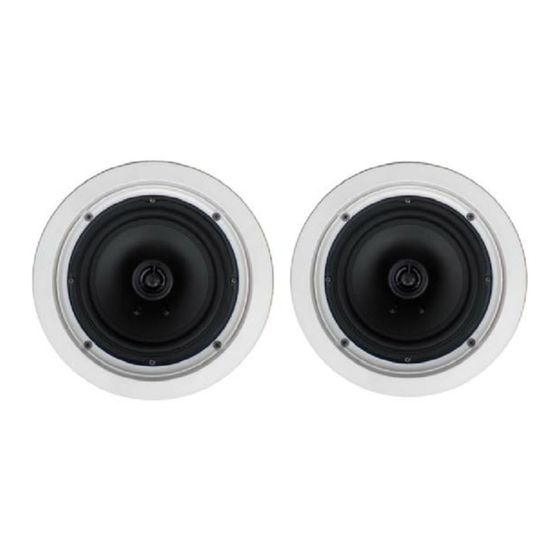

In-ceiling speaker pairs

Advertisement

In-Ceiling
Speaker Pairs
Model 50-14000, 50-14005
50-14010, 50-14015

General Features

Polypropylene cone woofer
Rubber surround
1/2" polymer dome tweeter
Color coded push terminal strips

Specifications

Model
50-14000
Woofer Size
4"
Tweeter
1/2" polymer
Crossover
HP capacitor
Power Capacity
20W/30W each
(RMS/Peak)
Frequency Response
50Hz~20KHz
Nominal Impedance
8ohm
SPL (W/M)
88dB
Dimensions
Overall Frame Diameter
6.73"
Required Cutout
5.39"
Mounting Depth
2.45"
MCM Custom Audio and Stellar Labs products are warranted, by MCM Electronics, against manufacturer defects for a
period of two years from the original date of purchase. This warranty is limited to manufacturer defects, in either
materials or workmanship. MCM Electronics, or any other worldwide divisions of Premier Farnell PLC, are not responsible
for any consequential or inconsequential damage to any other component, structure or the cost of installation or removal
of said items.
For questions or specific information regarding warranty replacement or repair, contact:

Installation Manual

50-14005
5.25"
1/2" polymer
6dB/octave
25W/50W each
45Hz~20KHz
8ohm
89dB
7.95"
6.49"
2.56"

Warranty

50-14010
50-14015
6.5"
8"
1/2" polymer
1/2" polymer
6dB/octave
6dB/octave
30W/60W each
40W/80W each
45Hz~20KHz
30Hz~20KHz
8ohm
8ohm
89dB
90dB
9.02"
10.71"
7.60"
9.29"
2.91"
3.03"
MCM Custom Audio
Division of MCM Electronics
650 Congress Park Drive
Centerville, Ohio 45459
www.mcmelectronics.com
© 2010 MCM a Premier Farnell Company
