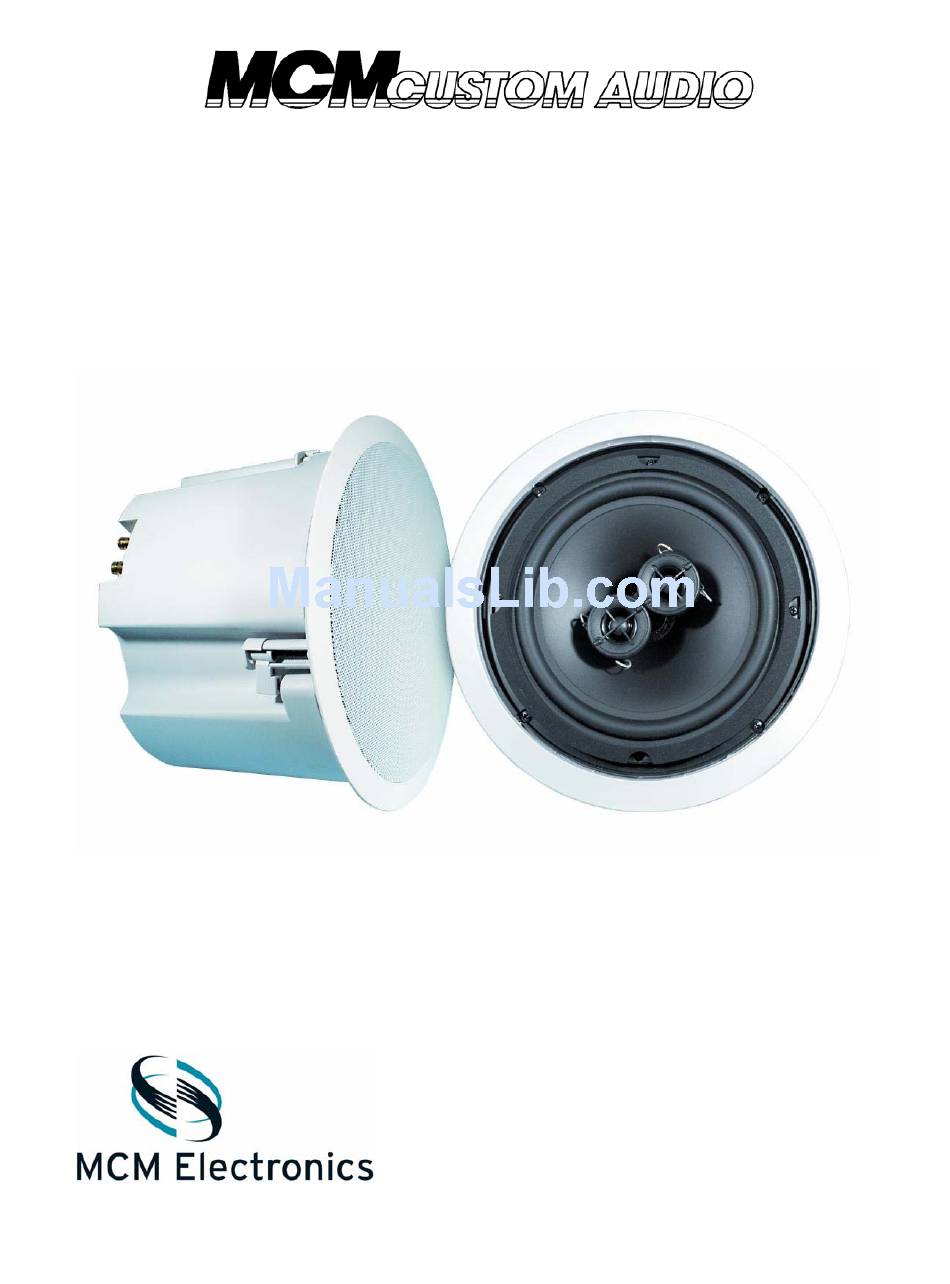

In-Ceiling Speaker
Installation Manual
Model #50-9050
MCM Electronics
650 Congress Park Drive
Centerville, Ohio 45459
www.mcminone.com
© 2007 MCM a Premier Farnell Company
Advertisement
Table of Contents
Related Manuals for MCM Custom Audio 50-9050
Summary of Contents for MCM Custom Audio 50-9050
- Page 1 In-Ceiling Speaker Installation Manual Model #50-9050 MCM Electronics 650 Congress Park Drive Centerville, Ohio 45459 www.mcminone.com © 2007 MCM a Premier Farnell Company...
- Page 2 Careful consideration should be made when determining the desired location of the speaker. As this Model #50-9050 is referred to as a ceiling speaker, this is the intended mounting location. However, there is no electronic or physical reason these cannot be mounted in other locations, such as walls.
- Page 3 esoteric speaker wire, with claims of exotic materials and superior performance. Truthfully, this type of product has been found to provide little or no benefit to installations of this type. Good quality 16AWG CL2 rated in-wall wire, such as MCM #24-5775 (two-conductor), #24-5820 (four- conductor) or similar, provide outstanding performance in this application.
- Page 4 6. Using a wallboard saw, similar to MCM #22-7597, cut around this circumference. This type of saw is especially useful, as its rigid design and sharp point allow it to “plunge” into the wall with no need to drill a pilot hole. 7.
