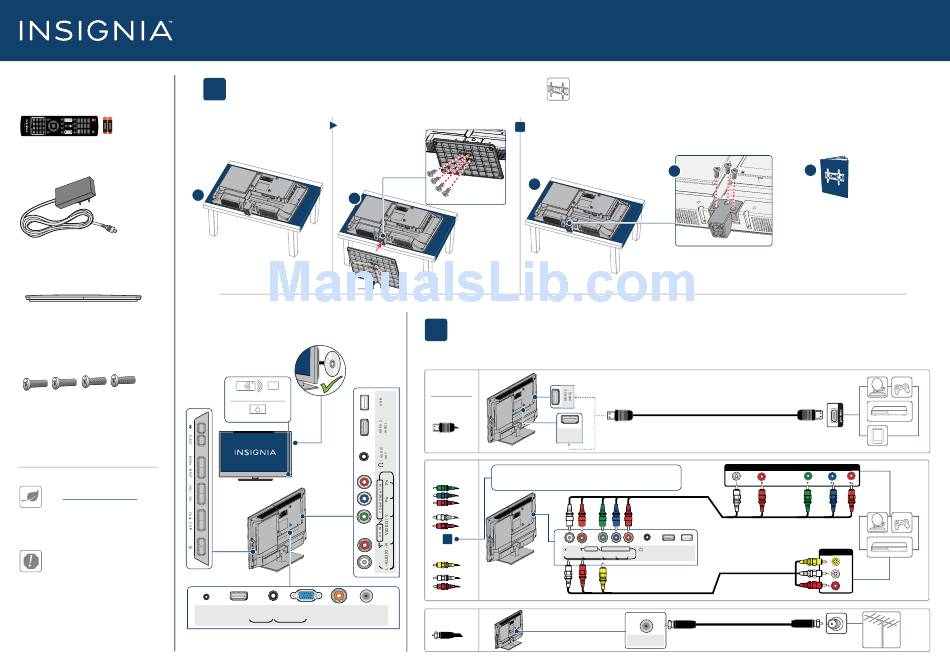

Insignia NS-20ED310NA15 Quick Setup Manual

INCLUDED ACCESSORIES
Remote control and
two AAA batteries
A Carefully place your TV face-down on a
+ +
cushioned, clean surface.
Power adapter
A
TV stand
FEATURES
B4 type (18mm length) (4 pcs.)
FIND YOUR USER GUIDE ONLINE!
Go to www.insigniaproducts.com, then
click Support & Service. Enter
NS-20ED310NA15 in the box under
Manual, Firmware, Drivers & Product
►
Information, then click .
STOP
Do not plug your power cord in until all
other devices have been connected.
DC IN
START HERE
1
How do I attach the stand to my TV? (not for wall mounting)
You'll need: Soft surface and Phillips screwdriver
B Secure the TV stand to the TV with the
four provided screws.
B
Front
Remote control sensor
Power indicator
PC / DVI DIGITAL
H D M I 1
V G A
OUTPUT ANT / CABLE
AUDIO IN
(Coaxial)
Before using your new product, please read these
instructions to prevent any damage.
WALL MOUNT
How do I prepare my TV for wall mounting? (not for use with a TV stand)
You'll need: Soft surface and Phillips screwdriver
A Carefully place your TV face-down on a cushioned, clean surface.
OR
B Remove the three screws that secure the stand column to the TV, then remove the stand column.
C See the instructions that came with your wall mount for more information about how to correctly mount your TV.
A
B4 type (18mm length)
(4pcs.)
MAKING CONNECTIONS
2
How do I watch TV (cable, satellite, or antenna) or connect a device such as a DVD or Blu-ray disc player or game
console.
WHICH CABLES
Multi-purpose jacks: You can plug any device that uses HDMI into any HDMI jack. However,
DO YOU HAVE?
certain devices must be connected to the ARC jack. See the instructions that came with your
ARC enabled device for more information.
HDMI
(BEST)
Best video quality
H D M I 1
COMPONENT
Note: The component and AV jacks are shared. This means you can connect
(BETTER)
only one component or AV device at a time. We suggest upgrading to HDMI
(BEST) if your device supports it.
OR
AV IN COMPONENT IN
AV (GOOD)
L - AUDIO - R
VIDEO / Y
Note: Connect the yellow
video cable to the
green VIDEO/Y jack.
COAXIAL
(GOOD)
Quick Setup Guide
20" LED 720p • 60Hz TV/DVD COMBO
B
AUDIO/VIDEO OUT
HDMI 2 USB
/ AUDIO
OUT (ARC)
P B P R
ANT / CABLE
| NS-20ED310NA15
Your TV has four VESA mounting
holes on the back. If you attach a
C
wall-mount bracket to the back of
your TV, the bracket must be
securely attached, using all four
holes. If you do not use all four
mounting holes, your TV may fall and cause property damage
or personal injury. See the documentation that came with
your wall mount for complete mounting instructions.
AUDIO/VIDEO OUT
CABLE
