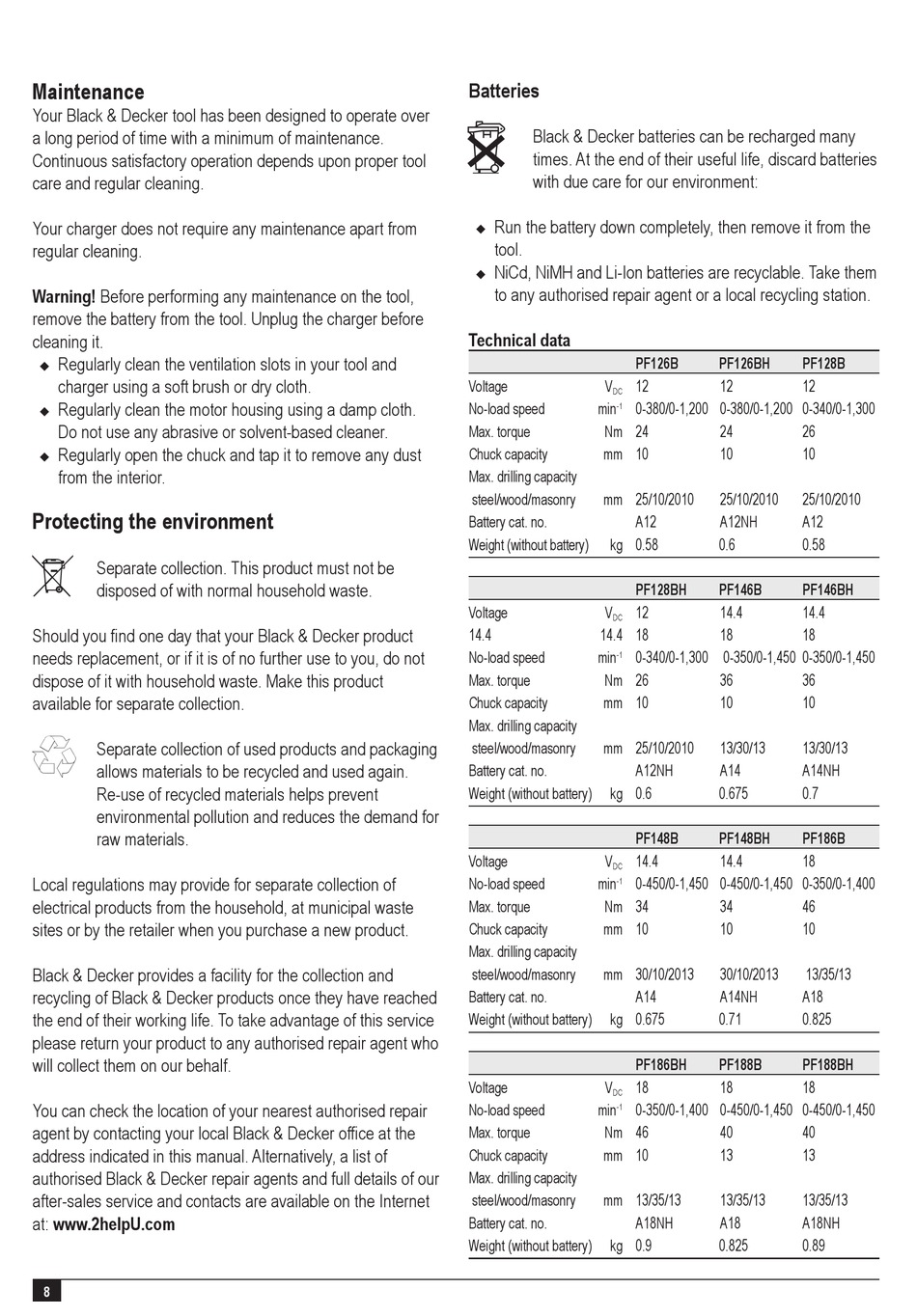

Maintenance

Your Black & Decker tool has been designed to operate over
a long period of time with a minimum of maintenance.
Continuous satisfactory operation depends upon proper tool
care and regular cleaning.
Your charger does not require any maintenance apart from
regular cleaning.
Warning! Before performing any maintenance on the tool,
remove the battery from the tool. Unplug the charger before
cleaning it.
Regularly clean the ventilation slots in your tool and

charger using a soft brush or dry cloth.
Regularly clean the motor housing using a damp cloth.

Do not use any abrasive or solvent-based cleaner.
Regularly open the chuck and tap it to remove any dust

from the interior.

Protecting the environment

Z
Separate collection. This product must not be
disposed of with normal household waste.
Should you find one day that your Black & Decker product
needs replacement, or if it is of no further use to you, do not
dispose of it with household waste. Make this product
z available for separate collection.
Separate collection of used products and packaging
allows materials to be recycled and used again.
Re-use of recycled materials helps prevent
environmental pollution and reduces the demand for
raw materials.
Local regulations may provide for separate collection of
electrical products from the household, at municipal waste
sites or by the retailer when you purchase a new product.
Black & Decker provides a facility for the collection and
recycling of Black & Decker products once they have reached
the end of their working life. To take advantage of this service
please return your product to any authorised repair agent who
will collect them on our behalf.
You can check the location of your nearest authorised repair
agent by contacting your local Black & Decker office at the
address indicated in this manual. Alternatively, a list of
authorised Black & Decker repair agents and full details of our
after-sales service and contacts are available on the Internet
at: www.2helpU.com
8
Batteries
h
Black & Decker batteries can be recharged many
times. At the end of their useful life, discard batteries
with due care for our environment:
Run the battery down completely, then remove it from the

tool.
NiCd, NiMH and Li-Ion batteries are recyclable. Take them

to any authorised repair agent or a local recycling station.
Technical data
PF126B
Voltage V 12
DC
No-load speed min 0-380/0-1,200 0-380/0-1,200 0-340/0-1,300
-1
Max. torque Nm 24
Chuck capacity mm 10
Max. drilling capacity
steel/wood/masonry mm 25/10/2010
Battery cat. no. A12
Weight (without battery) kg 0.58
PF128BH
Voltage V 12
DC
14.4 14.4 18
No-load speed min 0-340/0-1,300 0-350/0-1,450 0-350/0-1,450
-1
Max. torque Nm 26
Chuck capacity mm 10
Max. drilling capacity
steel/wood/masonry mm 25/10/2010
Battery cat. no. A12NH
Weight (without battery) kg 0.6
PF148B
Voltage V 14.4
DC
No-load speed min 0-450/0-1,450 0-450/0-1,450 0-350/0-1,400
-1
Max. torque Nm 34
Chuck capacity mm 10
Max. drilling capacity
steel/wood/masonry mm 30/10/2013
Battery cat. no. A14
Weight (without battery) kg 0.675
PF186BH
Voltage V 18
DC
No-load speed min 0-350/0-1,400 0-450/0-1,450 0-450/0-1,450
-1
Max. torque Nm 46
Chuck capacity mm 10
Max. drilling capacity
steel/wood/masonry mm 13/35/13
Battery cat. no. A18NH
Weight (without battery) kg 0.9
PF126BH PF128B
12 12
24 26
10 10
25/10/2010 25/10/2010
A12NH A12
0.6 0.58
PF146B PF146BH
14.4 14.4
18 18
36 36
10 10
13/30/13 13/30/13
A14 A14NH
0.675 0.7
PF148BH PF186B
14.4 18
34 46
10 10
30/10/2013 13/35/13
A14NH A18
0.71 0.825
PF188B PF188BH
18 18
40 40
13 13
13/35/13 13/35/13
A18 A18NH
0.825 0.89
