Summary of Contents for EP Equipment EP-21F

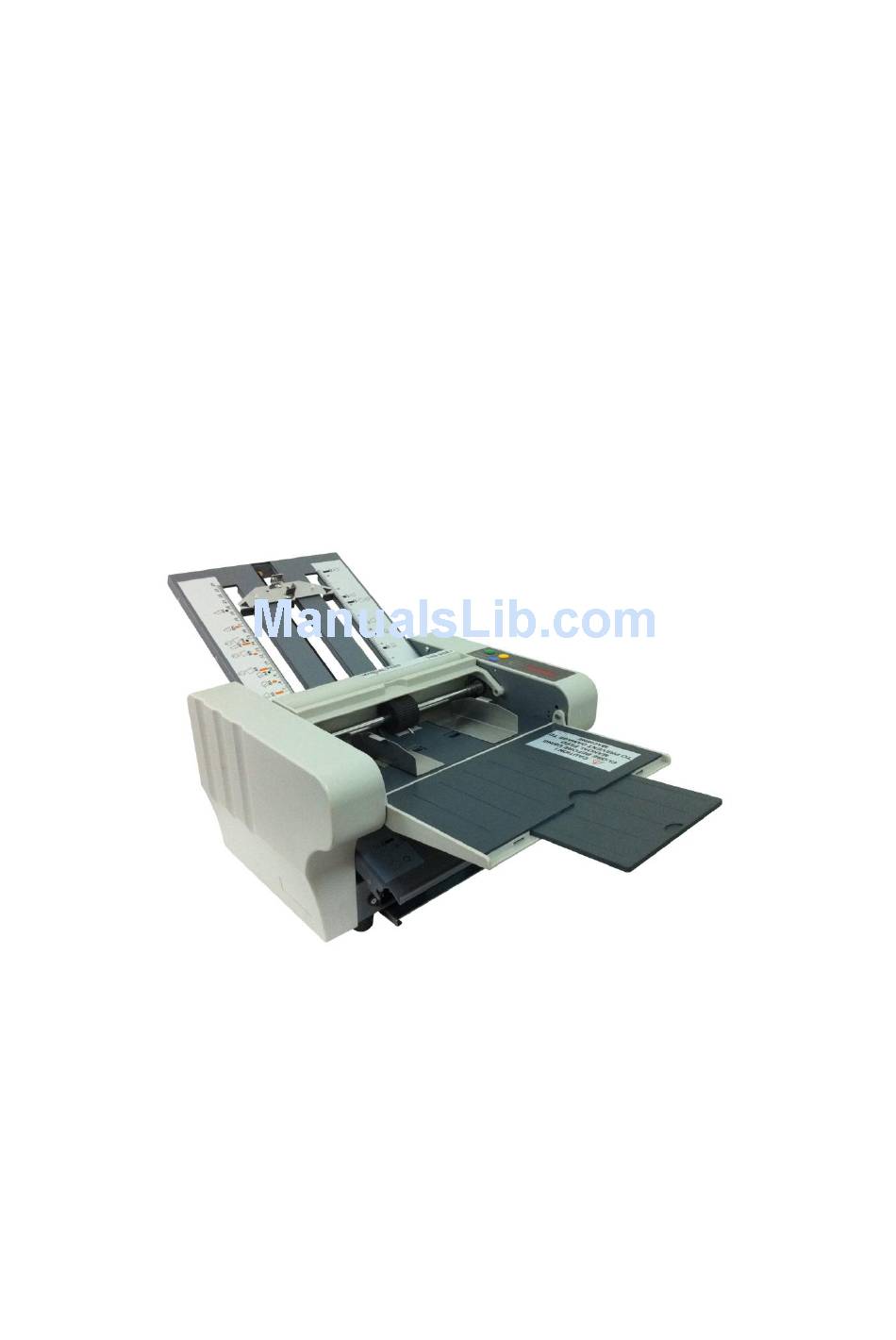

- Page 1 EP-21F Manual Letter Folder Operation Manual EP Equipment Co.,Ltd.
- Page 2 Introduction Thank you for selecting EP folder. This machine is designed for efficiently folding paper up to legal size (216×356mm). To ensure correct operation and avoid damage & injury, please read this operation manual thoroughly and familiarize yourself with the content, especially the section entitled “Safety Introductions”...
-
Page 3: Table Of Contents
Contents Safety Introductions..................3 Cautions Before Installation................5 Specifications ....................6 Main Parts list ....................7 Control Panel ....................8 Installation......................9 Operation ......................11 Maintenance....................16 Troubleshooting ..................... 18... -
Page 4: Safety Introductions
Safety Introductions Always pay attention to the warnings and cautions displayed below to avoid human injury and property damage. ◆ The degree of danger and damage that may occur is indicated on three levels by the following marks. Warning : Ignoring this mark may result in possibility of serious injury or damage. Caution : Ignoring this mark may result in possibility of injury or damage Note: Ignoring this mark may not result in damage, while following the introduction help operate this machine more smoothly. - Page 5 Warning: ╳ Do not damage the power cord or power plug. ● Always grip the power plug while disconnecting the power plug from the power outlet. Forcibly pulling the power cord could cause damage. ╳ Do not handle the power plug with wet hand. ●...
-
Page 6: Cautions Before Installation
Cautions Before Installation 1. Power Supply ◆ Make sure the power supply used is always within the following range: ●110V~120V AC 60HZ or 220V~240V AC 50HZ. ◆ When powering other appliances from the same outlet, make sure the combined power consumption does not exceed the power supply capacity. -
Page 7: Specifications
Specifications Model EP-21F Manual Letter Folder 4" x 5" to 8 1/2" x 14" Sheet size (102mm x 127mm to 216mm x 356mm) Paper weight 16lbs to 80lbs (40-200gsm) Paper quality Fine quality paper, recycled paper Fold types Single fold, Letter fold, Z fold, Double Parallel fold... -
Page 8: Main Parts List
Main Parts list 1. Manual feed cover 2. Right cover (near control panel) 3. Control panel 4. Side guide 5. Auxiliary feed table 6. Extension feed table 7. Lower plate 8. Upper plate 9. Fold stop 10. Fine adjustment knob 11. -
Page 9: Control Panel
Control Panel Name Function Display numbers of folded sheets Count display Lights up when power is on. “RUN” lights up means machine is running. “NONE” lights up means sheets run out or Indicator lights plates are not well positioned. “JAM” lights up means there is a jam. Press this button, machine will fold one sheet and Test button stop. -
Page 10: Installation
Installation 1. Install the upper plate. Insert the upper plate along the guide line as far as possible, and seats on the support pins A B at the cutout. The lower plate is inserted in different directions for single fold and other folds. Make sure both upper and lower plates are seated firmly in position. - Page 11 2.2 For Letter fold, Z fold, and double fold. Insert the lower plate along the guide line as far as possible and seats on the support pins C E at the cutout.
-
Page 12: Operation
Operation 1. Connect the power supply. Connect the power cord to the inlet and outlet. Turn on the power switch. 2. Setting the fold stops. 2.1 Position the fold stop according to the desired fold type. Push the half-nut level to loosen and move the fold stop to the demanded position referring to the color folding instruction on the plates. - Page 13 Correct Fold Misalignment. Solution Fold type Misalignment (face the knob) CCW Upper knob A is longer Single fold C.W. Upper knob A is shorter CCW Upper knob A is longer C.W. Upper knob A is shorter Letter fold CCW Lower knob B is longer C.W.
- Page 14 DO NOT touch any moving parts during operation. DO NOT let long hair, necktie etc. hang above the machine or near to moving Parts. 3. Automatic mode 3.1 Turn on the power switch. 3.2 Position the fold stop referring to the folding instruction. 3.3 Pull the ejection tray out.
- Page 15 When folding very thin paper, it is suggested that the inside edge of paper is slightly curled up for better feed. Do not let folded paper exceed the max stack line. Do not fold paper with wet ink in case the feed roller, paper separator, fold rollers etc. Parts will be dirty and cause damage.
- Page 16 4. Manual Feeding (bypass) mode Close the auxiliary fold table before use manual feeding mode. DO NOT insert paper more than 3 sheets at a time. DO NOT insert paper weight more than 60 lbs DO NOT insert paper with a clip. 4.1 Turn on the power switch.
-
Page 17: Maintenance
Maintenance Turn off the power and cover the machine if left idle for a long period. 1. Regular Clean Paper dust and ink accumulate on some parts along your use, which may result in dirty paper and misfunction. Make sure you have turned off the power before cleaning. 1.1 Clean the paper separator. - Page 18 2.3 Push till one end is disengaged with the machine, lift the other side and remove the feed roller shaft. 2.4 After replacement, repeat the procedure in the opposite sequence. For other parts worn out, please contact your dealer.
-
Page 19: Troubleshooting
Troubleshooting Trouble Possible Cause Solution No power at present Check power. Machine does not Power cord not well work (count display Plug firmly plugged does not light up) Replace with fuse of the same type and Blown fuse rating Paper jam inside Clear jam and press RESET Machine does not machine...
