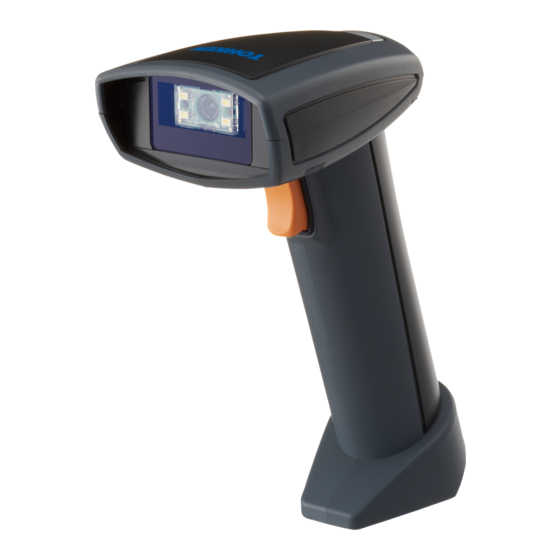

- Page 1 THIR-6000 Series Handheld Image Reader (Linear / 2D Scanner) OPERATION MANUAL TOHKEN CO., LTD. Edition January 9, 2007...
- Page 2 [Memorandum]...
- Page 3 Tohken makes no guarantee of performance or suitability of its products, nor does Tohken assume any liability that occurs from the use of the product. Tohken reserves the right to make changes to its products and this document without any notice.
-
Page 4: Safety Notice
Introduction Thank you for purchasing this product. This manual explains the features of this product, operation, system configuration, specifications, etc. In order to use the product properly, please read this manual carefully. When there is any problem during normal use, please document it carefully to be reproduced by our support team. -
Page 5: Handling With Care
CAUTION Please do not use AC adapters other than the recommend AC power adaptor which is described in the “unpacking the carton” section. Failure to do so might affect the performance of the unit. If the voltage or polarity used is different from the specification, it might cause product failure and could be the cause of an accident. -
Page 6: Unpacking The Product
The current drawn is sometimes over 500mA standard of USB which means that there is possibility for some problems when THIR-6000 is connected directly to the host. Tohken recommends the use of an exclusive USB HUB (TUR-100) between THIR and host PC, or please supply power by using branched USB cable (CA-3000USB) and AC. -
Page 7: Table Of Contents
GETTING STARTED ......................1 1.1 S ...................... 3 CANNER COMPONENTS 1.2 H ........................5 OW IT WORKS ASSEMBLING THE HARDWARE..................6 2.1.1 THIR-6000 C ..................6 ABLE ONNECTION 2.1.2 THIR-6000U........................7 2.1.3 THIR-6000U HID ....................7 AS A 2.2 S .................. - Page 8 TROUBLESHOOTING...................... 24 8.1 T ......24 HE UNIT DOES NOT WORK WHILE PUSHING THE READ TRIGGER SWITCH Is power supply voltage within specification?..............24 Is power supply polarity correct? ..................24 Is the power rating of the power supply enough? ............24 8.2 B ....................
-
Page 9: Getting Started
THIR-6000 is ready to capture images as well as decoding 1D or 2D bar codes. The THIR-6000 is a 2D Imager Scanner that reads Liner, 2D, and Postal barcodes to meet many different requirements in Delivery, Transportation, Meter Reading, and many other applications. - Page 10 : BSMI Class 4) Ordering information THIR-6000 U 1. Interface If “U” follows “THIR-6000”, the scanner has USB interface. Otherwise its interface is RS232C. According to this rule, there are 3 types of THIR-6000 family. T HIR-6000 ・ T HIR-6000U ・...
-
Page 11: Scanner Components
1.1 Scanner components Reading Window Reading Switch Grip Handle Figure1a. Front View... - Page 12 Monitoring LED Figure1b. Side and rear View...
-
Page 13: How It Works
This switch is used to initiate the read and decode of a symbol. • Connecting Cable - THIR-6000: RS-232C When connecting to host computers, a cable with D-sub 9P connector should be utilized. For supplying the power to the unit, the AC power adapter should be plugged into its mating receptacle on the RS232 connector housing next to the D-sub 9P connector. -
Page 14: Assembling The Hardware
2. Assembling the hardware 2.1.1 THIR-6000 Cable Connection Connecting with a Host Computer Plug the host connecting cable connector into the host serial port. Plug the AC adapter plug into the host connecting cable connector jack. Plug the AC Power Adapter to the AC power receptacle. When the unit is correctly powered up, it beeps 3 times. -
Page 15: Thir-6000U
Hyperterminal or USBTerm, which is our original. The driver can be downloaded from our secure web site. URL: http://www.tohken.co.jp/ 2.1.3 THIR-6000U as a HID Please confirm that the USB port of the host PC is available. -
Page 16: Setting Up The Host Computer
2.2 Setting up the Host Computer Communication Conditions It is required to match the set up values between the THIR-6000 unit and the host computer. Please refer to Section 5.5, conditions for RS-232C setup, for the default settings. Transmission Protocol Data transactions between the reader and the host should be carried out in the prefixed communication protocol. -
Page 17: Operation
3.1 Barcode reading • Once the user pulls the reading switch, the THIR-6000 shows two red points by LED light to indicate the proper reading area. Note: The unit turns off the red dot-shaped laser pointer automatically after 30 seconds if there is no reading operation. -
Page 18: Beeping Sounds
*) THIR-6000U as a HID can not capture images. Bitmap/image (name*.bmp, 1280 x 1024 pixel) • Transmitting the data with serial interface takes 2 min. with baud rate 15.2Kbps (THIR-6000). • In case of USB1.1, (THIR-6000U), transmitting the data takes approximately 10 seconds. Notes: The receiving unit should be kept “ready”... -
Page 19: Rs-232C Serial Communications
4. RS-232C Serial Communications • Bar Code Data Transmission: The unit transmits the scanned data to the host computer. • Command Signal Receipt: The host computer transmits the command signals to the unit and sets up the operation of the unit. •... -
Page 20: Specifications
5. Specifications 5.1 General specifications Type THIR-6000 THIR-6000U-HID Dimensions 150(H)×60(W)×98(D)mm Weight Nearly 130 g (not include the weight of cable) Illumination White LED Aiming beam Red LED (peak wave length is 644nm) Indicator Monitoring LED (3 colors), Vibration Image sensor CMOS area sensor (1.3M pixel) -
Page 21: Functional Specification
5.2 Functional specification Reading Direction P ITCH ± 35 degree ・ ： S KEW ± 35 degree ・ ： T ILT 3 60 degree ・ ： A mbient Light 0 to 10,000 lx ・ ： Viewing angle Regulatory/EMC E urope C E EMC Directive Class A ・... -
Page 22: Reading Range/Depth
5.3 Reading Range/Depth Decodable Symbols Liner: Code39, Code128, EAN128, Codabar, ITF, JAN / EAN / UPC, RSS Check digit calculation method: Code39 Modulus 43 Codabar Modulus 16 Modulus 10 2-D: Data Matrix(ECC200),QR Code, Micro QR Code,PDF417, Micro PDF, Maxi Code, Composite Reading Digit: (Except ITF) 2 047... - Page 23 Reading Range about 34 ° Vertical Horizontal Distance from scanner about 27 ° 1D(0.125) 70 1 10 ～ 1D(0.15) 60 1 30 ～ 1D(0.25) 40 1 60 ～ 1D(0.33) 40 1 80 ～ 2D(0.167) 77 1 07 ～ 2D(0.25) 57 1 27 ～...
-
Page 24: Serial Interface
OK to transmit INPUT Demand to transmit OUTPUT OPEN Note: The above is listed relative to the imager (THIR-6000) end of INPUT/OUTPUT transactions with the host. Note: For THIR-6000U, a USB connector plug A is used 5.5 Communication settings (RS232C) When the unit is shipped from the factory, the initial setup is as follows: E nabled Symbols: all symbols. -
Page 25: Dimensions
6. Dimensions 6.1 Housing dimensions Unit: mm... -
Page 26: Specialty Function
7. Specialty Function 7.1 Global Shutter Cropping is a method to remove unwanted areas from the image to make the image small. Following is the procedure to set up this function through the serial interface. Confirming the cropping status Serial Command ?IMG<cr> <<... - Page 27 Cropping C APX=0 C APY=0 ･ ･ ･ 、 C APX=2 C APY=1 ･ ･ ･ 、 ％ ％ ％ ％ ％ ％ ％...
-
Page 28: Auto Detection Mode
7.2.1 Overview By using this mode, THIR-6000 can read and decode symbols automatically. THIR-6000 detects changes of image in its field of view, like change of environmental brightness, motion of objects. When there is such a change, THIR-6000 starts to capture an image and tries to decode. -
Page 29: How To Use
7.2.2 How to use To put the THIR-6000 in the auto detection mode, please follow one of the following methods: Send the serial command "LFMODE=1<CR>" to the scanner. Read the corresponding barcode from the configuration barcode set. To exit the auto detection mode, please follow one of the following methods: Send the serial command "LFMODE=0<CR>"... - Page 30 Monitor LED: Orange Aiming beam: Blinking Aiming beam: Blinking Standby Standby Make an object with Make an object with barcodes go into barcodes go into THIR-6000’s field of THIR-6000’s field of view view Label in Label in Detected? Detected? No: Timeout...
-
Page 31: Choosing High Speed Mode Or Normal Mode
High Speed mode is designed to read barcodes faster. To enter this mode, please read the appropriate configuration barcode from barcode menu. High Speed mode (default) This mode makes THIR-6000 read barcodes faster than Normal mode. In this mode, LED aiming beam keeps blinking. Normal mode In this mode, aiming beam does not keep blinking. -
Page 32: Troubleshooting
8. Troubleshooting 7.18.1 The unit does not work while pushing the read trigger switch. Is power supply voltage within specification? Power supply voltage should be DC 3V-6V. If the DC voltage is not within the specified range not only the unit will not operate, but there is a strong possibility of damaging the unit. Is power supply polarity correct? When it is connected with reverse polarity, the unit does not operate. - Page 33 8.3 The data does not transmit or the data itself is corrupted. Is the setup with host computer correct? Please check whether the baud rate and frame format is the same as that of the host computer. If frame format differs, it may seem that data is transmitted incorrectly. Do you set fixed digit for ITF In some cases, cancellation of significant digits (reading it through with a few digits than a printed digits) in ITF(Interleaved 2 of 5) might be used.
- Page 34 [Memorandum]...
- Page 35 Warranty Obligations This warranty obligation is limited to terms set forth below: TOHKEN warrants this hardware product against defects one year form the date of purchase. W arranty Coverage ＜ ＞ 1. TOHKEN will repair the product at no charge, for hardware defects occurring when used in accordance with the manual and catalog, under normal operating conditions.
- Page 36 TOHKEN CO., LTD Head quarters 2-7-1 Nishi-Shinjuku, Shinjuku-ku, Tokyo Japan 163-0710 Sales 03-5325-4311 to 4315 Sales Promotion 03-5325-4322 Nagoya office 4-2-12 Meieki, Nakamura-ku, Nagoya Japan 450-0002 Sales 052-565-9091 Osaka office 2-9-1 Higashi-Tenman, Kita-ku, Osaka Japan 530-0044 Sales 06-6353-5476 Fukuoka office...
