Summary of Contents for ProBoat Impulse 31 PRB08008

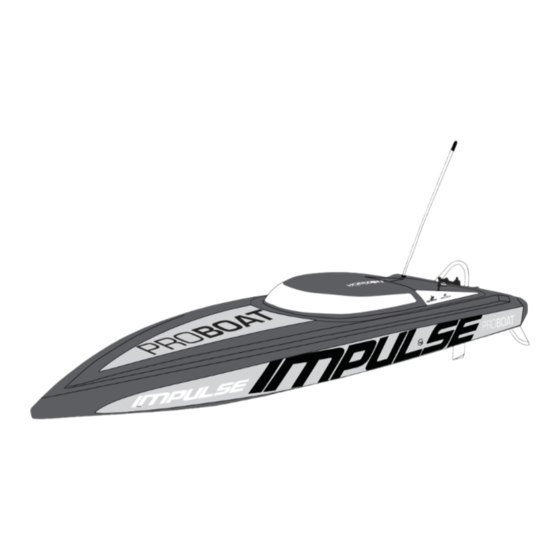

- Page 1 Impulse 31-INCH BRUSHLESS RTR DEEP-V PRB08008 Owners Manual • Bedienungsanleitung Manuel de l’utilisateur • Manuale dell’utente...
-
Page 2: Water-Resistant Boat With Waterproof Electronics
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit http://www.horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND little or no possibility of injury. -
Page 3: Table Of Contents
General Precautions Wet Conditions Maintenance • Read the WET CONDITIONS MAINTENANCE • Drain any water that has collected in the hull by procedures and make sure that you have all the tools removing the drain plug or canopy and tilting the you will need to properly maintain your boat. -
Page 4: Recommended Tools And Materials
Recommended Tools and Materials • Needle nose pliers • Paper towel • Rubbing alcohol • Open-end wrench: 10mm (2) • Nut driver: 4mm, 5.5mm, 8mm • Phillips screwdriver: #1 • Hex wrench: 1.5mm, 2mm, 2.5mm, 3mm • Clear tape (DYNM0102) ®... -
Page 5: Canopy Removal
Canopy Removal 1. Push down and turn the latch button one quarter of a turn to disengage the pin from the hull. 2. Carefully lift the rear of the canopy and pull back to disengage the front pin from the hull. Battery Charger Choose a charger designed to charge the recomended NOTICE: Never charge a battery in the boat or damage... -
Page 6: Spektrum Dx2E Radio System
Spektrum DX2E Radio System For more information on the transmitter, go to www.spektrumrc.com and click on the support tab to find the full manual for the DX2E transmitter. 1. Steering Wheel controls direction (left/right) of the model. 2. Throttle Trigger controls speed. 3. -
Page 7: Binding
Binding The receiver will keep the binding to the transmitter until Binding is the process of programming the receiver to another binding is done. recognize the GUID (Globally Unique Identifier) code of a single specific transmitter. The included transmitter and If you encounter problems, obey binding instructions and receiver are bound at the factory. -
Page 8: Range Check
Range Check IMPORTANT: Perform a range check at the beginning of each boating session, after repair or after installation of new batteries. Ensure the receiver antenna is extended properly and all batteries are fully charged. 1. With the radio system powered on and connected, walk away from your boat 90 feet (32 m). -
Page 9: Boating Tips
Boating Tips If the propeller and rudder are blocked with debris or When running your boat for the first time, we vegetation, remove the boat from the water and remove recommend calm wind and water conditions so that you the debris before continuing operation. can learn how the boat responds to your control. -
Page 10: After Boating And Maintenance
After Boating and Maintenance • Drain water from inside the hull using the drain plug NOTICE: When you are finished boating, never leave the boat in direct sunlight or in a hot, enclosed area such as • Fully dry the inside and outside of the boat, including a car. -
Page 11: Prop Angle Adjustment
Prop Angle Adjustment Raising the prop strut increases speed, but also decreases steering response and increases cavitation. Lowering the drive strut increases steering response, but also increases steering sensitivity and decreases speed. 1. Loosen 2 bolts and 2 nuts from the drive strut on the rear of the boat. -
Page 12: Troubleshooting Guide
Troubleshooting Guide Problem Possible Cause Solution Boat will not respond to throttle but responds Throttle channel is reversed Reverse throttle channel on transmitter to other controls Damaged propeller, shaft or motor Replace damaged parts Extra noise or extra vibration Propeller is out of balance Balance or replace propeller Boat battery charge is low Completely recharge battery... -
Page 13: Limited Warranty
Problem Possible Cause Solution Replace or repair damaged parts and adjust con- Rudder, linkage or servo damage trols Steering servo wire is damaged or con- Do a check of steering servo wires and connec- nections are loose tions, connect or replace as needed Rudder does not move Transmitter is not bound correctly Re-bind... -
Page 14: Warranty And Service Contact Information
Inspection or Services Warranty Requirements If this Product needs to be inspected or serviced and is For Warranty consideration, you must include your original compliant in the country you live and use the Product in, sales receipt verifying the proof-of-purchase date. Provided please use the Horizon Online Service Request submission warranty conditions have been met, your Product will be process found on our website or call Horizon to obtain a... -
Page 15: Fcc Information
FCC Information Antenna Separation Distance When operating This device complies with part 15 of the FCC rules. your Spektrum Operation is subject to the following two conditions: transmitter, please be sure to maintain (1) This device may not cause harmful interference, and a separation (2) This device must accept any interference received, distance of at least...
