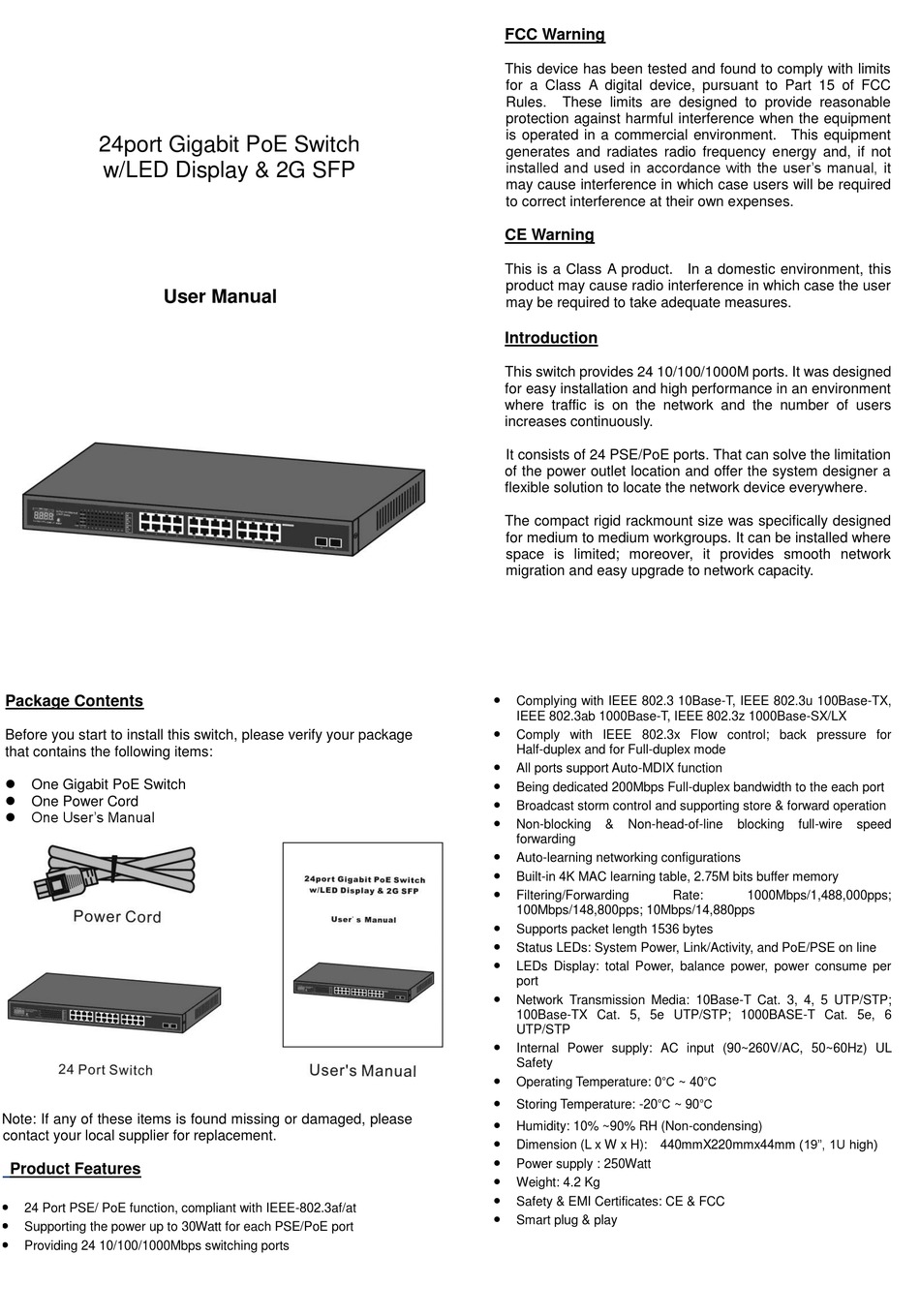

Syncom technologies G26P-250L User Manual

24port Gigabit PoE Switch
w/LED Display & 2G SFP

User Manual

Package Contents

Before you start to install this switch, please verify your package
that contains the following items:

One Gigabit PoE Switch

One Power Cord
 One User's Manual
Note: If any of these items is found missing or damaged, please
contact your local supplier for replacement.

Product Features


24 Port PSE/ PoE function, compliant with IEEE-802.3af/at

Supporting the power up to 30Watt for each PSE/PoE port

Providing 24 10/100/1000Mbps switching ports

FCC Warning

This device has been tested and found to comply with limits
for a Class A digital device, pursuant to Part 15 of FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operated in a commercial environment. This equipment
generates and radiates radio frequency energy and, if not
installed and used in accordance with the user's manual, it
may cause interference in which case users will be required
to correct interference at their own expenses.

CE Warning

This is a Class A product. In a domestic environment, this
product may cause radio interference in which case the user
may be required to take adequate measures.

Introduction

This switch provides 24 10/100/1000M ports. It was designed
for easy installation and high performance in an environment
where traffic is on the network and the number of users
increases continuously.
It consists of 24 PSE/PoE ports. That can solve the limitation
of the power outlet location and offer the system designer a
flexible solution to locate the network device everywhere.
The compact rigid rackmount size was specifically designed
for medium to medium workgroups. It can be installed where
space is limited; moreover, it provides smooth network
migration and easy upgrade to network capacity.

Complying with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.3ab 1000Base-T, IEEE 802.3z 1000Base-SX/LX

Comply with IEEE 802.3x Flow control; back pressure for
Half-duplex and for Full-duplex mode

All ports support Auto-MDIX function

Being dedicated 200Mbps Full-duplex bandwidth to the each port

Broadcast storm control and supporting store & forward operation

Non-blocking & Non-head-of-line
forwarding

Auto-learning networking configurations

Built-in 4K MAC learning table, 2.75M bits buffer memory

Filtering/Forwarding
100Mbps/148,800pps; 10Mbps/14,880pps

Supports packet length 1536 bytes

Status LEDs: System Power, Link/Activity, and PoE/PSE on line

LEDs Display: total Power, balance power, power consume per
port

Network Transmission Media: 10Base-T Cat. 3, 4, 5 UTP/STP;
100Base-TX Cat. 5, 5e UTP/STP; 1000BASE-T Cat. 5e, 6
UTP/STP

Internal Power supply: AC input (90~260V/AC, 50~60Hz) UL
Safety

Operating Temperature: 0℃ ~ 40℃

Storing Temperature: -20℃ ~ 90℃

Humidity: 10% ~90% RH (Non-condensing)

Dimension (L x W x H): 440mmX220mmx44mm (19", 1U high)

Power supply : 250Watt

Weight: 4.2 Kg

Safety & EMI Certificates: CE & FCC

Smart plug & play
blocking full-wire
Rate: 1000Mbps/1,488,000pps;
speed
