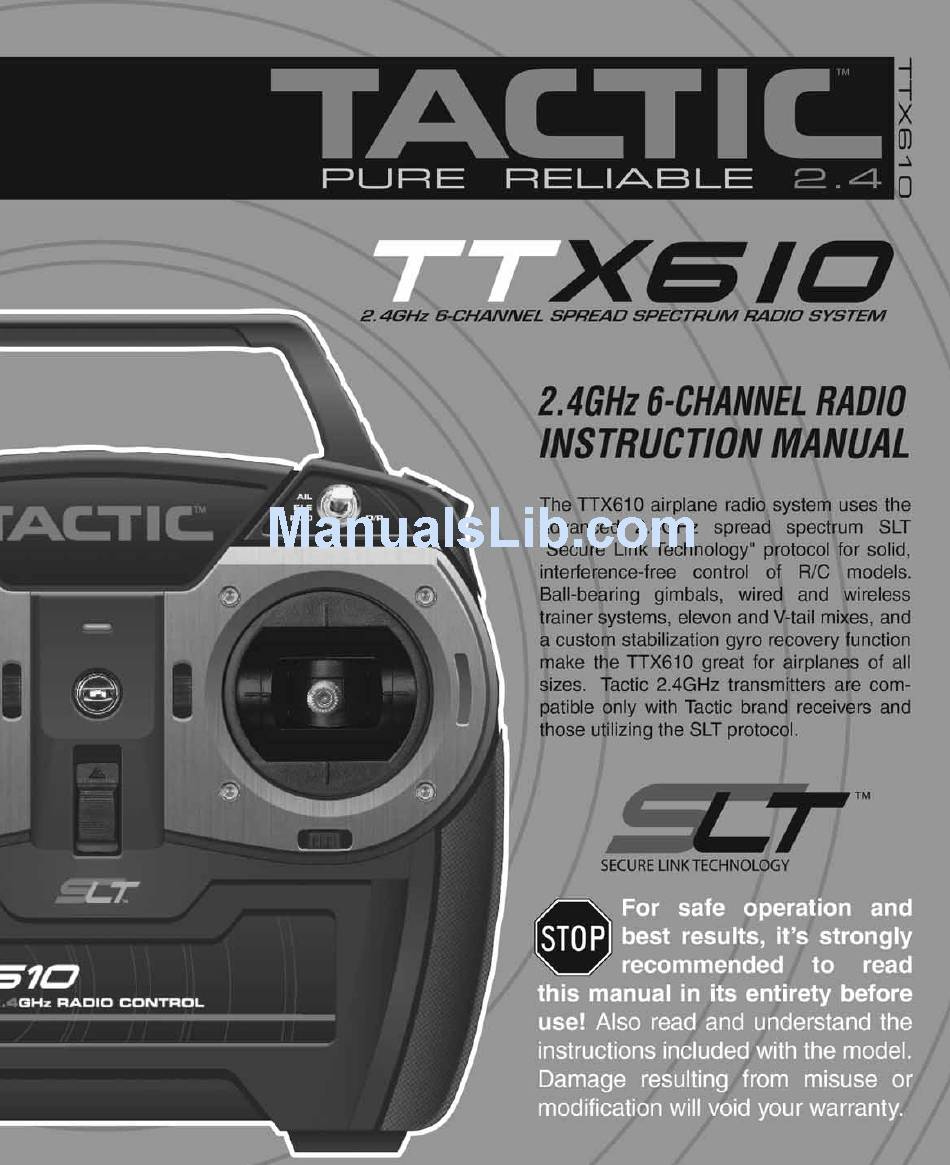

SLT Tactic TT X610 Instruction Manual

2.4ghz 6-channel radio
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Tactic TT X610 and is the answer not in the manual?

Questions and answers

Related Manuals for SLT Tactic TT X610

Summary of Contents for SLT Tactic TT X610

  • Page 2: Table Of Contents

    SLT TECHNOLOGY, Tx-R, AND COMPATIBLE RECEIVERS ........

  • Page 3: Features

    Binding most Tactic brand receivers is as simple as pushing a button. The TTX610 is also compatible with all transmitter-ready aircraft bearing the Tx-R™ logo, and non-Tactic brand receivers having the SLT protocol*. * Make sure optional receivers have the genuine SLT protocol before use with the TTX610.

  • Page 4: Ttx610 Transmitter

    TTX610 TRANSMITTER (Tx) The TTX610 is available in either a “Mode 2” configuration with NORMAL STICK CONFIGURATIONS throttle on the left and elevator on the right, or “Mode 1” configuration LEFT RIGHT with throttle on the right and elevator on the left. Be sure the radio STICK STICK purchased is of the correct mode.

  • Page 5: Flight Controls

    FLIGHT CONTROLS GIMBAL STICKS Ball-bearing construction allows both sticks to provide the ultimate in smooth, precise control. Stick length can be adjusted for optimum feel and control. Using a 5/64 inch hex wrench, loosen the set screw inside the tip of the stick. Rotate the stick tip counter-clockwise to lengthen or clockwise to shorten the stick.

  • Page 6: Channel 6

    CHANNEL 6 This channel offers three-position non-proportional control, and is often used for control of airplane flaps for full up, center, and full down positions. This switch as shown on page 3 can also be used to change the sensitivity setting of gyros or other accessory items.

  • Page 7: Trainer Function

    TRAINER FUNCTION The TTX610 Tx includes both wired and wireless trainer functions. IMPORTANT! Before flying the model in training situations it’s important to make sure all channel reverse settings and trim adjustments on the teacher and student transmitters match! Otherwise, the model could suddenly veer in an unwanted manner when the teacher’s trainer switch is activated.

  • Page 8: Elevon And V-Tail Mixing

    ELEVON and V-TAIL MIXING The TTX610 includes elevon and v-tail mixing functions. The default setting for all mixing will be “off”, meaning functionality will be suitable for traditional airplane wings and a normal T-shaped tail. To change the mix setting: 1.

  • Page 9: Receiver And Flight Equipment Installation

    RECEIVER and FLIGHT EQUIPMENT INSTALLATION (if applicable) RECEIVER (Rx) Link Button Mount the Rx as specified in the model’s CH6 Auxiliary (Flaps) instructions. Wrapping the Rx with foam CH5 Auxiliary (Landing Gear) rubber can help to prevent damage CH4 Rudder resulting from vibration but could prevent CH3 Throttle (ESC or Servo) adequate airflow from passing over the Rx.

  • Page 10: Combustion Models

    COMBUSTION MODELS Individual “AA” NiCd or NiMH rechargeable batteries can be installed in the included battery holder to power the flight electronics (do not use alkaline cells). An optional rechargeable battery pack could instead be used. See the SERVOS AND ACCESSORIES section on page 12 for suggested options. The included switch harness can conveniently turn power ON/OFF to the flight electronics.

  • Page 11: System Check And Operation

    SYSTEM CHECK and OPERATION WARNING! Always make sure that power is applied to the transmitter BEFORE applying power to the receiver and servos, and the Tx throttle stick is at minimum (idle) position. Failure to do so could result in the model becoming uncontrollable and cause a safety hazard. During all pre- flight preparations, do not stand the Tx upright on the ground.

  • Page 12: Safety Guide

    3. Move the Tx throttle stick to minimum position, then turn on the Tx power switch. Turn on the power switch in the model or connect the flight battery. 4. During the first flight, it might be necessary to re-trim the aileron, elevator, and rudder channels to allow the airplane to sustain smooth, even flight.

  • Page 13: Specifications

    SPECIFICATIONS TTX610 TRANSMITTER Channels: 6 Frequencies: 2.403 – 2.480GHz Modulation: FHSS spread spectrum Input power: four “AA” alkaline, NiCd, or NiMH cells (not included) Output power: < 0.1W Power indicators: LED, with low voltage alarm Reversing switches: DIP switches, all channels Trims: digital for each channel Antenna: built-in non-removable Charge jack: built-in (Futaba compatible, for use with optional NiCd or NiMH cells)

  • Page 14: Troubleshooting

    FAILSAFE NOT WORKING CORRECTLY: Rx not properly linked to the Tx – re-link and re-try. Contact Hobby Services for further details. WIRELESS TRAINER FUNCTION NOT LINKING: Confirm that another 2.4GHz SLT system is not on in your area. The teacher’s and student’s transmitters were not powered in the proper sequence or are positioned too far from each other.

  • Page 15: Ce Compliance Information For The European Union

    CE COMPLIANCE INFORMATION FOR THE EUROPEAN UNION Instructions for Disposal of Waste Equipment by Private Users in the European Union: This symbol on the product or its packaging indicates this product must not be disposed of with other household waste. Instead, it is the user’s responsibility to dispose of their waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment.

  • Page 16: Year Limited Warranty

    1-YEAR LIMITED WARRANTY Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes.
