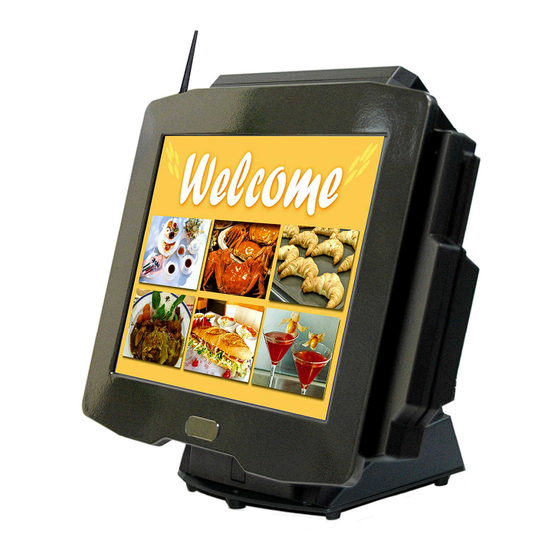

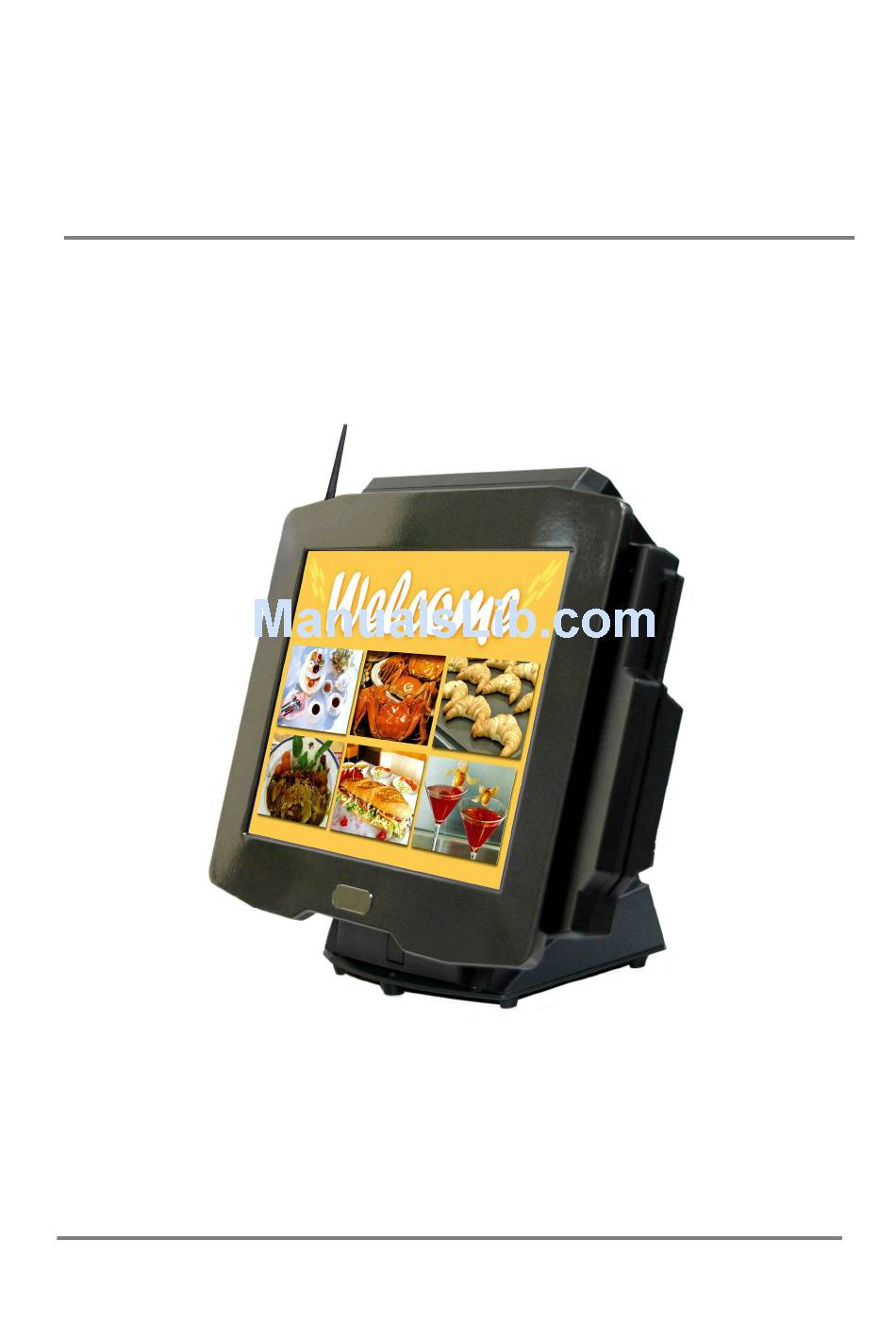

- Page 1 iSPOS series User’s Manual (Rev.1.0)
-
Page 2: Safety Statements
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from iSPOS Series User’s manual... - Page 3 2.412 ~ 2.472 GHz: Europe (ETSI) 1 ~ 11 for North America Operating Channels 1 ~ 13 for Europe (ETSI) 11b:18dBm +/- 1dBm(peak) RF Output Power 11g: 20dBm +/- 1dBm(peak) Antenna Dipole antenna. Supply Voltage 3.3V iSPOS Series User’s manual...
-
Page 4: Table Of Contents
6. TROUBLESHOOTING..................... 24 6.1 General Troubleshooting................24 6.2 LCD Troubleshooting..................24 6.3 Disk Drive Troubleshooting ................. 25 6.4 RAM Troubleshooting................... 25 6.5 Serial Port Troubleshooting ................. 25 6.6 Error Messages ..................... 26 CAUTION........................27 PRECAUTION ......................28 iSPOS Series User’s manual... -
Page 5: Specification
1. SPECIFICATION Overall Dimensions iSPOS Series User’s manual... - Page 6 1 x Compact Flash type II socket for CF card 4 × RJ-48 Com Port (COM3 ~ 6) System Two SODIMM DDR2 socket/ 1GB up to 2GB DDR2 533 Memory: Ethernet: REALTEK RTL8111C (10/100/1000) Ethernet Controller Supports wake up-on-LAN function iSPOS Series User’s manual...
- Page 7 47 ~ 63Hz Input Current 100-240Vac 1.5A Output Voltage +12Vdc 5A Operating 0°C to 40°C temperature Size 120mm(L) x 60mm(W) x 38mm(H) Enclosure Water & Dust Protection (IP Rating): IP66 Note: Specifications are subject to change without notice. iSPOS Series User’s manual...
-
Page 8: Terminal Overview And Operation
Features : IP66, Water and Dust Ventless Design Proof Robust Aluminum Ergonomic Design Casing VESA Mount standard Fanless Design Removable Hard Disk Peripheral / Customer Display (Option) Sub Nano Coating Wireless LAN iSPOS Series User’s manual... - Page 9 Overview – iSPOS VFD Interface Cover Card Reader Antenna Interface Cover HDD Cover Indicator Push ON Switch Foot(5x) EXT USB iSPOS (Option) Reader Removable (Option) Hard Disk Drive iSPOS Series User’s manual...
-
Page 10: Lcd Angle Adjust
Drivers are provided which allow the touch screen to emulate mouse operation; therefore most mouse driven applications will accept input from the touch screen. iSPOS Series User’s manual... -
Page 11: Removable Hard Disk Drive
B. Do Not insert the HDD into the iSPOS without the HDD Cover installed or damage to the HDD and/or the iSPOS will occur. C. The iSPOS power must be switched off before inserting or removing the HDD iSPOS Series User’s manual... -
Page 12: Connectors
Bottom View – I/O Connector Location AUDIO USB(2x) AC POWER PS2 K/B PRINTER or VGA COM 6 COM 3 COM 4 COM 5 Chassis Inner View Fastener(2x) AUDIO COM 3 COM 4 COM 5 COM 6 PRINTER or VGA PS2 K/B iSPOS Series User’s manual... - Page 13 Connector locations COM 6 PRINTER or VGA COM 5 USB(2X) COM 4 PS2 K/B COM 3 Audio DC Power CF Card Power Supply Enclosure Power Adapter Cover Velcro(2x) Sillica gel grommet Sillica gel plug Cable Fixing panel iSPOS Series User’s manual...
-
Page 14: Power On
LED will illuminate automatically. The unit’s mode can be determined by the Power Mode LED color. RED ------ AC Input OK Blue ------ Booting Mode 2.6 CF Card Installation and Removal 2.6.1 Insert CF card as diagram (1). Diagram (1) : CF card installation iSPOS Series User’s manual... -
Page 15: Wireless Lan Card Installation
2.6.2 Remove the CF card by pressing black button as indicated. 2.7 Wireless LAN Card Installation 2.7.1. Insert wireless LAN card into the unit. iSPOS Series User’s manual... - Page 16 2.7.2 Remove Antenna Cover from chassis. 2.7.3 Install the Water Sealing Washer and Antenna. Connect the Antenna Connector to Wireless LAN card. iSPOS Series User’s manual...
-
Page 17: Cash Drawer Board Installation
2.8 Cash Drawer Board Installation Install Cash drawer board as shown in diagram (2). Attach plastic standoffs followed by the plastic screws. plastic screw plastic boss plastic screw Diagram (2) : Cash drawer board installation. iSPOS Series User’s manual... -
Page 18: Installation
It can simply sit on the countertop, in which case care must be taken to ensure it cannot be knocked off the countertop when bumped. It can also be fixed to the countertop using the provided base unit or iSPOS Series User’s manual... -
Page 19: Mounting
Unscrew the two screws securing the base unit to the LCD panel. Separate the LCD Panel from the base unit by lifting the LCD panel. Screw(2x) Waterproof plug(2x) Use four M4 screws to secure iSPOS LCD panel onto any VESA standard mounting bracket or arm. iSPOS Series User’s manual... - Page 20 1. DC IN cable x 1 2. SCSI Printer cable x 1 3. RS232 x 4 4. LAN x 1 5. PS2/KB x 1 6. USB cable x 2 7. Audio cable x 1 8. Microphone cable x 1 iSPOS Series User’s manual...
- Page 21 Remember to allow for cable runs through the countertop and any shelving. Usually there will be two cables per device, one for power and one for data. iSPOS Series User’s manual...
-
Page 22: Rotation Disk Installation
If the table does not have a hole for the cables to run through, rubber feet (5) will need to be replaced so that there is enough space between the table and the unit for cables to run through. Foot(5x) Screw(5x) I/O Cable iSPOS Series User’s manual... -
Page 23: Regular Maintenance
If there is difficulty activating on screen buttons, the touch screen may need calibrating. Cleaning Clean with a soft, slightly damp cloth, wipe gently in a circular motion from center of the screen to outside edges. Do not use solvents or abrasives. iSPOS Series User’s manual... -
Page 24: Troubleshooting
LCD is not working properly. LCD screen not display. Check M/B SW2 (Display Mode) setting is properly. iSPOS Series User’s manual... -
Page 25: Disk Drive Troubleshooting
Also, Make sure the cable is connected securely at both the Upper Part and serial device.. Try another cable to see if the problem is resolved. Make sure the application software is sending data to the correct port. iSPOS Series User’s manual... -
Page 26: Error Messages
Make sure the battery is working properly. Run the CMOS Setup utility and enter the correct parameters CMOS display type mismatch Make sure the battery is working properly. Run the CMOS Setup utility and enter the correct parameters. iSPOS Series User’s manual... -
Page 27: Caution
If the Keyboard Loopback Plug has been lost, the Keyboard Y Cable can be used as an interim solution. Keyboard Loopback Plug Keyboard Y Cable iSPOS Series User’s manual... -
Page 28: Precaution
Always unplug the power cord from the AC outlet before cleaning the product. Use a soft cloth to clean the product. Do not use solvents or abrasives and do not spray or pour any liquid directly onto the product’s screen or case. iSPOS Series User’s manual...
