Senor ISPOS Series Engineering Note

Hide thumbs Also See for ISPOS Series:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

ENGINEERING NOTE 090514_HDD
POS to Perfection

Purpose / Warnings

This document describes the Hard drive
Removal & Replacement procedure for the
ISPOS / KDS, series of Senor POS terminal.
Read this document before commencing, if anything is unclear contact Senor.
Ensure work area is clean
Follow normal anti-static practices.

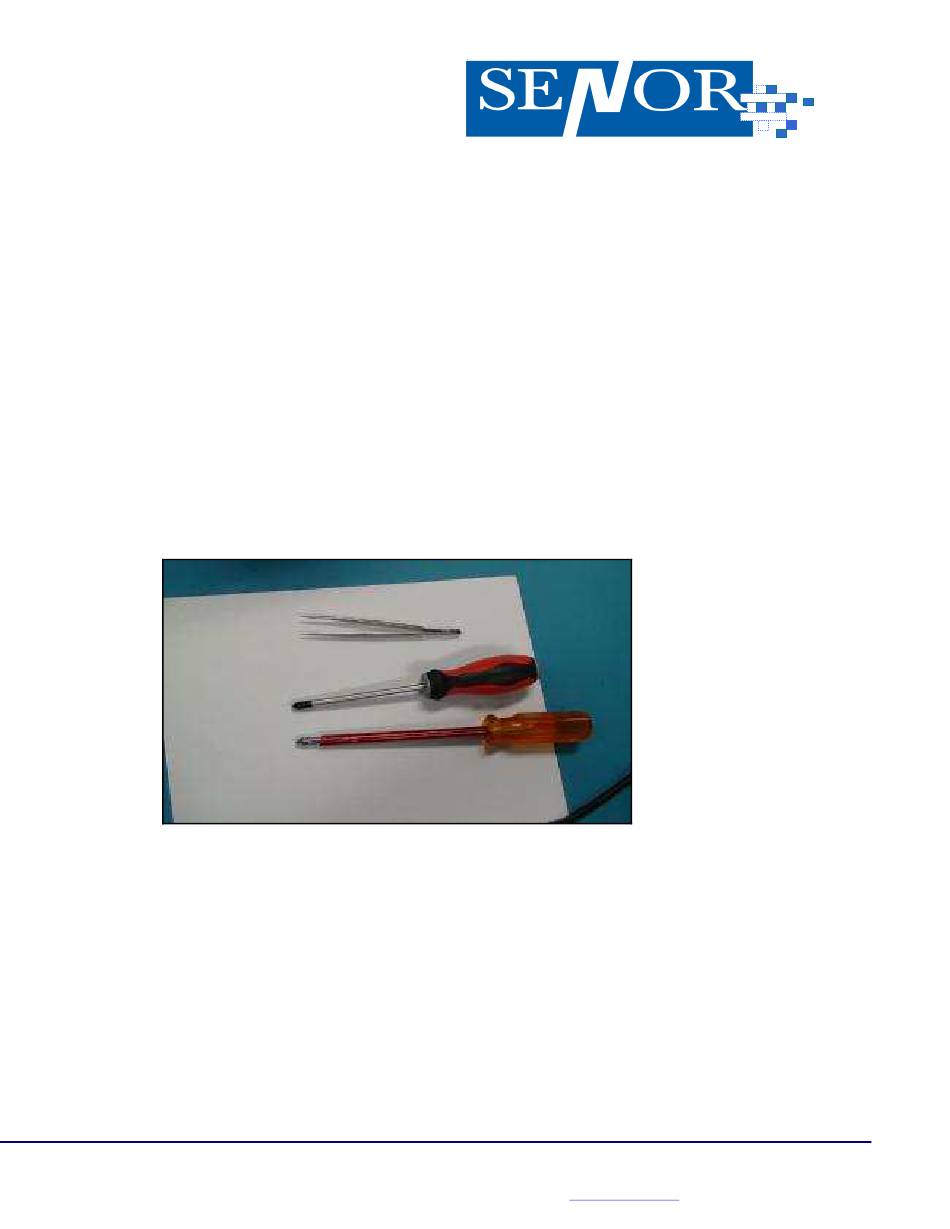

Parts & Tools
No: 2 Medium Phillips Head screwdriver
No: 1.5 Medium Phillips Head screwdriver
Tweezers

Procedure

Ensure unit is powered off and disconnected from mains power
Disconnect all peripheral device data cables from the POS ports; take note of
their location for
Reinstall if needed.
Remove the rubber grommets to gain access to the Drive carrier retaining
screws as shown below
Senor Tech Pty Ltd ABN:54093127765
65 Weaver Street, Coopers Plains, QLD, 4108 Australia
Telephone: +61 7 3275 5888
Facsimile: +61 7 3275 5800
www.senortech.com.au
support@senortech.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISPOS Series and is the answer not in the manual?

Questions and answers

Related Manuals for Senor ISPOS Series

Summary of Contents for Senor ISPOS Series

  • Page 1 This document describes the Hard drive Removal & Replacement procedure for the ISPOS / KDS, series of Senor POS terminal. Read this document before commencing, if anything is unclear contact Senor. Ensure work area is clean Follow normal anti-static practices.
  • Page 2 Using the no: 2 Medium Phillips Head screwdriver Remove the Drive carrier retaining screws As shown below Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia Telephone: +61 7 3275 5888 Facsimile: +61 7 3275 5800 www.senortech.com.au...
  • Page 3 Using Thumb or Finger nail grip the Drive Carrier & gently slide The Drive Carrier out of the terminal as shown below Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia Telephone: +61 7 3275 5888 Facsimile: +61 7 3275 5800 www.senortech.com.au...
  • Page 4 ENGINEERING NOTE 090514_HDD POS to Perfection Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia Telephone: +61 7 3275 5888 Facsimile: +61 7 3275 5800 www.senortech.com.au support@senortech.com.au...
  • Page 5 POS to Perfection Locate the phillips screw holding the Drive to the Carrier Using the No:1.5 Medium Phillips Head screwdriver remove the carrier screws Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia Telephone: +61 7 3275 5888 Facsimile: +61 7 3275 5800 www.senortech.com.au...
  • Page 6 Fit the new Drive into the Drive carrier tighten the screws until the screw heads are flush with the carrier, (this allows the drive to slide in the carrier’s slots) Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia...
  • Page 7 Reverse the dismantling procedure Replace the rubber grommet and ensure the surface is flush with the plastic carrier as shown below Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia Telephone: +61 7 3275 5888 Facsimile: +61 7 3275 5800 www.senortech.com.au...
  • Page 8 Ensure that unit boots into OS OK check for touch screen operation Shut down & connect peripheral devices Power up again, check system operation thoroughly Senor Tech Pty Ltd ABN:54093127765 65 Weaver Street, Coopers Plains, QLD, 4108 Australia Telephone: +61 7 3275 5888 Facsimile: +61 7 3275 5800 www.senortech.com.au...
