Front Panel Controls & Features (Ssa-10000) - Ahuja SSA-1000 Operation Manual

30
1
2
1. MIC-1 Input Jack Socket
For accepting unbalanced signal from a low
impedance microphone.
2. MIC-3 Volume Control
3. MIC-2 Input Jack Socket
4. MIC-4 Volume Control
5. MIC-3 Input Jack Socket
6. MIC-5/AUX-1 Switch
7. MIC-4 Input Jack Socket
8. MIC-5 Input Jack Socket
9. MIC-6/AUX-2 Switch
10. MIC-6 Input Jack Socket
11. MIC-7/AUX-3 Switch
12. MIC-7 Input Jack Socket
13. MIC-8/AUX-4 Switch
14. MIC-8 Input Jack Socket
15. BASS Control
For attenuating or boosting the signal level of low
frequencies.
16. BOX SPEAKER / DRIVER UNIT Selector
Switch
17. TREBLE Control
For attenuating or boosting the signal level of
high frequencies.

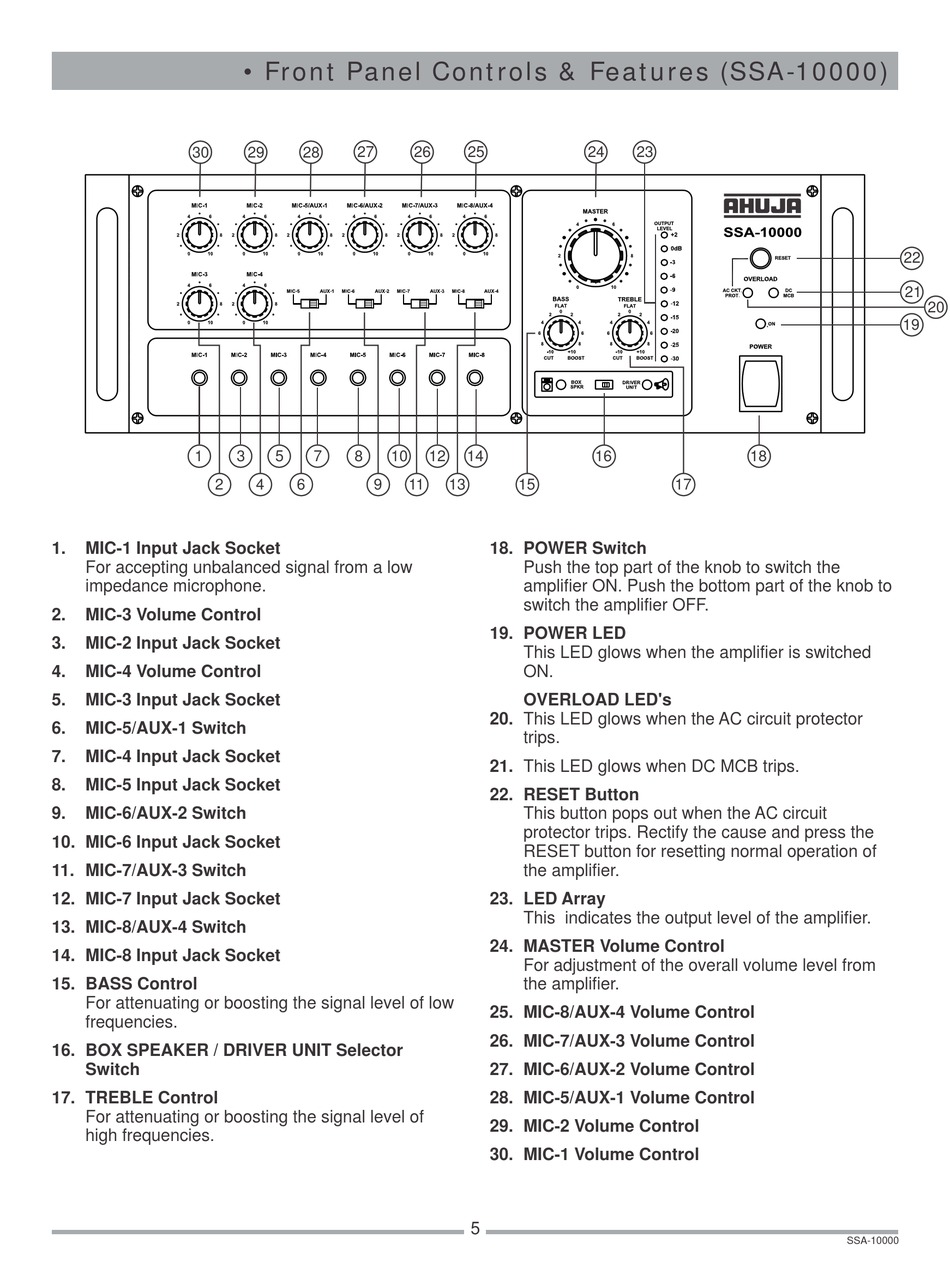

• Front Panel Controls & Features (SSA-10000)
29 28 27 26
3 5 7 8 10
4 6 9 11
25 24
12 14 16
13 15
18. POWER Switch
Push the top part of the knob to switch the
amplifier ON. Push the bottom part of the knob to
switch the amplifier OFF.
19. POWER LED
This LED glows when the amplifier is switched
ON.
OVERLOAD LED's
20. This LED glows when the AC circuit protector
trips.
21. This LED glows when DC MCB trips.
22. RESET Button
This button pops out when the AC circuit
protector trips. Rectify the cause and press the
RESET button for resetting normal operation of
the amplifier.
23. LED Array
This indicates the output level of the amplifier.
24. MASTER Volume Control
For adjustment of the overall volume level from
the amplifier.
25. MIC-8/AUX-4 Volume Control
26. MIC-7/AUX-3 Volume Control
27. MIC-6/AUX-2 Volume Control
28. MIC-5/AUX-1 Volume Control
29. MIC-2 Volume Control
30. MIC-1 Volume Control
5
23
18
17
22
21
20
19
SSA-10000
