Summary of Contents for Crystal Image KVM-IP8

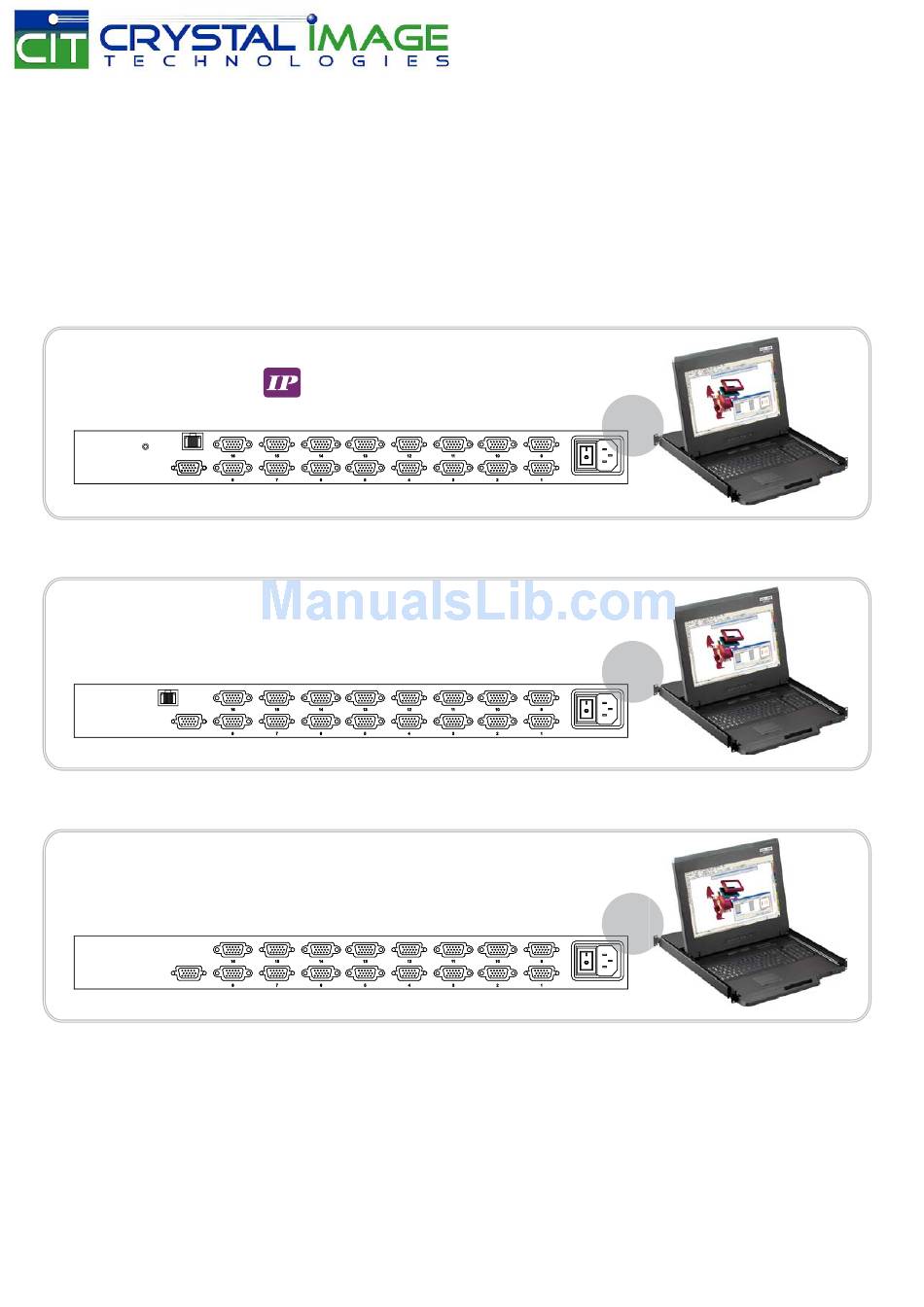

- Page 1 KVM switch and rackmount screen technology User Manual - KVM Rear Kit Version for LCD Console Drawer KVM-IP8 Combo DB-15 KVM-IP16 back KVM-S8-2 Combo DB-15 2-console KVM -16-2 back KVM-S8 Combo DB-15 KVM KVM-S16 back UM-CV-751-SKVM-KIT-Q113V1 www.rackmountsales.com...
-
Page 2: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 3: Table Of Contents
Contents < Part 1 > Combo DB-15 KVM Kit KVM-IP KVM-IP16 Package contents KVM port connection IP console connection IP console setting KVM Cascade Specifi cations < Part 2 > Combo DB-15 2-console KVM Kit KVM-S8-2 KVM-S16-2 Package contents KVM port connection Remote console connection P.7 - 8 KVM Cascade... -
Page 4: Part 1 > Combo
< Part 1 > Combo DB-15 < 1.1 > Package Content < 1.1 > Package Contents Combo DB-15 IP KVM KVM-IP8 KVM-IP16 KVM Rear Kit back The power of the KVM rear kit may be changed to external power design based on the LCD console drawer series and model. -
Page 5: Kvm Port Connection
< 1.2 > KVM port connection Combo DB-15 IP KVM KVM-Combo-6 / -10 / -15 CE-6 / CE-10 / CE-15 CE-6 / CE-10 / CE-15 USB Servers ■ ■ 6 / 10 / 15 ft Combo KVM cable 6 / 10 / 15 ft Combo KVM cable ■... -
Page 6: Ip Console Setting
< 1.4 > IP console setting Combo DB-15 IP KVM After the cable connection, please take the following steps to confi gure the IP KVM : 1. Download IPKVMsetup.exe from the link: www.austin-hughes.com/support/utilities/cyberview/IPKVMsetup.exe 2. Double click IPKVMsetup.exe to confi gure the IP KVM by device setup as below. 3. -
Page 7: Kvm Cascade
< 1.5 > KVM Cascade Combo DB-15 IP KVM ■ Cascade up to 8 levels, 128 servers ■ Cascading multiple KVM with CBC-6 cascade cable. Cascaded KVMs from level 2 to 8 must be the models of KVM-S8 / KVM-S16. When multiple combo DB-15 KVMs cascade together, the master KVM at level 1 will take all control of other slave KVM switches (e.g. -
Page 8: Specifi Cations
< 1.6 > Specifi cations Combo DB-15 IP KVM KVM-IP8 KVM-IP16 KVM Port ▀ Number of ports: 8 or 16 Connector: DB-15 combo connector Connectivity: Combo 4-in-1 KVM cable, up to 6, 10 & 15 feet Local Console Nil for LCD console drawer version ▀... -
Page 9: Part 4. Usage
Part 4. Usage Combo DB-15 KVM Usage 4.1 KVM Button Power ON ■ Turn off all servers and KVM switches ■ Make sure all cables / connectors are properly connected ■ Recommend Power ON sequence is monitor, KVM switch fi nally computer Front Panel - Port LED Indications Front Panel - Port LED Indications 8 ports... -
Page 10: Password
< 4.2 > Password Combo DB-15 KVM Usage The password is enabled by default, the default password is “00000000” eight zeros (Do not use “0” on number pad) ■ Enable password Scroll Lock + Scroll Lock + U Press the KVM hotkey Scroll Lock + Scroll Lock + P Logout the KVM by pressing the hotkey In SUPERVISOR level, enter “00000000”... -
Page 11: Kvm Osd
< 4.3 > KVM OSD Combo DB-15 KVM Usage OSD Menu OSD operation next to the system name The PC is powered on next to the system name The PC is selected Access F1 MAIN MENU Logout the OSD menu Previous menu Cancel / Quit Enter... -
Page 12: Kvm Hotkey & Remote Console Hotkey
< 4.4 > KVM Hotkey & Remote Console Hotkey Combo DB-15 KVM Usage Local Console Hotkey Function Scroll Lock + Scroll Lock + Space Bar Calling OSD menu Right-button mouse + Esc Calling OSD menu Scroll Lock + Scroll Lock + Switch to previous port Scroll Lock + Scroll Lock + Switch to next port... -
Page 13: Dc Power 12V, 24V, 48V Input
< 4.5 > DC Power 12V, 24V, 48V Input Combo DB-15 KVM Usage Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA... - Page 15 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. UM-CV-751-SKVM-KIT-Q113V1 www.rackmountsales.com...
