Summary of Contents for Crystal Image RM-116-1U

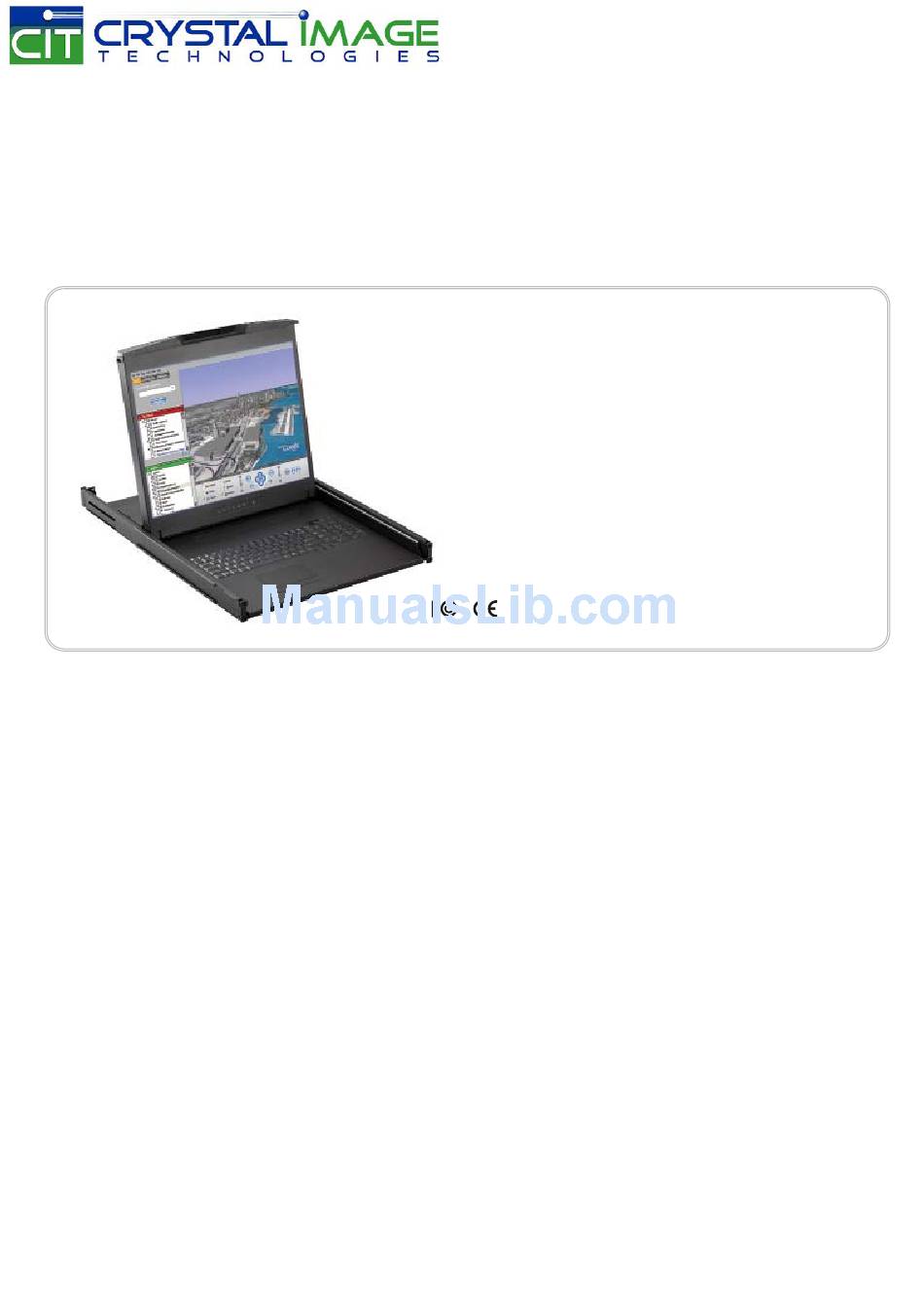

- Page 1 KVM switch and rackmount screen technology User Manual 20” 1600 x 1200 LCD RM-116-1U 1U LCD Console Drawer Options : - AV / DVI-D / HDMI / Audio - Full Range KVM - DC power UM-CV-751-116-Q113V1 www.rackmountsales.com...
-
Page 3: Legal Information
Legal Information First English printing, October 2002 Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment. -
Page 4: Table Of Contents
Contents < Part. 1 > RM-116-1U Package Content Structure Diagram & Dimension P.1 - 2 Installation P.3 - 4 Connection < Part. 2 > Specifi cations / OSD Product Specifi cations P.6 - 7 Keyboard / Mouse Specifi cations On-screen Display Operation ( OSD ) P.9 - 10... - Page 5 Contents < Part. 4 > KVM Integration www.rackmountsales.com/v/pdf/citumcat5m.pdf Matrix Local Remote 8-port 16-port 32-port Cat6 KVM Cat5M-IP116-3 Cat5M-IP132-3 Cat5M-IP216-4 Cat5M-IP232-4 Cat5M-16-2 Cat5M-32-2 Cat5M-16-3 Cat5M-32-3 Cat5M-16-4 Cat5M-32-4 www.rackmountsales.com/v/pdf/citumcat5.pdf Combo Local Remote 8-port 16-port 32-port Cat6 KVM Cat5-IP08 Cat5-IP16 Cat5-IP32 Cat5-08-2 Cat5-16-2 Cat5-32-2 Cat5-08 Cat5-16...
-
Page 6: Before Installation
Before Installation ■ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ■ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive dust, dirt, heat, water, moisture and vibration. Unpacking The equipment comes with the standard parts shown in package content. -
Page 7: Package Content
< Part 1 > < 1.1 > Package Content RM-116-1U unit X 1 - CE-6 6ft Combo KVM cable X 1 - Power cord X 1 - M6 screw, cage nut & cup washer X 8 The above package content is only for the single console models. - Page 8 Weight 439.6 x 650 x 44 mm 595 x 860 x 140 mm 14.5 kg 22 kg RM-116-1U 17.3 x 25.6 x 1.73" 23.4 x 33.9 x 5.5” 32 lb 48 lb The weight is only for the single console models. It varies with accessories & options such as KVM, HDMI, DVI-D, AV, audio &...
-
Page 9: Installation
< 1.3 > Installation - How to install 1U 20" LCD Tray RM-116-1U Step ■ Attach the left and right mounting bracket to Rear side Right bracket rack 19" mounting rails. ■ Adjust the mounting bracket to fi t your rack. - Page 10 < 1.3 > Installation- How to use the drawer ■ Press the handle button and slide out the drawer. ■ Flip up the LCD to a suitable angle. ■ Operate the LCD console drawer. UM-CV-116-Q113V1 www.rackmountsales.com...
-
Page 11: Connection
< 1.4 > Connection to PS/2 or USB Server RM-116-1U LCD console drawer LCD console drawer Combo Combo KVM cable KVM cable PS/2 server USB server < 1.4 > Connection to external KVM LCD console drawer LCD console drawer Combo... -
Page 12: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations Manufacturer Panel Panel Size ( diagonal ) 20-inch TFT color LCD Display pixel ( dots x lines ) 1600 x 1200 Brightness ( typ. ) Contrast Ratio ( typ. ) 800:1 Color 16.7 M... - Page 13 RM-116-1U Environmental Operating Temperature 0 to 50°C degree Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to û °C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 439.5 x 650 x 44 mm...
-
Page 14: Keyboard / Mouse Specifi Cations
< 2.2 > Keyboard / Mouse Specifi cations keyboard integrated with touchpad Key force 55 ± 5g Travelling distance 3 ± 0.3mm Switch life > 10 million life cycle time Software support MS Windows 7 / 2008 / 2003 / 2000 / XP / ME / 98 / DOC Linux / Mac Supporting layouts America... -
Page 15: On-Screen Display Operation ( Osd )
< 2.3 > On-screen Display Operation ( OSD ) RM-116-1U Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 16 < 2.3 > On-screen Display Operation ( OSD ) OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc:...
- Page 17 < Part 3 > < 3.1 > Options : - HDMI ( HDMI 1.1, CEA-861-D ) - DVI-D ( DVI-D TMDS single link ) - AV ( S-Video + Composite, BNC ) - Audio ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) For AD2.2 upgrade, either HDMI or DVI-D is provided.
- Page 18 < 3.2 > Options : DC Power Model Input rating Input voltage: 12-Volt 24-Volt 48-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. UM-CV-751-116-Q113V1 www.rackmountsales.com...
