Summary of Contents for Aquatek WP-A1908

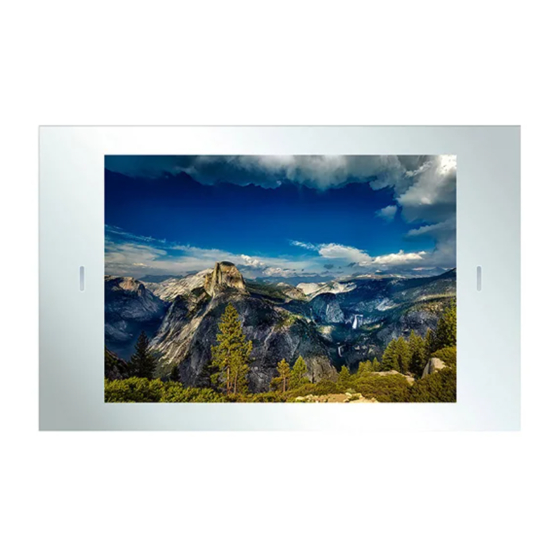

- Page 1 19” Advanced Bathroom TV Product Code: WP-A1908 Instructions Manual...
-
Page 2: Table Of Contents
Table of Contents Safety Guidelines Package Contents Television Dimensions Ports and Connectors Technical Specifications Installation Guidelines Installation Instructions – In Wall Installation Method Installation Instructions – On Wall Installation Method Front Panel Overview Remote Control Overview Remote Control Key Functions OSD Menu User Guide - 1.1 Input Source Menu OSD Menu User Guide - 1.2 Channel Menu OSD Menu User Guide - 1.3 Picture Menu... -
Page 3: Safety Guidelines
Safety Guidelines This Aquatek Bathroom TV has been rated under IP65 Waterproof Classification. The item should not be exposed to harsh weather conditions. For safety reasons we advise that no objects are placed on top of the television unit once installed. -
Page 4: Package Contents
Package Contents Bathroom Television Waterproof Remote Control 12V Power Adapter and Wired Plug User Manual and Installation guide Installation Bracket VESA Bracket (Optional Extra) -
Page 5: Television Dimensions
Television Dimensions... -
Page 6: Ports And Connectors
Ports and Connectors... -
Page 7: Technical Specifications
Technical Specifications Product 19” Advanced Bathroom TV Model Number WP-A1908 Display Screen Size 19” Screen Type Resolution 1920 x 1080 pixels Brightness 350 cd/m2 Aspect Ratio 16:9 Contrast Ratio 1000:1 Colour Depth 16.77 million Viewing Angle 178 / 178 (H / V) -
Page 8: Installation Guidelines
Installation Guidelines • We advise that a professional body should install our bathroom televisions. We do not take any liability for the television being installed incorrectly and then causing damage or harm to the installer or user. • Please do not open or tamper with the television, as this can break the television seal, which may lead to water penetrating the internal parts of the television. -
Page 9: Installation Instructions - In Wall Installation Method
Installation Instructions – In Wall Installation Method... -
Page 10: Installation Instructions - On Wall Installation Method
Installation Instructions – On Wall Installation Method... -
Page 11: Front Panel Overview
Front Panel Overview Button Action RC Sensor The infrared signal interceptor for the remote controller. LED Power (ON/OFF) The television will display a red light when the unit is on Stand- By and a green light when the television is ON. -
Page 12: Remote Control Overview
Remote Control Overview • The waterproof remote controller comes with two AAA/1.5A batteries ready installed. • The remote controller doesn’t need syncing to the television. • To control the television with the remote controller, simply aim the controller at the television. If there are barriers between the remote controller and television the response may be delayed or non-existent. -
Page 13: Remote Control Key Functions
USB Mode ~ play the previous program USB Mode ~ play the next program USB Mode ~ play the next program COLOURED COLOURED Teletext Selector Teletext Selector BUTTONS BUTTONS Visit www.aquatek.tv or email enquiries@aquatek.tv for more information Visit www.aquatek.tv or email enquiries@aquatek.tv for more information... -
Page 14: Osd Menu User Guide - 1.1 Input Source Menu
OSD Menu User Guide - 1.1 Input Source Menu Press the INPUT button to display the input source menu. Press▼ / ▲to select the input source you want to select. Press the OK button to enter the input source. Press the EXIT button to quit. -
Page 15: Osd Menu User Guide - 1.2 Channel Menu
OSD Menu User Guide - 1.2 Channel Menu Press the MENU button to display the main menu. Press ▼ / ▲ buttons to select CHANNEL in the main menu. Press ▼ / ▲ buttons to select the option that you want to adjust in the CHANNEL menu. Press the OK button to adjust. -
Page 16: Osd Menu User Guide - 1.3 Picture Menu
OSD Menu User Guide - 1.3 Picture Menu Press the MENU button to display the main menu. Then press ▼/▲ buttons to select PICTURE in the main menu. Press ▼ / ▲ buttons to select the option that you want to adjust in the PICTURE menu. Press the OK button to adjust. -
Page 17: Osd Menu User Guide - 1.4 Sound Menu
OSD Menu User Guide - 1.4 Sound Menu Press the MENU button to display the main menu. Press ▼ / ▲ buttons to select SOUND in the main menu. Press ▼ / ▲ buttons to select the option that you want to adjust within the SOUND menu. Press ◄... -
Page 18: Osd Menu User Guide - 1.5 Setup Menu
OSD Menu User Guide - 1.5 Setup Menu Press the MENU button to display the main menu. Press ▼ / ▲ buttons to select SETUP in the main menu. Press ▼ / ▲ buttons to select the option that you want to adjust. Press ◄... -
Page 19: Osd Menu User Guide - 1.6 Media Source Menu
OSD Menu User Guide - 1.6 Media Source Menu Please Note: Before operating the Media menu, Plug in the USB device then press the INPUT button to set the Input Source to Media. Press ▼ / ▲ buttons to select Media in the Source menu, then press the OK button to enter. Press ◄... - Page 20 MUSIC MENU Press ◄ / ► buttons to select the MUSIC option in the main menu, then press the OK button to enter. Press the menu button to return back to the previous menu and exit the menu to quit. Press ◄...
-
Page 21: Troubleshooting
Troubleshooting If you are experiencing problems with your television please read through all the troubleshooting points below before contacting the provider. Problem Subjects Possible Solutions • Check that there is a green light on the mains power cable – transformer. •... -
Page 22: Warranty Details
Warranty Details • All Aquatek bathroom televisions are guaranteed to be free from defects in parts and manufacture for 2 years from the date of purchase, provided that the product is used under the normal operating conditions stated within the manual. - Page 23 Notes...
- Page 24 Visit www.aquatek.tv or email enquiries@aquatek.tv for more information...
