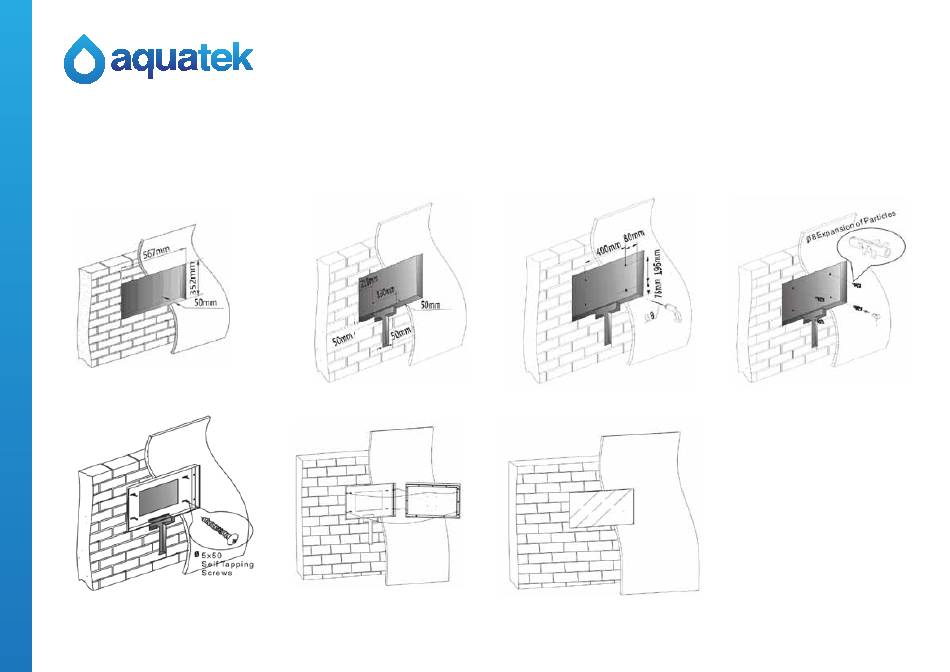

1. Create an opening within the chosen area

of the wall. Opening dimensions: 567mm x

352mm x 50mm (W x H x D).

Visit

www.aquatek.tv

or email

Installation Instructions

2. Create a channel within the wall below the

TV recess, which allows the cables to drop

into. Channel width: 50mm.

enquiries@aquatek.tv

for more information

3. Place the in-wall bracket into the recess

and use the 4 x pilot holes to drill into the

wall. Place the 4 x raw plugs into the holes

that have been drilled and screw the bracket

into position.

19" Bathroom Mirror TV

4. Oﬀer the TV up to the bracket that is ﬁxed

within the wall. Line up the 4 x metal lugs

located on the side of the TV case with the 4

x channels located within the in-wall bracket

and simply push the TV into situ.

Table of Contents

Do you have a question about the WP-A1908 and is the answer not in the manual?

Page 1: Installation Instructions
TV case with the 4 that have been drilled and screw the bracket x channels located within the in-wall bracket into position. and simply push the TV into situ. Visit www.aquatek.tv or email enquiries@aquatek.tv for more information...
Page 2 3. Simply oﬀer the TV up to the wall and slide the two pieces of with the 4 x screws provided. Create each hole 8mm in radius the television with the provided screws. the bracket into one another. and 40mm deep. Visit www.aquatek.tv or email enquiries@aquatek.tv for more information...
