Road Mate 7202 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
®

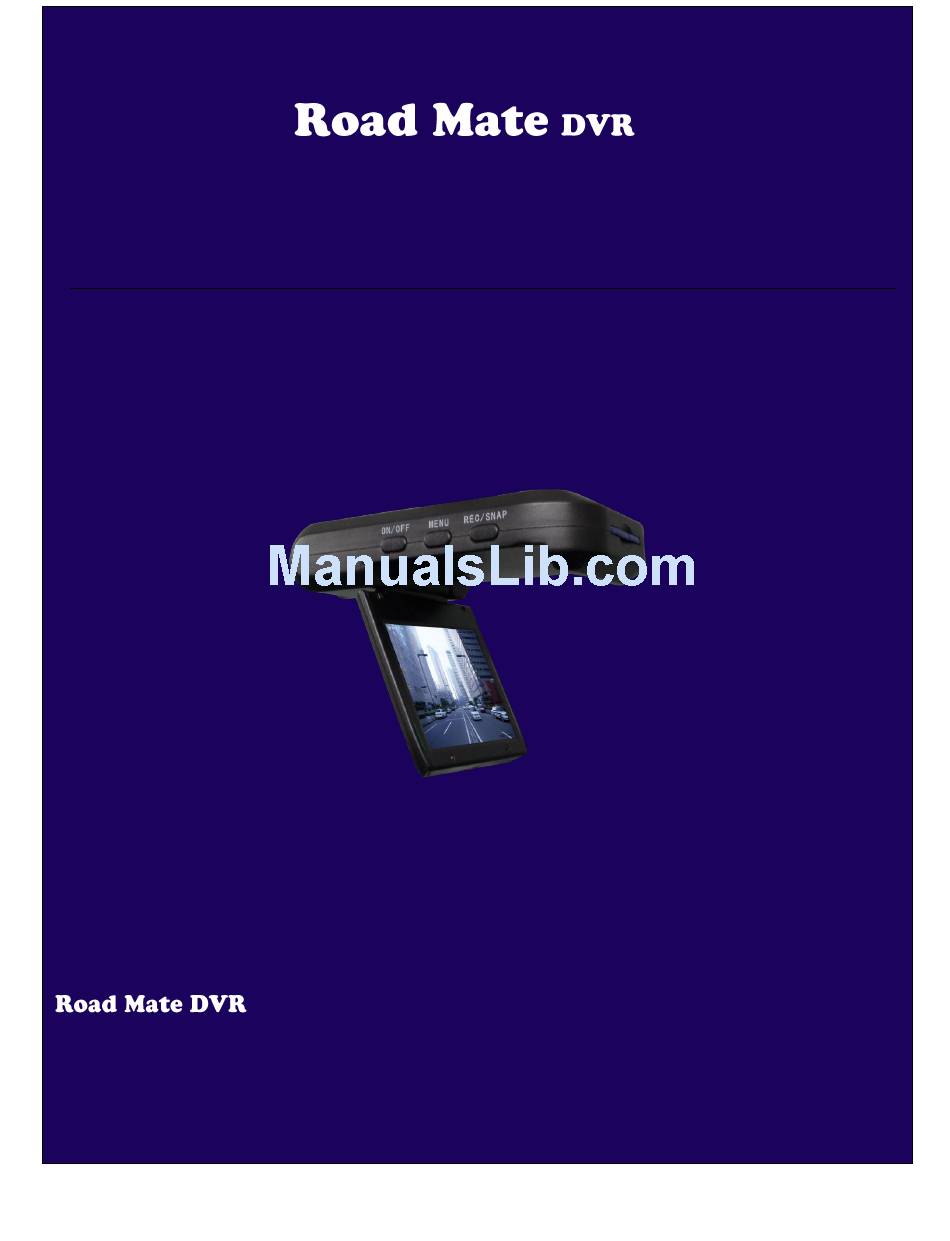

User's Manual
Model: 7202

Key Features

© 2011 All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Road Mate
DVR.
Road Mate
makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No
DVR
liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Features and specifications are subject to change without notice.
All other products and brand names are trademarks of their respective holders. No part of this user manual may be reproduced or
1
transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other
than the purchaser's personal use.
Revised : 01-01-2015

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7202 and is the answer not in the manual?

Questions and answers

Related Manuals for Road Mate 7202

Summary of Contents for Road Mate 7202

  • Page 1: Key Features

    Model: 7202 Key Features © 2011 All rights reserved. Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Road Mate DVR. Road Mate makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.

  • Page 2: Table Of Contents

    Table of Contents BEFORE USING YOUR CAR DVR Package Contents Memory Cards Supported Handling Cautions TECHNICAL SPECIFICATIONS AND FUNCTIONS Specifications Functions IMPORTANT SAFETY WARNINGS IMPORTANT SAFETY WARNINGS Operating Temperature Battery Warnings Insert SDHC Memory Card Charging your car DVR QUICK START GUIDE 3 Easy steps CONFIGURATION Introducing Your car DVR...

  • Page 3: Before Using Your Car Dvr

    BEFORE USING YOUR DRIVING RECORDER Thank you for purchasing Road Mate This user manual provides you with information to get DVR. started. Please read carefully and follow the instructions to connect and set up your car DVR. You may review the troubleshooting FAQs on last page.

  • Page 4: Memory Cards Supported

    1. This device is a precision instrument. Do not drop it or subject it to physical shock. 2. This device is not waterproof and cannot be used underwater. If this device gets wet, wipe off any water droplets with a dry cloth, and promptly consult Road Mate DVR customer service (info@roadmatedvr.com).

  • Page 5: Technical Specifications And Functions

    TECHNICAL SPECIFICATIONS AND FUNCTIONS This cost-effective car DVR saves you money by preventing false claims towards you. It is a compact, face-forward digital recording system, records video/audio in case of any accidents or incidents that may have taken place and prevents false or fraudulent claims. This compact, lightweight car DVR is fitted to your vehicle windshield in order to record forward view during your journey.

  • Page 6: Important Safety Warnings

    Please consult your legal counselor if you involved in an accident. 2. It is your responsibility to comply with traffic laws and to use or mount the Road Mate DVR in such a manner that is compliance with applicable laws.

  • Page 7: Operating Temperature

    (-10°C ~70°C). When storing the device for an extended time, store within the following temperature range: 32°F to 77°F (0°C~25°C).  If using an external battery charger, only use the Road Mate DVR accessory approved for your product.  Only replace the battery with the correct replacement battery. Using another battery presents a risk of fire or explosion.

  • Page 8: Insert Sdhc Memory Card

    Insert SDHC Memory Card  Insert your SDHC memory card to the rear of car DVR (refer photo below). Adjust suction mount Connecting your car DVR  No pre-charge needed. Connect the car charger that comes with the package, between the car DVR and your vehicle cigarette lighter.

  • Page 9: Quick Start Guide

    QUICK START GUIDE 3 easy steps Installation of the Road Mate DVR is very easy and simple. Please read the safety guidelines carefully. Install suction mount  Find a safe location on the interior of vehicle’s windshield to mount the pedestal.
  • Page 10 Follow all safety guidelines for operating your device. Failure to practice safe usage of this device while driving may result in damage, injury, or death. Road Mate DVR is not responsible for any damages caused to your car, your device, or yourself due to the installation or use of...

  • Page 11: Configuration

    CONFIGURATION Introducing Your car DVR MENU: Indicates a function can be changed by pressing the button to changing the settings. DOWN: Indicates the navigation down button, by pressing the button. UP: Indicates the navigation up button, by pressing the button. button and change to “Video MODE: Indicates a mode can be changed by pressing the mode”, “Photo mode”, “Voice recorder mode”...

  • Page 12: Operations

    Operations ■ Power on Ignite your car engine to power on the car DVR or press button. ■ Manual Recording For manual recording, press the button. ■ Pause Recording While recording video, you may press button to pause recording. ■ Switch Mode & Display the Menu ■...

  • Page 13: Screen Display Status

    Screen Display Status...

  • Page 14: Display The Menu

    Access the Setting Menu Press the button to display the Menu. *. While video is recording, press button to pause, and then press button to access Menu. Accessing Video Mode Settings & Configurations 1. Under video mode ( ), press the button to access setup interface.

  • Page 15: Date Stamp

    ■ Date Stamp: Allows you to add current date/time watermark on video. 1. To enable or disable date stamp on video, press button to select Date Stamp, and then press 2. Press to confirm. Press back to main menu. ■ Motion detection: Set this feature only when you are parking. (Set “Motion detection”...

  • Page 16: Delay Shutdown

    ■ Delay shutdown: Turns off the car DVR in “X” minutes after power is off. 1. Press button to select Delay shutdown, and then press button to select “Off”, “10 Min.”, “20 Min.” 2. Press 3. Press to confirm. Press back to main menu.

  • Page 17: Video Configurations

    ■ Frequency: To set the frequency of your player system. 1. Press button to select Frequency, and then press button. button to select “50Hz” or “60Hz”. 2. Press 3. Press to confirm. Press back to main menu. ■ Power saving: Power saving is the duration of time that this device screen remains idle. 1.

  • Page 18: Language

    ■ Language: Allows you to select the desired language of user interface. 1. Press button to select Language, and then press button. 2. Press button to select your language. 3. Press to confirm. Press back to main menu. ■ Video system: To select your video system. 1.

  • Page 19: Ir Led

    ■ IR LED: Allows you to set infrared LED to night vision. 1. To enable or disable IR LED. Press button to select IR LED (Infrared LED) on or off, and then press button to select “On” or “Off”. 2. Press 3.

  • Page 20: Quality

    ■ Quality: Allows you to set the resolution number of dots per inch in a image. ► Super Fine ► Fine ► Normal ■ Exposure: Allows you set the amount of light to fall on each area of image. ■ Timer: Allows you to set the respective function remains in effect for “Off”, “2 seconds”, “10 seconds”...
  • Page 21 ■ Delete: Allows you to delete one or all video file(s). ► One (To delete one selected video file) ► All (To delete all video files) You can either select and erase videos one by one or erase them in one batch. Once an image is erased, it cannot be recovered.

  • Page 22: Accessing Recorded Videos

    ACCESSING RECORDED VIDEOS Connecting Diagram Below diagram shows several ways to connect your car DVR to a TV unit and computer, and the ways to read your recorded video files. ■Accessing Files via Connecting USB Port to a Computer By connecting the car DVR to a computer, you can transfer videos and photos from the SDHC memory card.
  • Page 23 2. Press button to select MSDC, while the car DVR display as below 3. Additional window will appear your “SD Disk” folder. You may also find on “My Computer”. ■Accessing files via inset SDHC card to computer card reader 1. Remove your SDHC card from the car DVR 2.
  • Page 24 ■Viewing the live video on (Non-HD) TV set You can view the live video on a TV set. Simply connect the car DVR to a TV set via the AV output by using a RCA cable and enter the DVR into Preview mode. 1.

  • Page 25: How To Register My Product

    HOW TO REGISTER MY PRODUCT By registering your Road Mate DVR product, you will receive one year limited factory warranty from the date of purchase (refer one year limited warranty). Please visit the Road Mate DVR registration page online at http://www.roadmatedvr.com, then follow the steps below.
  • Page 26 3. Once your account is created, select “My Registered Products” as shown below. 4. Click “Register Product.”...
  • Page 27 5. Enter your product information on each field. Refer to the example below: a. Product Name: Road Mate DVR b. Code: 7202 (The model number) c. S/N: RM 12029 (Product serial number- it can be found on the rear side of the DVR.) d.

  • Page 28: One Year Consumber Limited Warranty

    Road Mate DVR products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Road Mate DVR will, at its sole option, repair or replace any components that fail in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.
  • Page 29 To obtain warranty service, please complete these easy steps: Contact our Technical Support to receive an RMA number. E-mail Road Mate DVR technical support. Describe the problem and request a Return Material Authorization (RMA) number. You will need to provide the unit's serial number (if applicable), your return shipping address and a daytime phone number.

  • Page 30: Troubleshooting And Faqs

    TROUBLESHOOTING AND FAQs If a problem occurs, first refer to this troubleshooting guide. If this troubleshooting guide does not resolve your problem, contact your dealer or Road Mate DVR service center (info@roadmatedvr.com) ■ Power related problems  The battery cannot be recharged.
  • Page 31 o Your SDHC memory card may slide to write-protect position. o Your SDHC memory card may have bad sectors. Format your SDHC memory card by following steps.  1. Press the button to display the menu.  2. To format your SDHC memory card. Press button to select Format, and then press button.
  • Page 32 ■ I use a Class 10 SDHC memory card, but when I play the video, it lags a little on my computer screen.  This is due to the data transfer rate between the car DVR to your computer or the reading/writing speed of card reader on your computer too slow.
  • Page 33 ■ What is the view angle of my car DVR? The view angle of lens is 120° wide angle. It takes the view in front of your vehicle without distortion.
