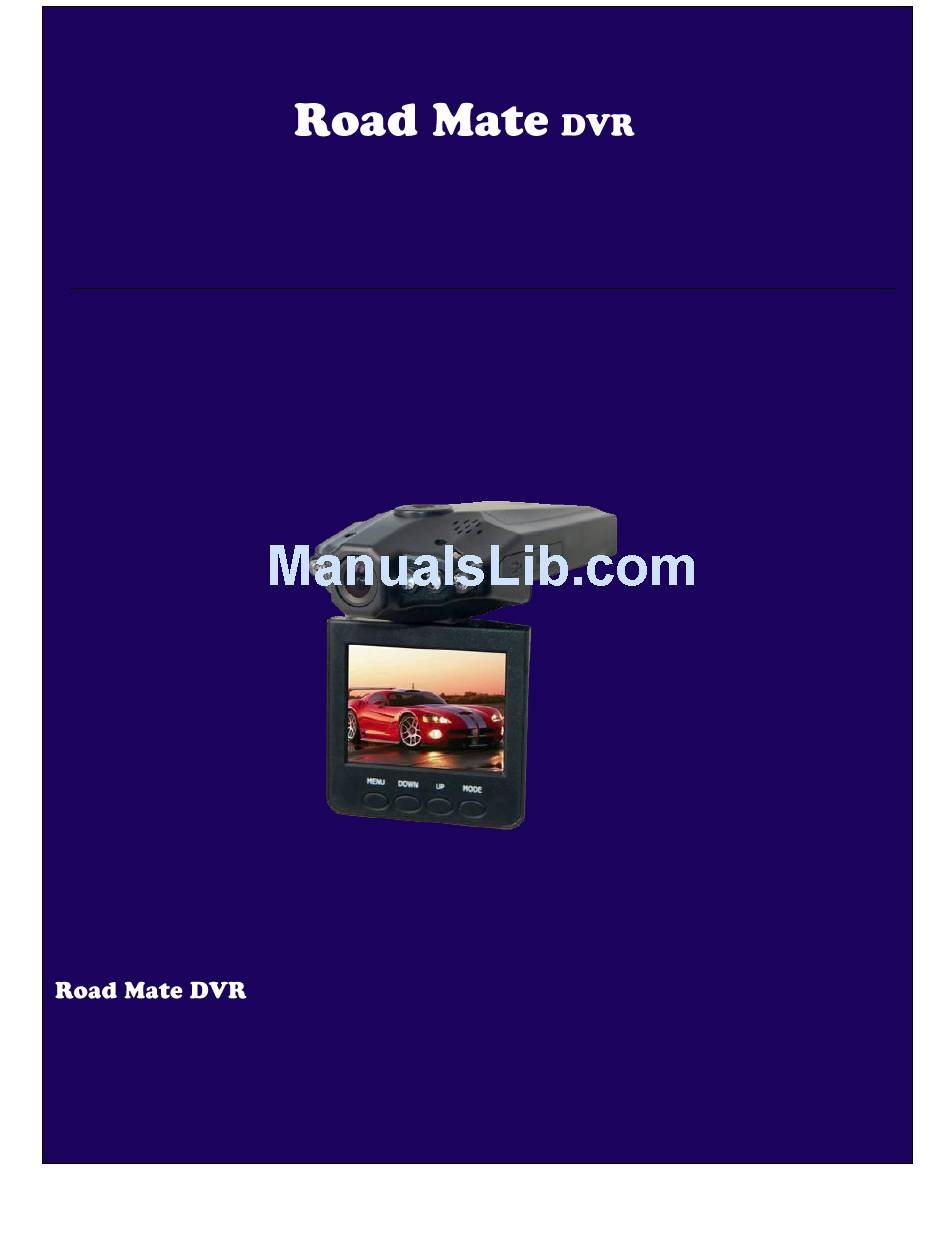

User's Manual
Model: L-640

Key Features

© 2011 All rights reserved.
Under the copyright laws, this manual may not be copied, in whole or in part, without the written consent of Road Mate
DVR.
Road Mate
makes no expressed or implied warranty of any kind and assumes no responsibility for errors or omissions. No
DVR
liability is assumed for incidental or consequential damages arising from the use of the information or products contained herein.
Features and specifications are subject to change without notice.
All other products and brand names are trademarks of their respective holders. No part of this user manual may be reproduced or
transmitted in any form or by any means, electronic or mechanical, including photocopying and recording, for any purpose other
1
than the purchaser's personal use.
Revised :01-01-2015
